R31-01

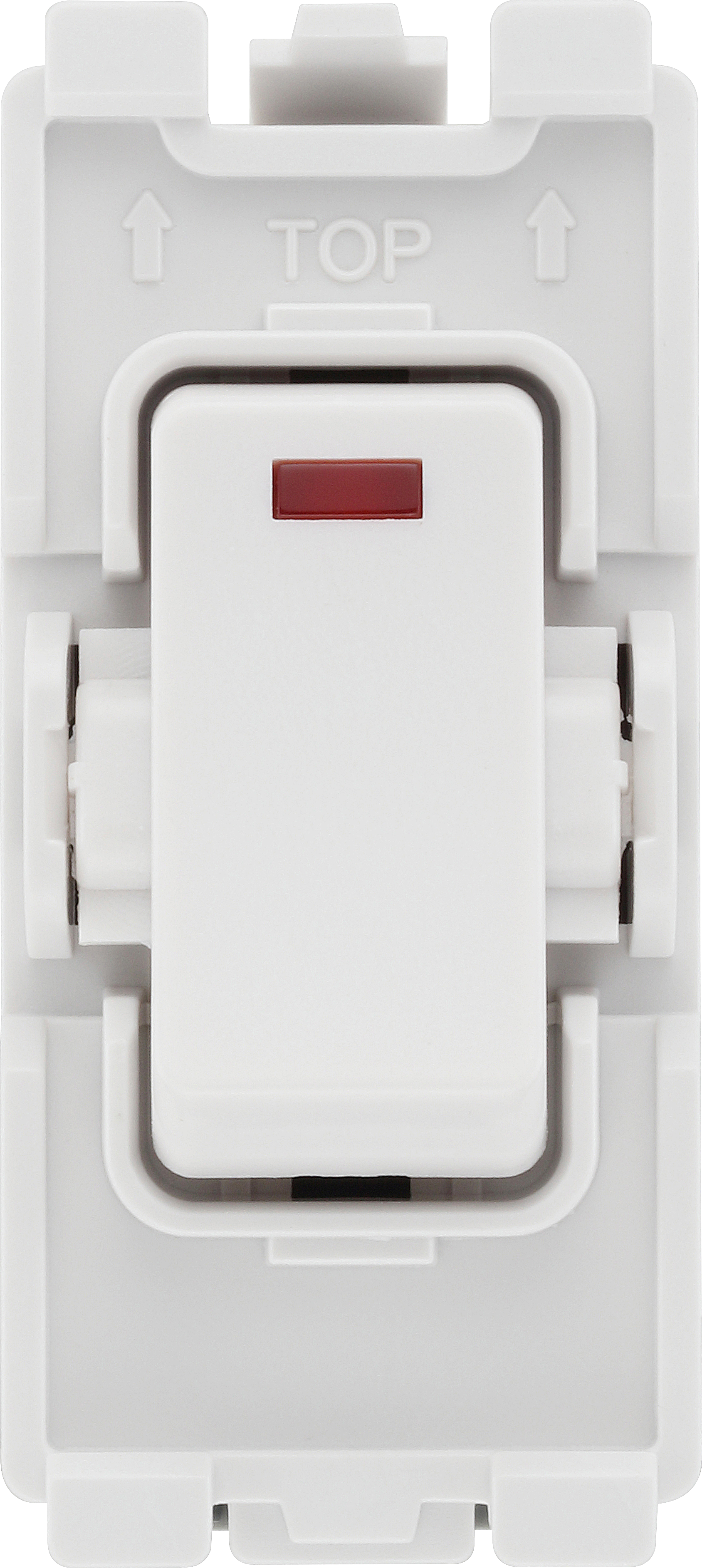

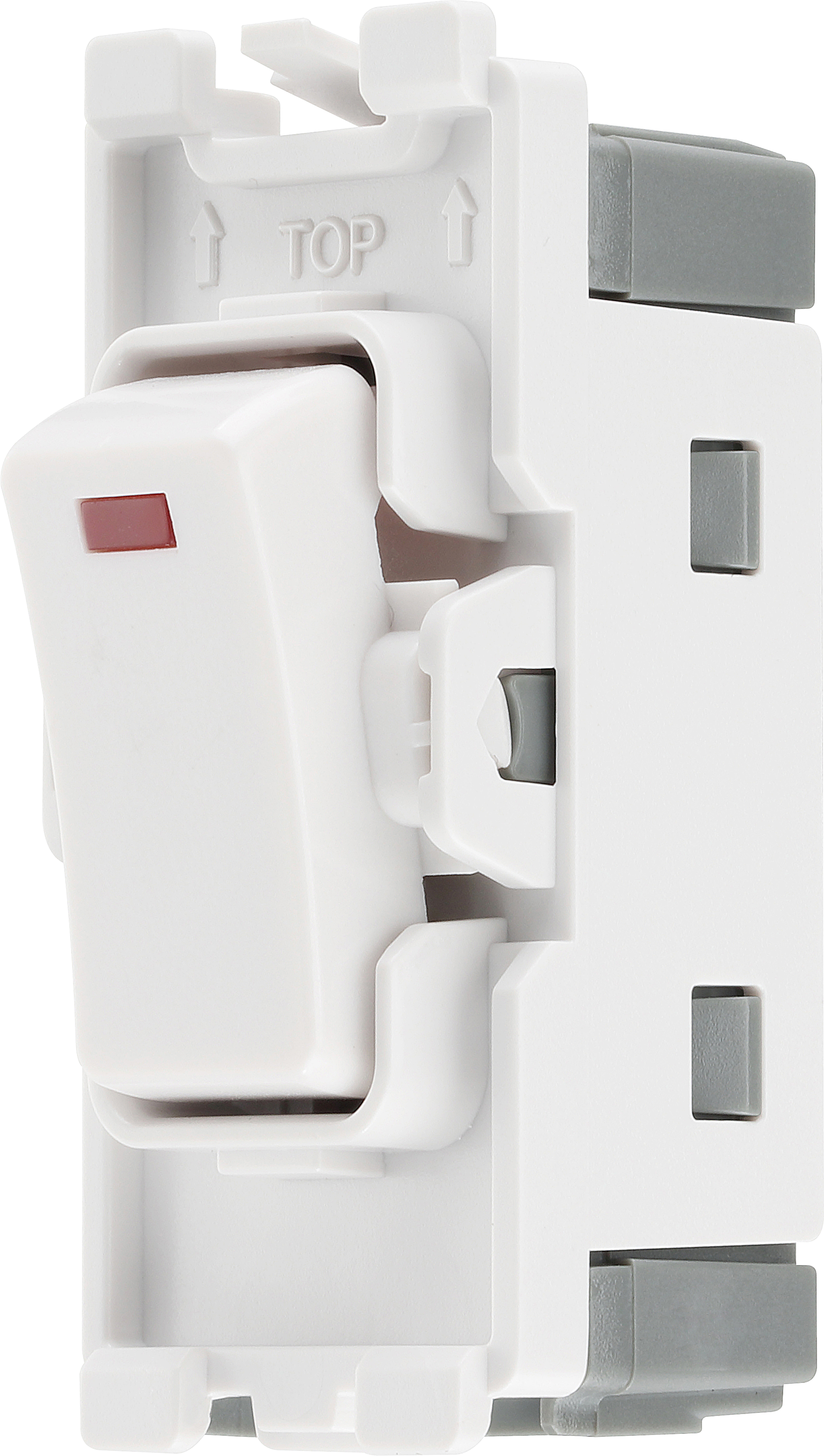

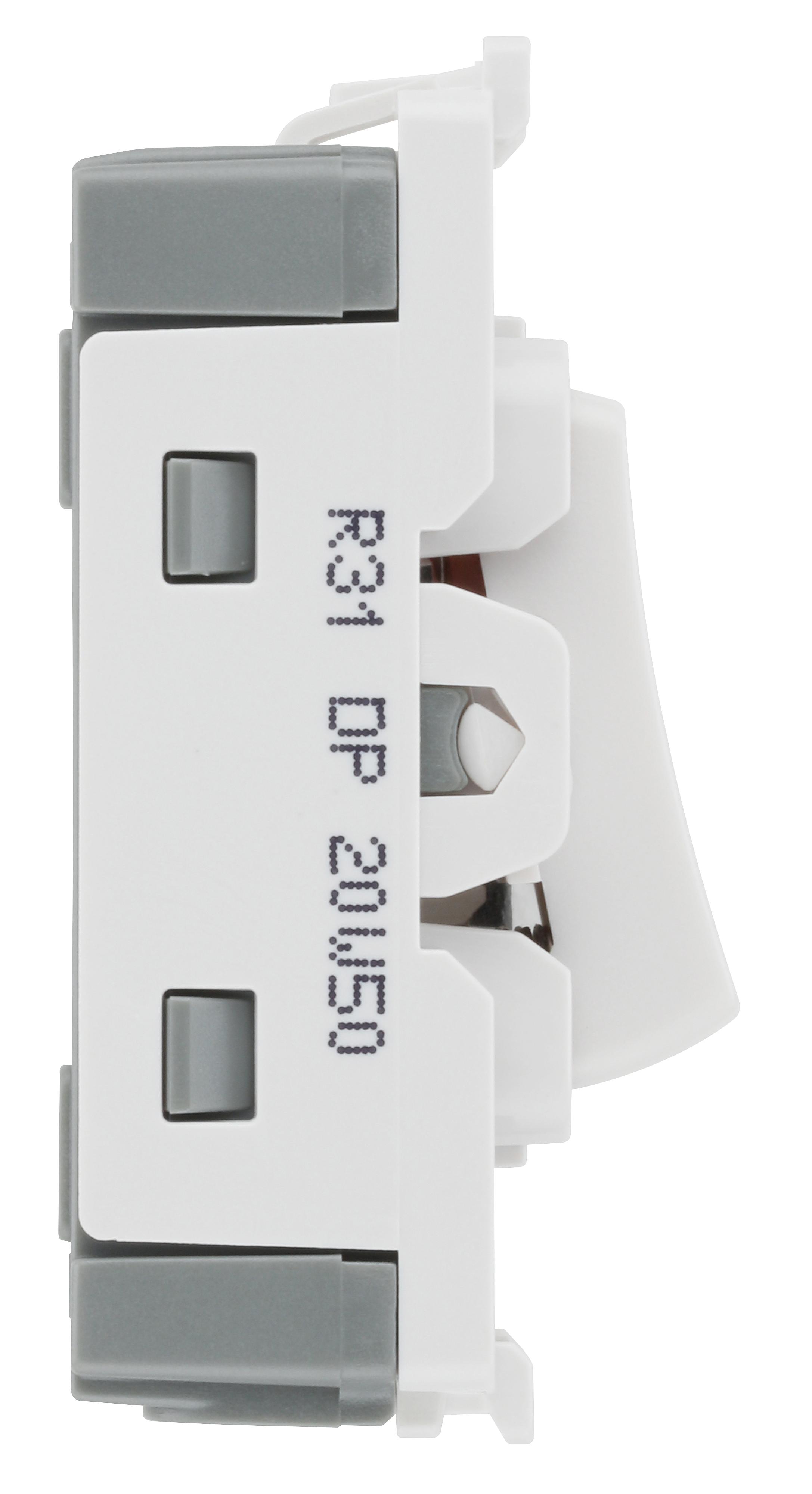

BG Grid 20A Switch Module Double Pole, LED Indicator, White
Simple secure 'locate & clip' fitting to frame
Double Pole switching for the peace of mind of a safer installation
LED Power Indicator
Captive backed out terminal screws for fast installation
Module to be installed with Grid frame and plate
Captive, backed out terminal screws for fast installation

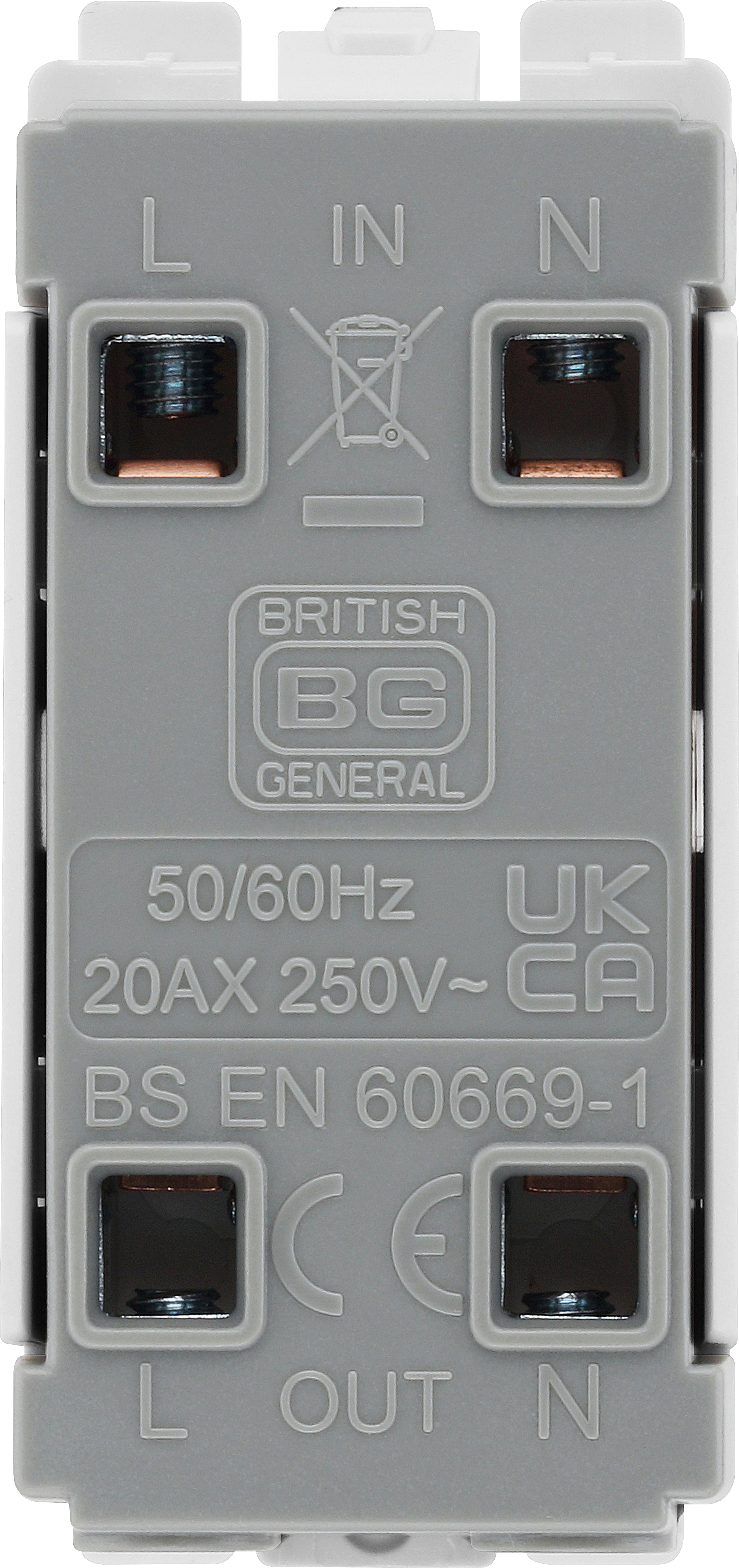

Clearly marked terminals for easy identification
0
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 2 x 2.5, 1 x 4, 1 x 6 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Not Applicable |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Not Applicable |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
