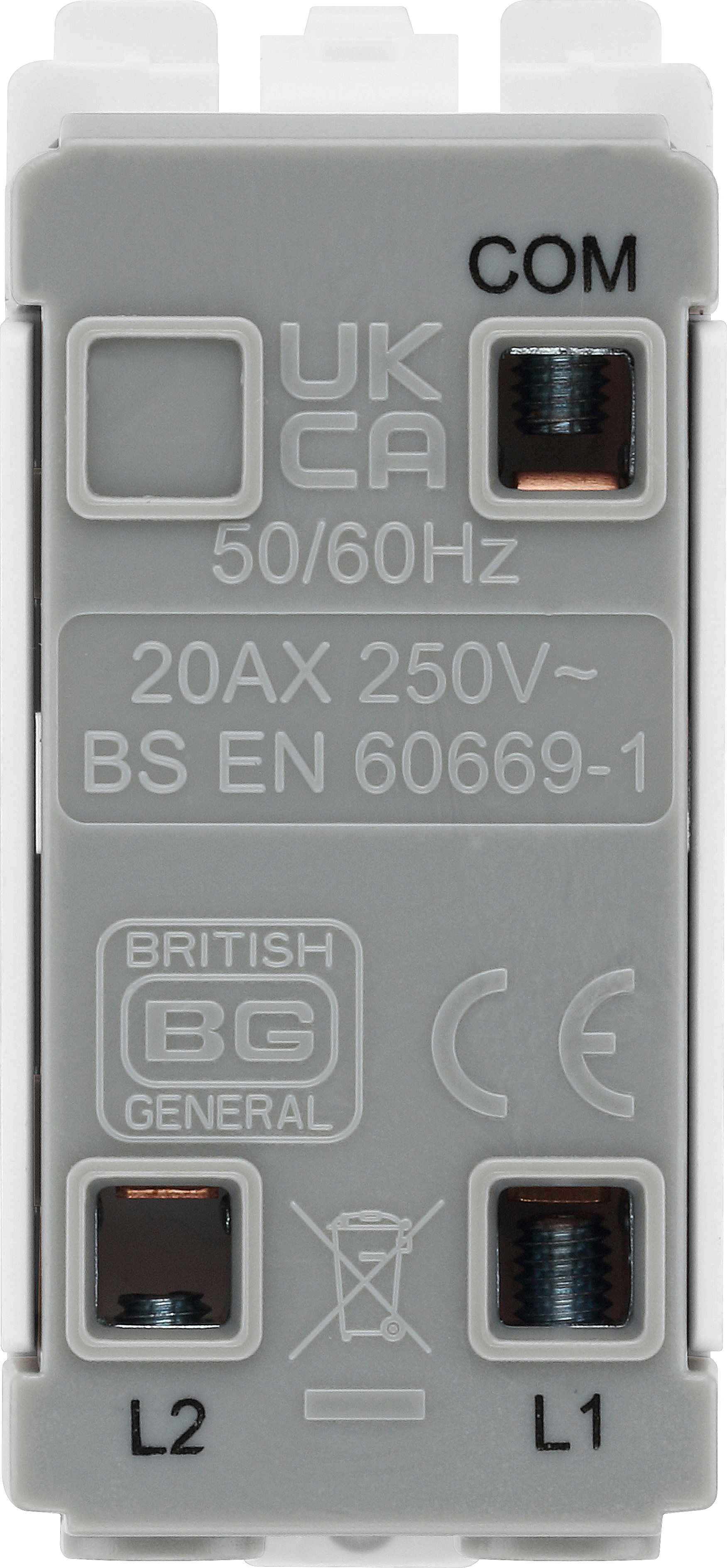

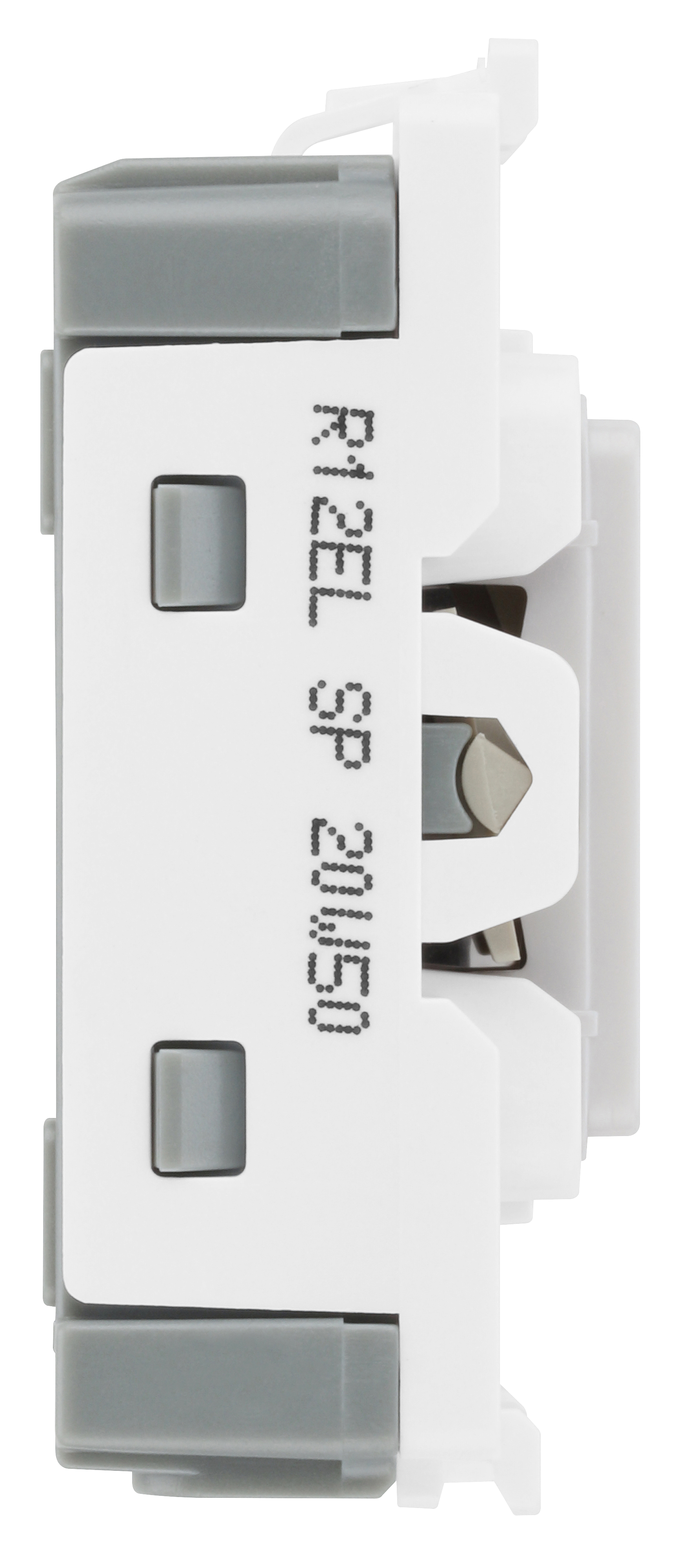

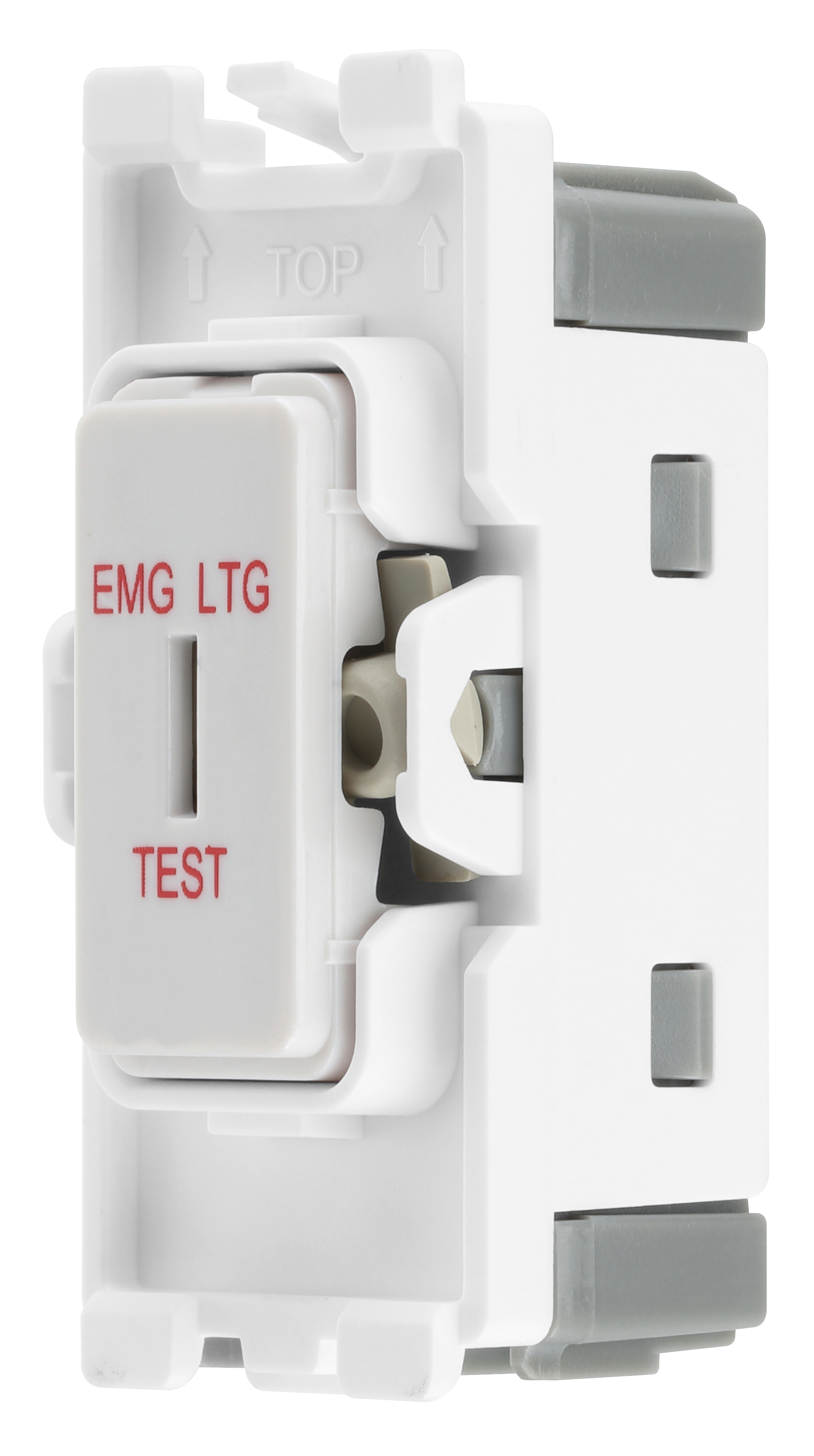

R12EL-01
BG Grid 20A Secret Key Switch Module 2 Way, Single Pole, Printed EMG LTG TEST, White
Simple secure 'locate & clip' fitting to frame
2 way switch allows for a second switch in the circuit
Prevent unauthorised persons interacting with the switch
Supplied with key, spare keys available

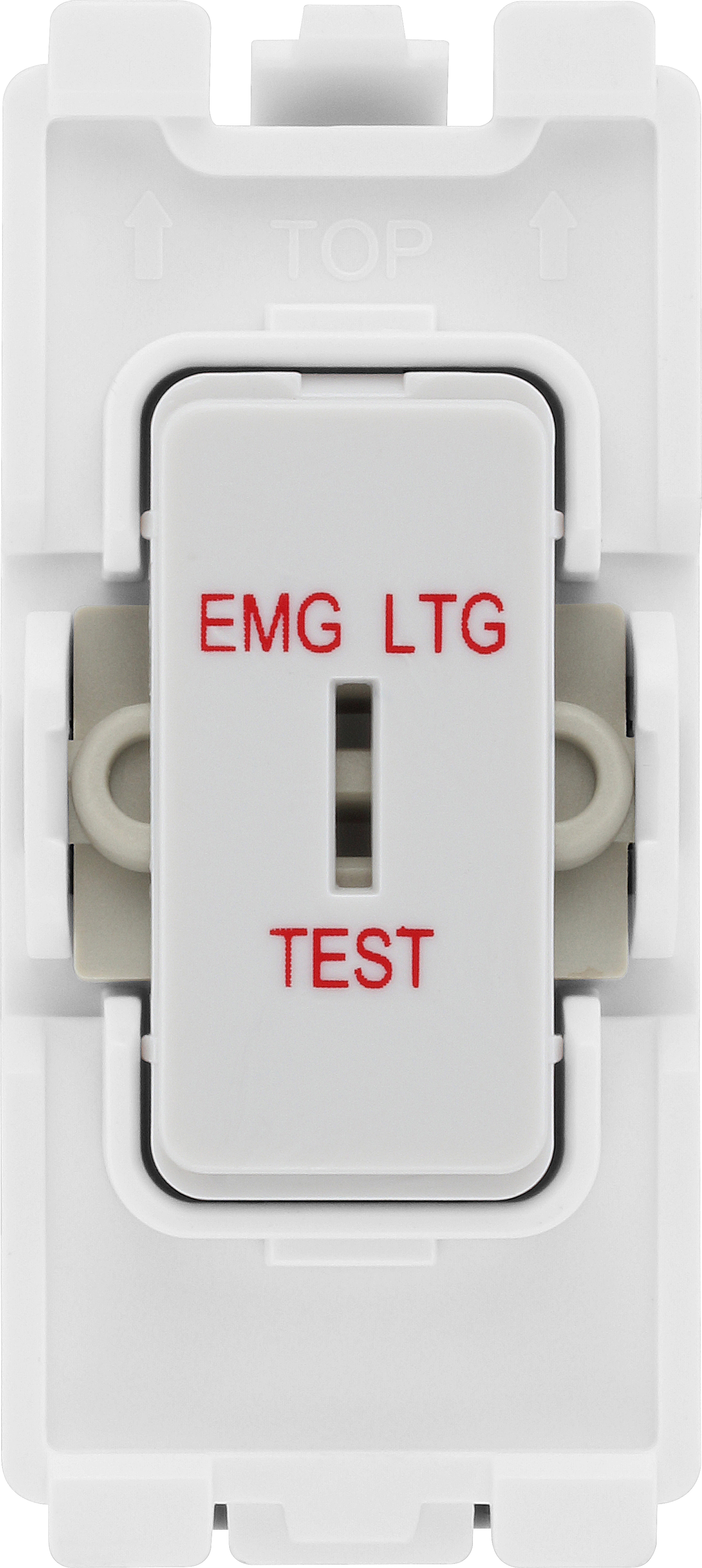

Marked 'EMG LTG TEST'
Captive backed out terminal screws for fast installation
Module to be installed with Grid frame and plate
Single pole
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 4 x 1.0, 4 x 2.5, 2 x 2.5, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Not Applicable |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Not Applicable |
| Switch Style Type | Key |
| Switch Type (Ways & Poles) | Single Pole |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
