FBS99G-01

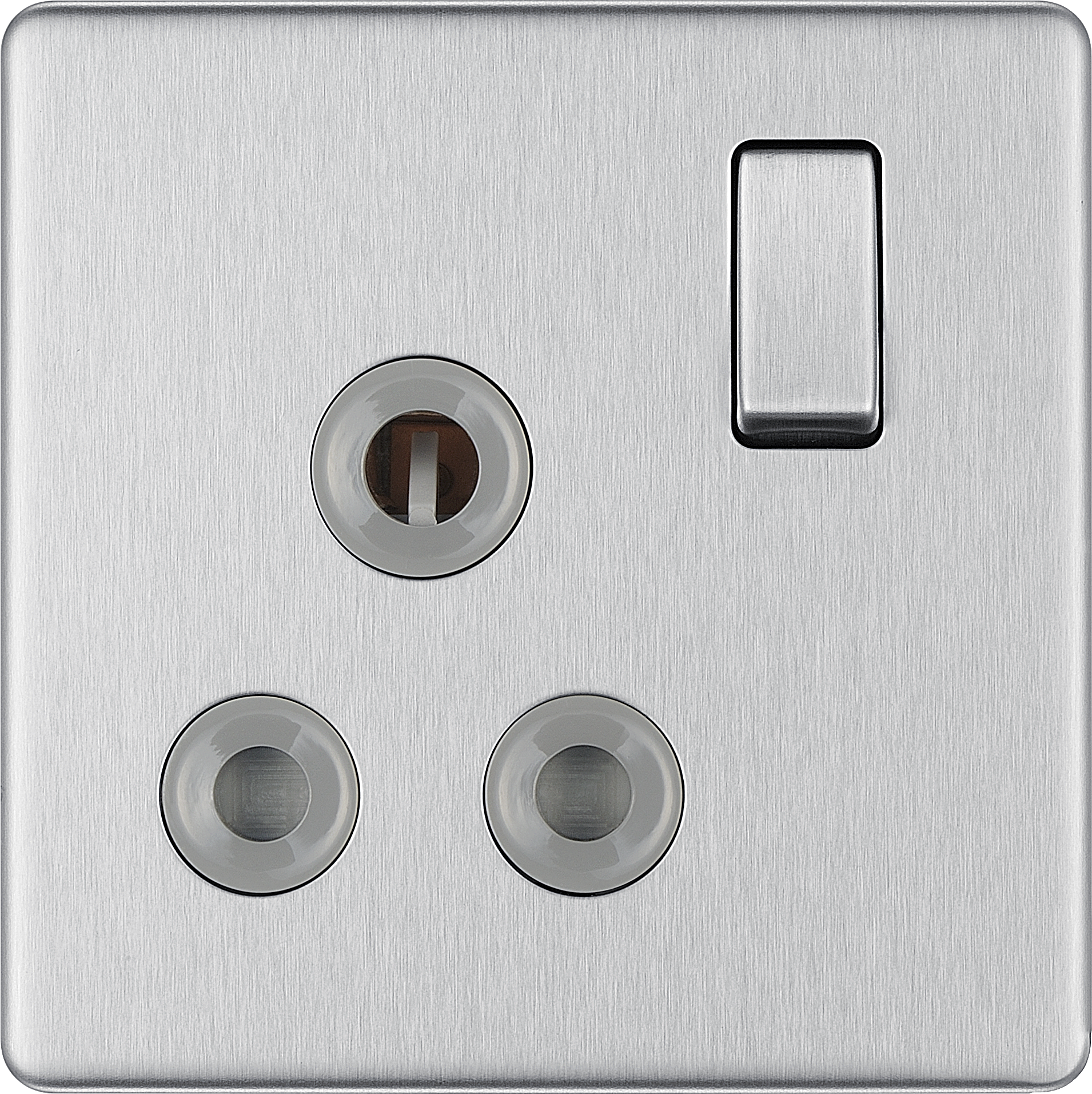

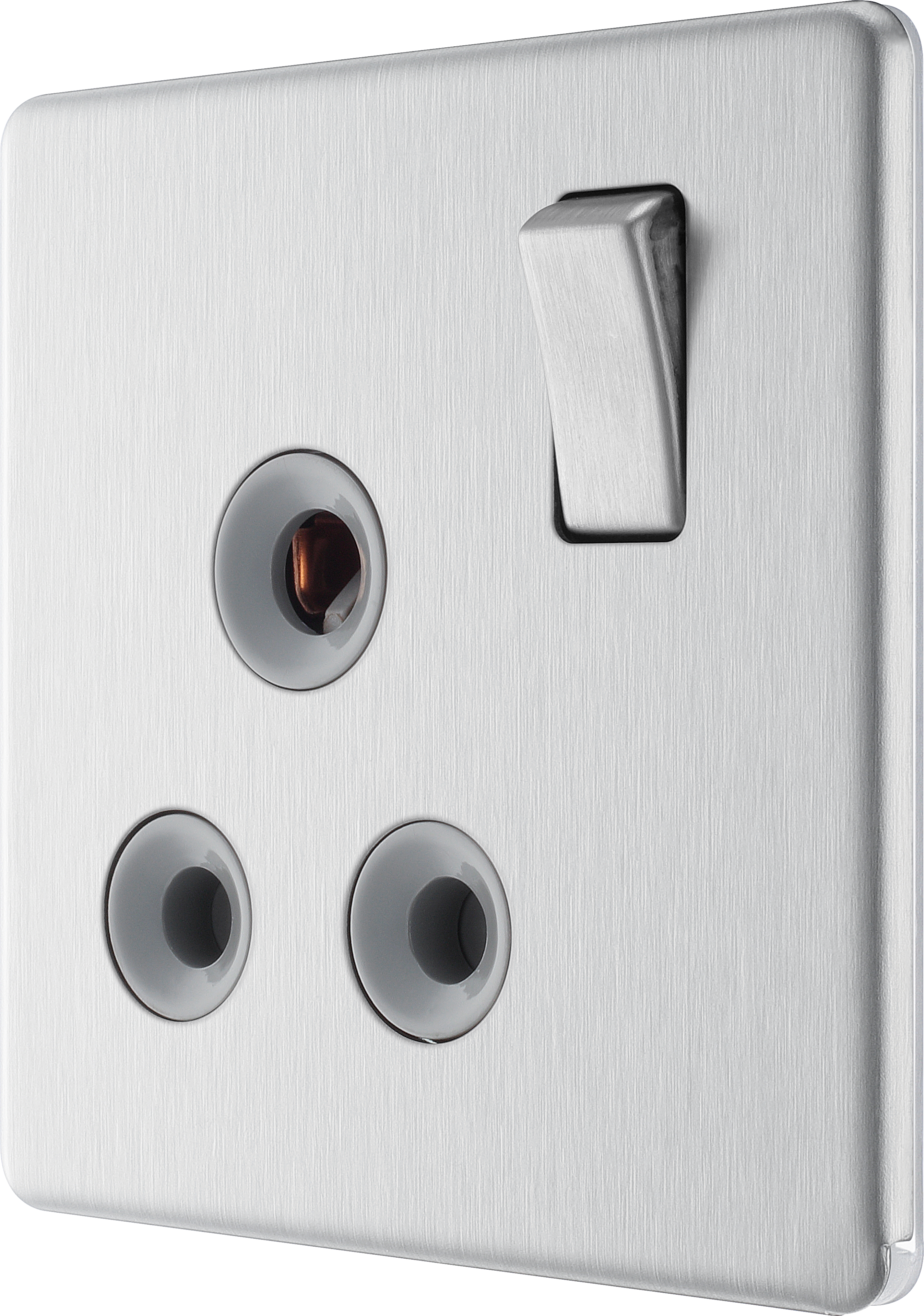

BG Screwless Flat plate Brushed Steel, 15A Single Round Pin Switched Socket, Grey Insert
15A Rated
Easy to install, supplied with fixing screws and installation instructions
Twin earth fitted as standard for high integrity circuits

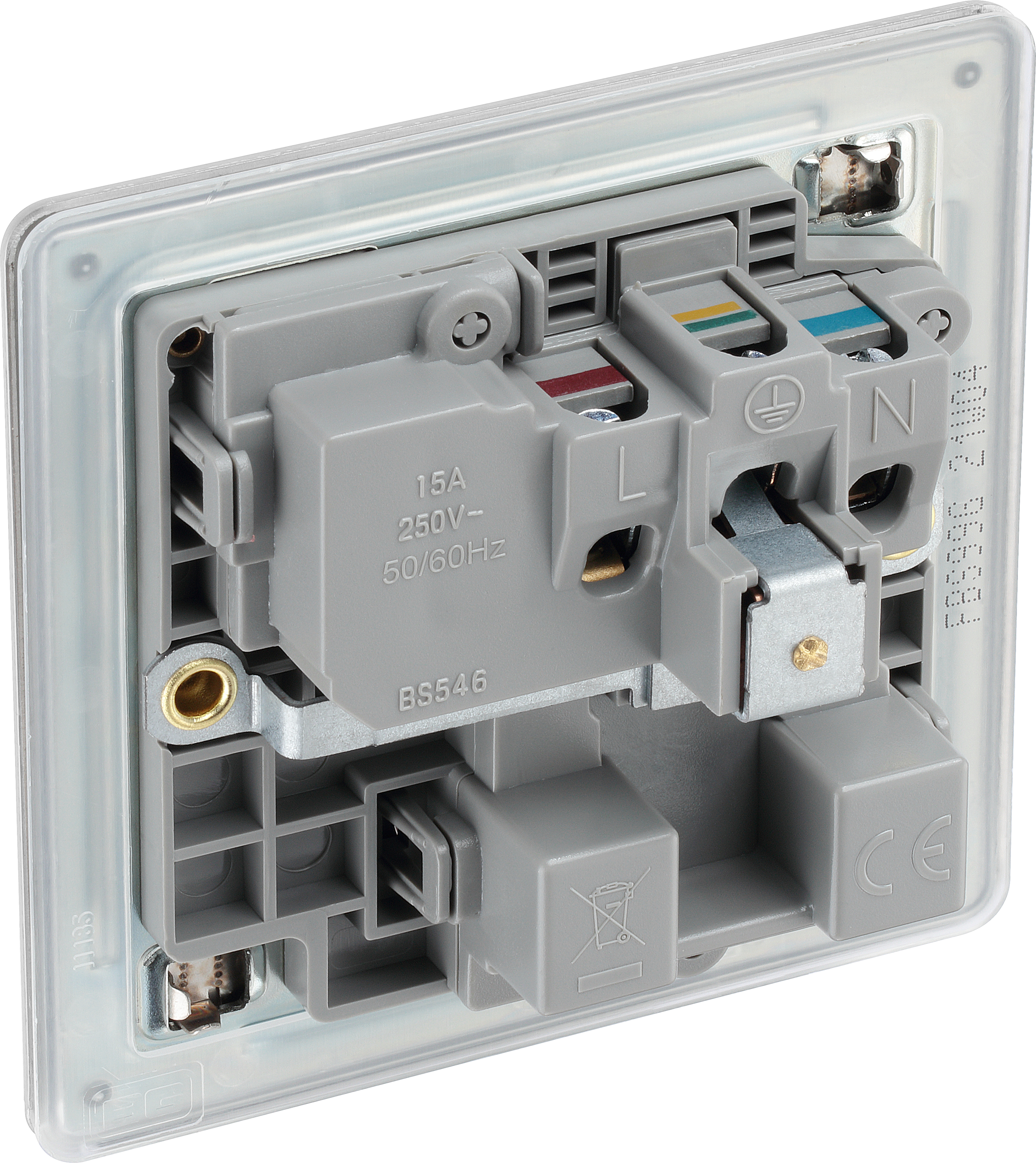

Angled, colour coded in-line terminals provide easy access for quick installation
Captive screws prevent screw loss
Screwless front plate clips on and off easily and has a sleek, flat profile
Moisture control gasket, prevents tarnishing from new plaster
Anti-fingerprint lacquer reduces unsightly fingerprints
Minimum mounting box depth 25mm
| General Colour | Brushed Steel |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Front Plate Insert Colour | Grey |
| Anti-fingerprint Lacquer | Yes |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 1 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Socket Type | 15A Round Pin |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Single Pole |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
