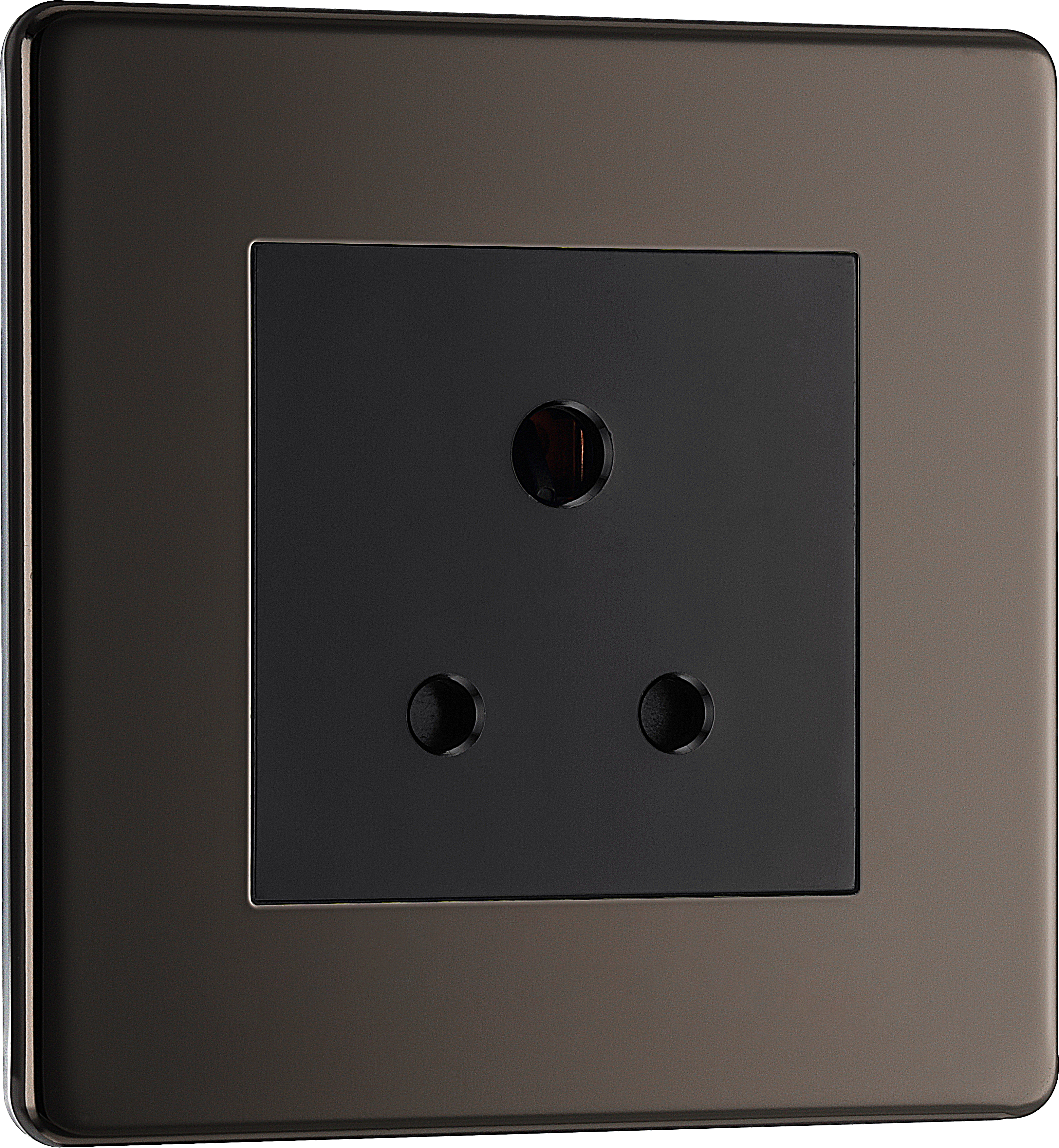

FBN29B-01
BG Screwless Flat plate Black Nickel, 5A Single Round Pin Unswitched Socket, Black Insert
5A Rated
Easy to install supplied with fixing screws and installation instructions
Twin earth fitted as standard for high integrity circuits
Angled colour coded in-line terminals provide easy access for quick installation
Captive screws prevent screw loss
Screwless front plate clips on and off easily and has a sleek flat profile
Moisture control gasket prevents tarnishing from new plaster
Minimum mounting box depth 35mm
| General Colour | Black Nickel |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 1 x 2.5 |
| Front Plate Insert Colour | Black |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 1 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Socket Type | D-3P 5A Round Pin India 220-240V 5A |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
