PCDMB52B-01
BG Evolve, Matt Black, 13A Switched Fused Connection Unit with LED Indicator
13A Rated
Easy to install supplied with fixing screws and installation instructions

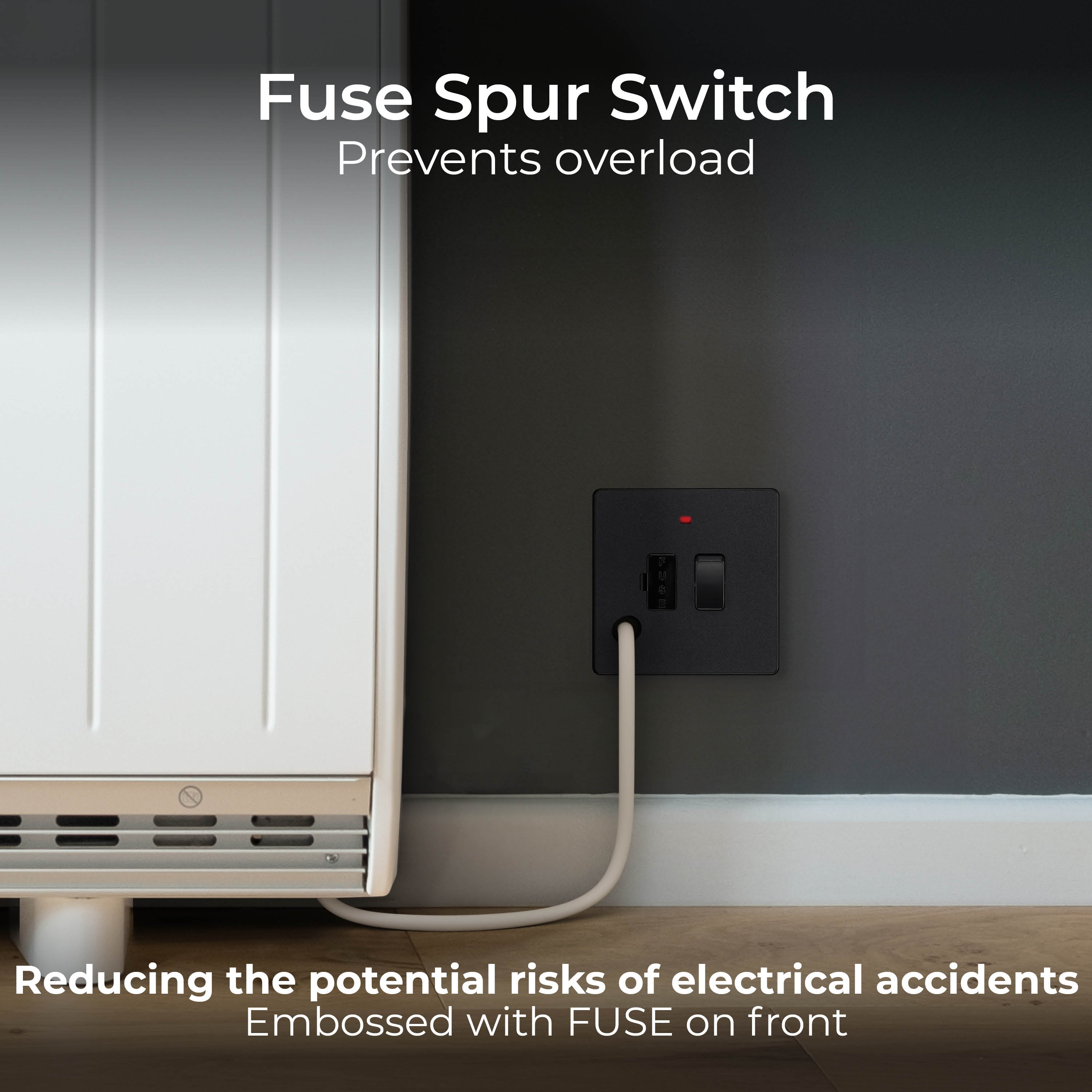

Ideal for spur circuits and hard wired power appliances

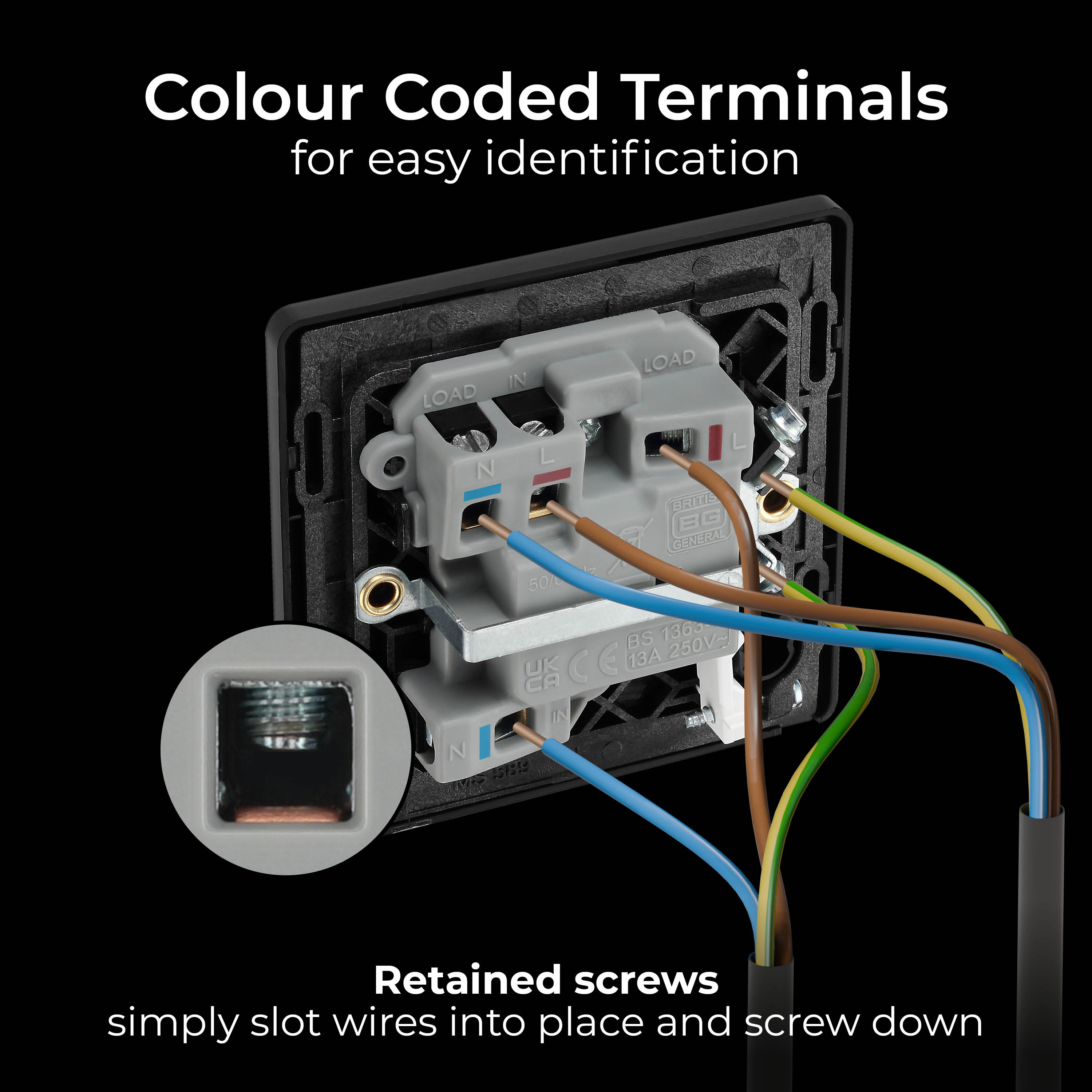

Colour coded terminals for easy identification
Captive screws prevent screw loss
Flush LED power indicator

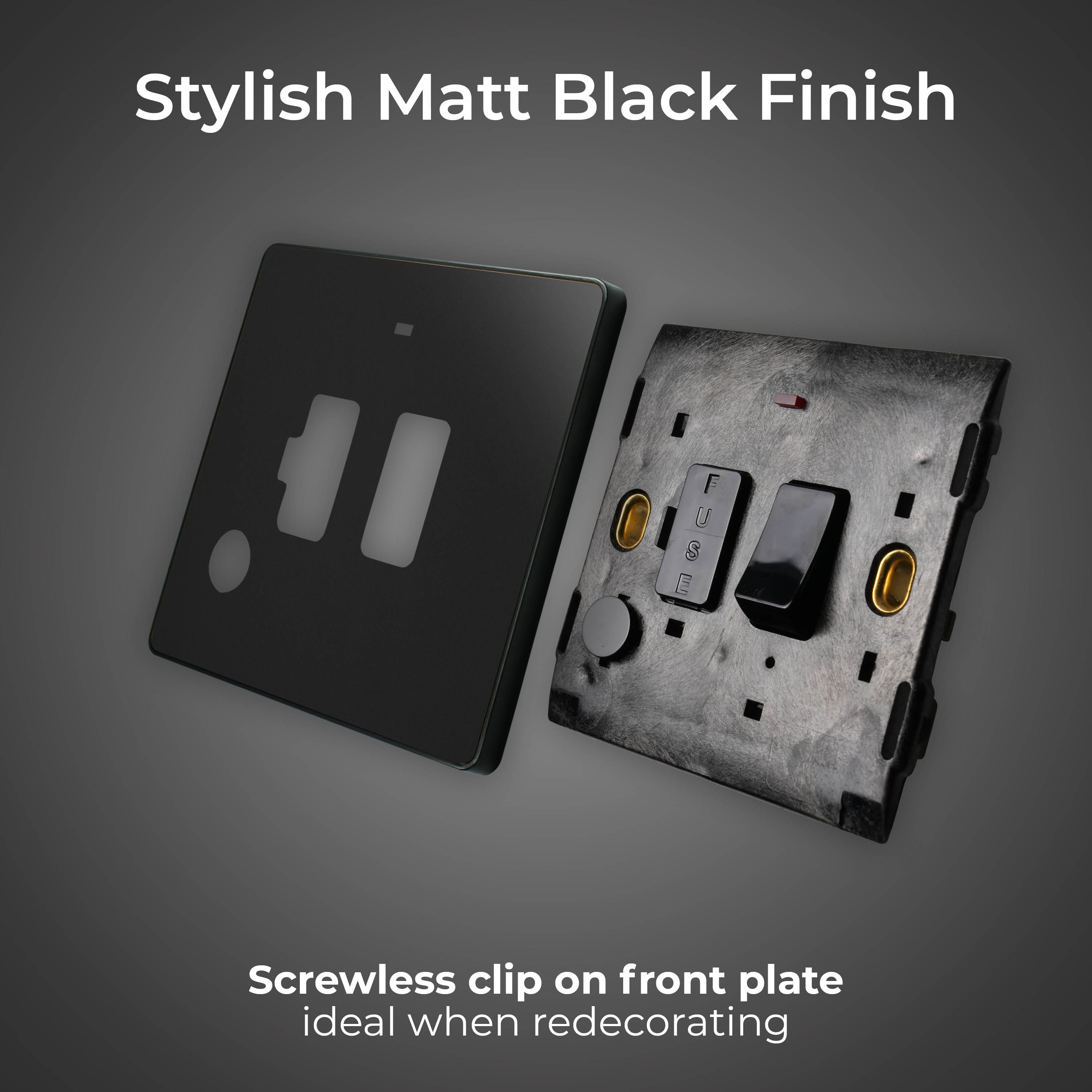

Screwless front plate clips on and off easily ideal for redecorating
Minimum mounting box depth 35mm
Certified to BS 1363 Part 4
ASTA Licence number 1015
| General Colour | Matt Black |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Fused | Yes |
| Fused Holder Colour | Black |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | Yes |
| Flex Out Position | Front Face |
| Supplied with Mounting Box | No |
| Cable Outlet | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
