PCDCL12EW-01
BG Evolve 20A 16AX Single 2-Way Light Switch, Edge to Edge, Pearlescent White
20A 16AX Rated
Easy to install supplied with fixing screws and installation instructions

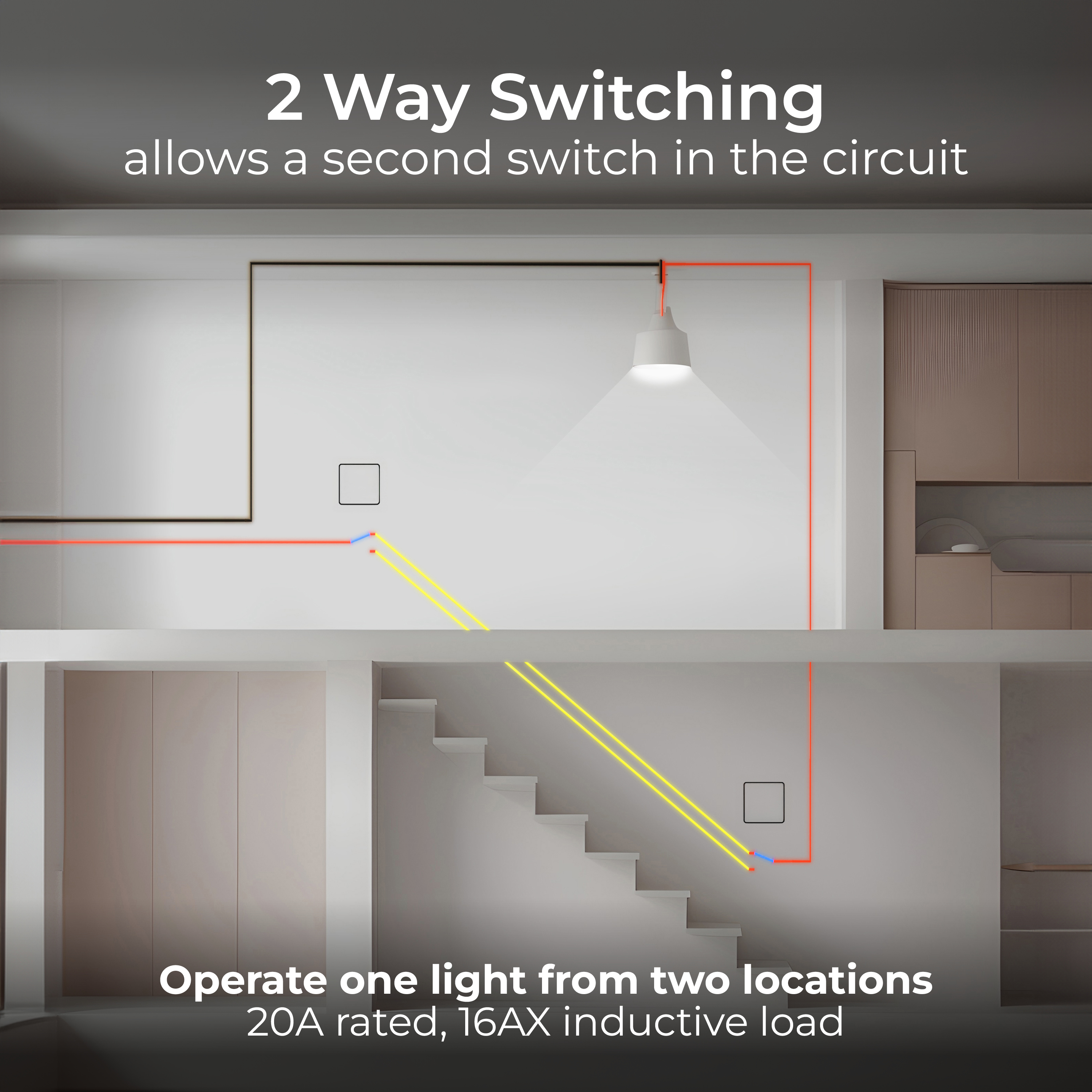

2 way switching allows for a second switch position in a circuit

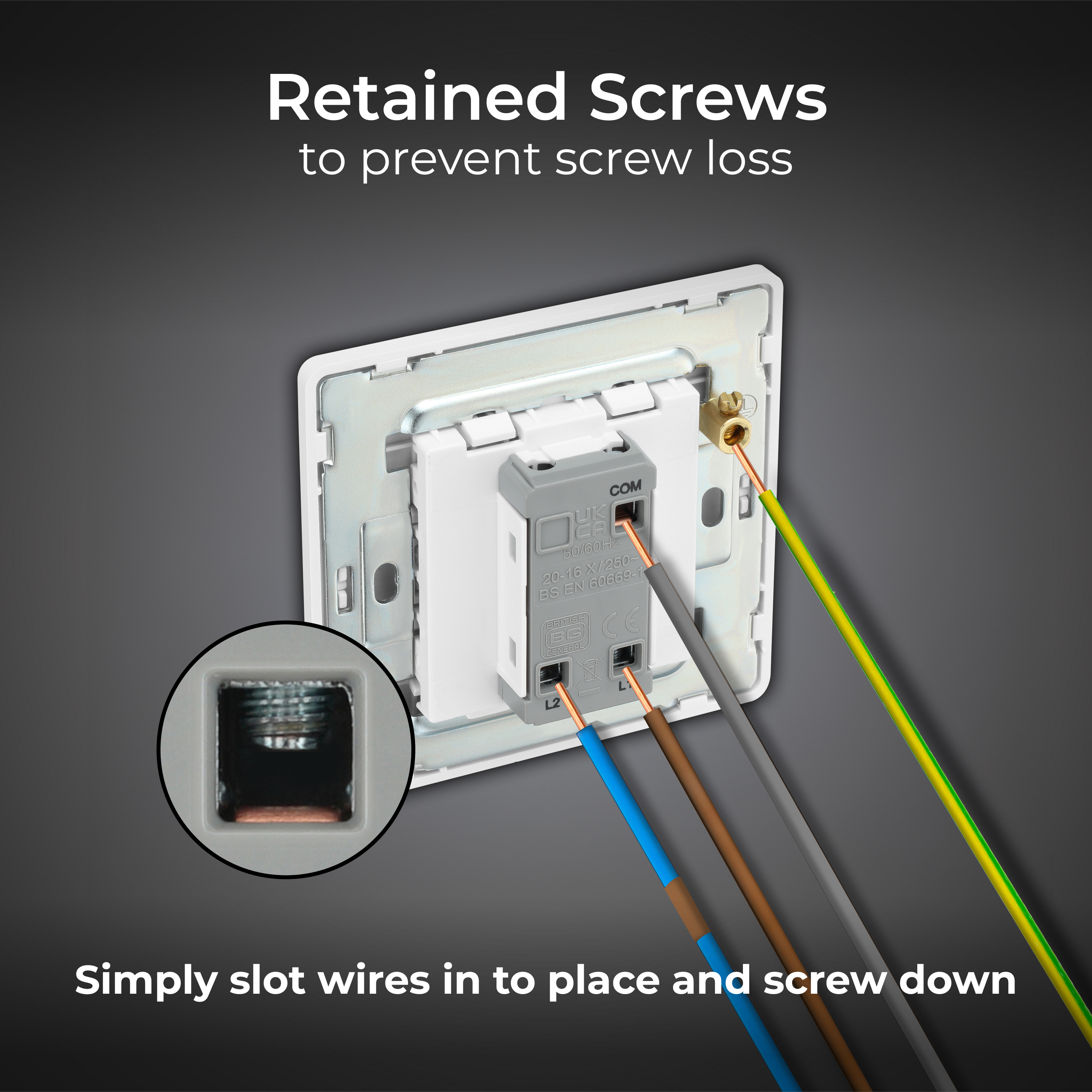

Captive backed out terminal screws for fast installation and to prevent screw loss

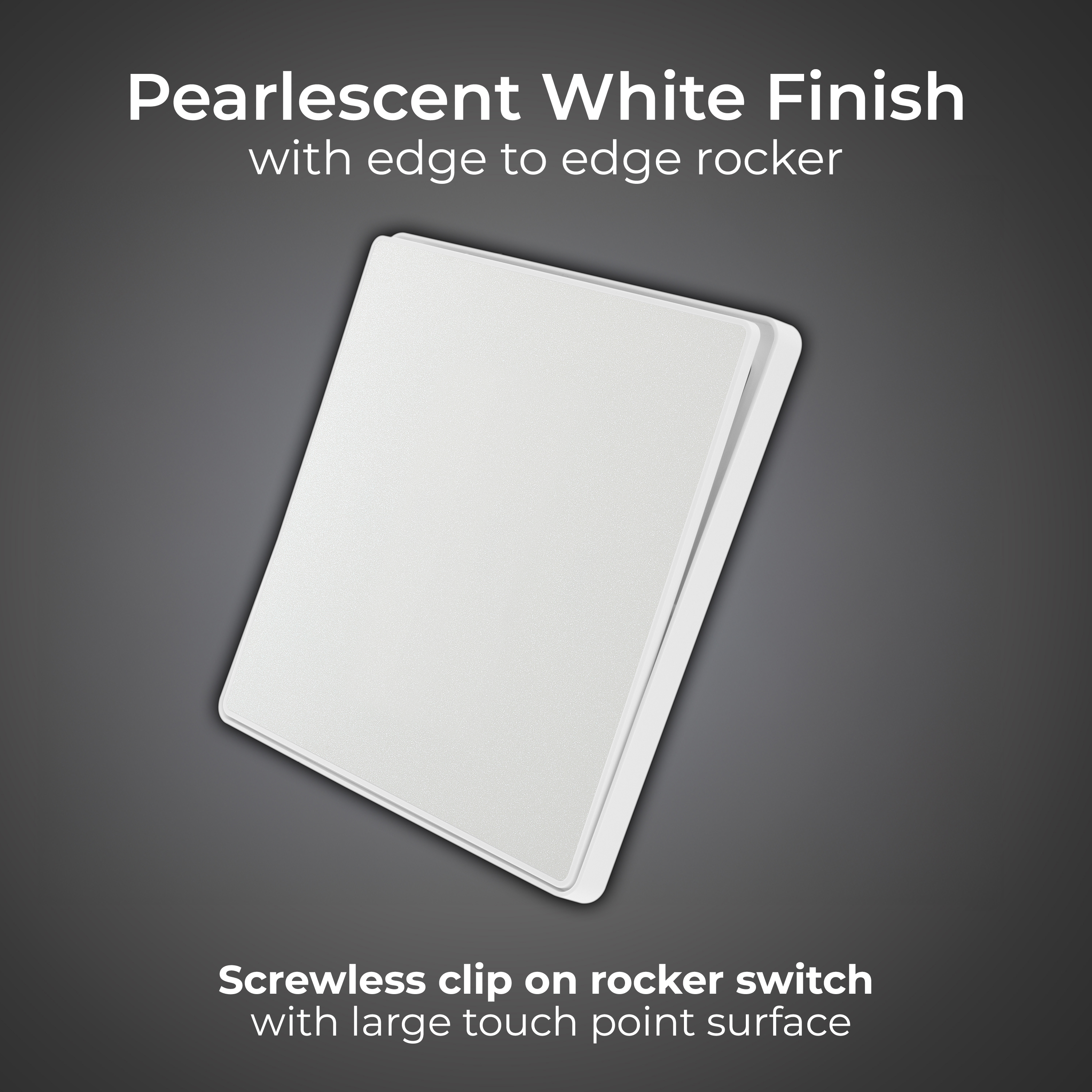

Screwless rocker clips on and off easily ideal for redecorating

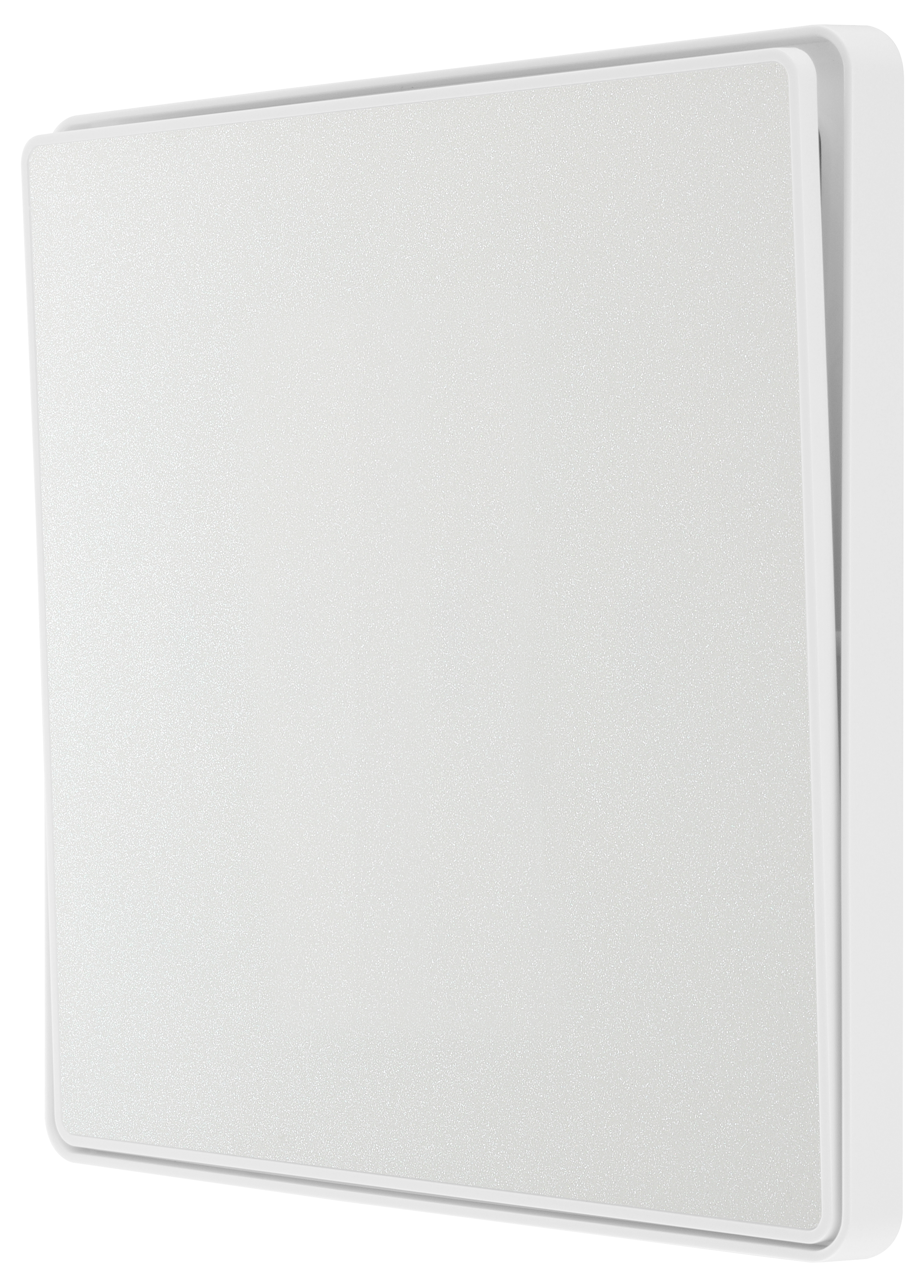

Edge to edge switch for a larger touch point and contemporary appearance

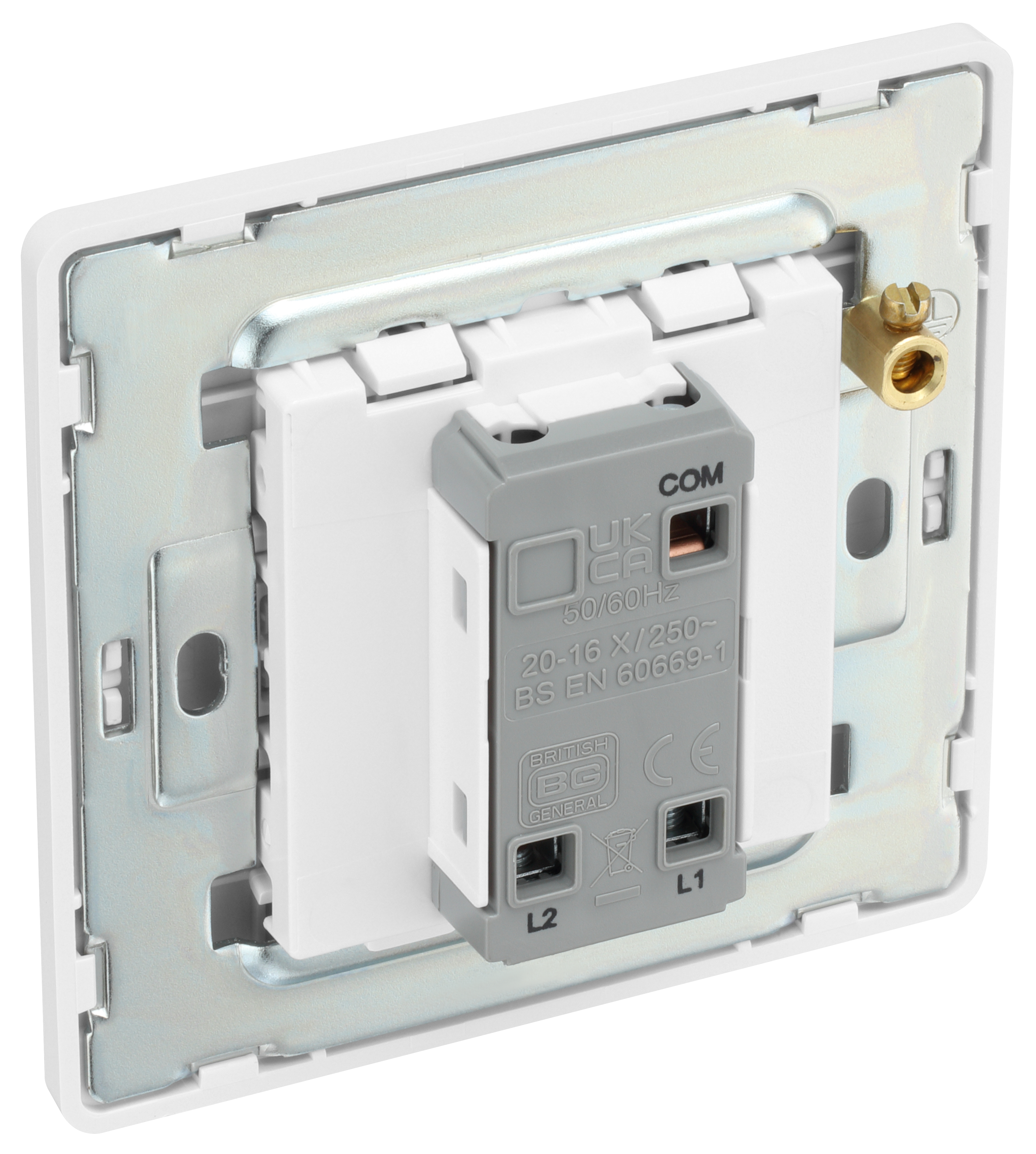

Earth terminal on mounting plate

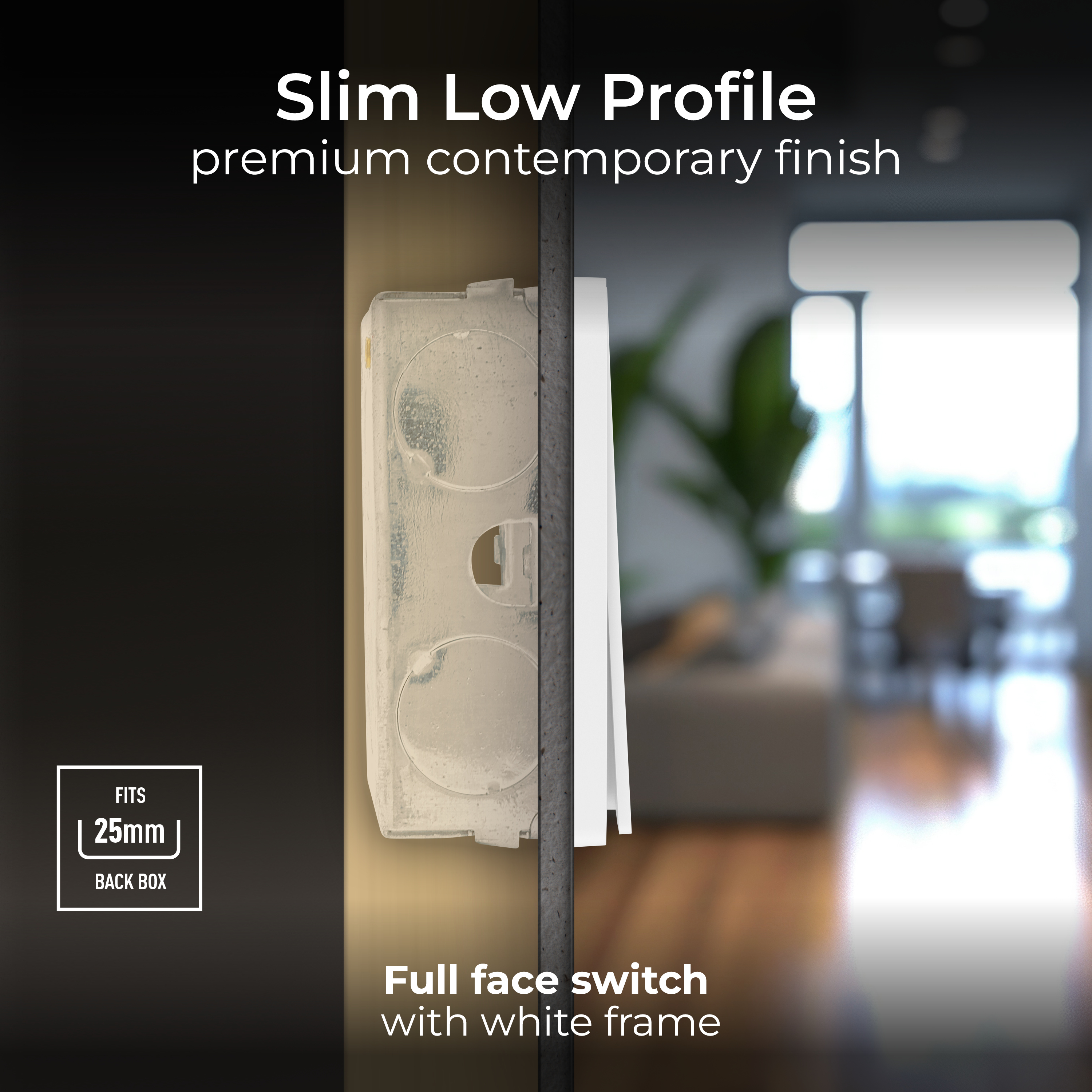

Minimum mounting box depth 25mm
Certified to BS60669-1
ASTA Licence number 1010
| General Colour | Pearlescent White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 2 x 2.5mm², 4 x 1.0mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
