PCDMB22UWRB-01

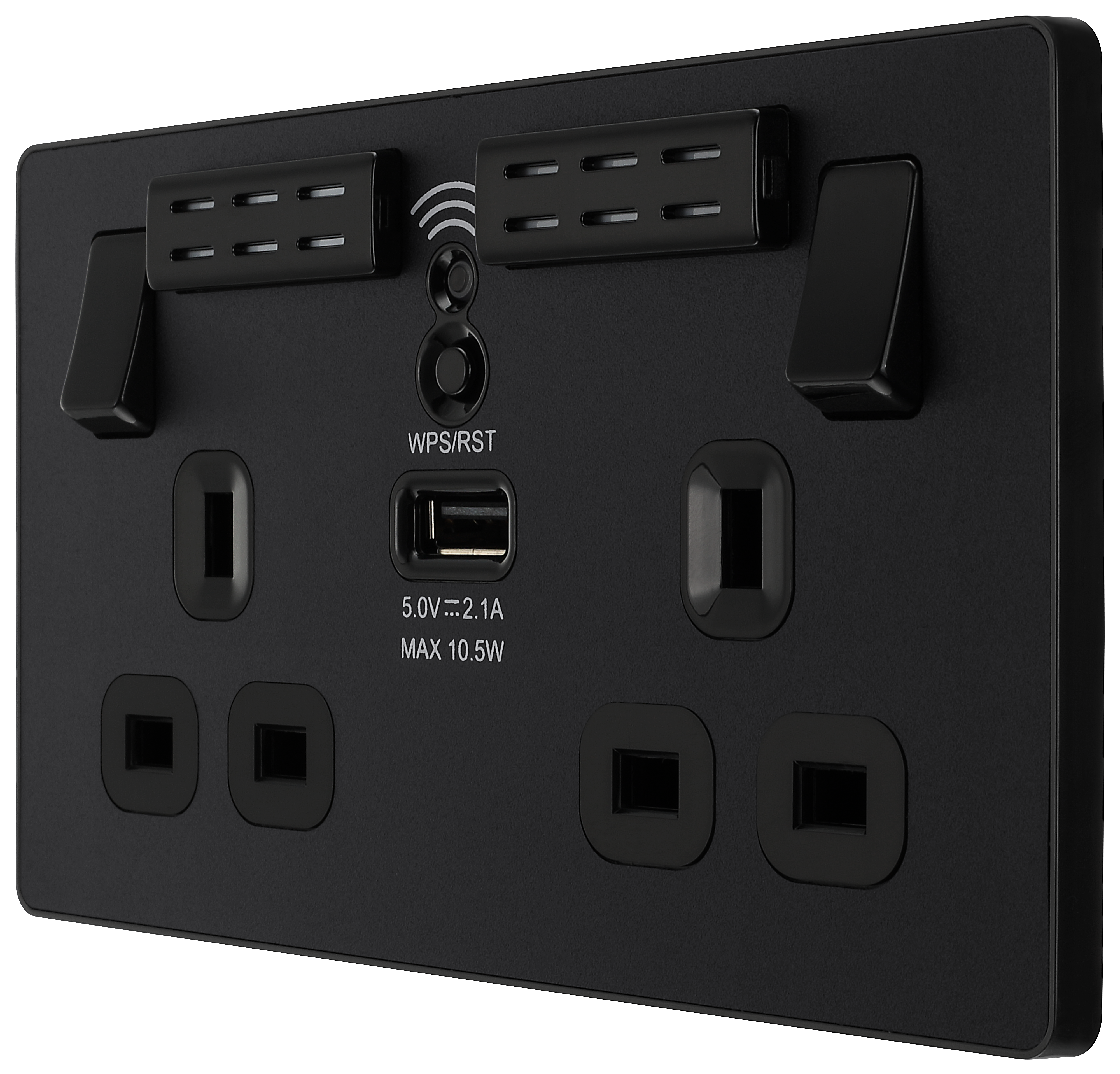

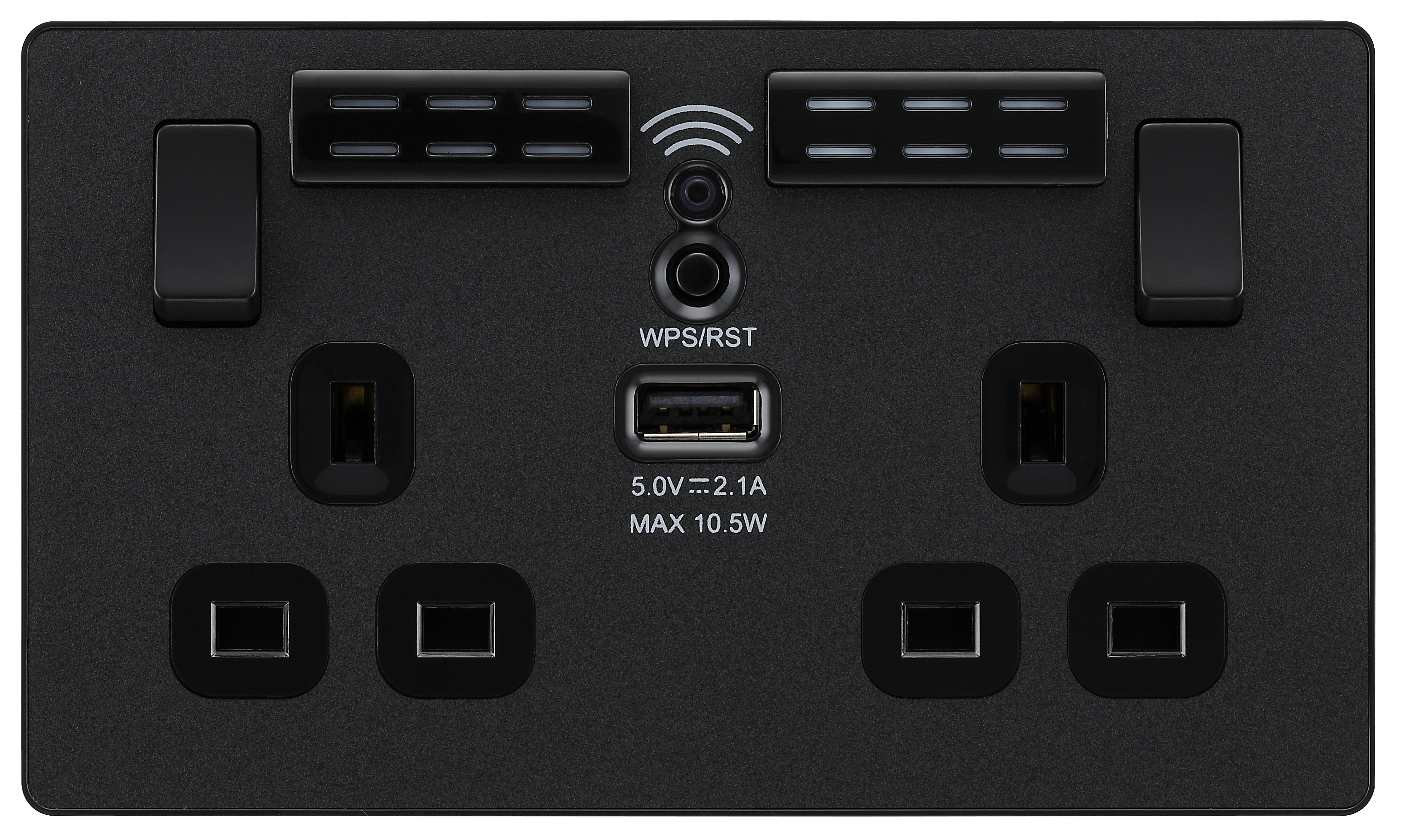

BG Evolve, Matt Black, 13A Double Switched Socket with Wi-Fi Extender
13A Rated
Easy to install supplied with fixing screws and installation instructions

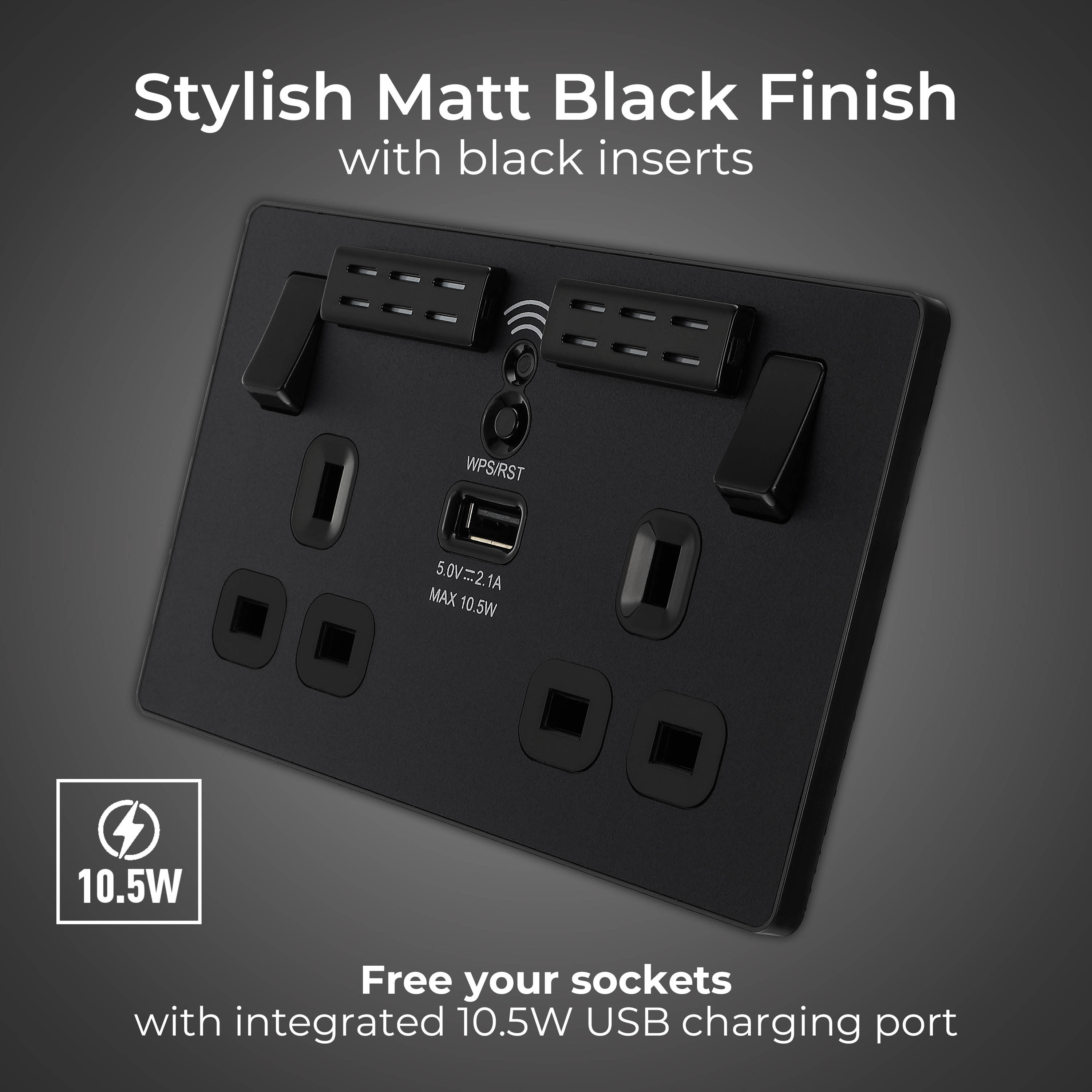

1x 2.1A USB outlet for charging your mobile devices

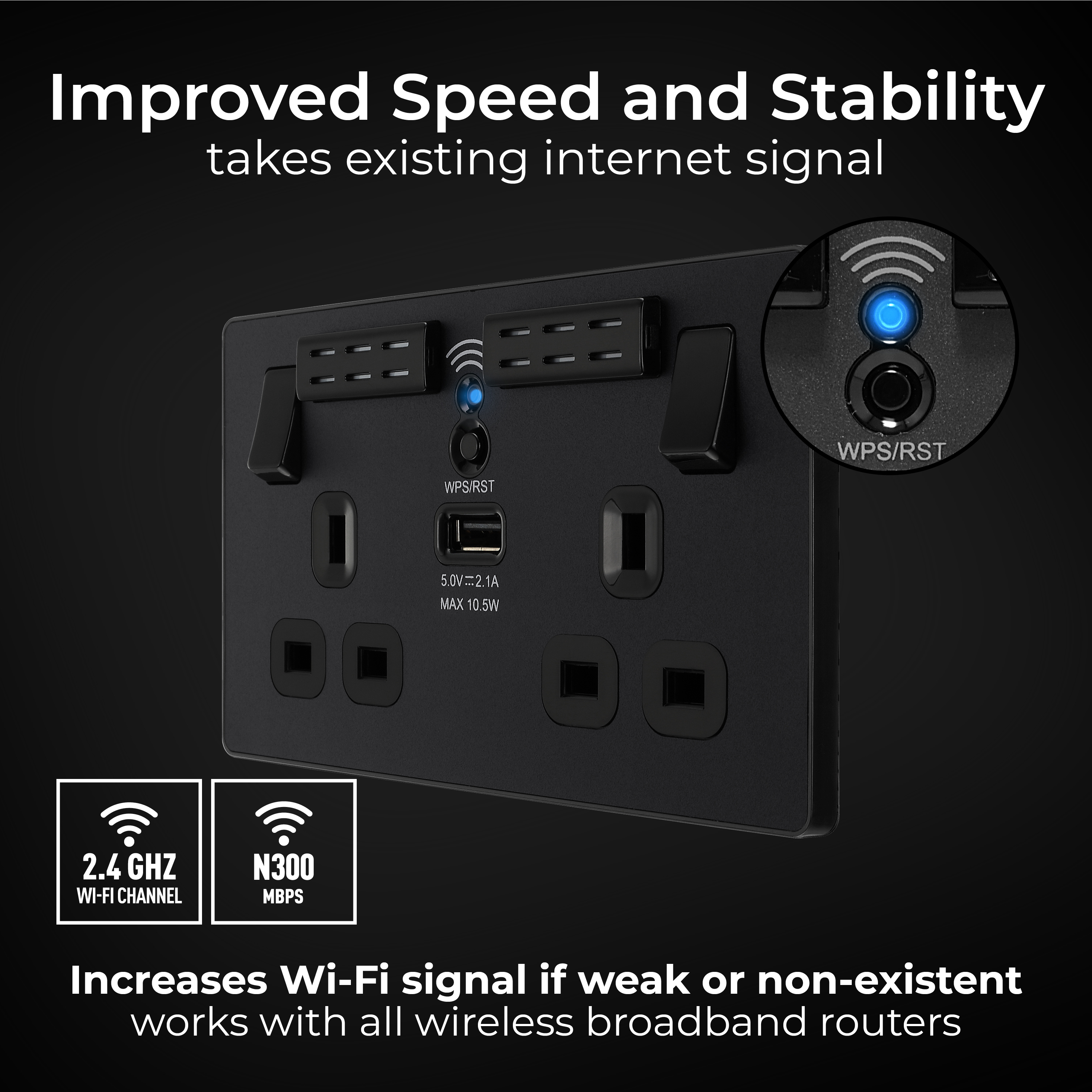

Improved Wi-Fi coverage throughout your home works with all wireless broadband routers

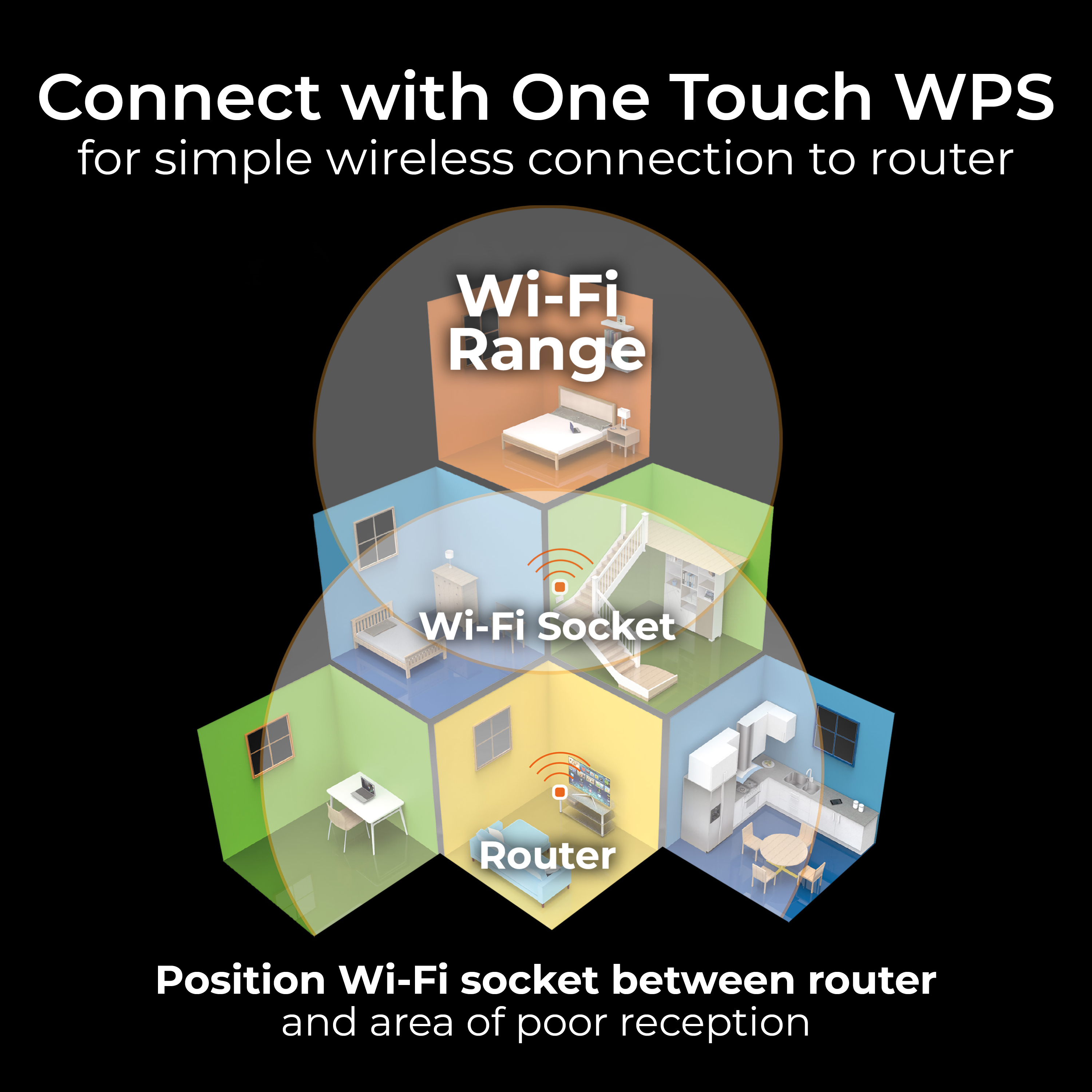

Easy to setup with one touch WPS
Single band (2.4Ghz)

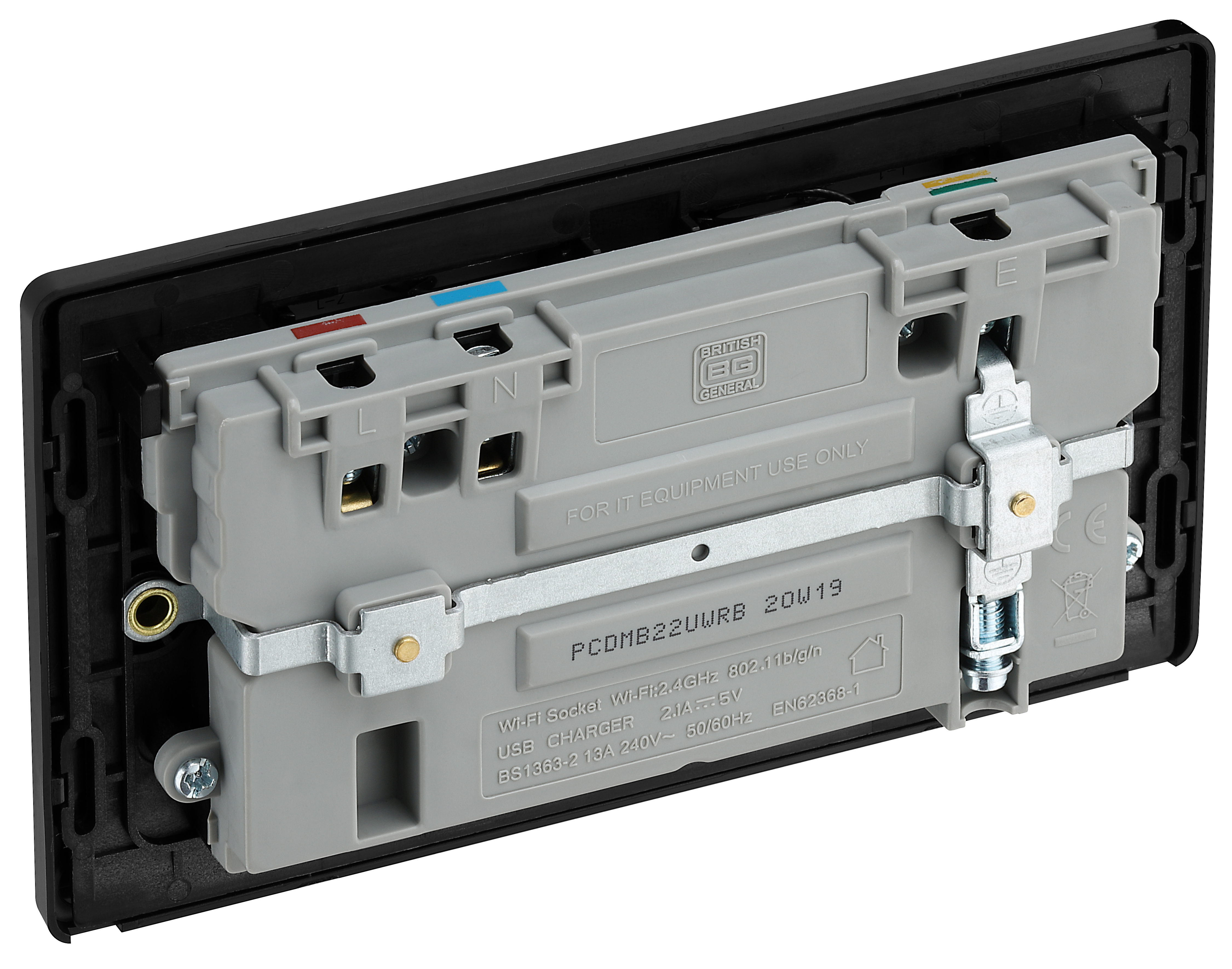

Angled in-line terminals with captive screws provide easy access for quick installation
Twin earth fitted as standard for high integrity circuits

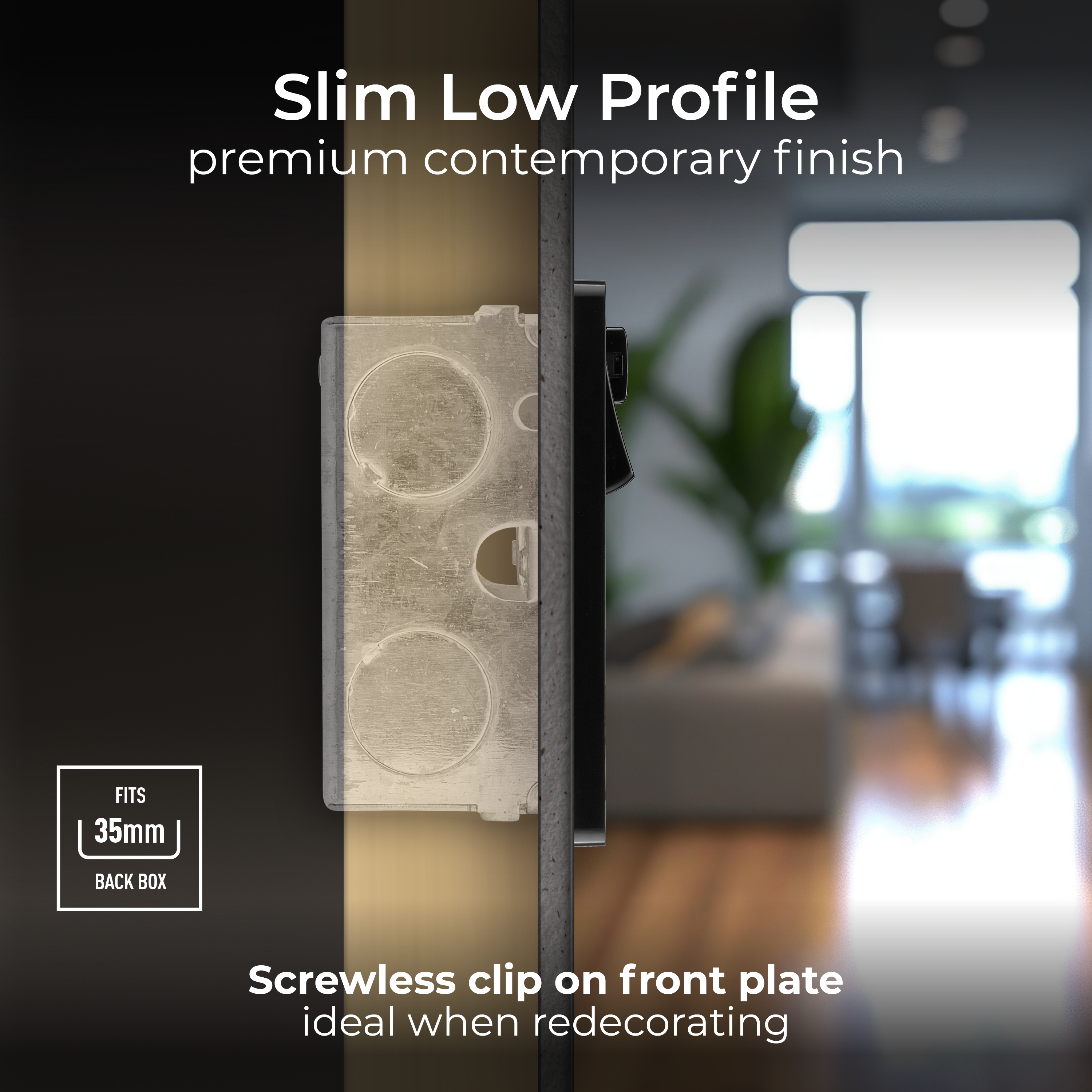

Screwless front plate clips on and off easily ideal for redecorating
Minimum mounting box depth 35mm
| General Colour | Matt Black |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Front Plate Insert Colour | Black |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled-in line terminals |

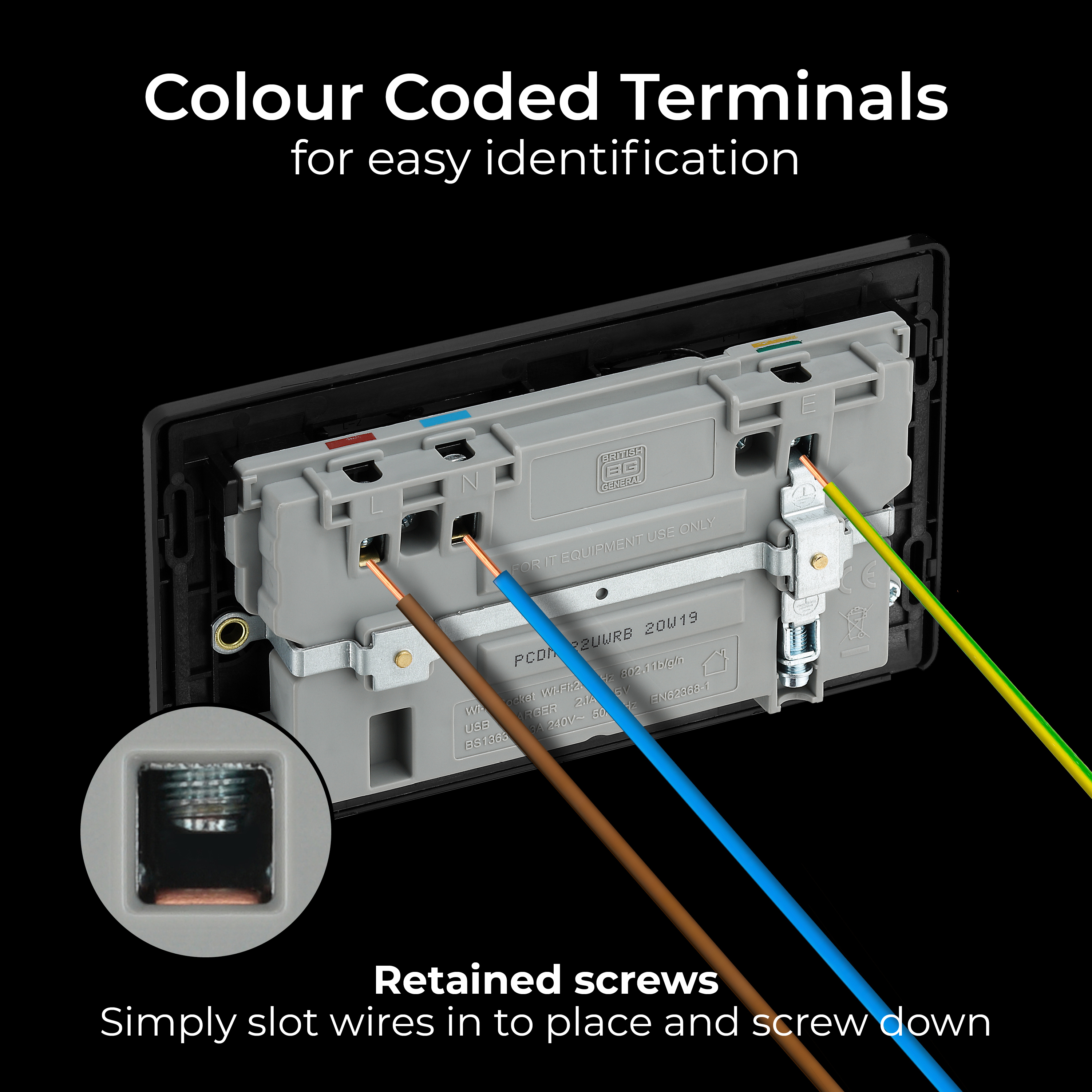

| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Number of Switches | 2 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Single Pole |
| USB Ports | 1 x Type A |
| Fixing Centres (mm) | W-120.6 |
| IP Rating | IP20 |
| USB Output (Type & Rating) | Type A: 5V,2.1A |
| Network Standards | 802.11 b/g/n |
| Link Rate Class | N300 |
| Radio Band (GHz) | 2.4 GHz |
| Max. Link Rate (Mbps) | 300 Mbps |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 10 |
