PCDMB14B-01
BG Evolve, Matt Black, 10A Bell Push Switch, 1 Way
slide 1 to 7 of 9
10A Rated
Easy to install supplied with fixing screws and installation instructions
1 way retractive switch

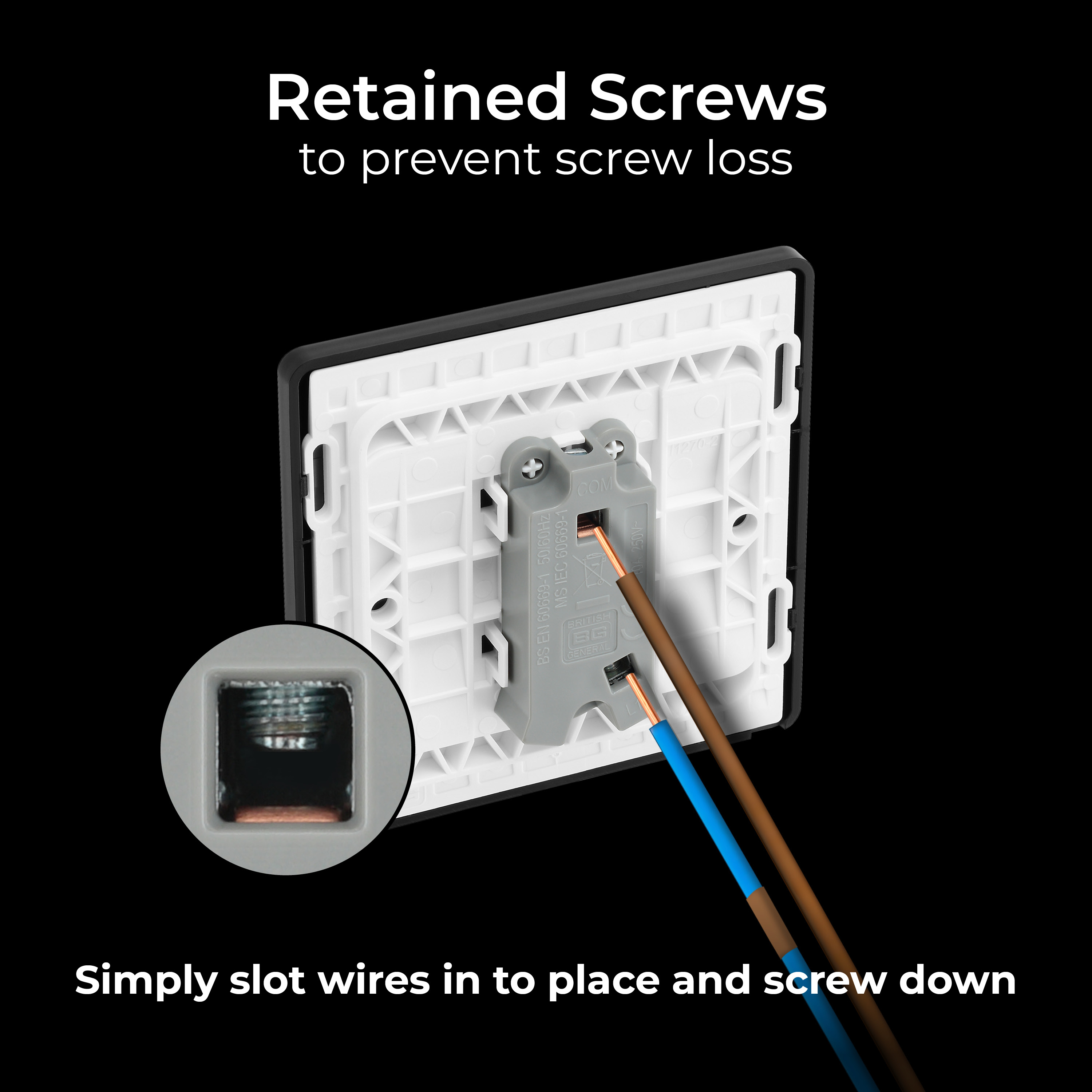

Captive backed out terminal screws for fast installation and to prevent screw loss
Screwless front plate clips on and off easily ideal for redecorating
Minimum mounting box depth 25mm
Certified to BS60669-1
ASTA Licence number 1010
| General Colour | Matt Black |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 2 x 2.5mm², 4 x 1.0mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | One Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
