EMSW30KYB-01
BG Euro Module, 20A Key Switch, Double Pole, Black
20A Rated
Module clips in to Euro Module front plate
Module fits front plate aperture of 25x50mm
Generally installed in public places to prevent unauthorised people interacting with the switch
Supplied with key spare keys available

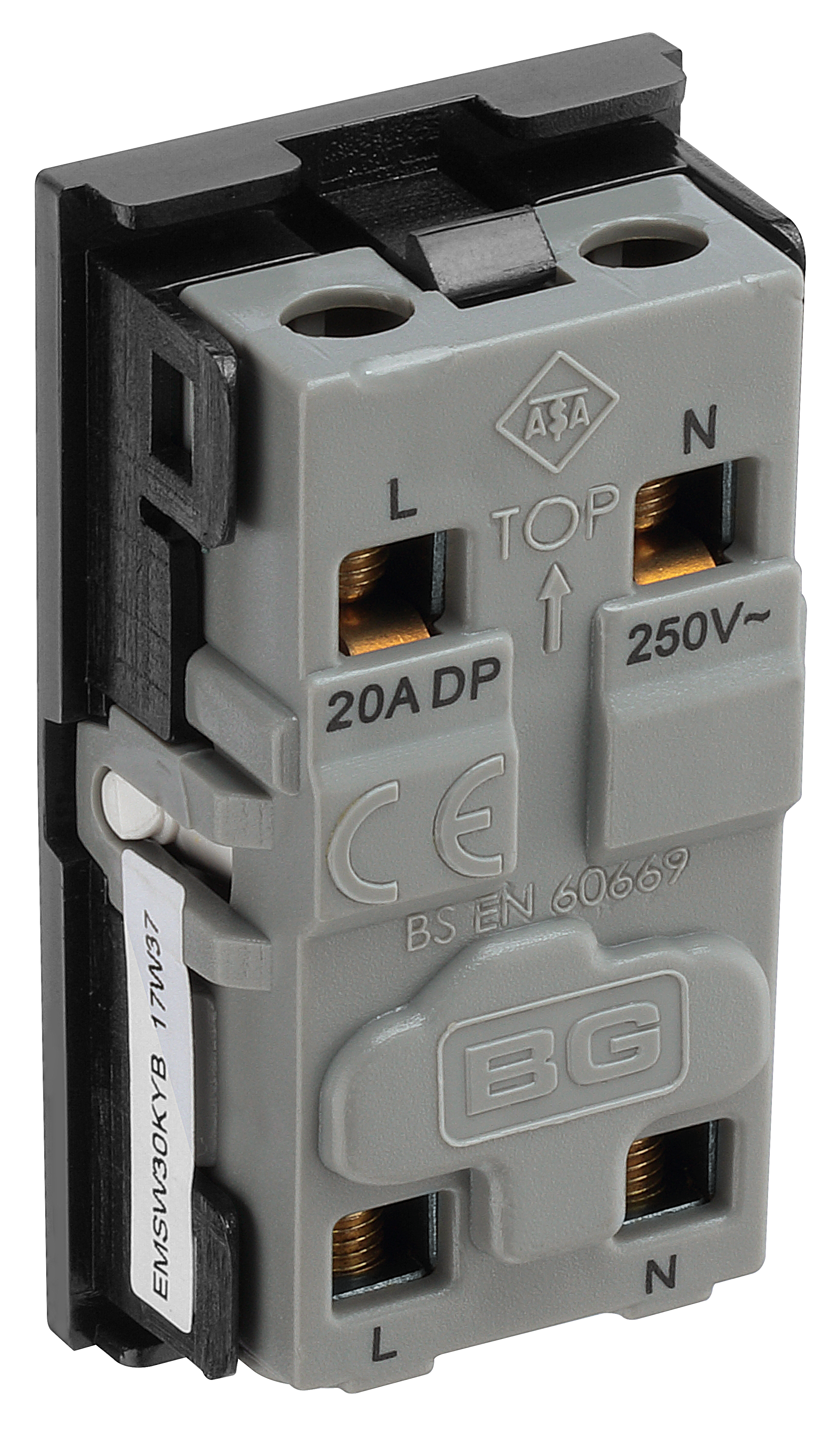

Captive backed out terminal screws for fast installation and to prevent screw loss
Minimum mounting box depth 25mm
Certified to BS EN 60669-1
| General Colour | Black |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Key |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
