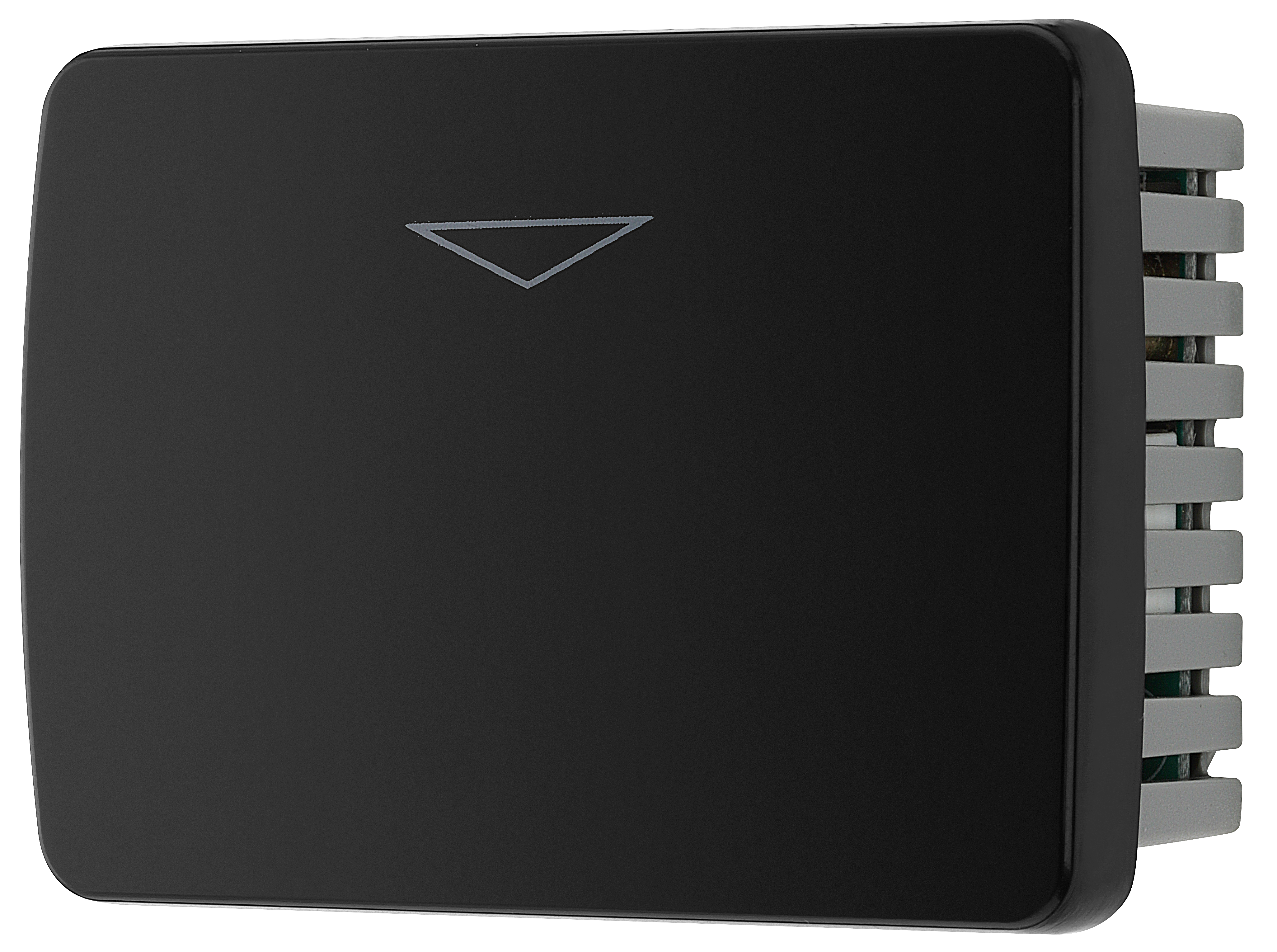

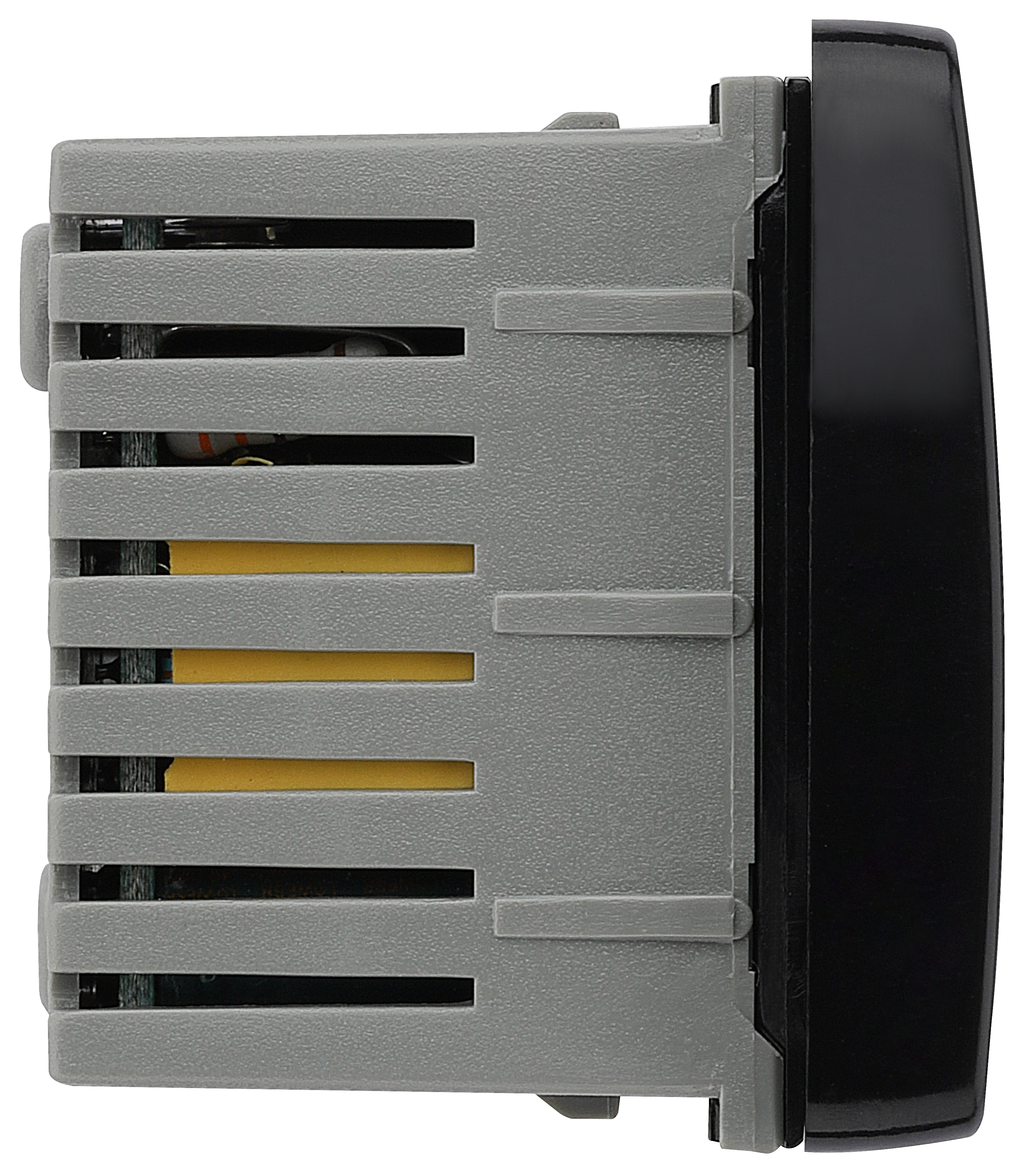

EMKYCSB-01
BG Euro Module 16A Key Card Switch, Black
16A Rated
Module clips in to Euro Module front plate
Module fits front plate aperture of 50x50mm
Power to the room will active when a key card inserted so the room is only powered when occupied
30 second power-off delay prevents users being plunged in to darkness when leaving
Locator LED ideal for night operation

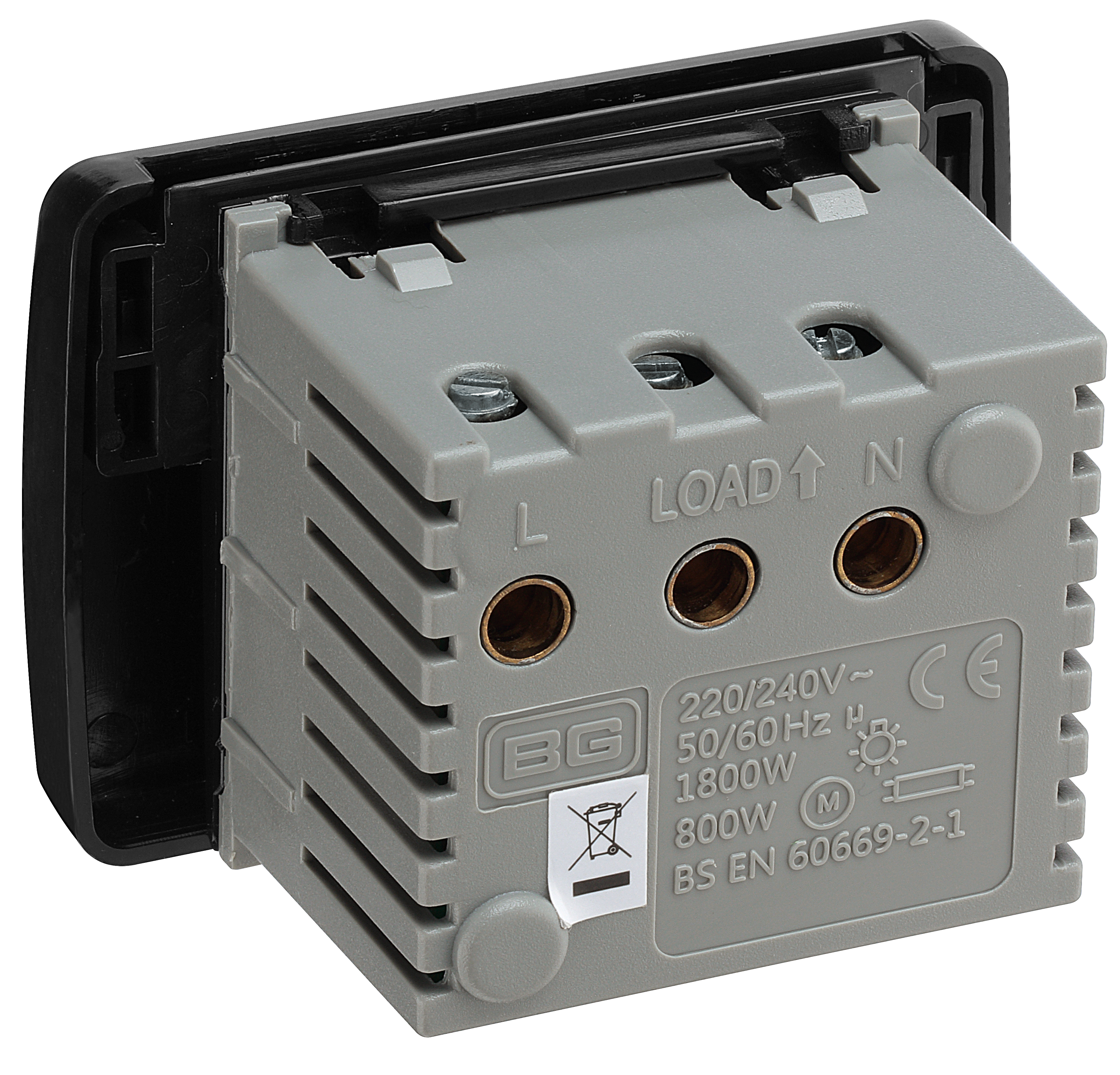

Colour coded in-line terminals for easy identification
Captive screws prevent screw loss
Minimum mounting box depth 47mm
Certified to BS EN 60669-2-1
| General Colour | Black |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 4 x 1.0, 4 x 2.5, 2 x 2.5, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Style Type | Key |
| Switch Type (Ways & Poles) | Single Pole |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
