EMFUSEG-01
BG Euro Module 13A Fused, Grey
13A Rated
Module clips in to Euro Module front plate
Ideal for spur circuits and hard wired power appliances
Module fits front plate aperture of 50x50mm
Captive backed out terminal screws for fast installation and to prevent screw loss

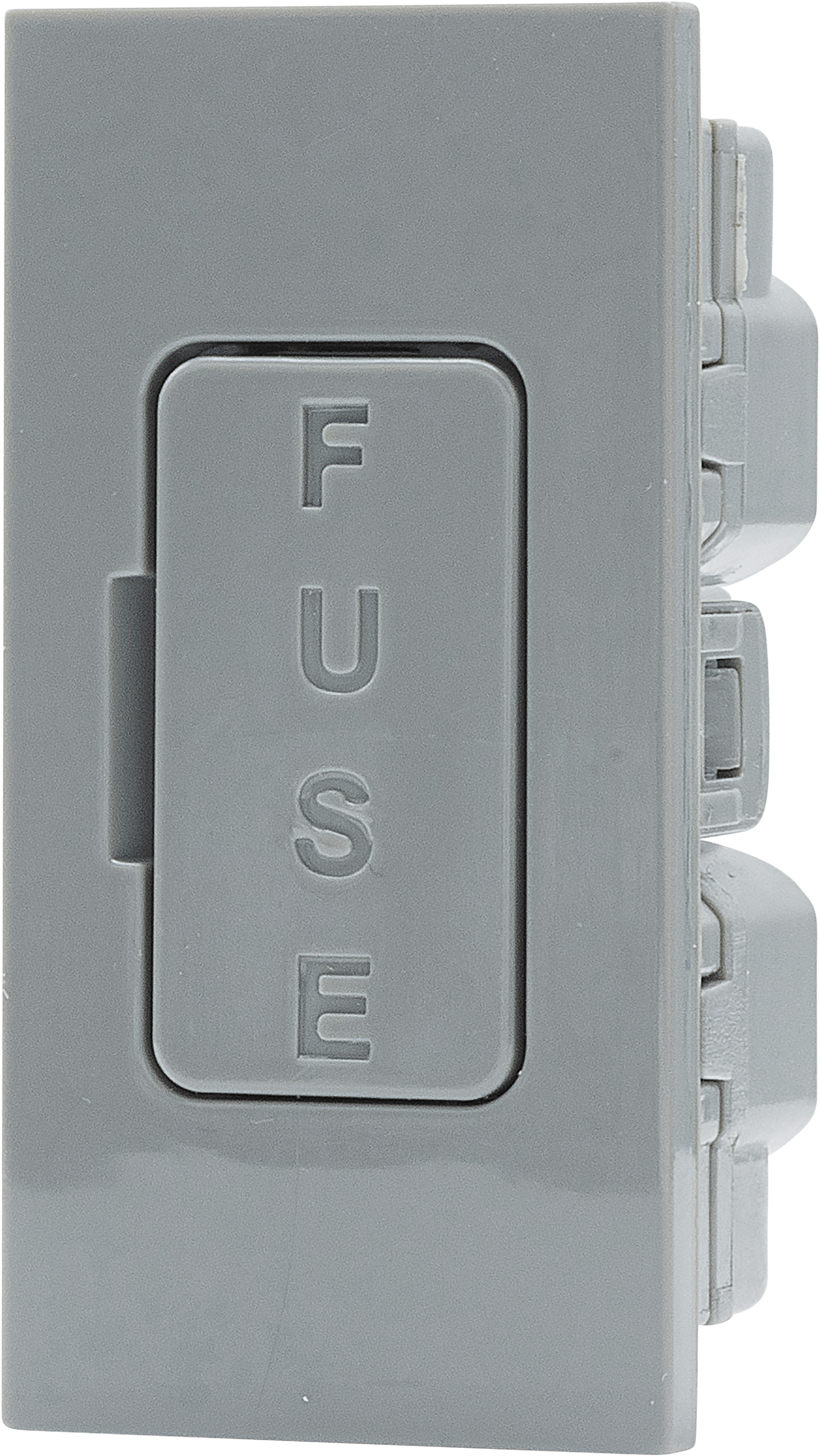

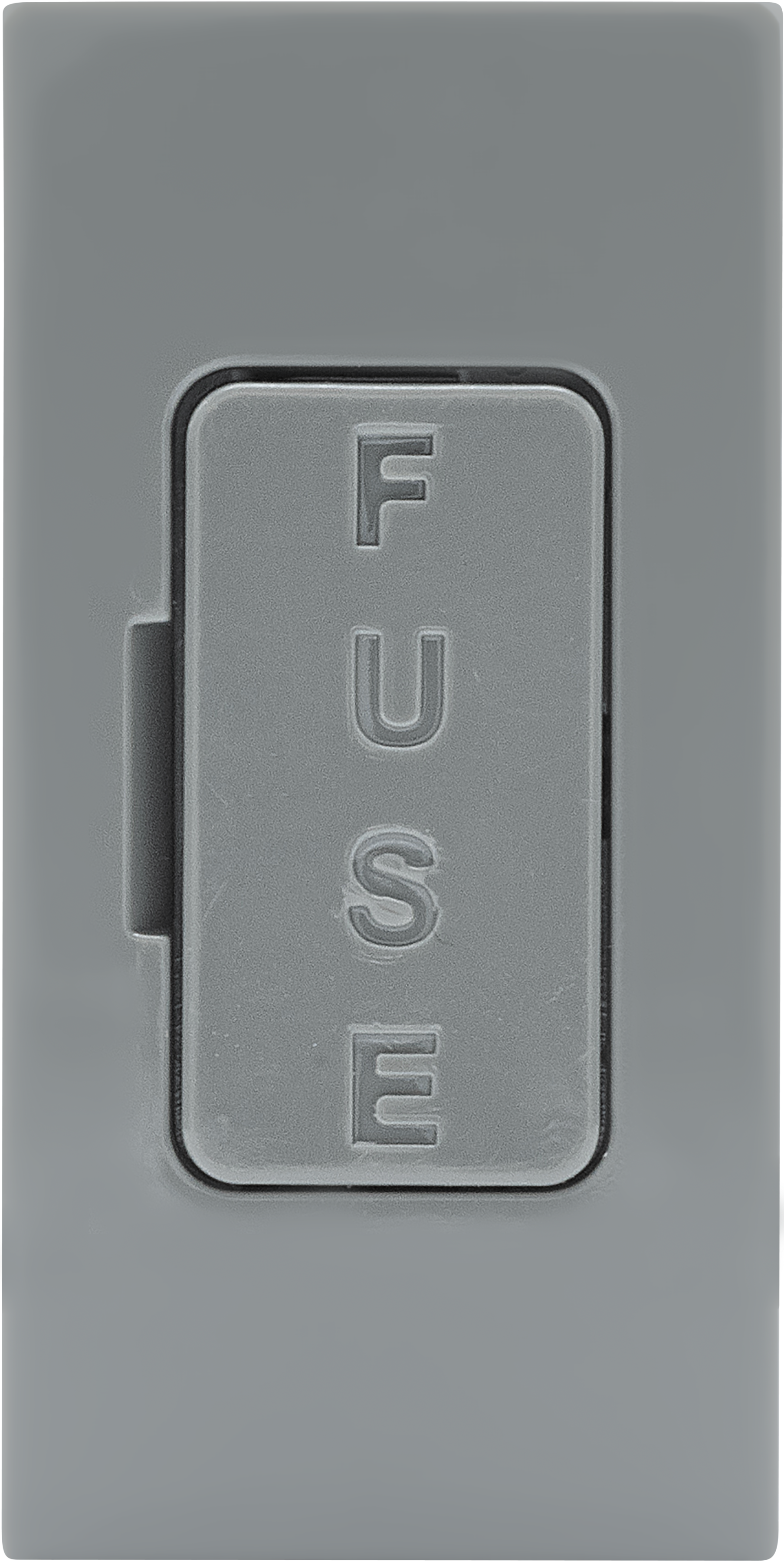

Embossed with 'Fuse' on the fuse cover
Minimum mounting box depth 25mm
Certified to BS1363 Part 4
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | N/A |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Fused | Yes |
| Fused Holder Colour | Grey |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | No |
| Flex Out Position | None |
| Supplied with Mounting Box | No |
| Cable Outlet | No |
| Fixing Screws Supplied | N/A |
| Number of Earth Terminals | 0 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
