569-01

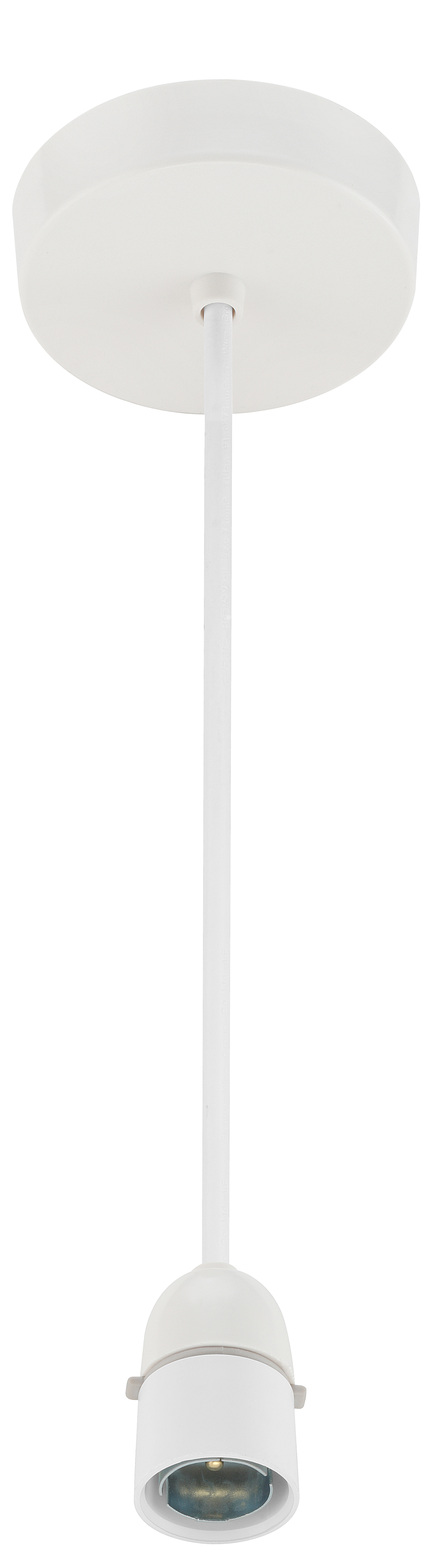

BG Pendant Set 9 Flex, 3.5" Base
Easy to fit - supplied with fixings and fitting instructions
Large capacity earth terminal with locking terminal screw
Wiring aperture in base with extra knockout for ease of wiring

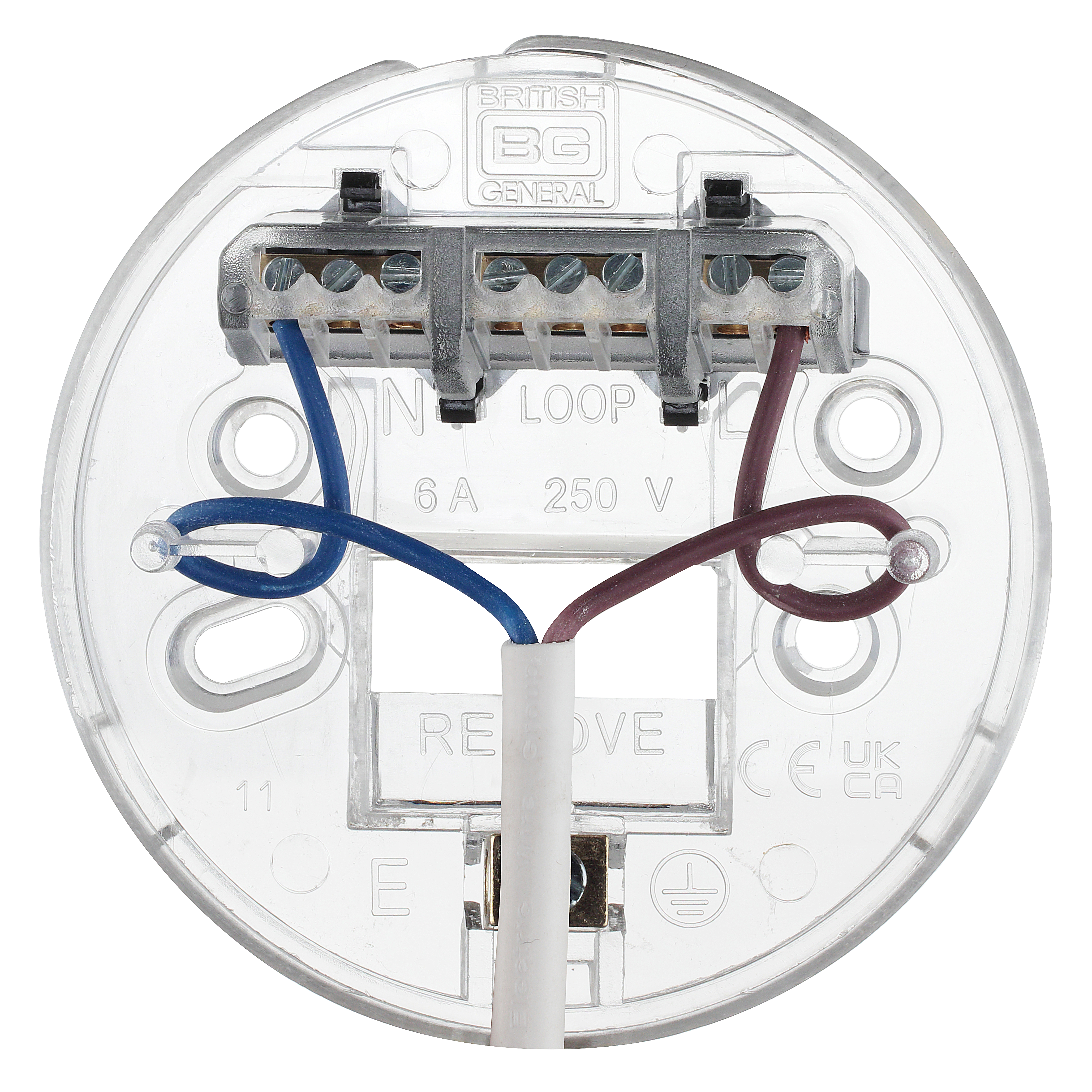

Base incorporates L, N and Loop-in terminals with 8 individual cable entries and captive screws
Spin-on-cover with smooth cable entry for maximum protection of pendant conductor insulation
Alternative fixing holes allow for off centre mounting
0.75mm² two core circular cable
Cover moulding produced in satin finish urea
Base moulding produced in clear polycarbonate

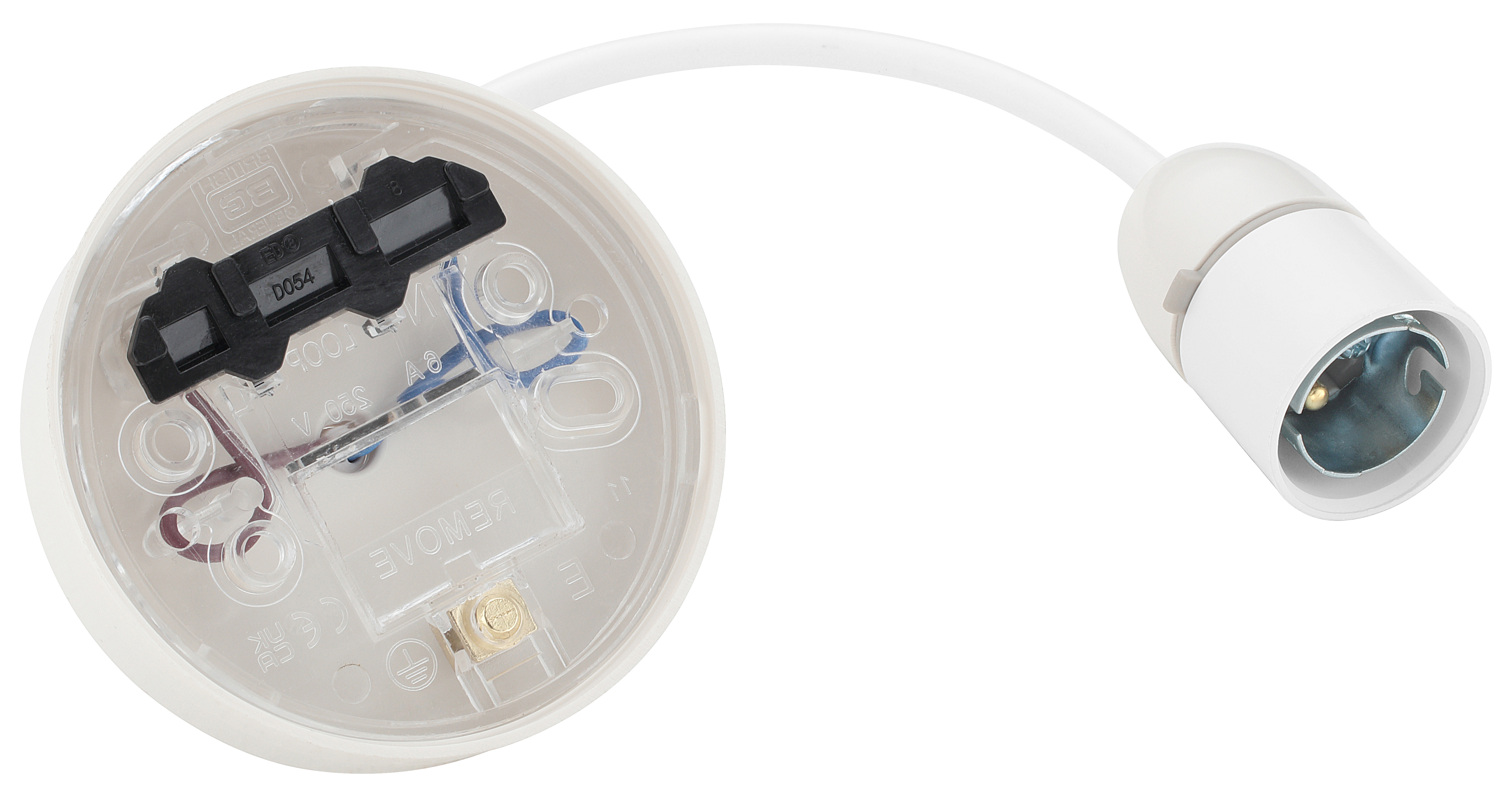

Lampholder prewired to cable ready to be fitted to ceiling rose
| General Colour | White |
| Backed-out Terminal Screws | Yes |
| Terminal Capacity (mm²) | 1 x 2.5mm² |
| Number of Cable Entries | 8 |
| Cable Entry Type | Knockout |
| Screw Caps | N/A |
| Switch Type (Ways & Poles) | N/A |
| Skirt Type | Short |
| Fixing Centres (mm) | 50.8mm |
| Lamp Holder Type | B22 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
