561-01
BG Ceiling Rose 3.5/87mm Diameter

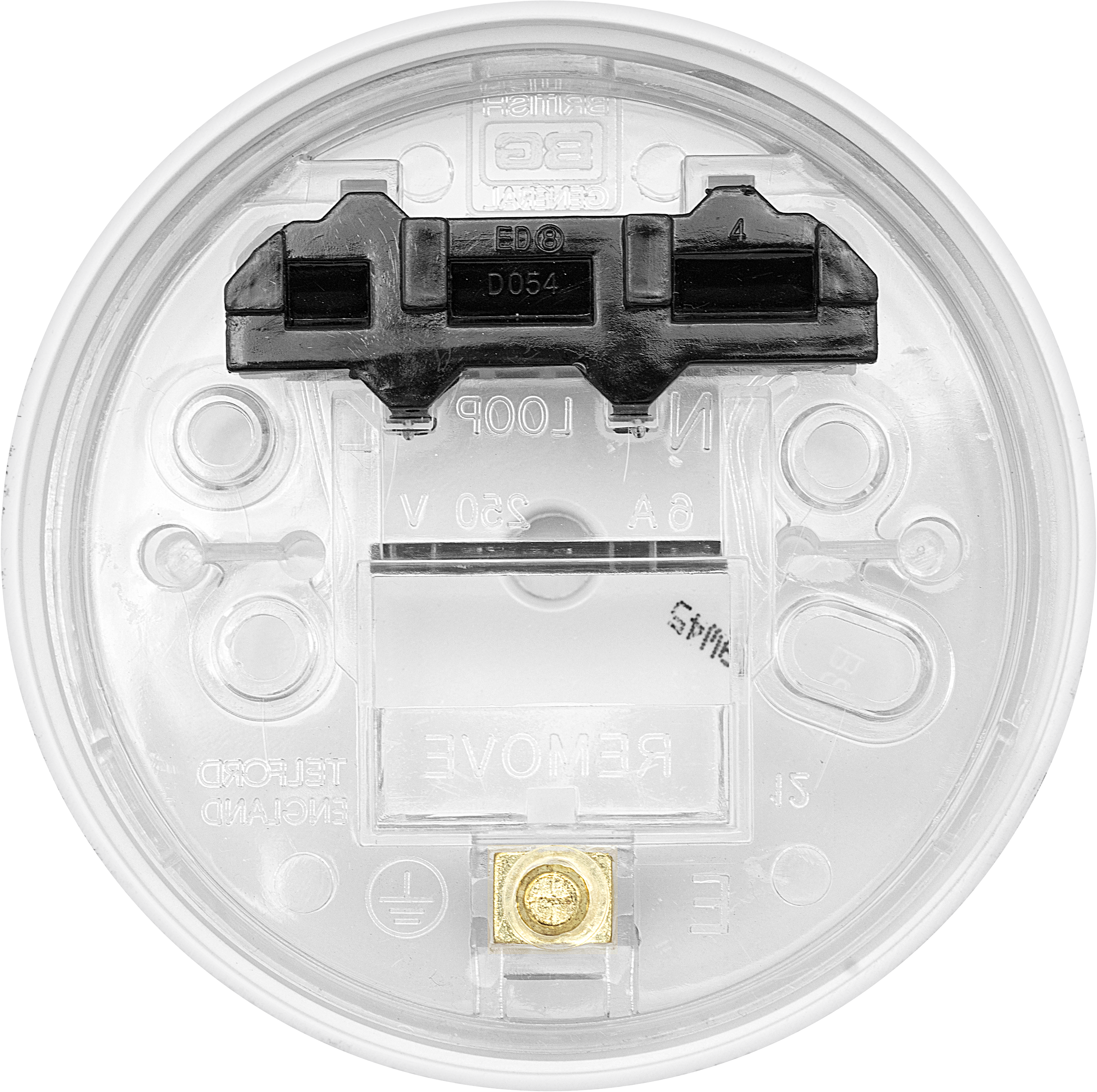

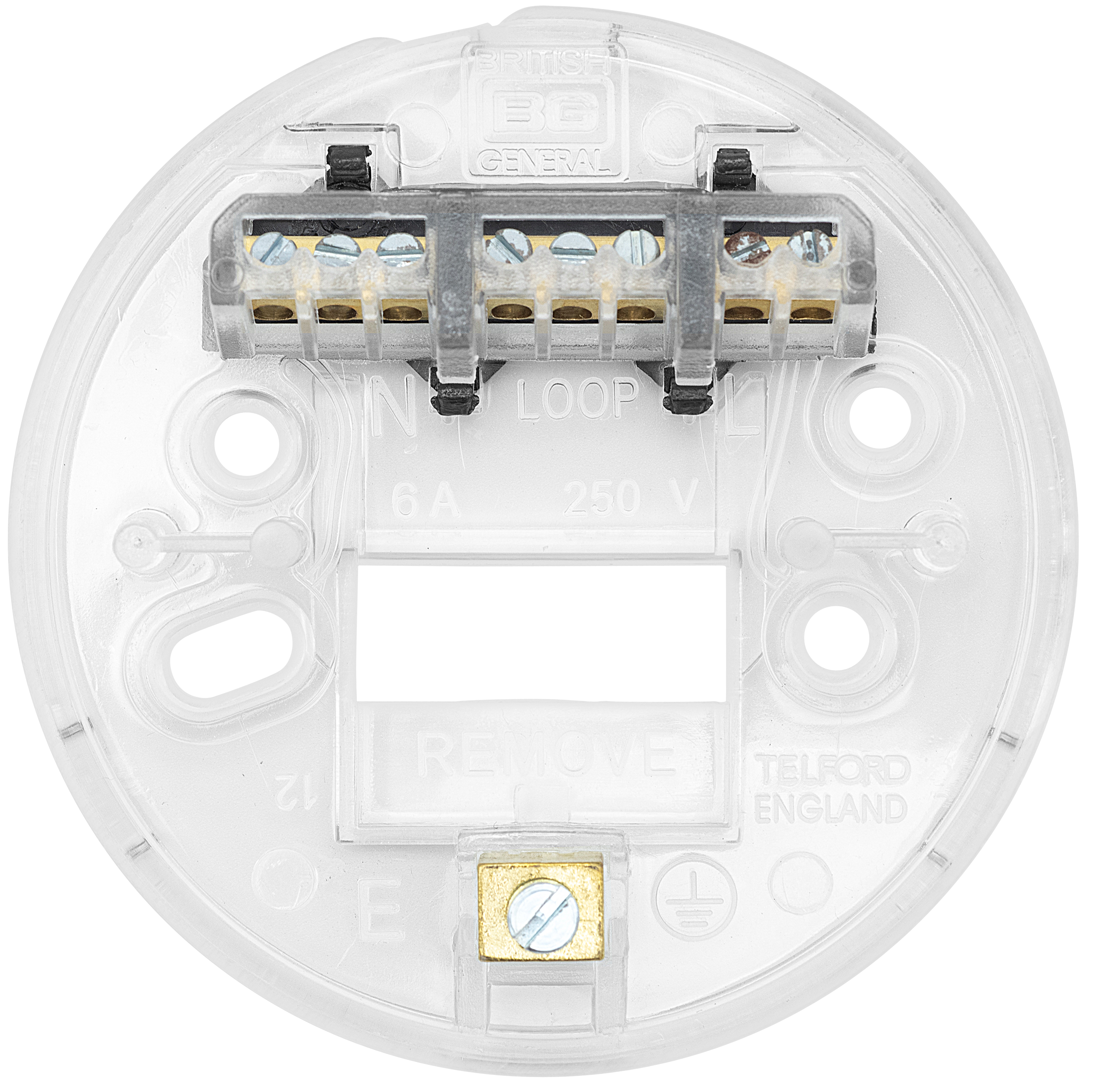

Base incorporates two + loop-in + earth terminals
Spin-on cover with smooth cable entry for maximum protection of pendant conductor insulation
Eight “in-line” terminals all with captive screws
Wiring aperture in base with extra knockout for ease of wiring
Large capacity earth terminal with locking terminal screw
Cover moulded in satin finish urea
Base moulded in clear polycarbonate
3.5"/87mm diameter
| General Colour | White |
| Backed-out Terminal Screws | Yes |
| Terminal Capacity (mm²) | 3 x 1.5mm² , 4 x 1.0mm², 1 x 2.5mm² |
| Number of Cable Entries | 8 |
| Cable Entry Type | Knockout |
| Screw Caps | N/A |
| Switch Type (Ways & Poles) | N/A |
| Skirt Type | None |
| Lamp Holder Type | N/A |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
