954-0J

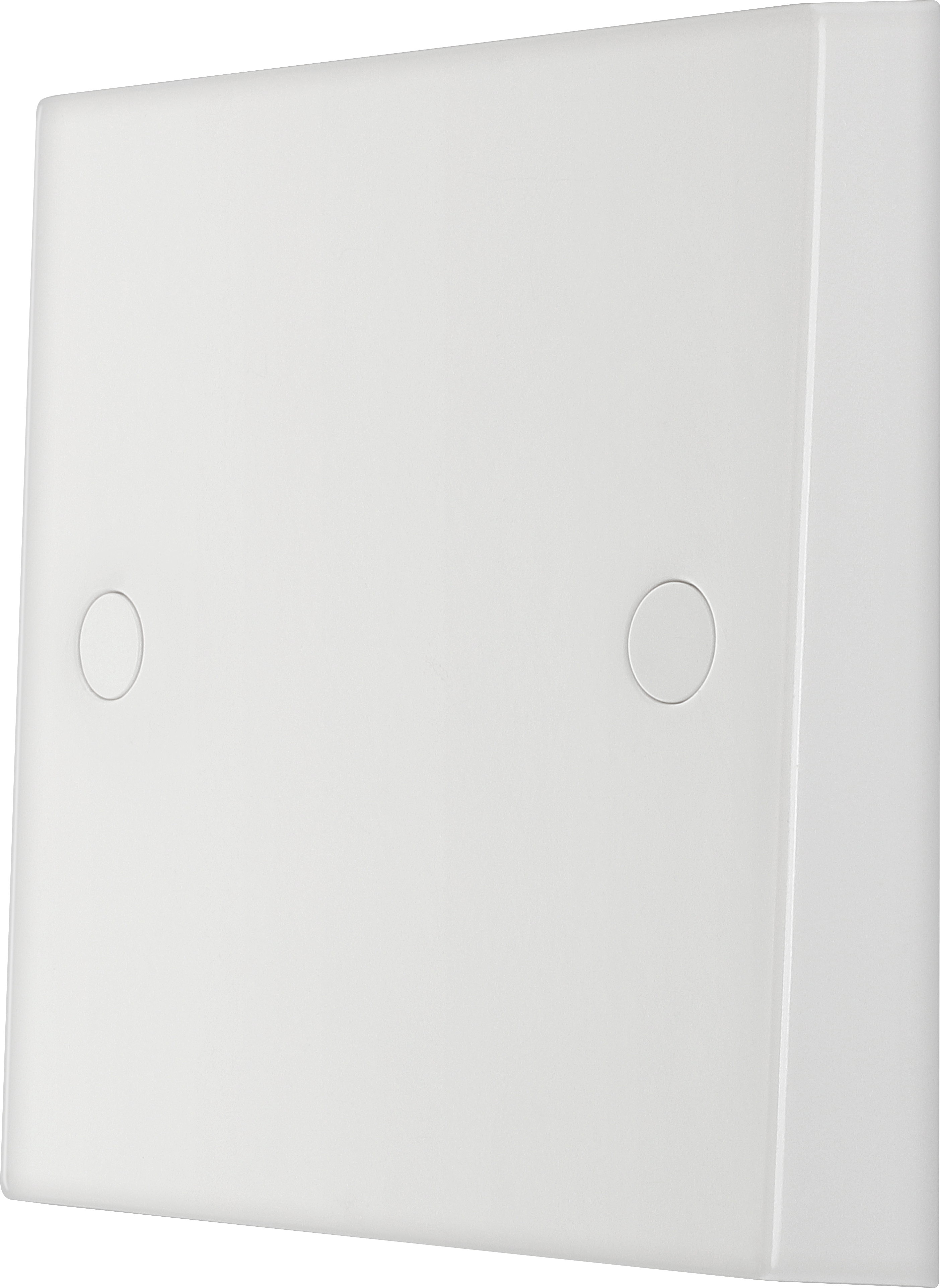

BG White Moulded Square Edge 25A Single Flex Outlet Plate Bottom Entry
25A Rated
Easy to install supplied with fixing screws and installation instructions
Suitable for the connection of refrigerators water heaters, central heating and other fixed appliances
cable entry slot at the lower edge of the faceplate
Reversible cord grip and removable reducer to accommodate different flex sizes

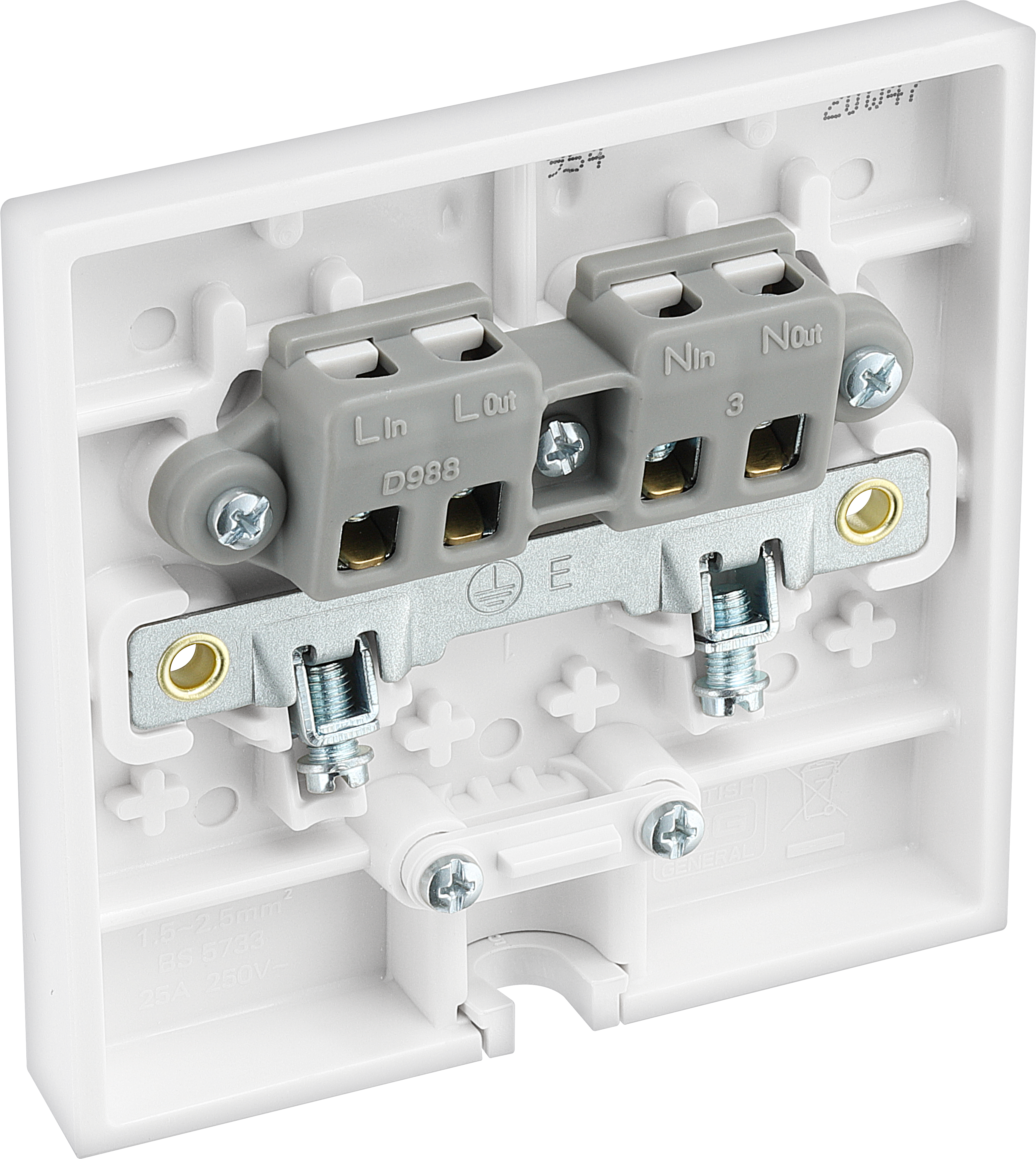

Terminals have 2 cable apertures and screws for individual cables for ease of wiring
Screw covers for sleek appearance
Minimum mounting box depth 35mm
Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
Certified to BS 5733
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
