953-01

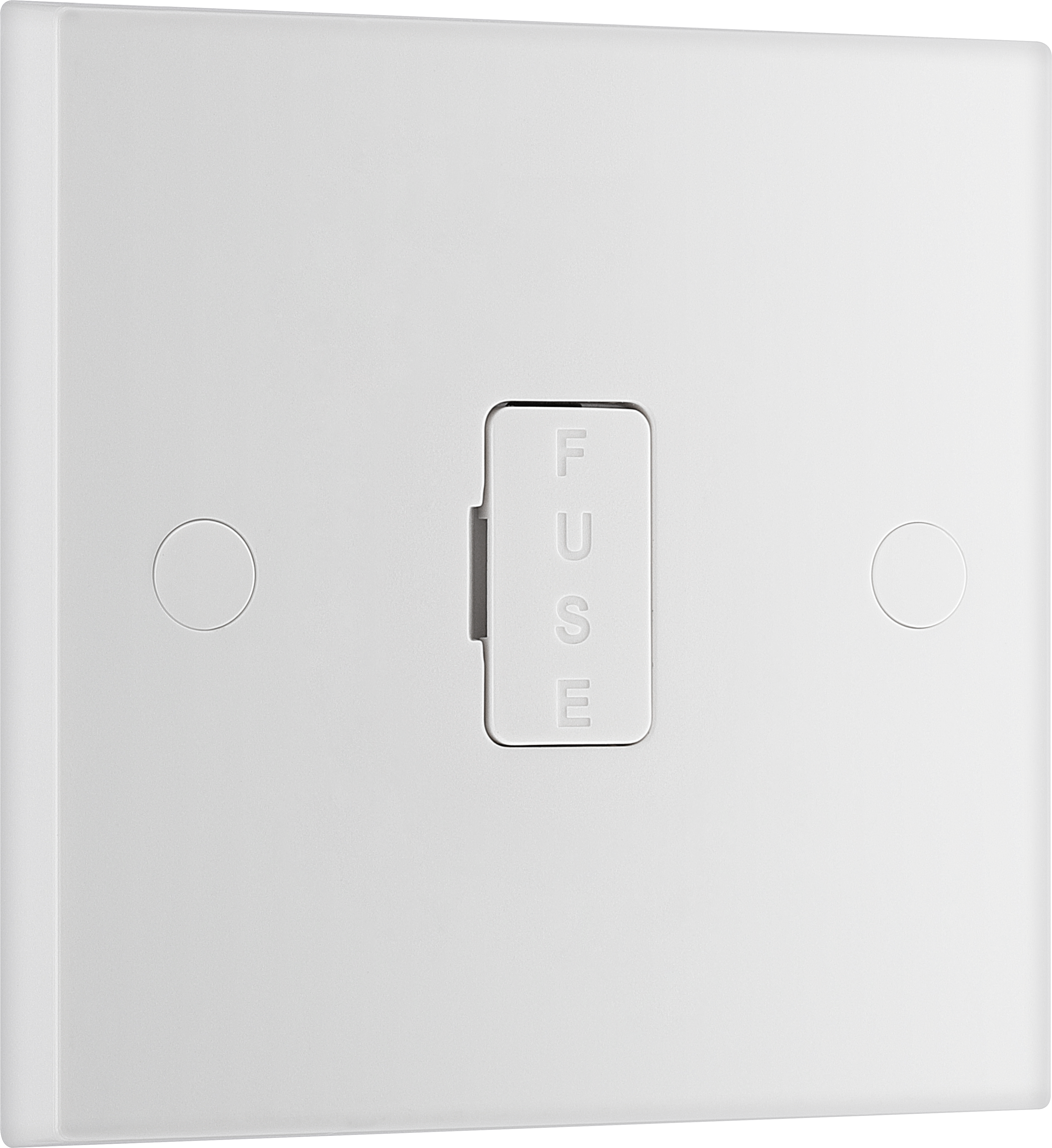

BG White Moulded Square Edge 3A Unswitched Fused Connection Unit

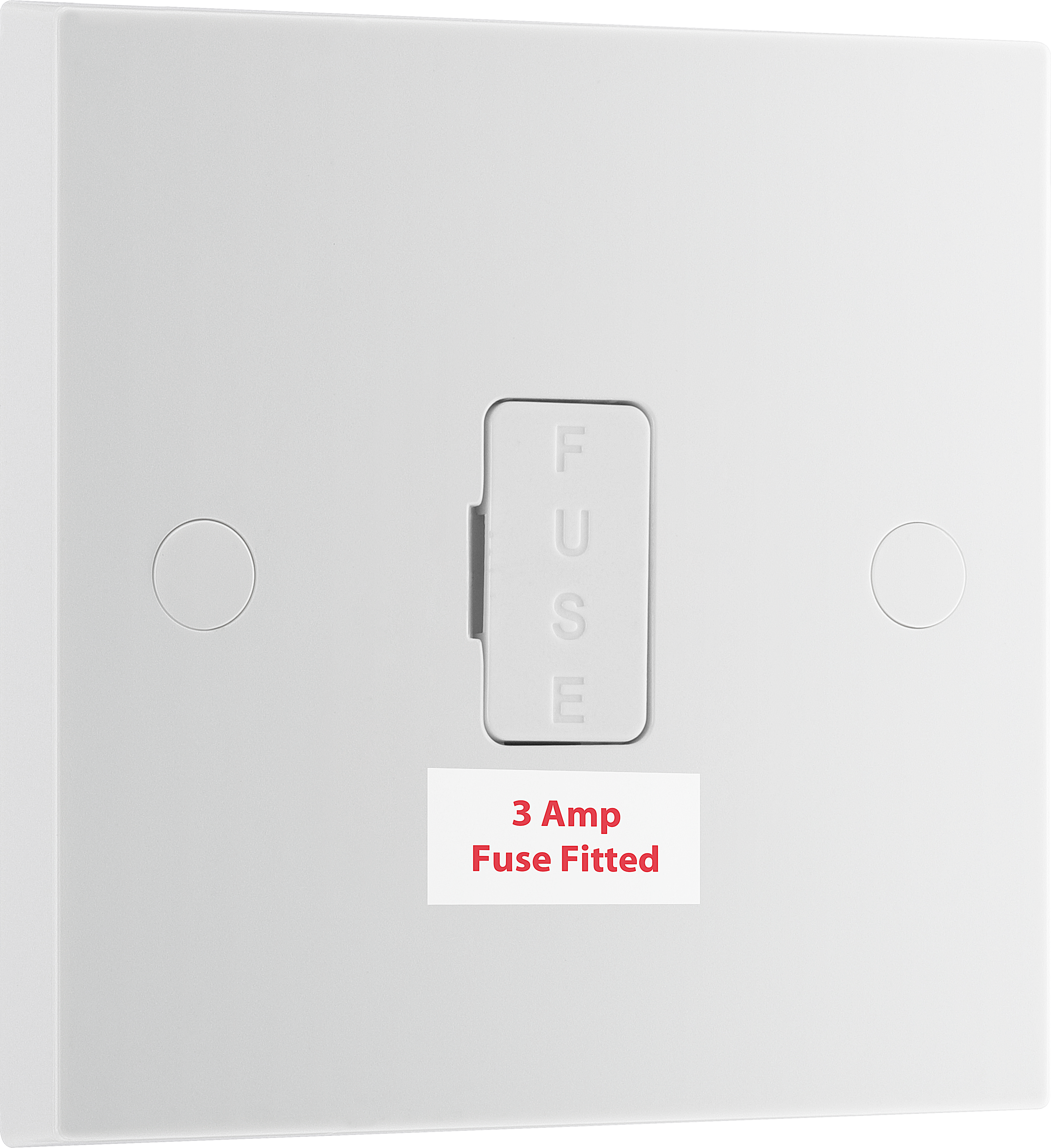

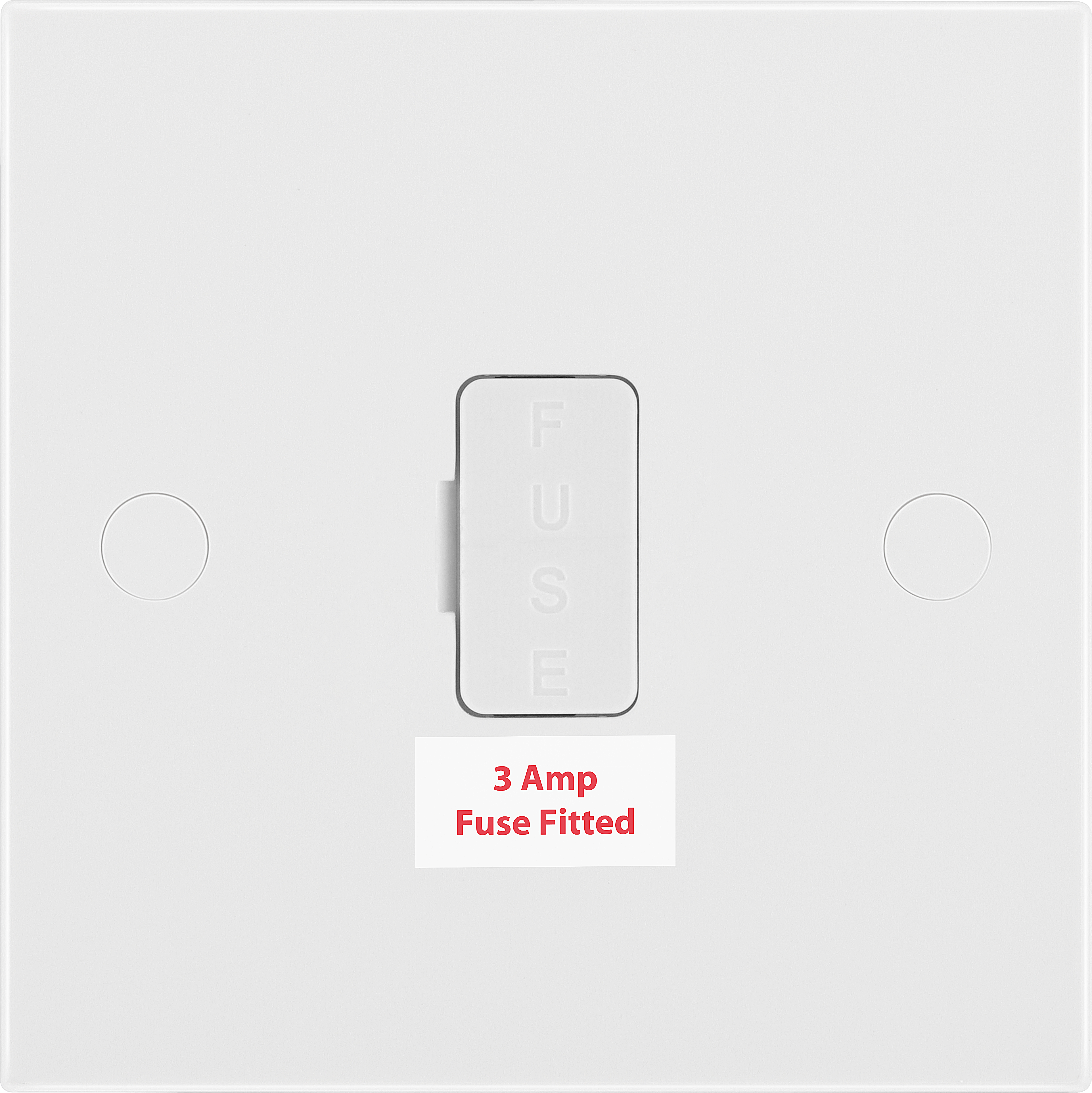

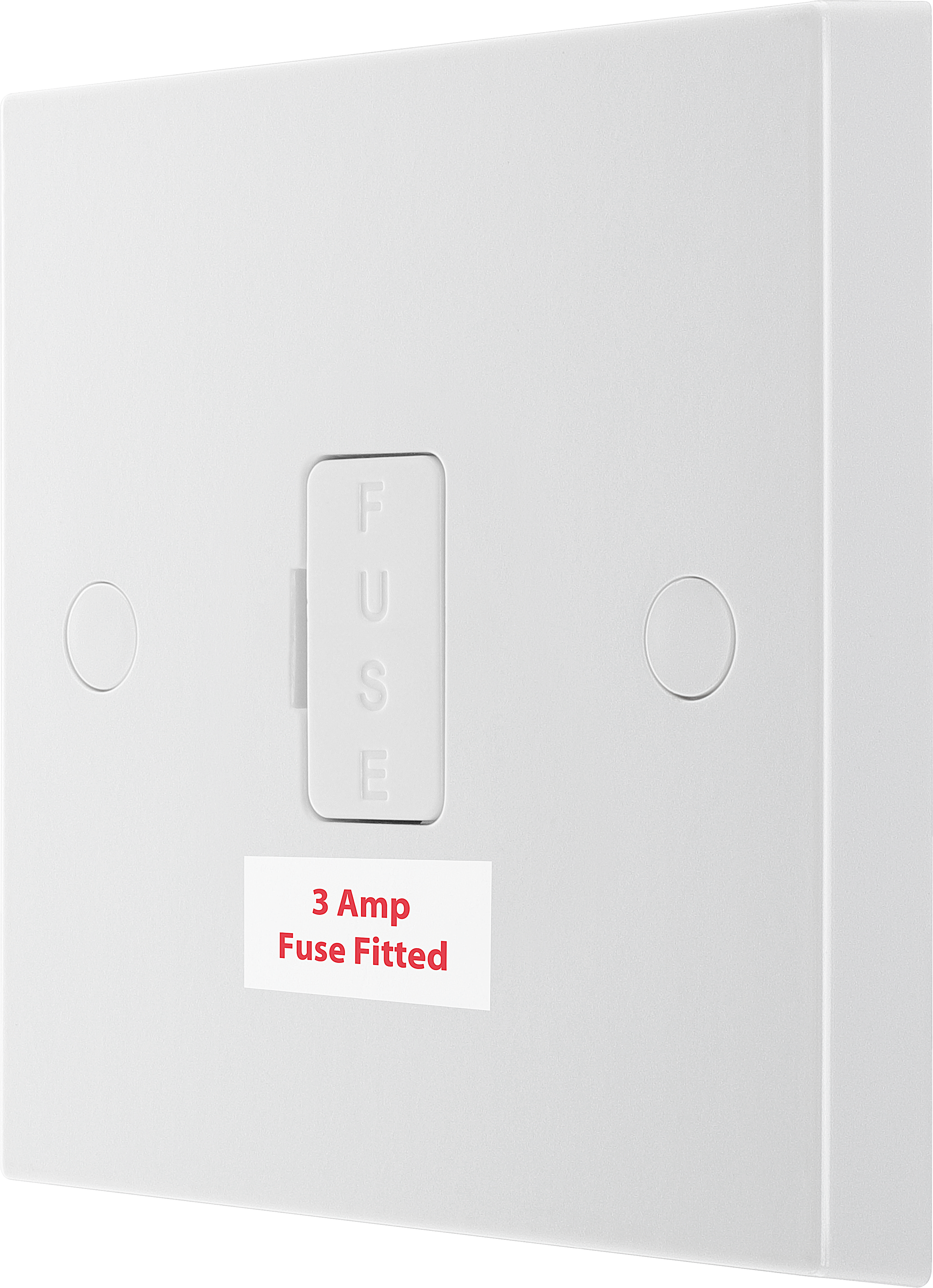

3A Rated
Easy to install supplied with fixing screws and installation instructions

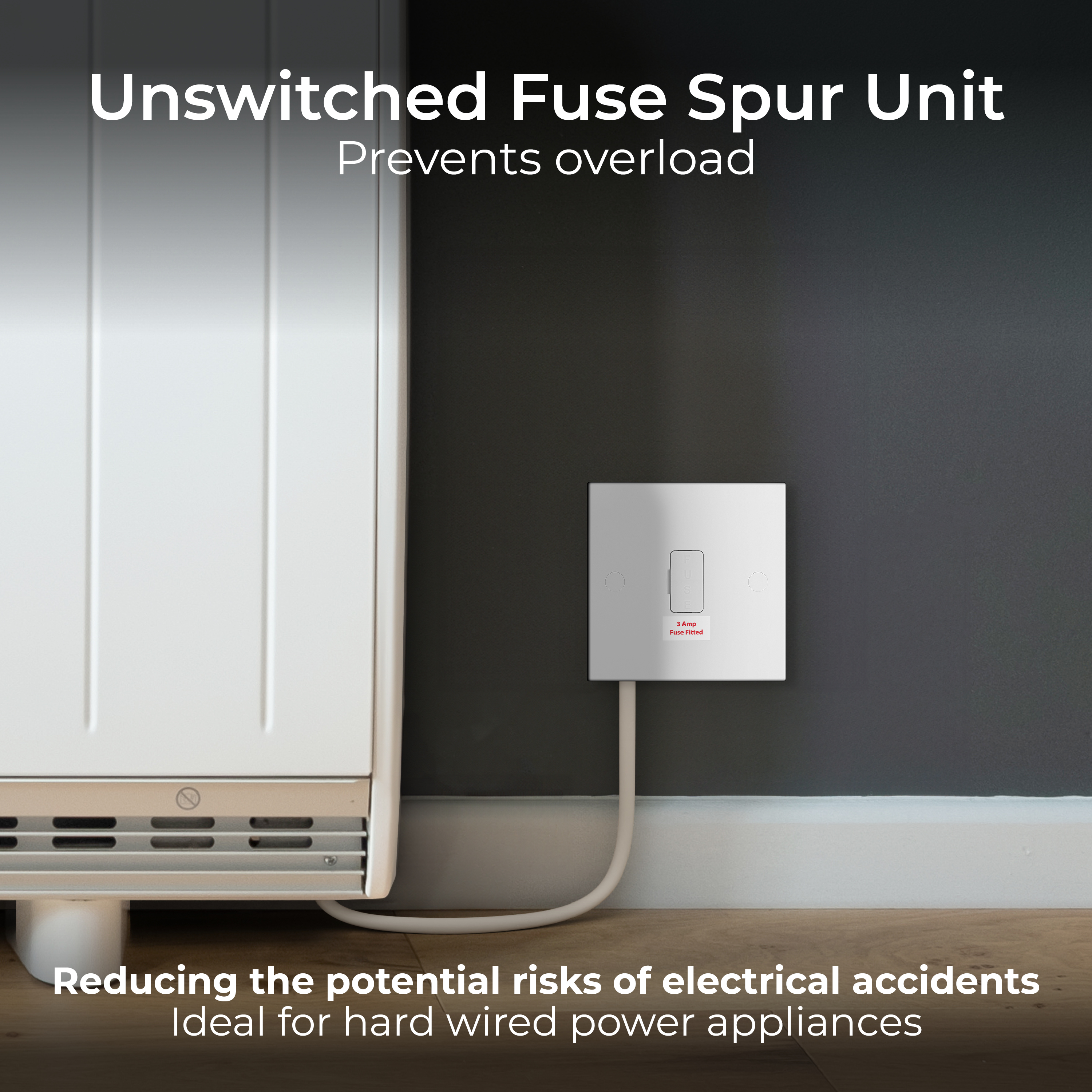

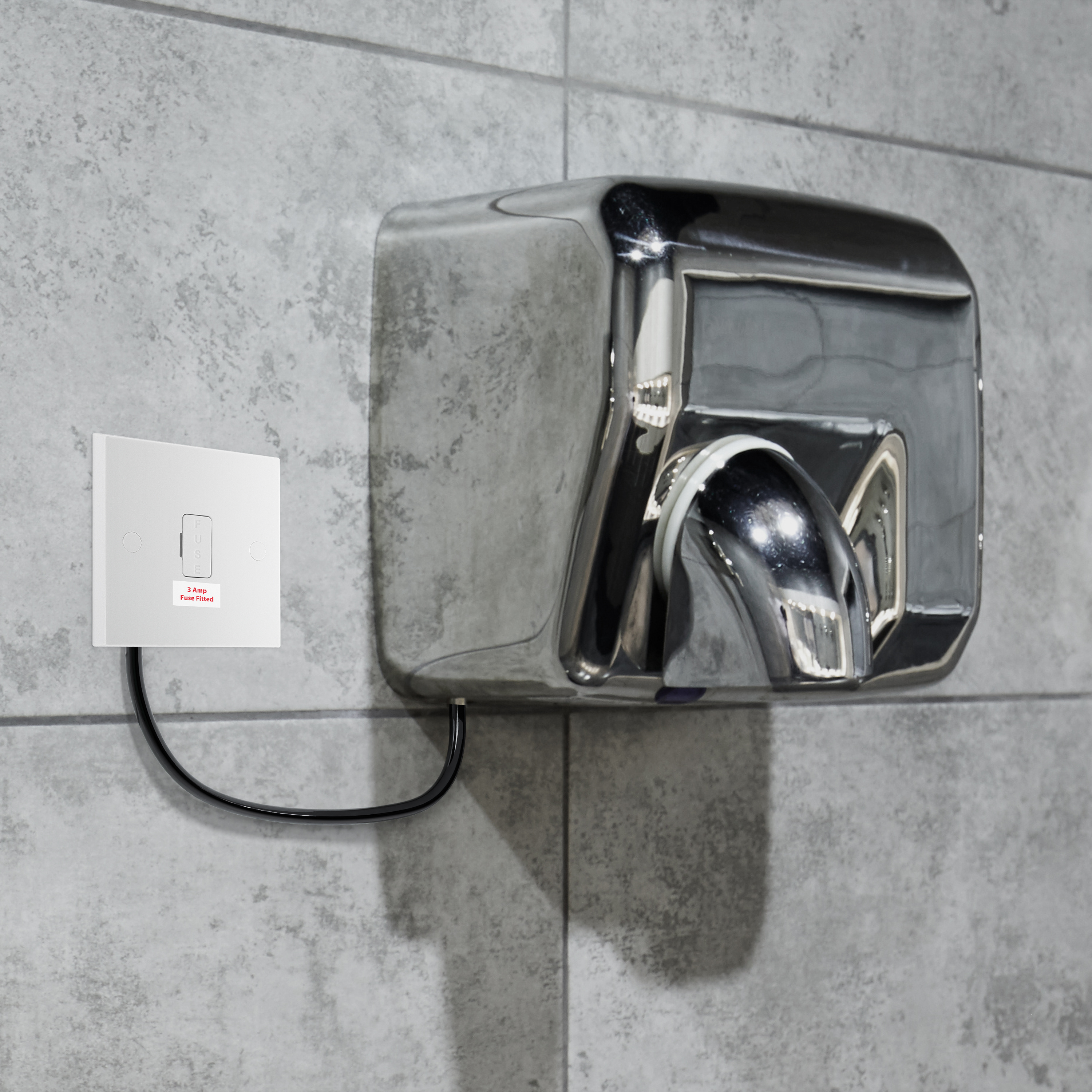

Ideal for hard wired appliances such as fridge freezers which are rated up to 700 watts.

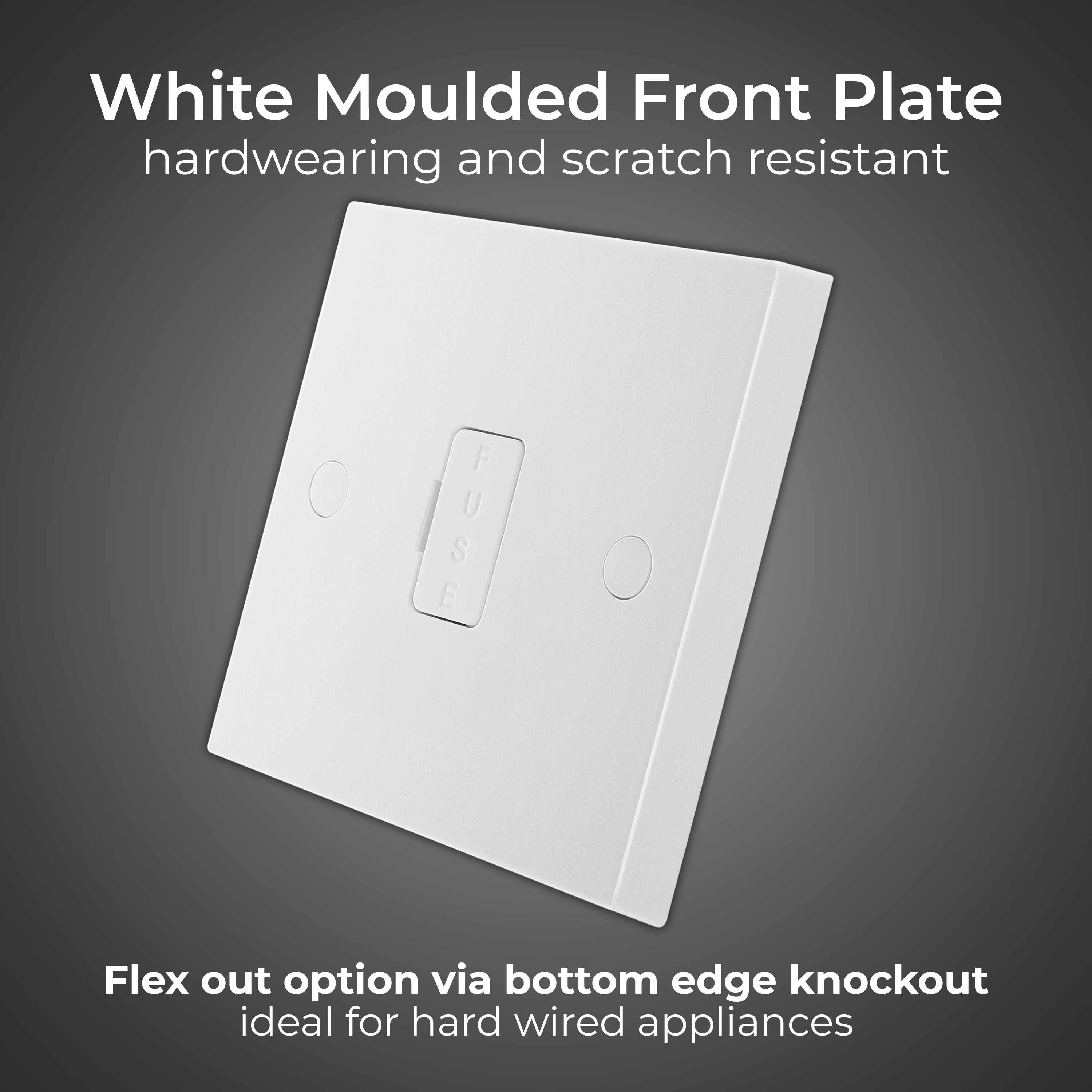

Integrated flex outlet has a cord grip in the lower edge with a removable knockout

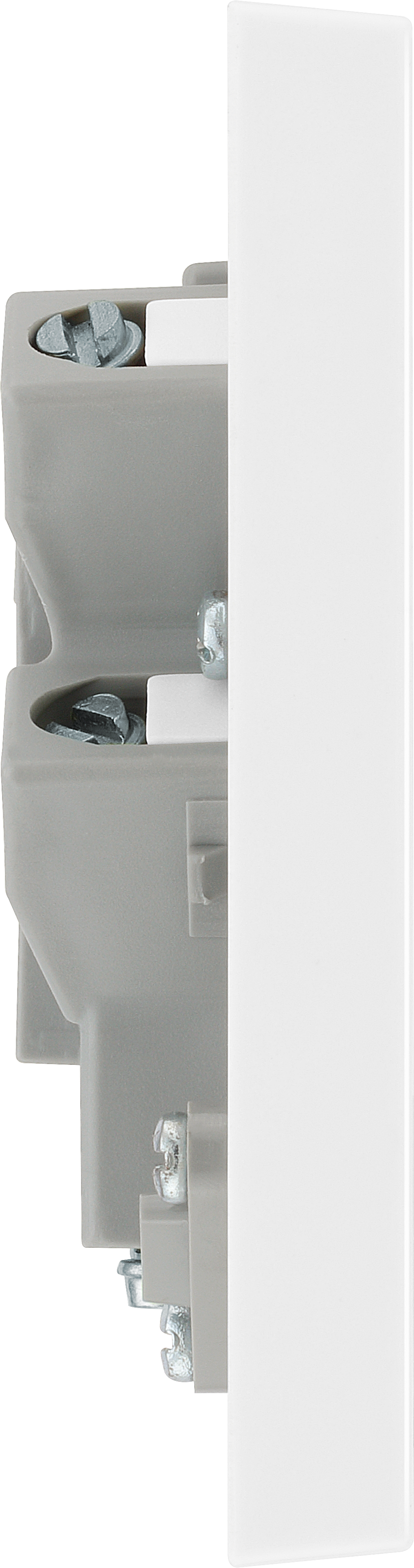

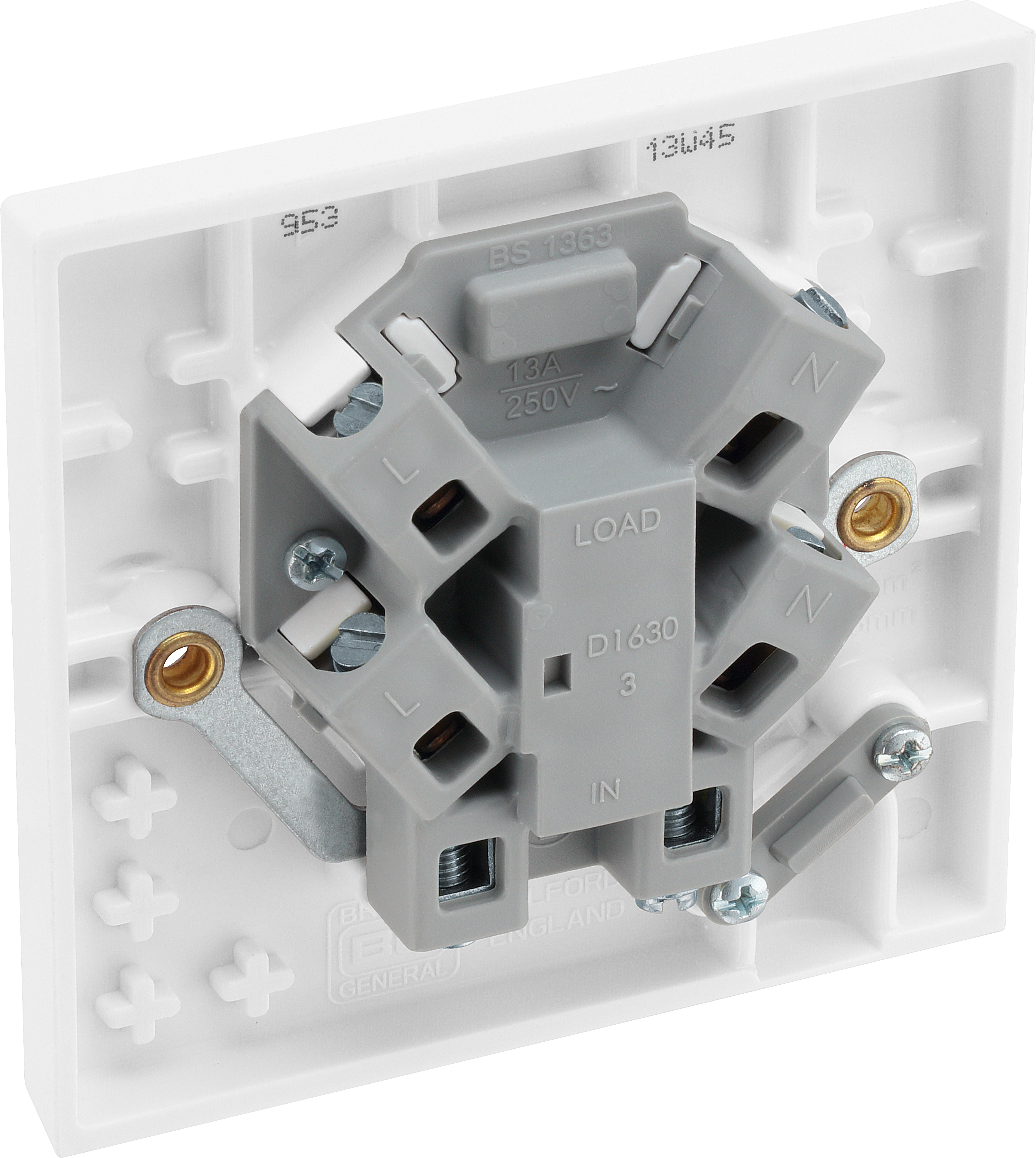

Angled terminals for ease of installation
Captive screws prevent screw loss
Screw covers for sleek appearance

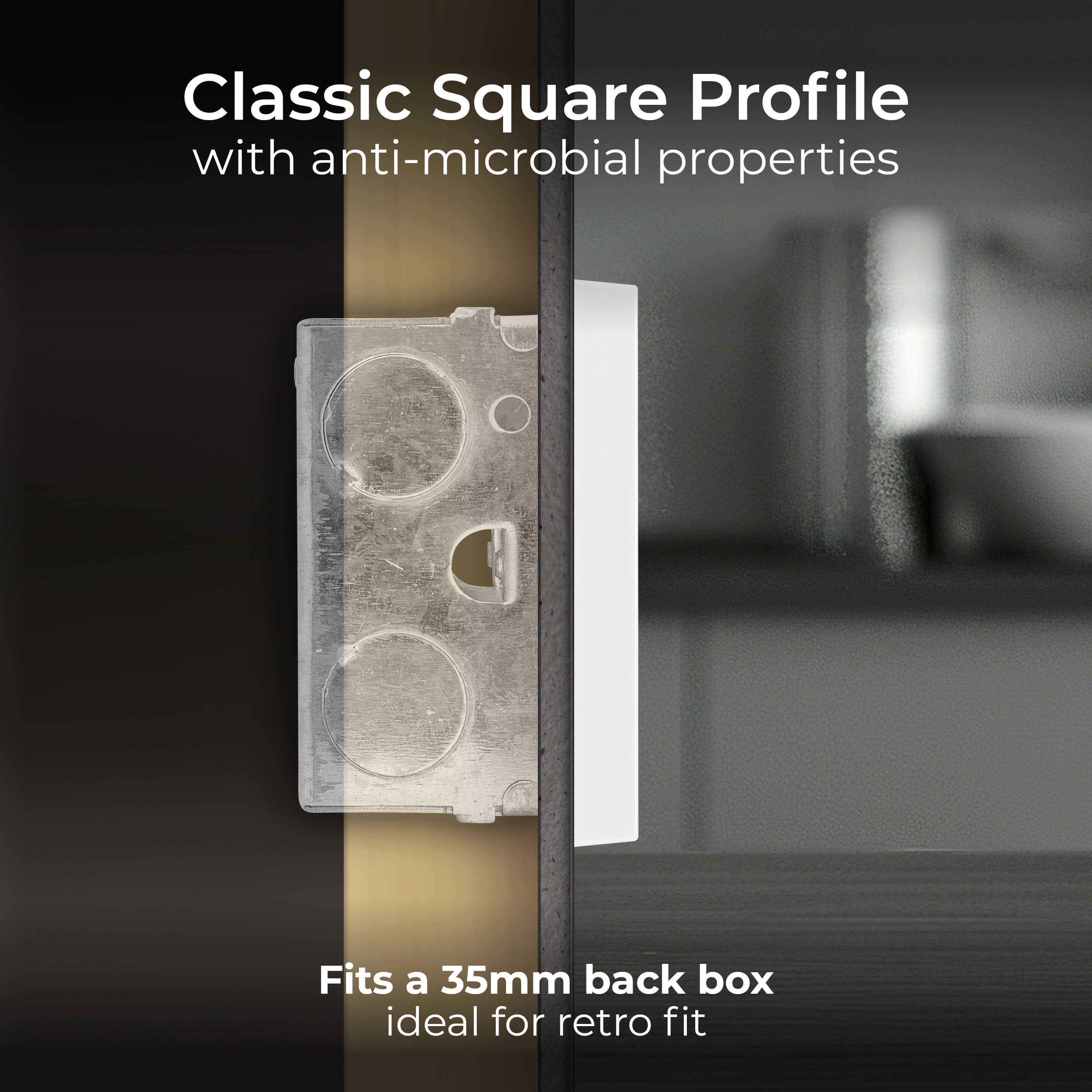

Minimum mounting box depth 35mm
Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
Certified to BS 1363 Part 4
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | N/A |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Fused | Yes |
| Fused Holder Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Flex Out | Yes |
| Flex Out Position | Bottom Edge |
| Supplied with Mounting Box | No |
| Cable Outlet | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
