8KYCSW-01

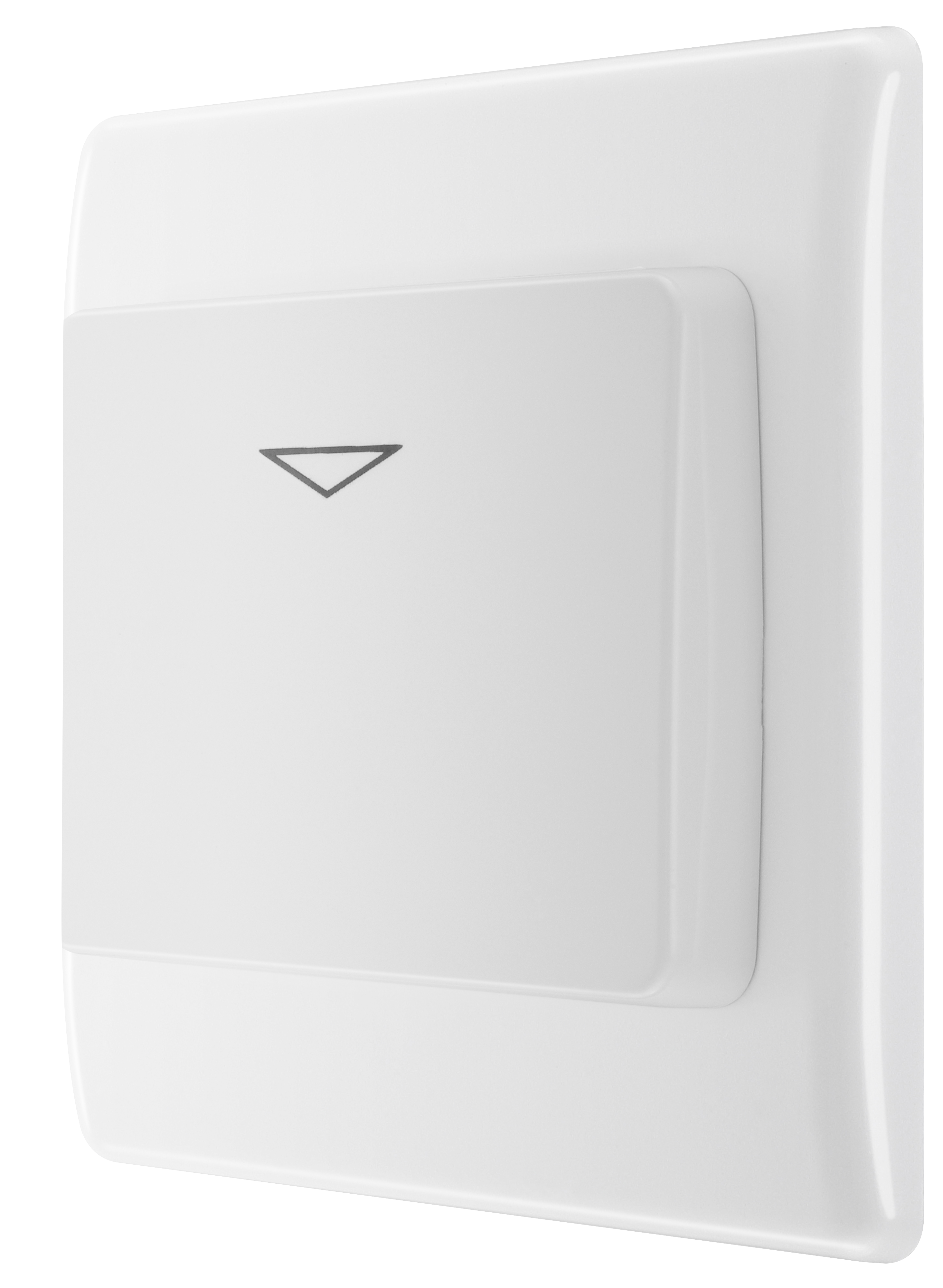

BG Nexus Series White Moulded 16A Key Card Switch
16A Rated
Easy to install, supplied with fixing screws and installation instructions
Power to the room will active when a key card inserted so the room is only powered when occupied
30 second power-off delay prevents users being plunged in to darkness when leaving
Locator LED ideal for night operation
In-line terminals with captive screws for ease of installation
Captive screws prevent screw loss
Mounting box depth 47mm
Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
Supplied as a kit of Euro module components
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (# x mm²) | 2 x 2.5, 4 x 1.0, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Inline |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Style Type | Key |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 30 |
