887-01

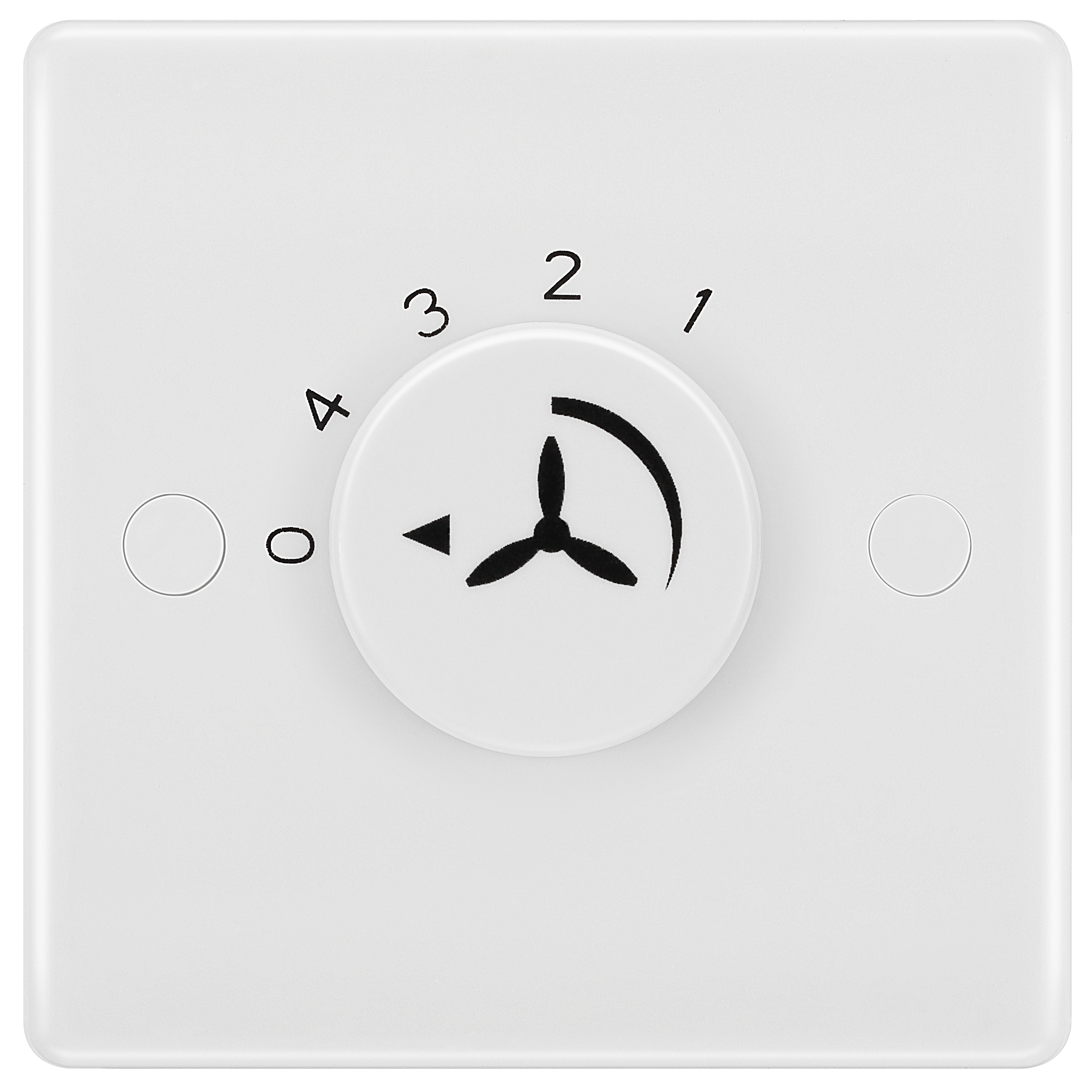

BG Nexus Series White Moulded Fan Controller Switch 4 speed, 1 Way, Rotary
100W Rated
Easy to install, supplied with fixing screws and installation instructions
4 position fan controller
Maximum load 100W
Captive screws prevent screw loss
Screw covers for sleek appearance
Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
Minimum mounting box depth 35mm
Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
Certified to BS EN 60669-2-1
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 3 x 2.5mm², 3 x 4mm², 2 x 6.0mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Inline |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Style Type | Rotary |
| Switch Type (Ways & Poles) | One Way |
| Fixing Centres (mm) | W-60.3 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 30 |
