CFO5HP1G-01

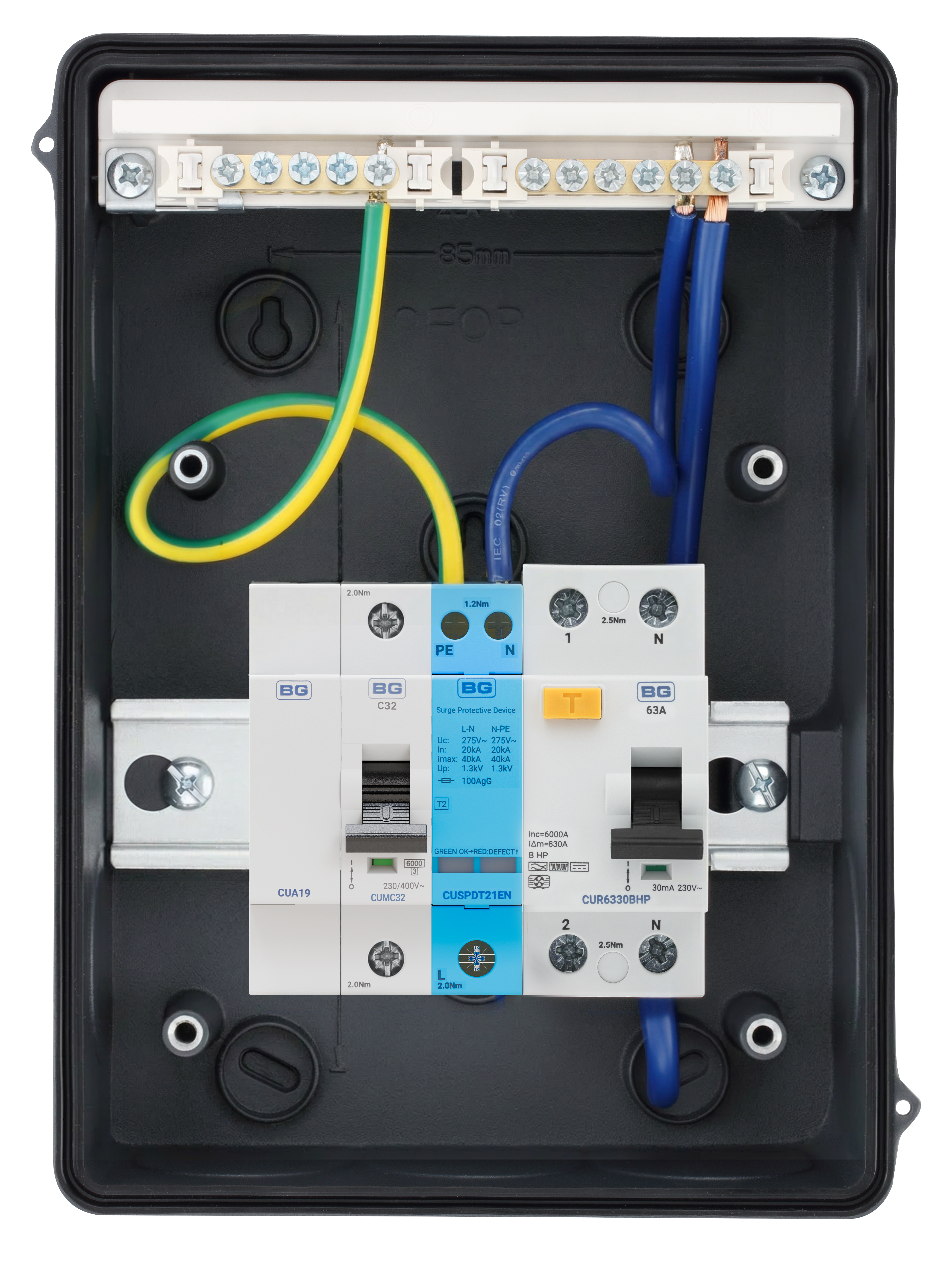

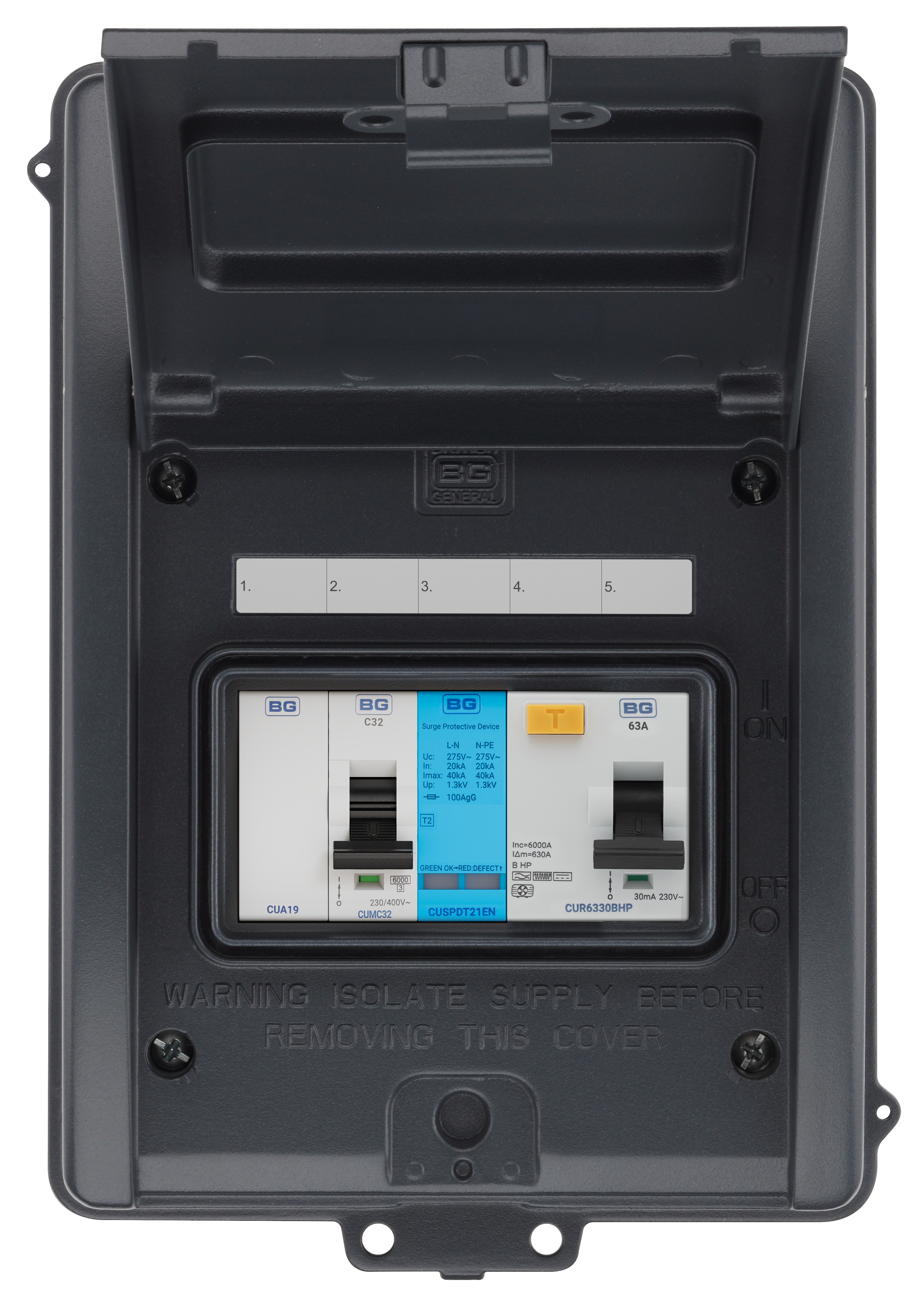

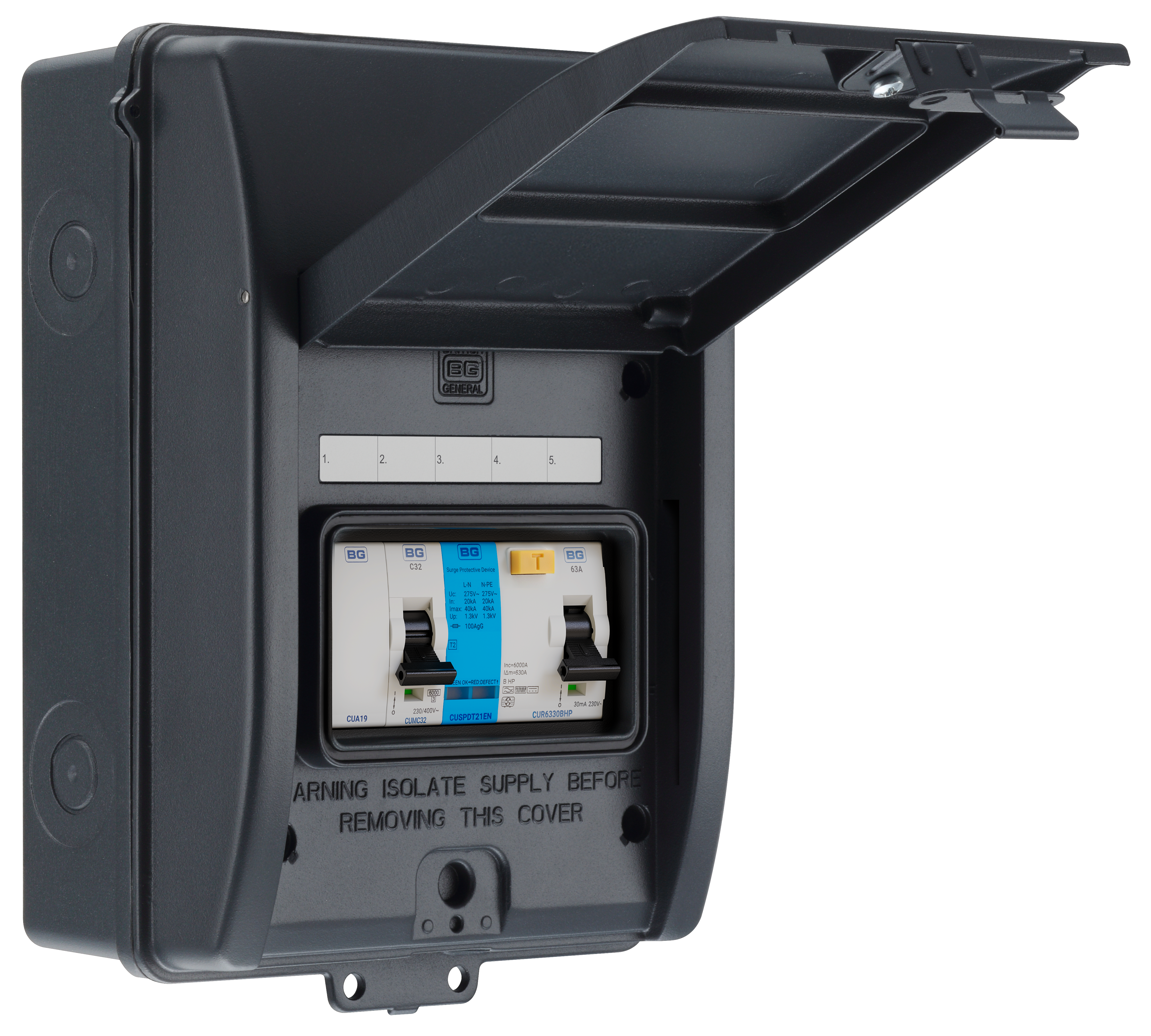

Consumer unit heat pump 5 module 2 way populated with 63A Type B 30mA RCD, 1 x Type 2 surge protection device and 1 x 32A c curve MCB
With a B+HP RCD specific for heat pump installations
Incorporates inbuilt surge to handle initial inverter start-ups
Detection capability: 20 kHz for high-frequency currents
Minimum trip threshold: 150 mA for high -frequency current >1 kHz
Pre-populated and ready for installation
Fire Rated IP65 Enclosure - Suitable for External and Internal installations
Supplied with a 20A C Curve MCB
Type 2 Surge Protection
All metal construction
Enclosure kit supplied with devices DIN rail Neutral cable, Neutral and Earth terminals, labels busbar and cover blanks
| General Colour | Grey |
| Modules | 5 |
| Fitted Lock | No |
| IP Rating | IP65 |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Max Load (A) | 63 |
| MCB's | 1 |
| Operating Temperature (°C) | -25 to +40 |
