CUSW100-01

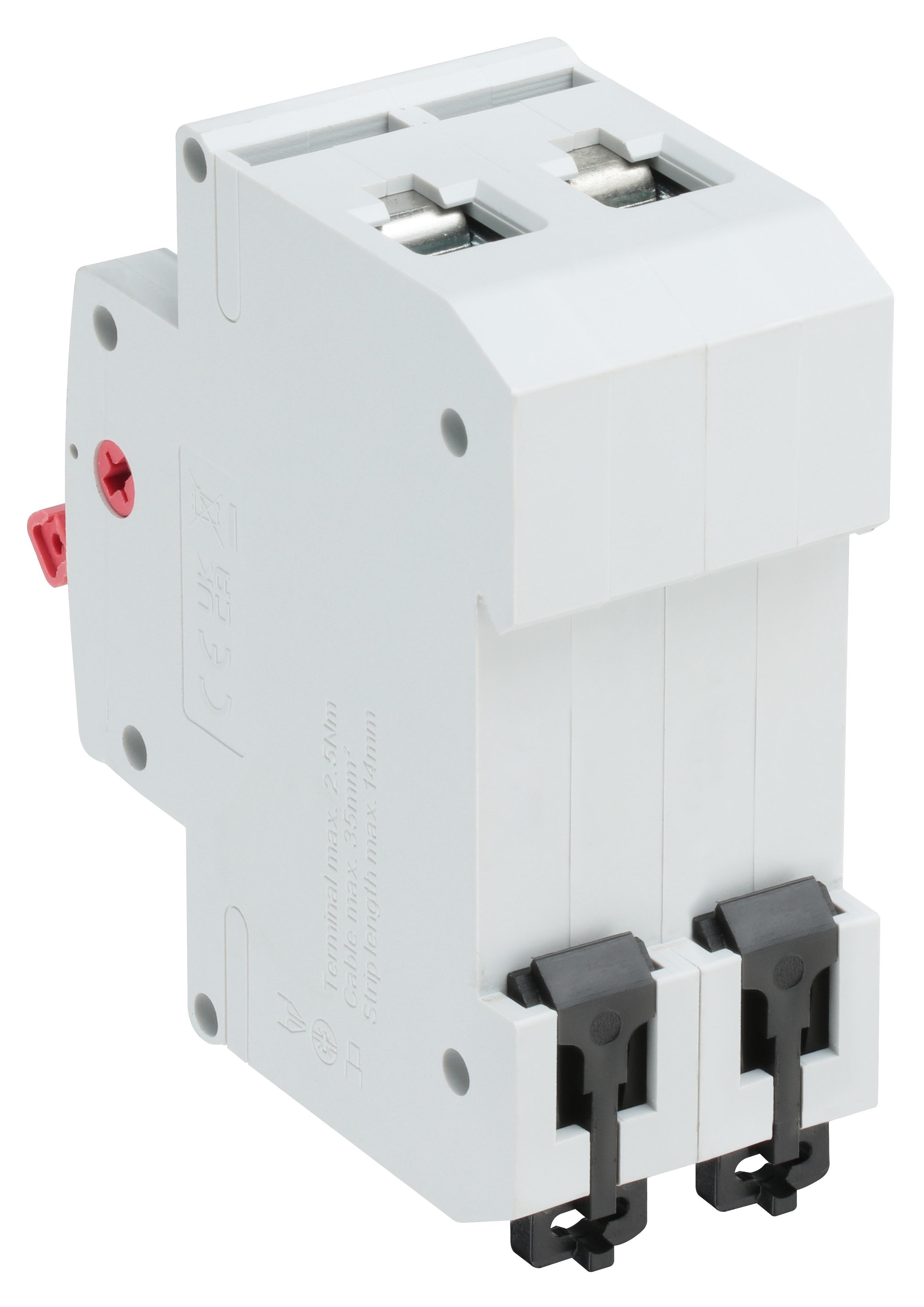

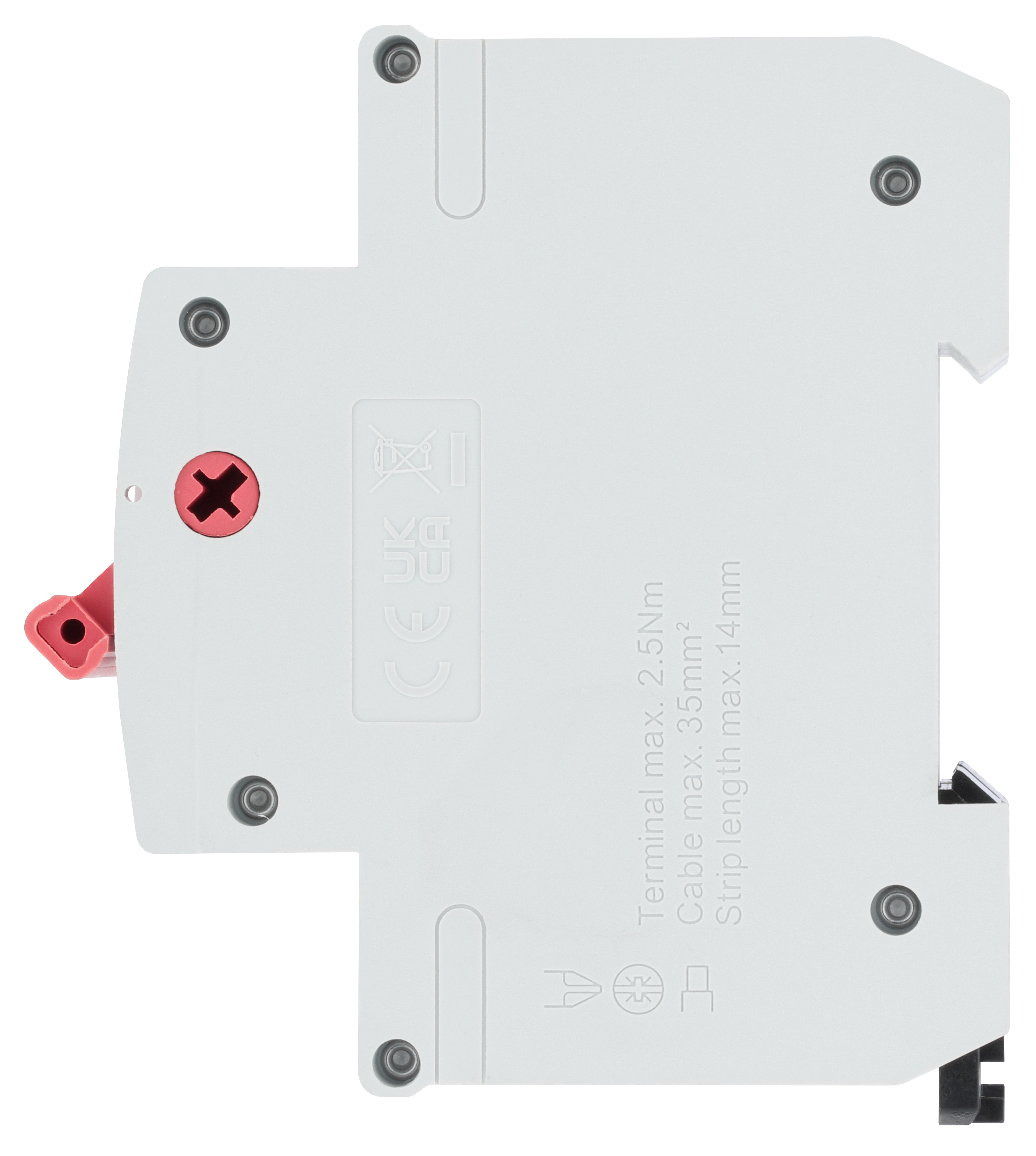

BG 100A Main Switch (isolator)
Main isolator switch
Positive contact status indication
Device capable of being locked in 'ON' or 'OFF' position using a device lock
Double pole
| General Colour | Light Grey |
| Endurance Operations - Electrical | 1500 |
| Endurance Operations - Mechanical | 8500 |
| Operating Voltage (V) | 230, 400 |
| Current Rating (A) | 100 |
| Operating Temperature (C) | -5°C to +40°C |
| Standard(s) | BS EN 60898-1:2019;BS EN 60947-2:2017+A1:2020;BS EN 61008-1:2012+A12:2017;BS EN 61008-2-1:1995;BS EN 61439-4:2013;EN 60898-1:2019;EN 60947-2:2017+A1:2020;EN 61008-1:2012+A12:2017;EN 61008-2-1:1995;EN 61439-4:2013;EN 62208:2011 |
| Warranty (years) | 10 |
