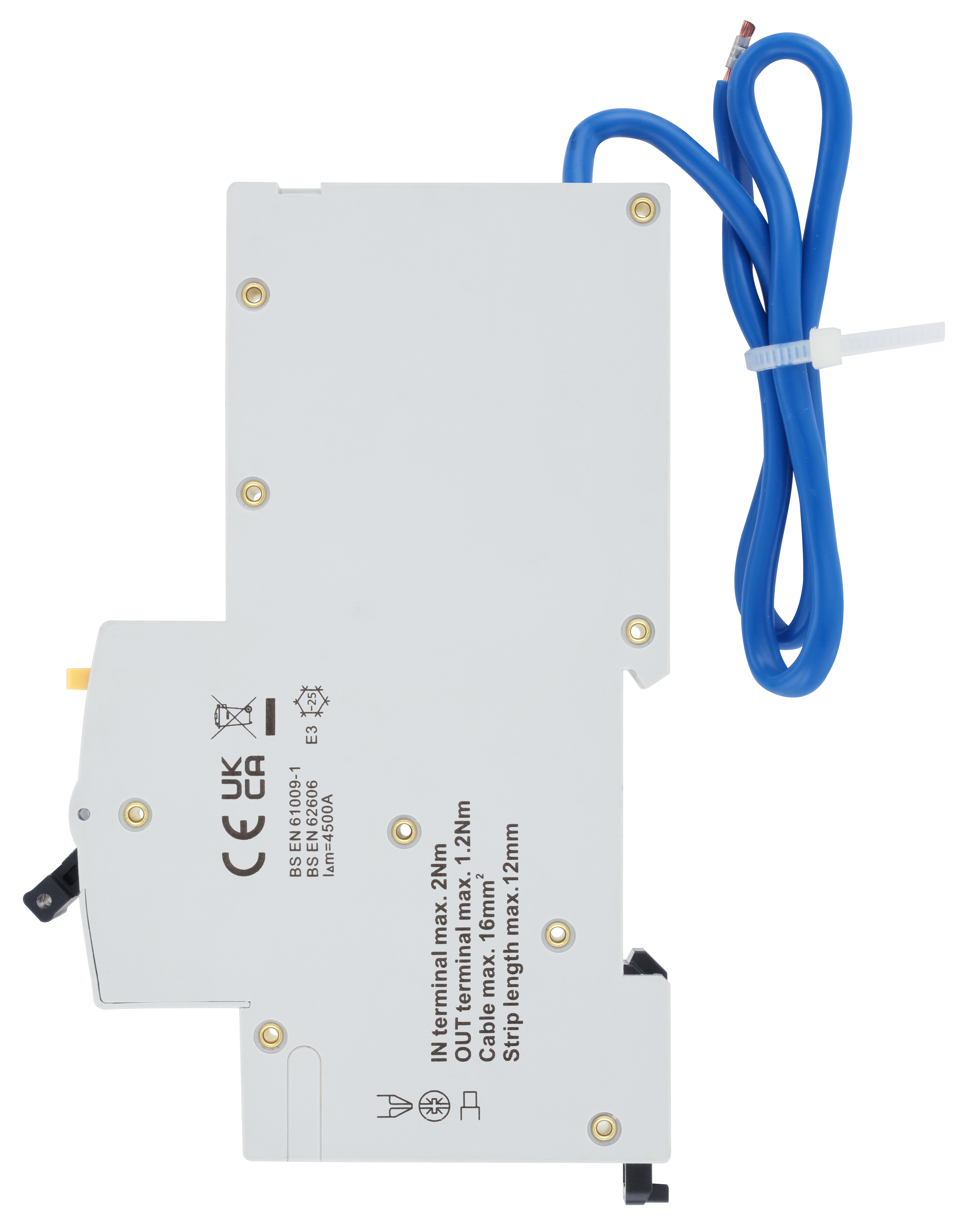

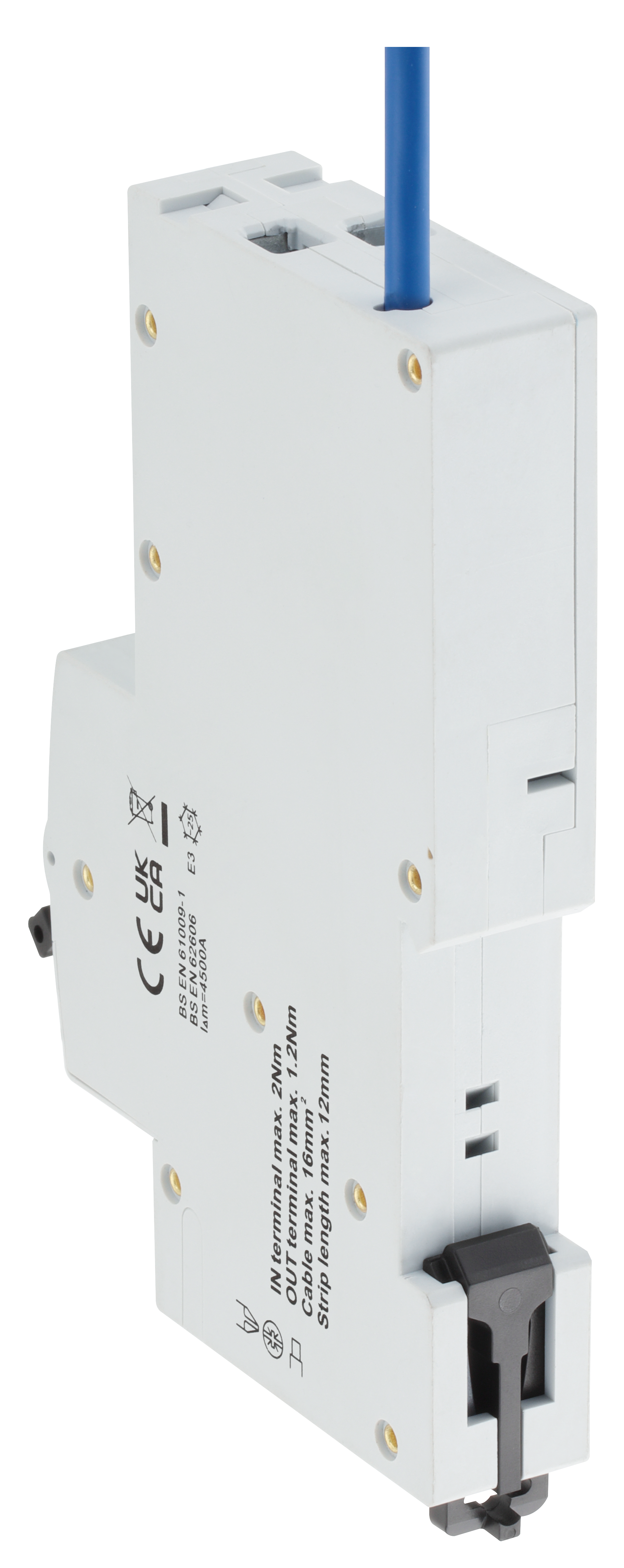

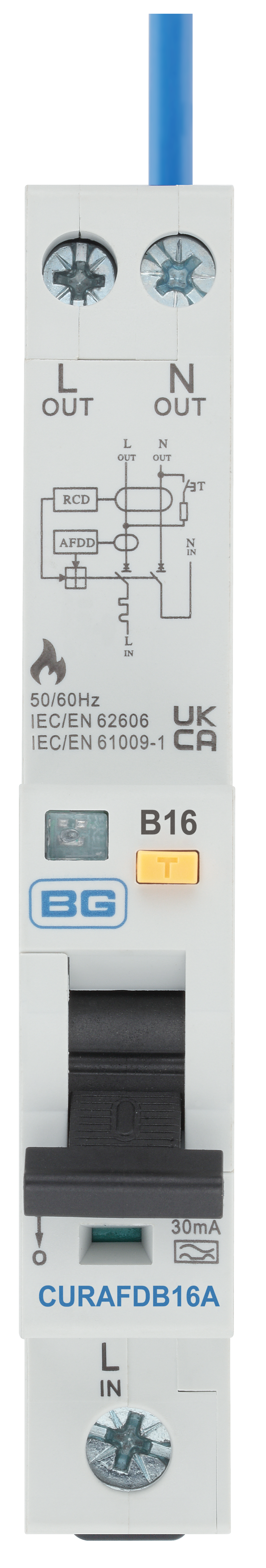

CURAFDB16A-01
BG Tall Body combined AFDD and RCBO 30mA Type A 16A B curve
Type A
Combined AFDD & RCBO
B Curve
LED Indicator
30mA
Positive contact status indication
Manual test button
6kA breaking capacity
Integrated Blue neutral lead
For Use with BG Fortress Consumer Units
| General Colour | Light Grey |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 16 |
| Operating Temperature (C) | -25°C to +40°C |
| Warranty (years) | 10 |
