CF9R1S6-02

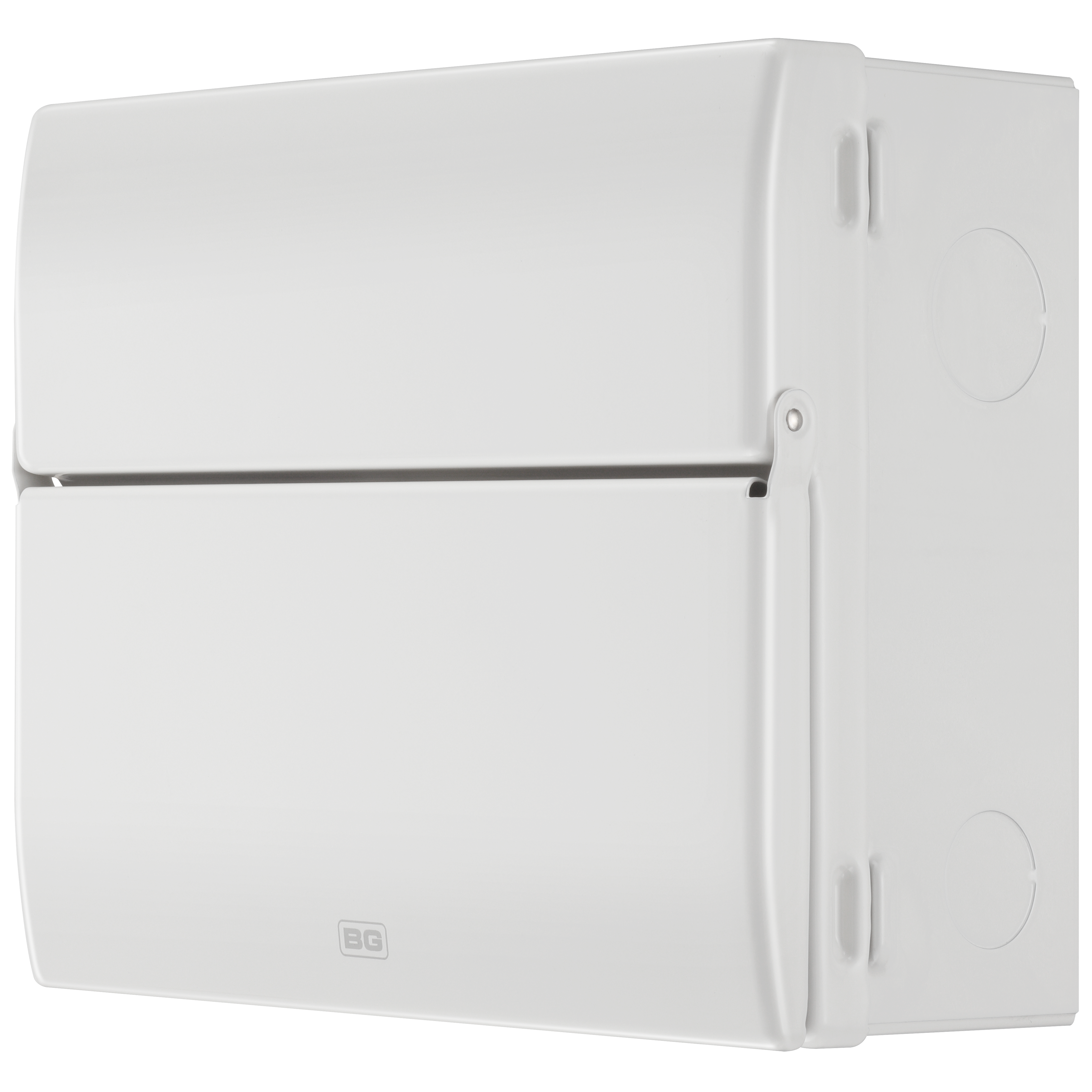

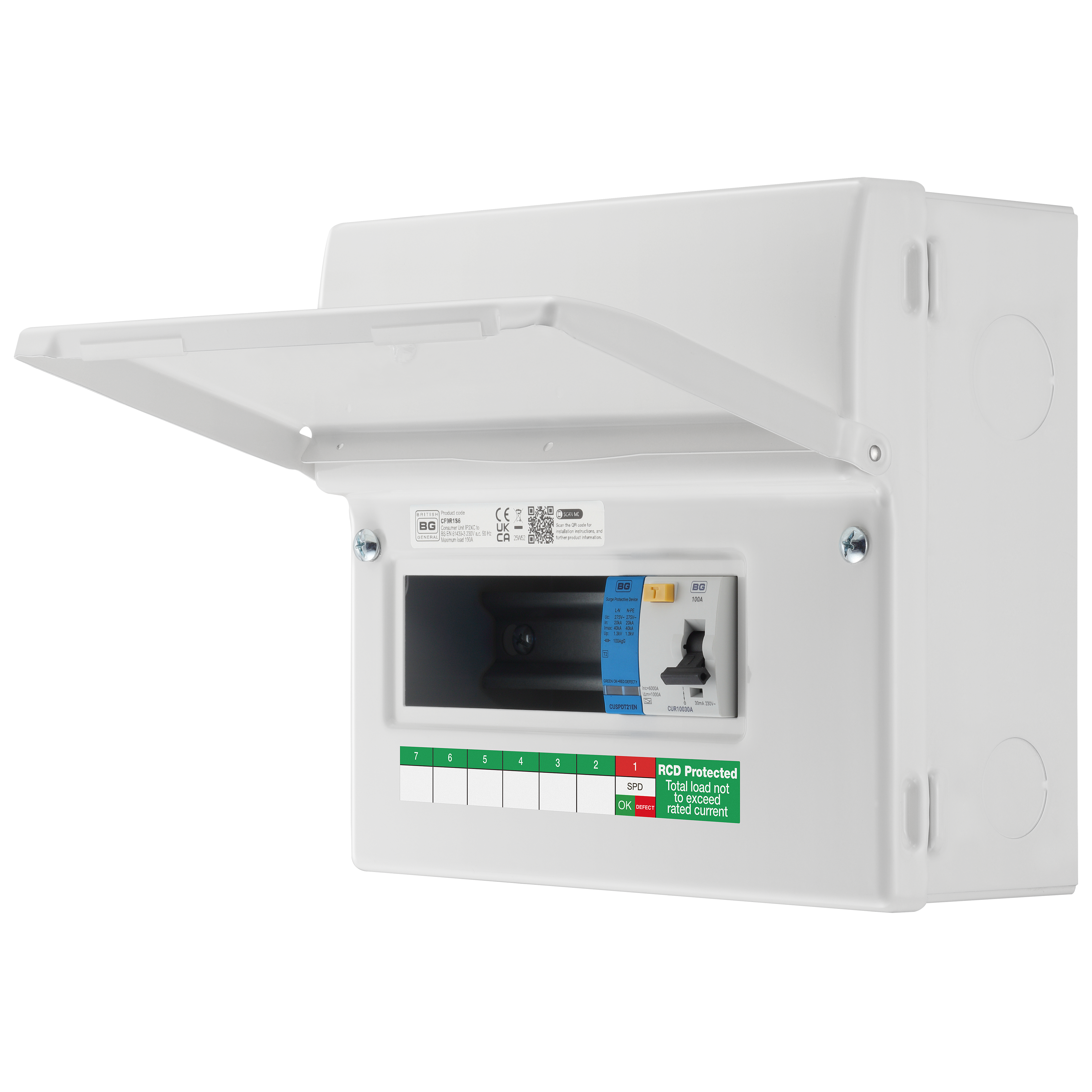

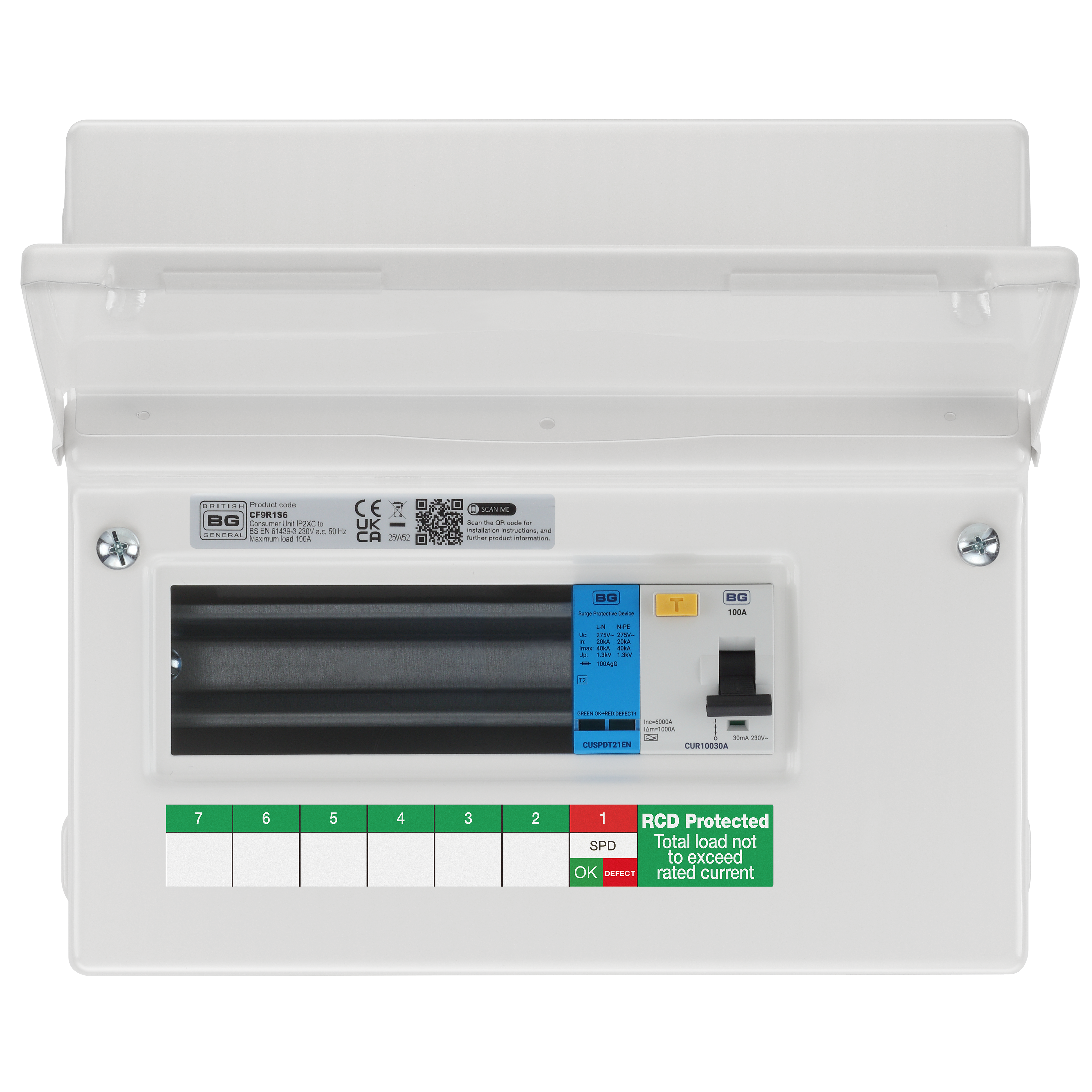

Consumer Unit 9 Module 6 Way Unpopulated with 1 x 100A 30mA RCD & 1 x Type 2 Surge Protection Device
Unpopulated
Supplied with Type 2 Surge Protection Device
Supplied with 100A RCD
9 Module Capacity
6 Useable Ways
30mA Earth Leakage Protection
Type A
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 9 |
| Number of Cable Entries | 16 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |

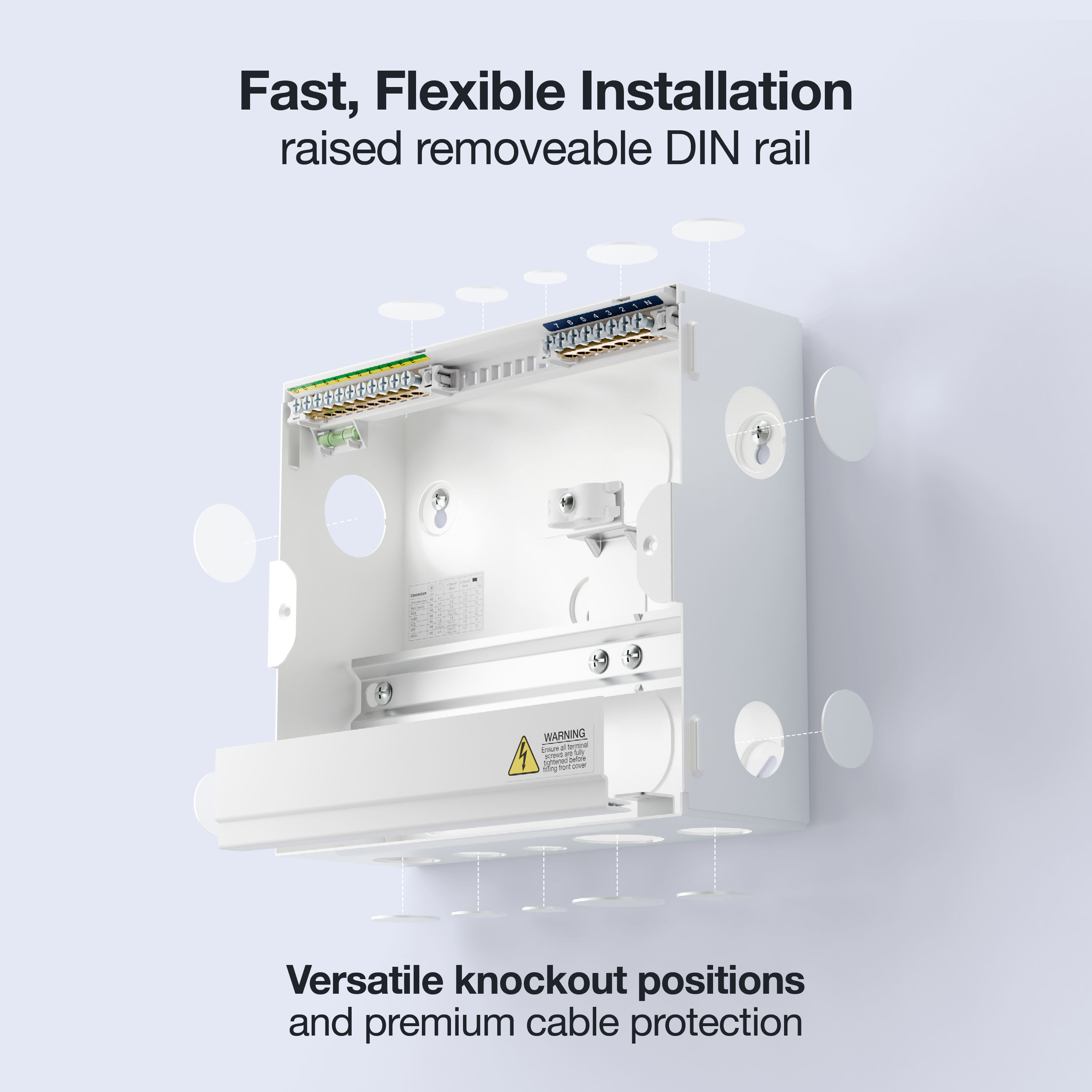

| Cable Entry Type | Knockout |

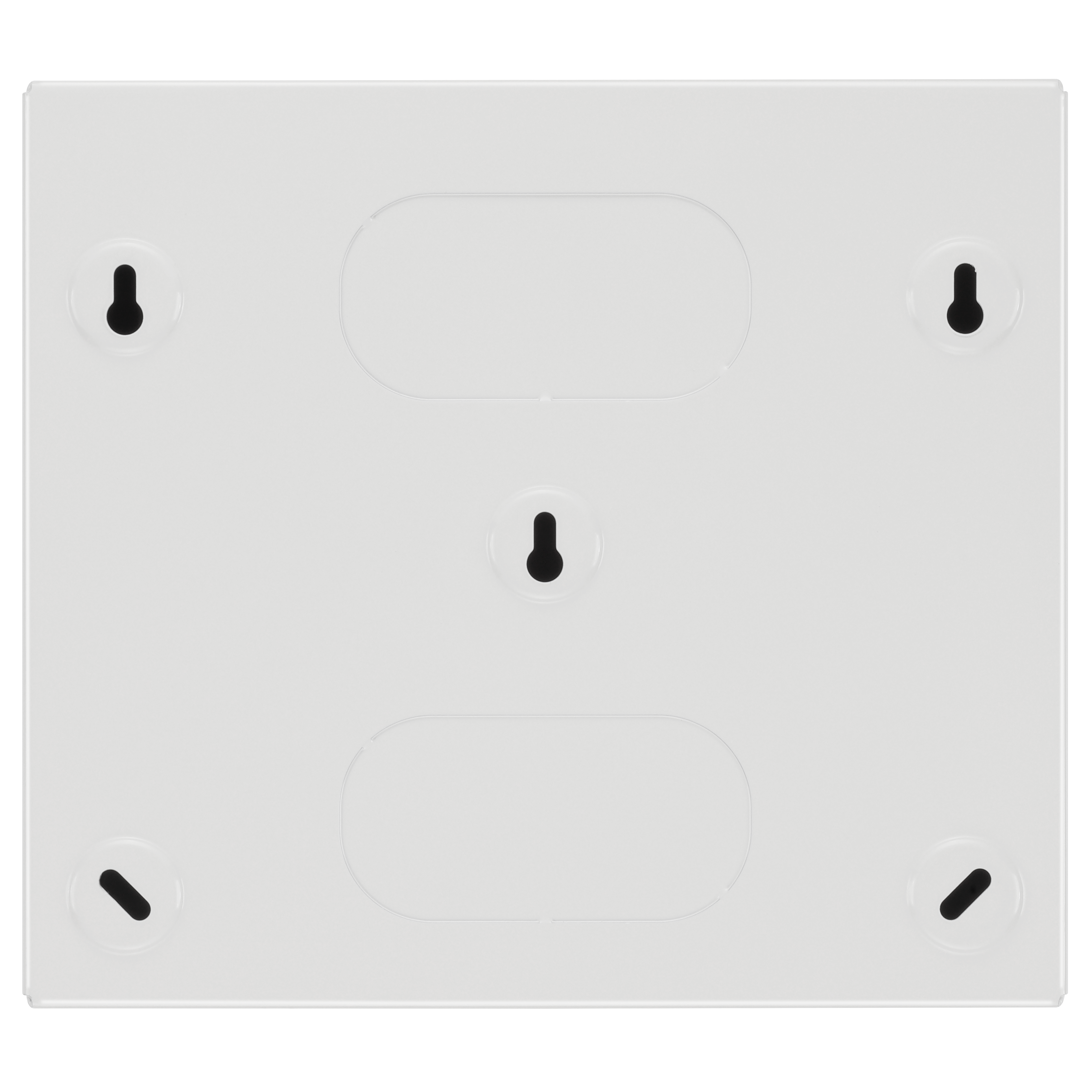

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 6 |
| Number of Knockouts | 16 |
| Mounting Type | Surface |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |

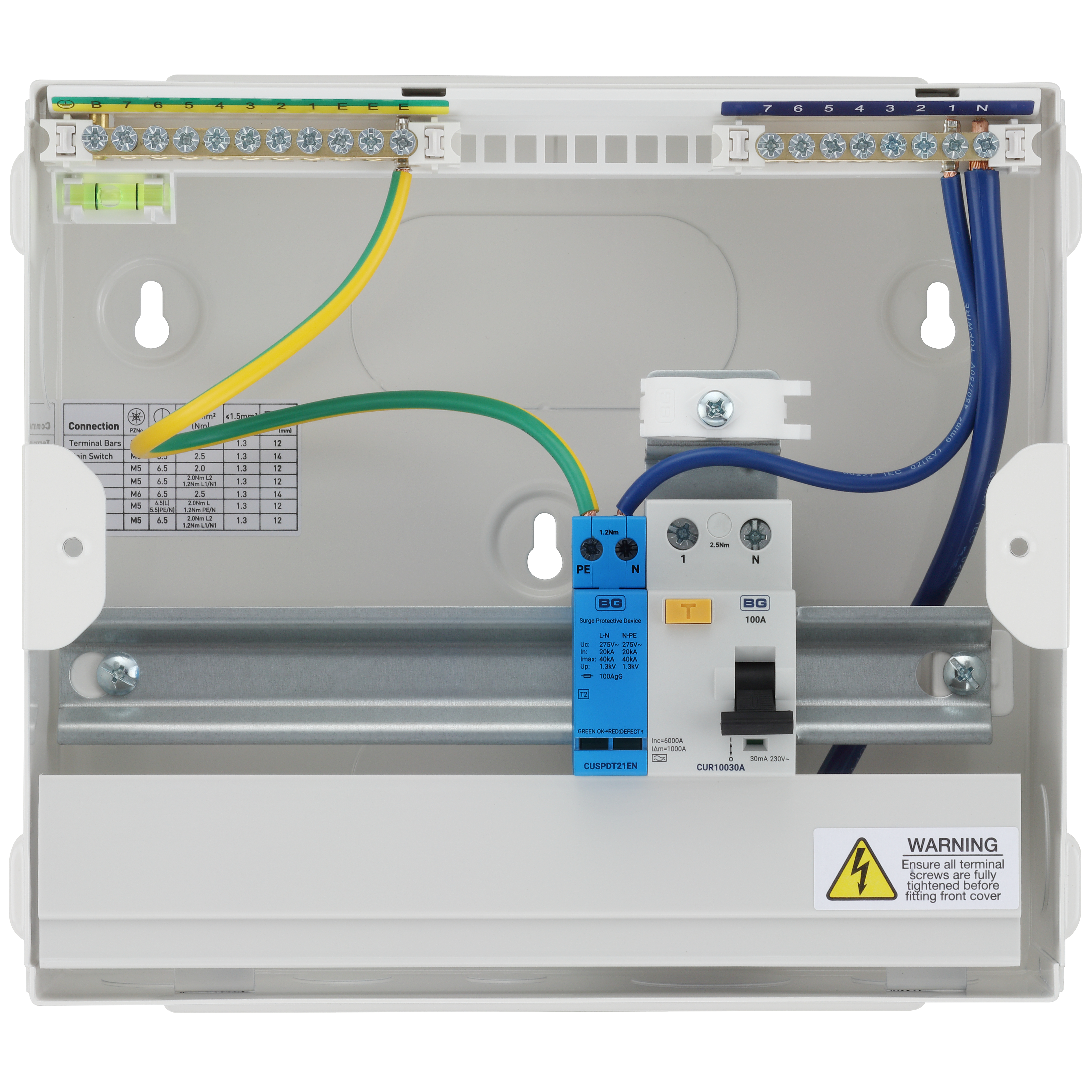

| Terminal Torque (Nm) | SPD 1.2 L/N 3.0 PE, RCD 2.5, Earth/Neutral Terminals 2.0 |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Operating Voltage (V) | 230 |
| Max Load (A) | 100 |
| MCB's | 0 |
| Frequency (Hz) | 50 |
