CF6R14-01

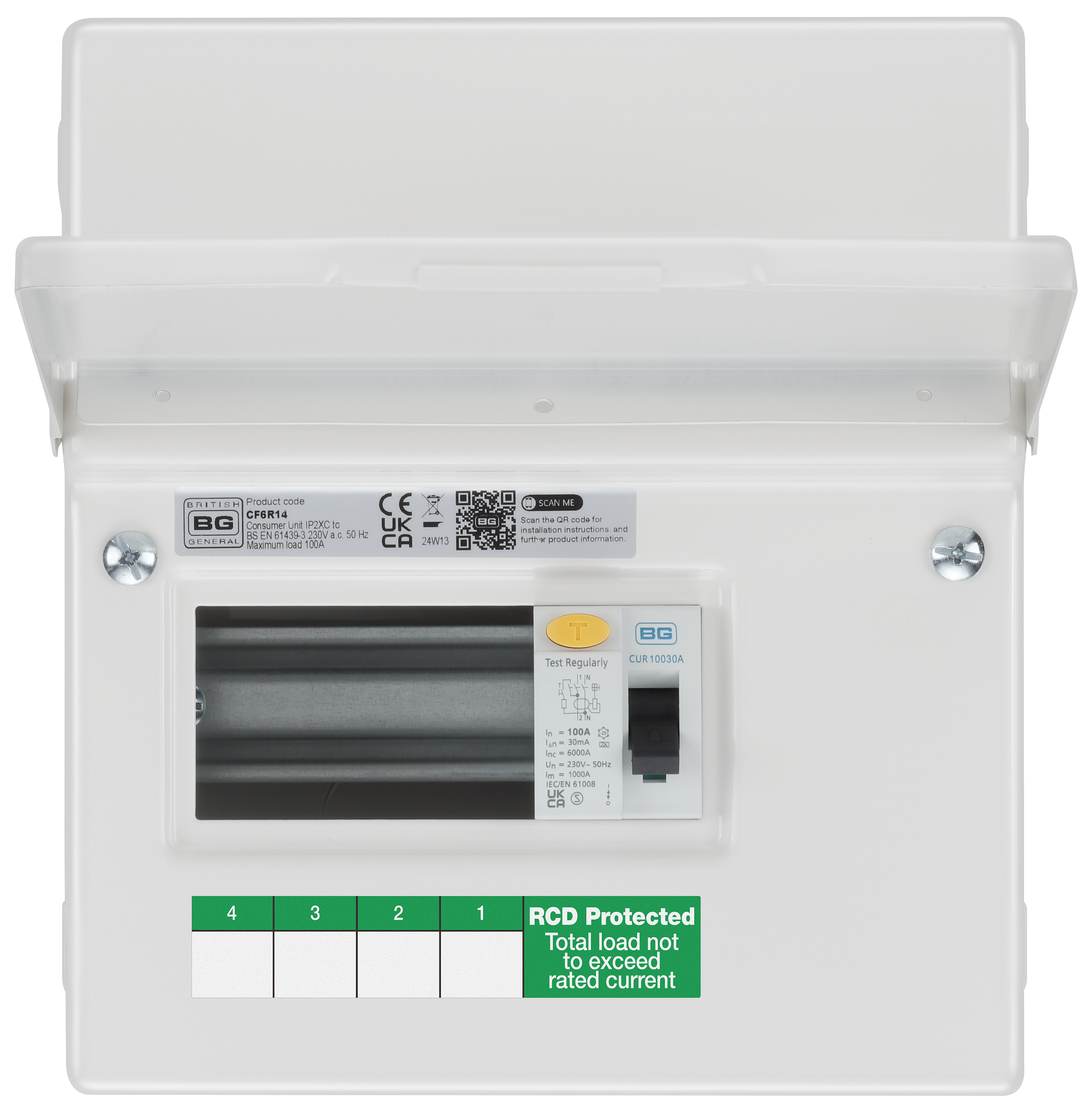

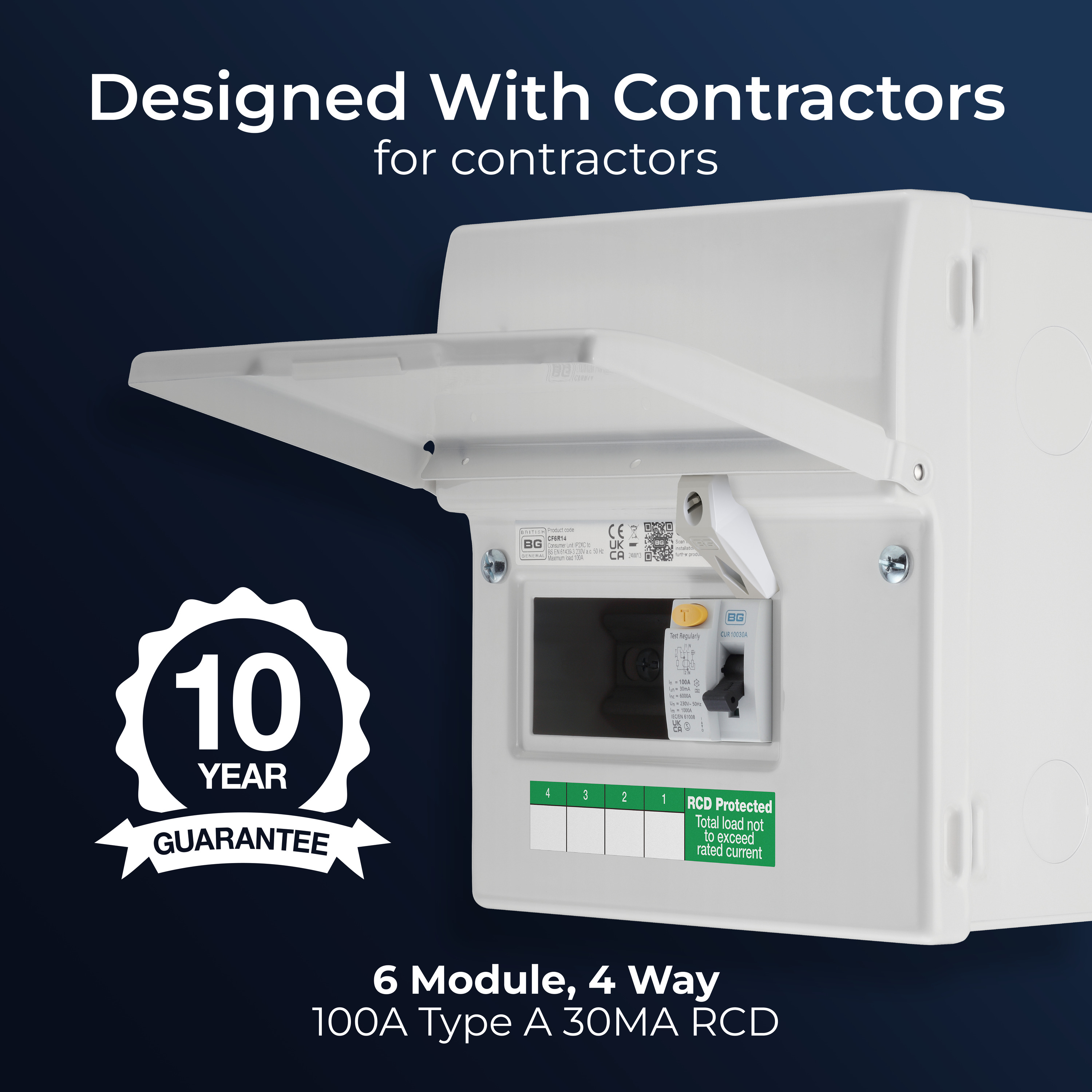

Consumer Unit 6 Module, 4 Way, Unpopulated with 1 x 100A 30mA Type A RCD
Integrated spirit Level

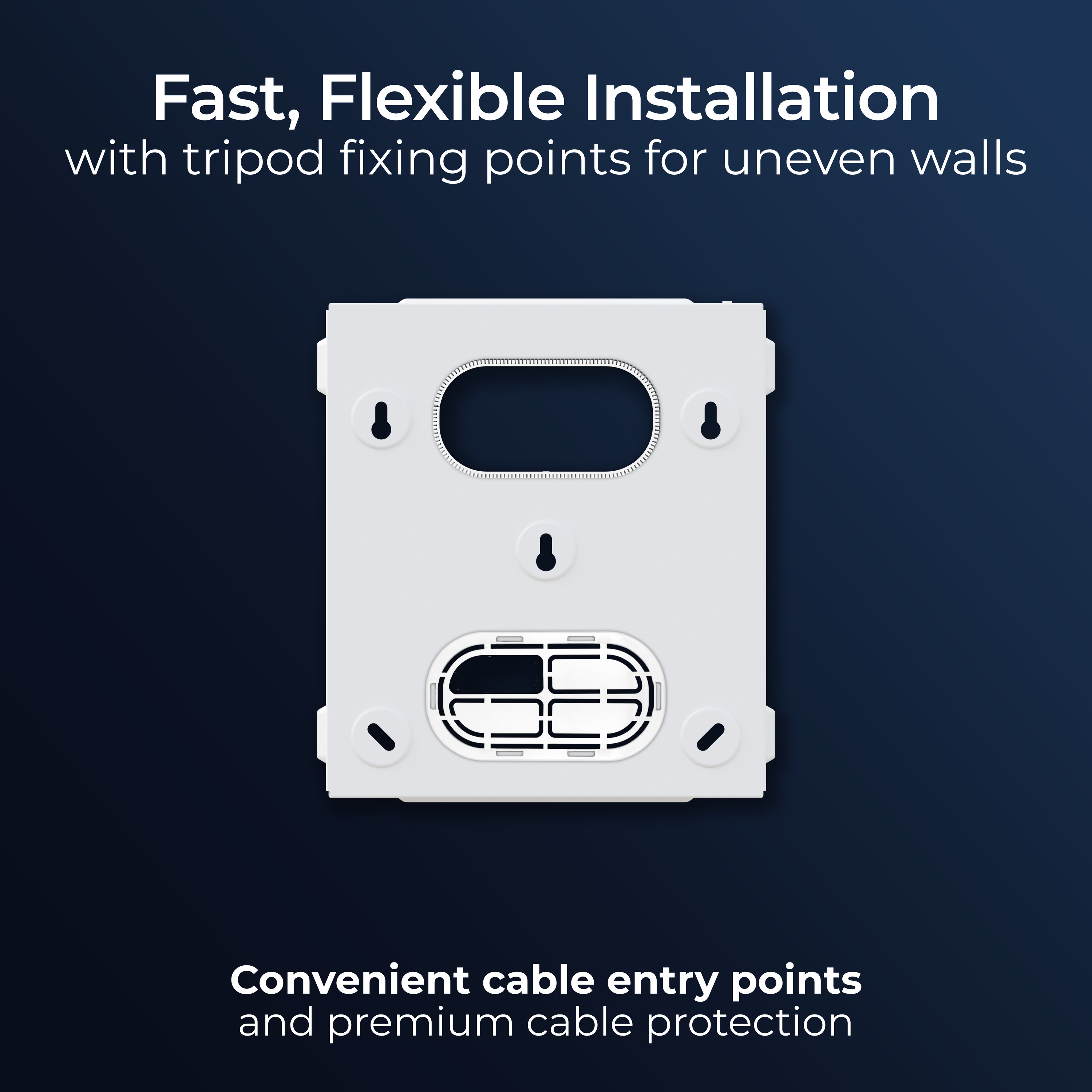

2 rows of rear knockouts

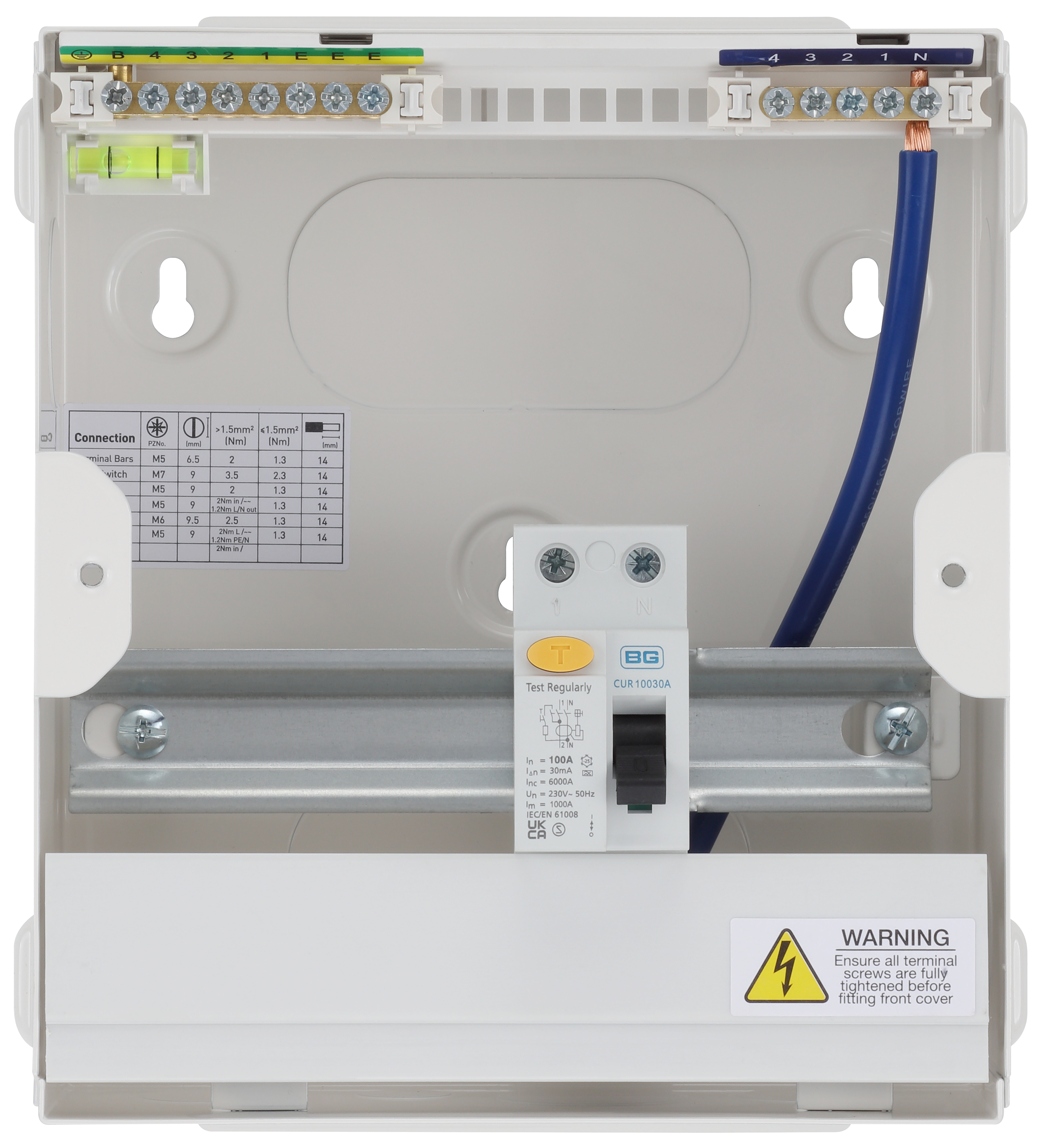

100A Type A RCD

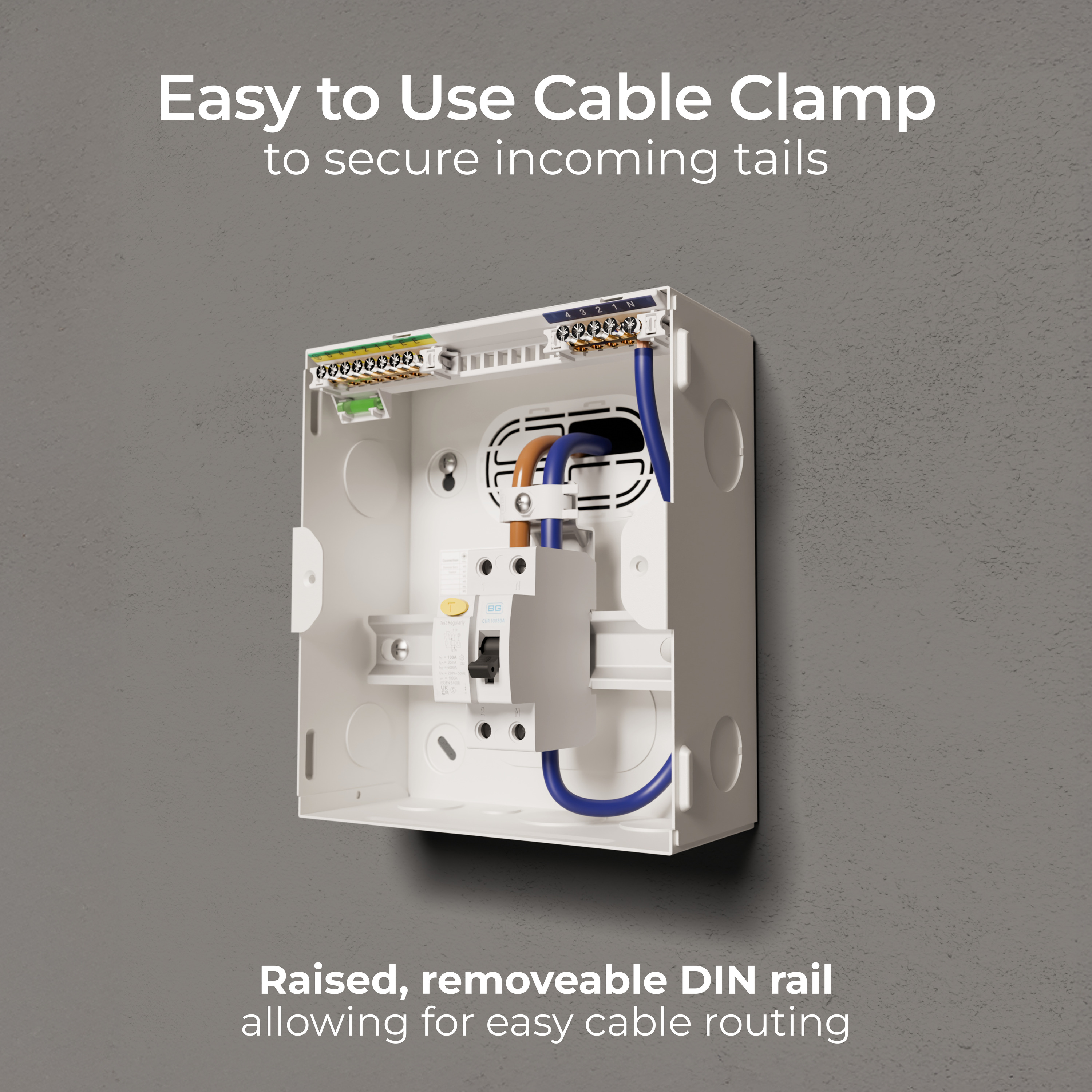

Optional cable clamp included

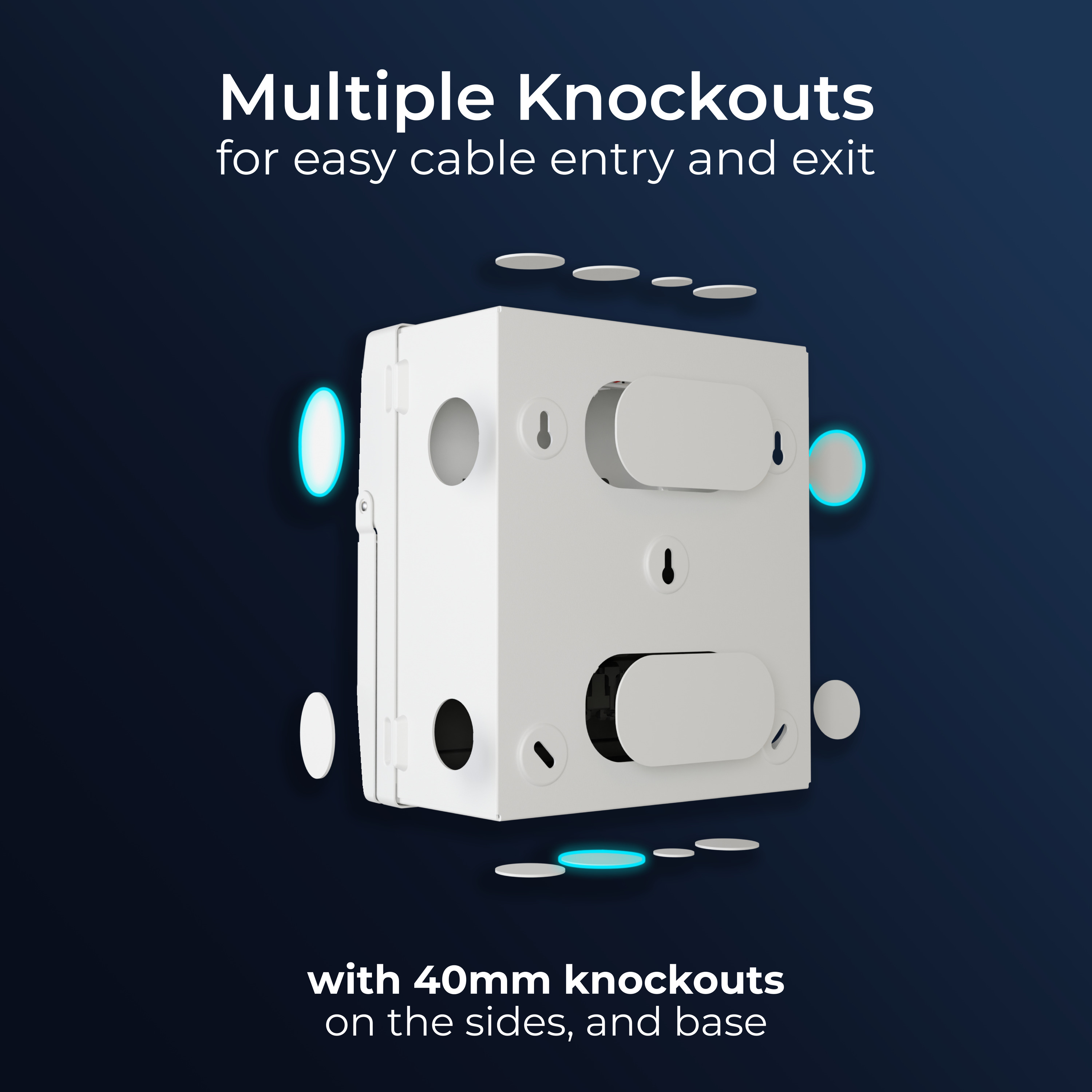

40mm knockouts in sides, top and bottom faces for incoming cables
10 Year Guarantee

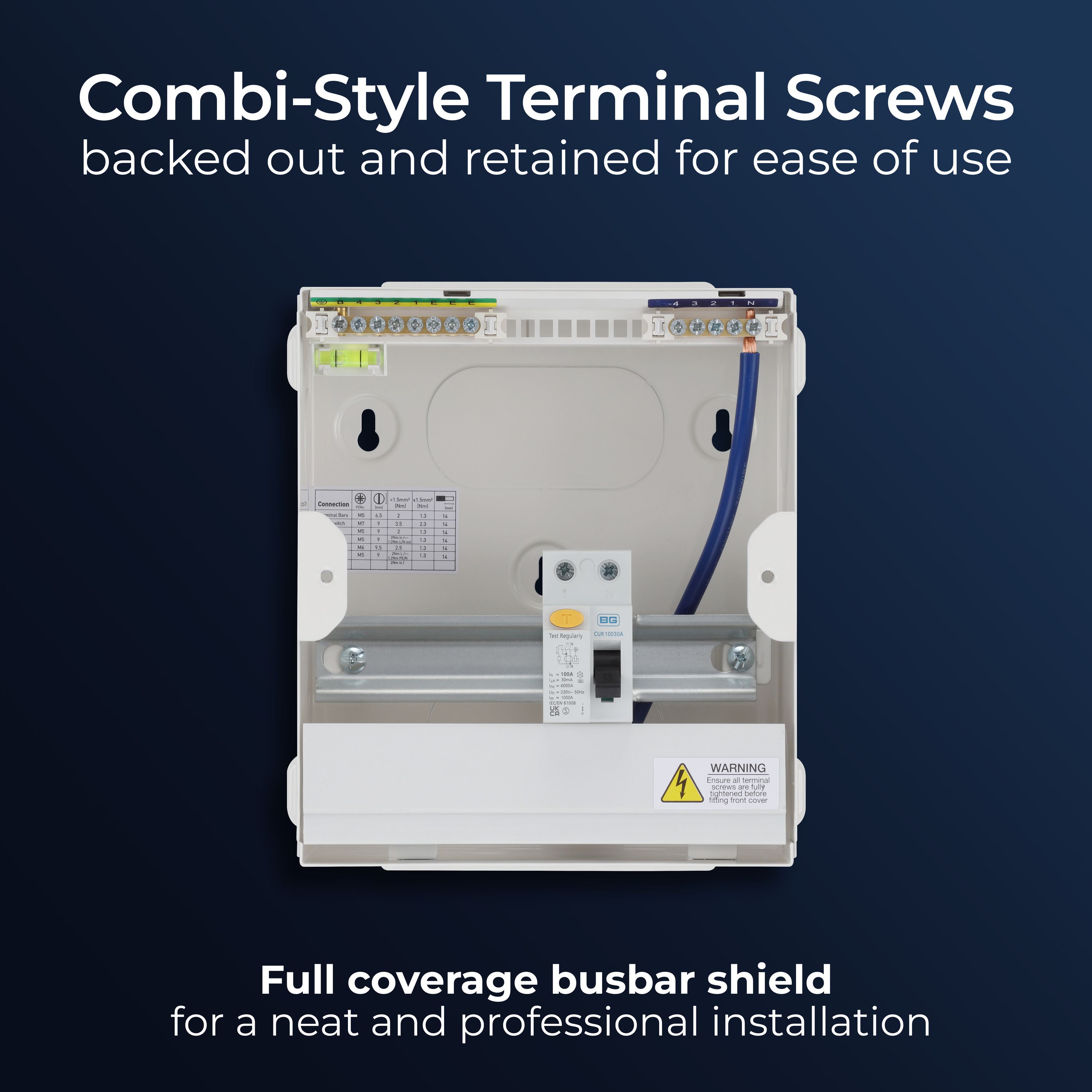

Backed out and retained terminal screws
Easy Installation

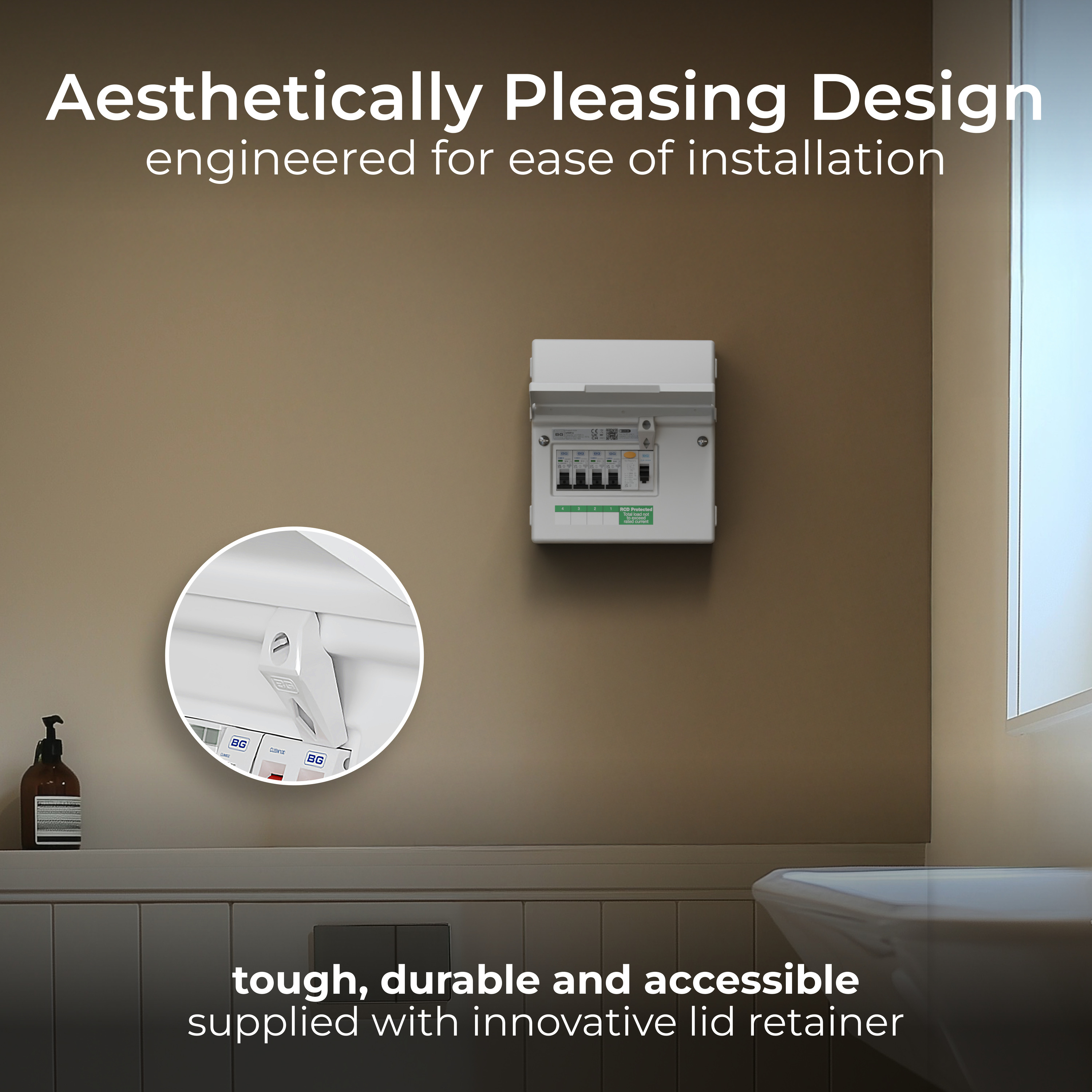

Supplied with 1 x lid retainer, 1 x rear clip in cable protector, 1 x grommet strip and 2 x cover blanks
Unpopulated
| Front Plate Material | Steel 1.0mm - ST16 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 6 |
| Number of Cable Entries | 12 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | Top -1 x 20mm, 3 x 32mm, Bottom - 1 x 20mm, 2 x 32mm, 1 x 40mm L-1 x 32mm, 1 x 40mm R - 1 x32mm 1 x 40mm (sides) 2 x 100 x 50mm (Base) |

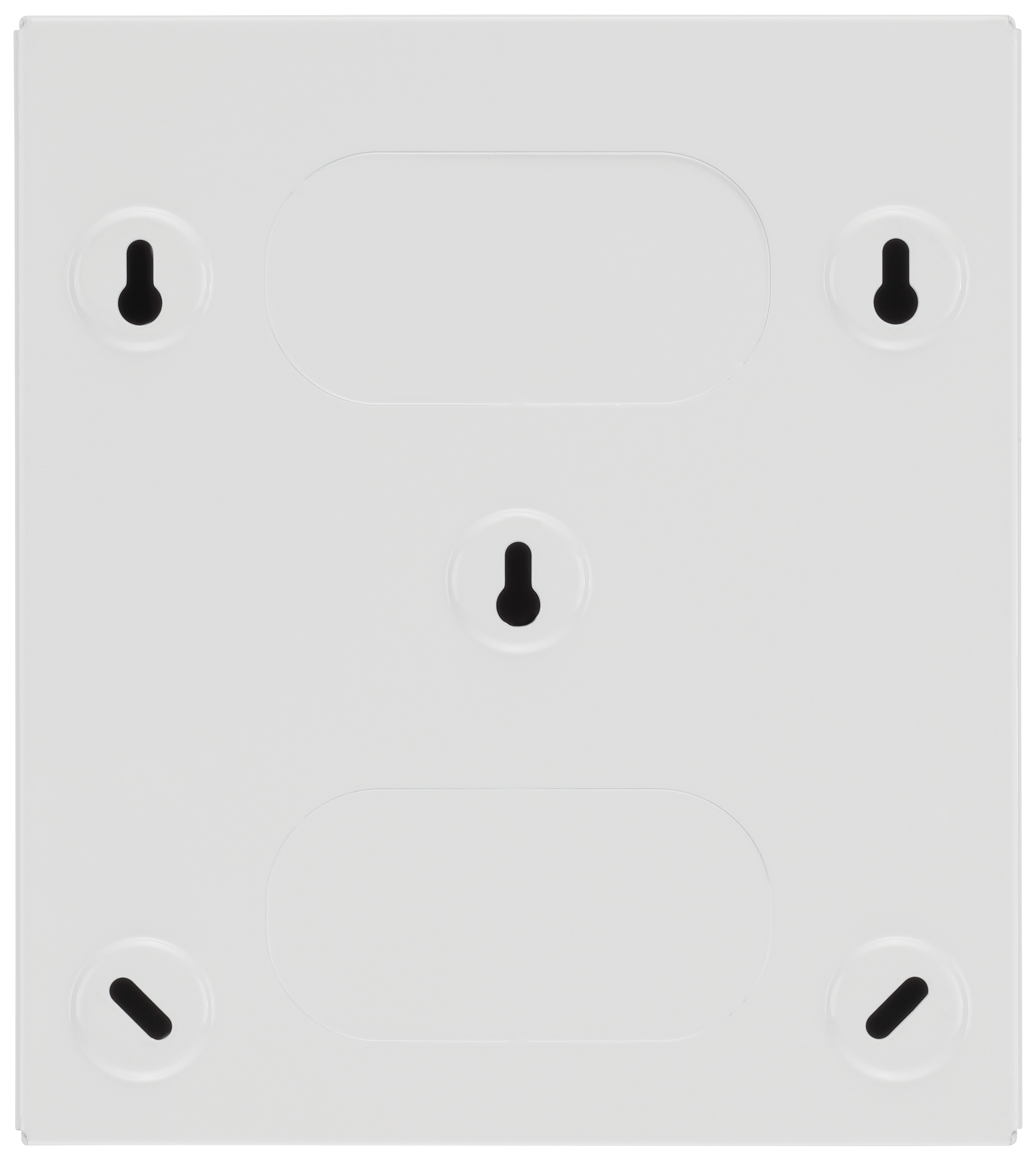

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 14 |
| Knockouts | 14 |
| Mounting Type | Surface |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Max Load (A) | 100 |
| MCB's | 0 |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
