CF6M4-02

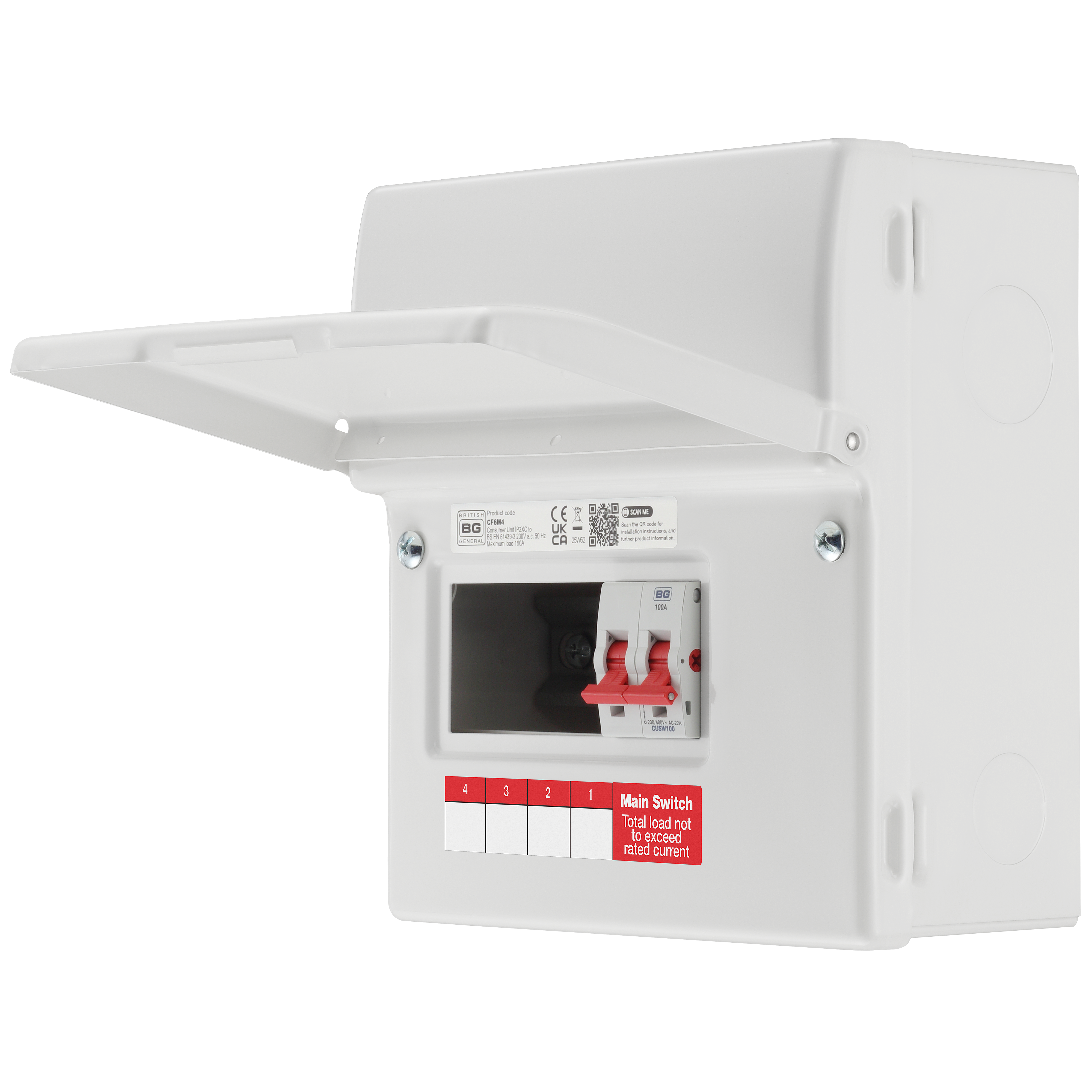

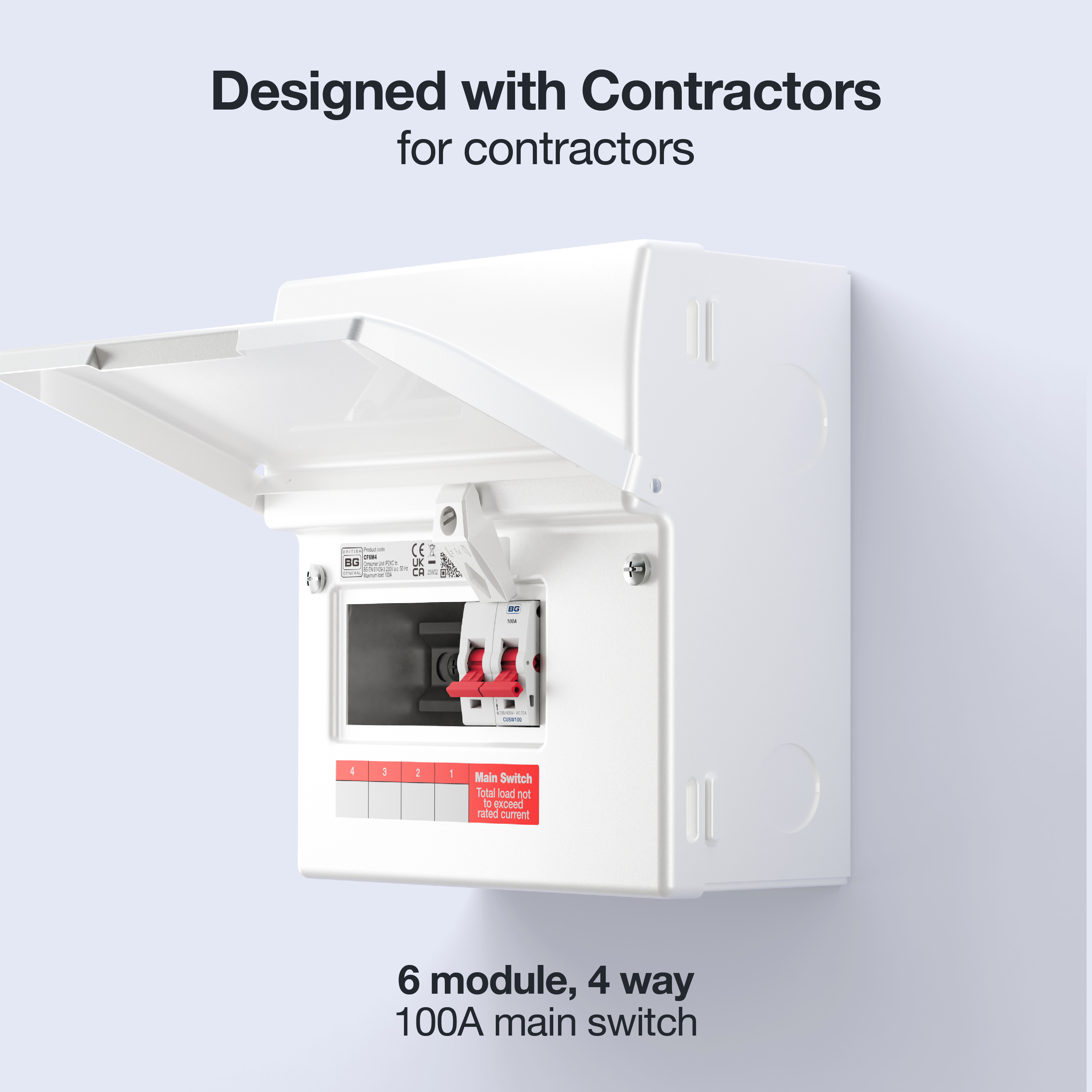

Consumer unit 6 module 4 way unpopulated with 100A main switch
Unpopulated

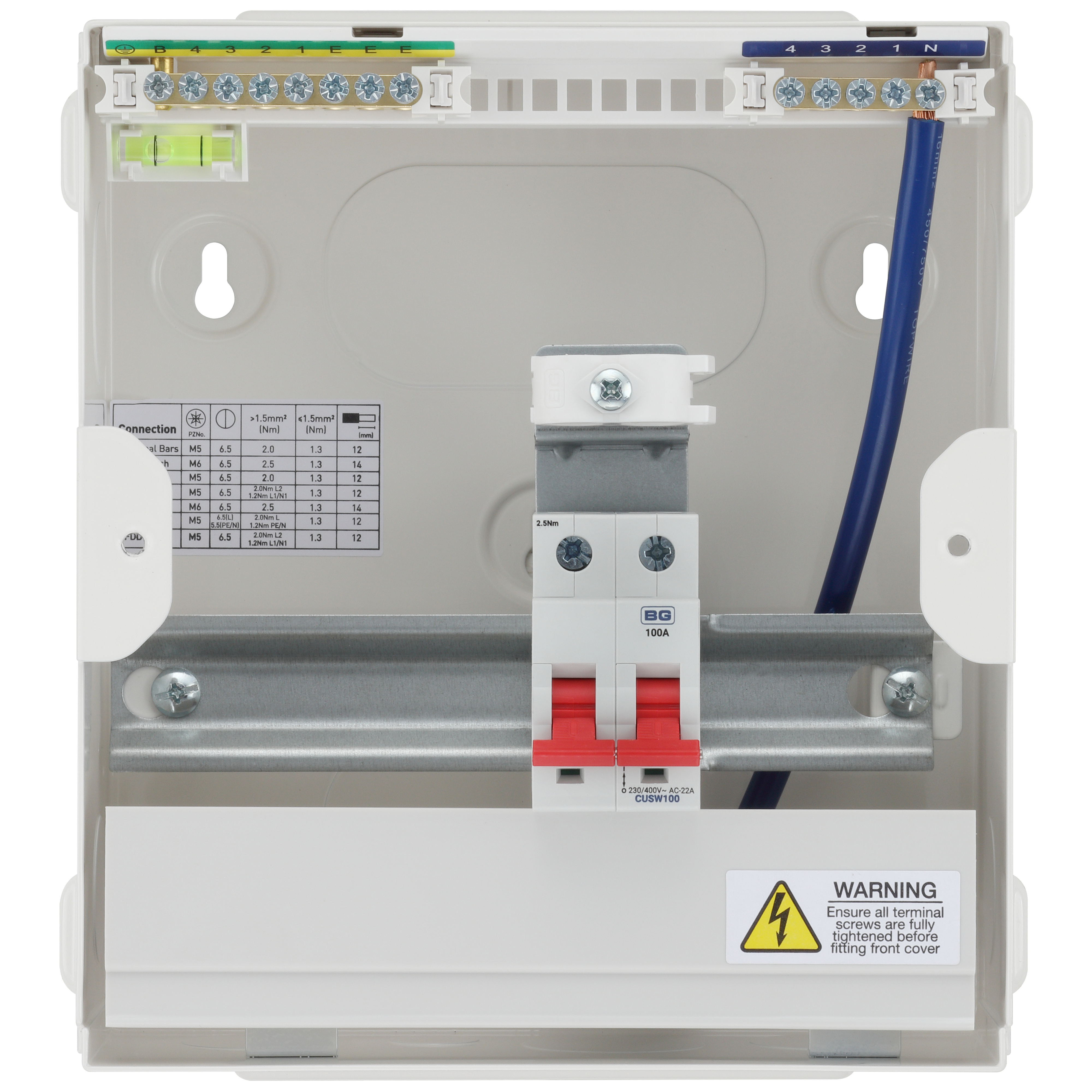

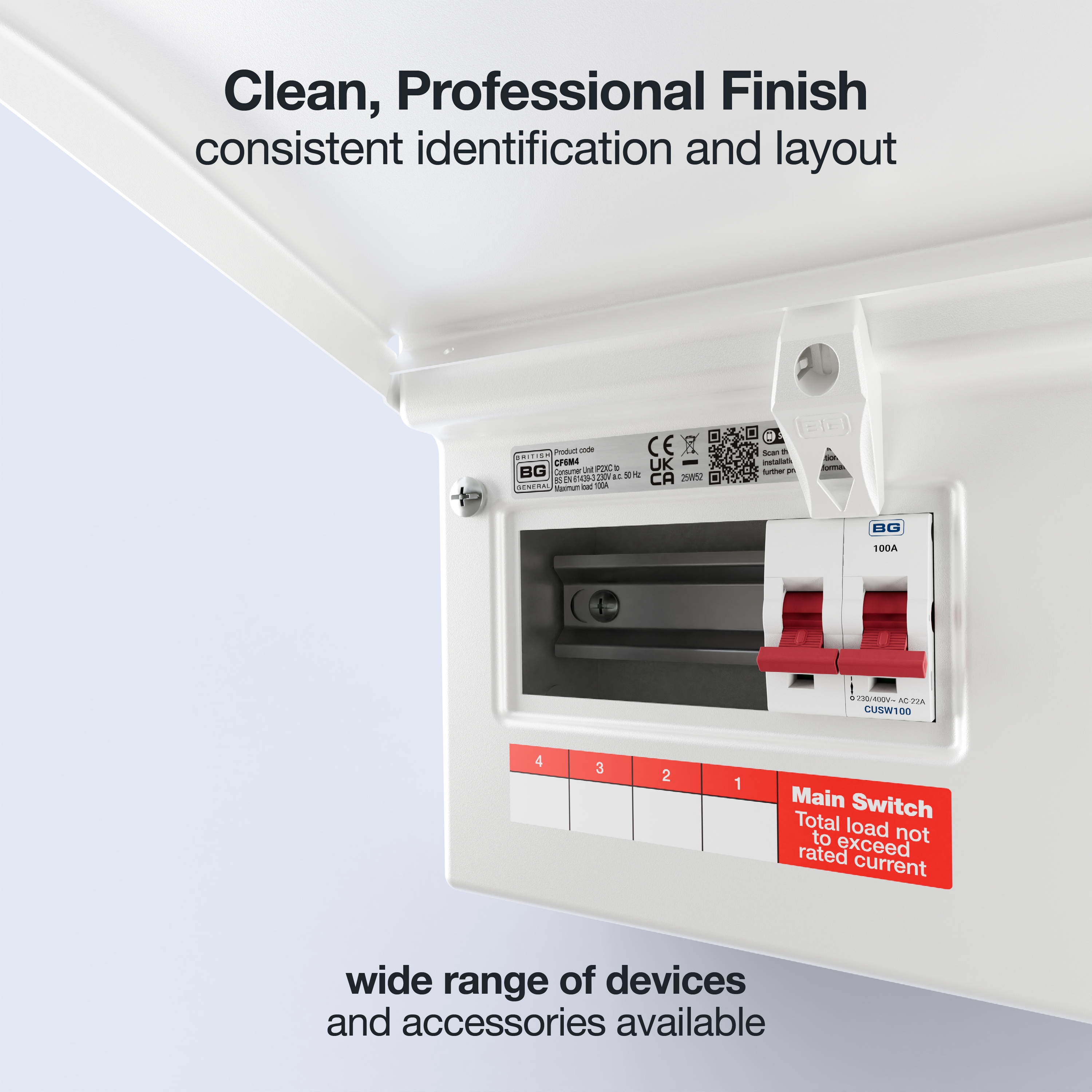

100A Main Switch
6 Module Capacity
4 Useable Ways
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 6 |
| Number of Cable Entries | 12 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |

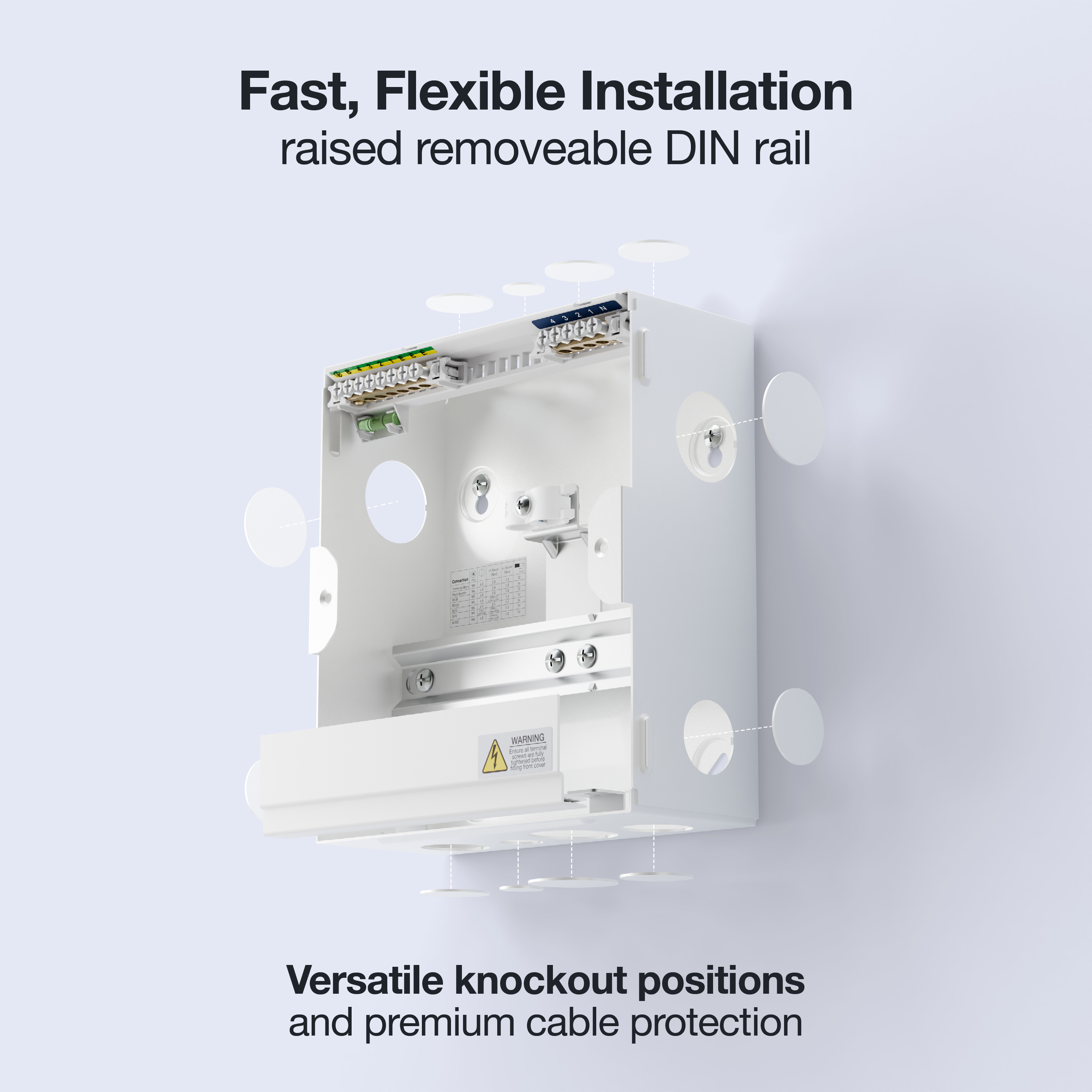

| Cable Entry Type | Knockout |
| Details per face (Size/number) | Top -1 x 20mm, 3 x 32mm, Bottom - 1 x 20mm, 2 x 32mm, 1 x 40mm L-1 x 32mm, 1 x 40mm R - 1 x32mm 1 x 40mm (sides) 2 x 100 x 50mm (Base) |

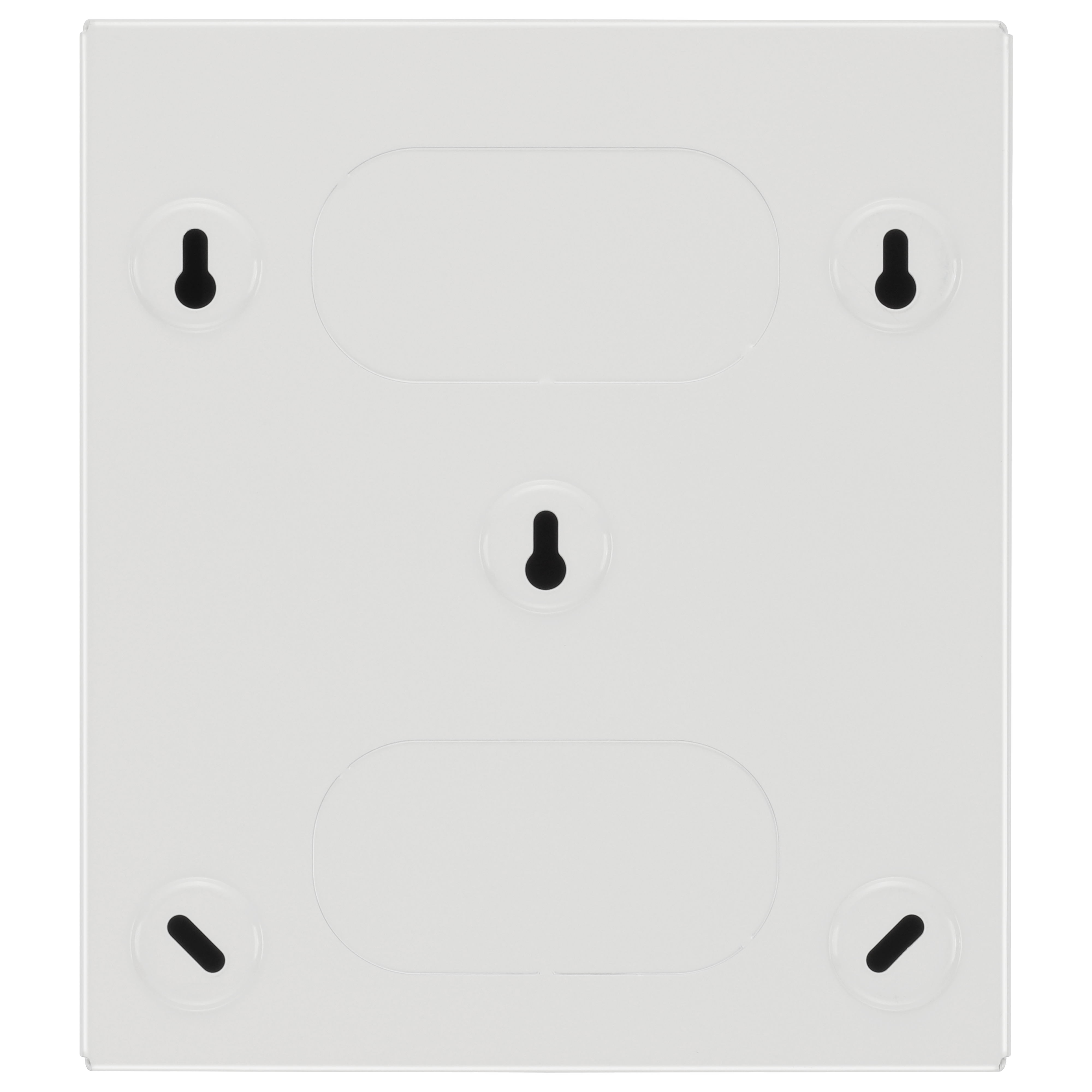

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 4 |
| Number of Knockouts | 12 |
| Mounting Type | Surface |

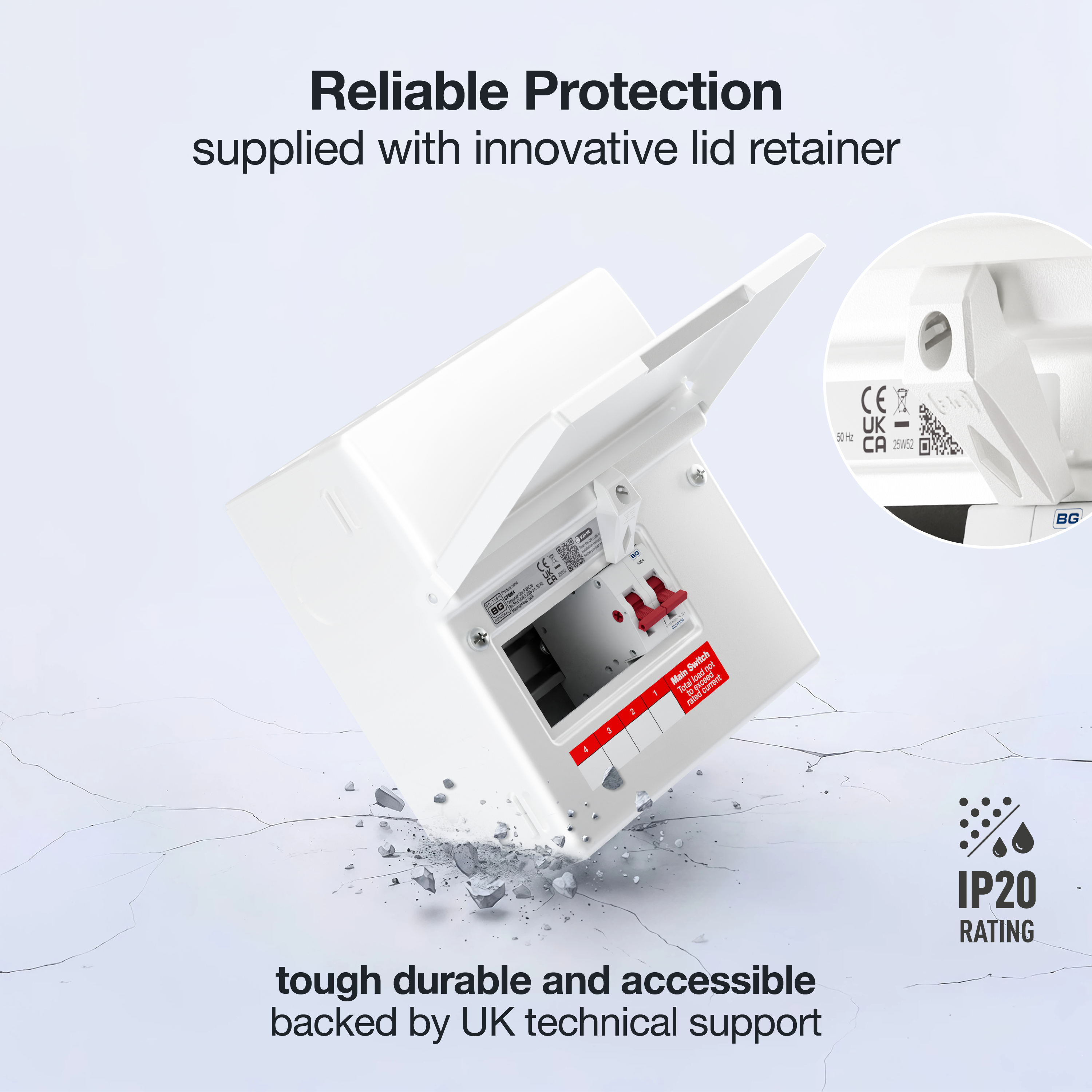

| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | Earth/Neutral Terminals 2.0, MS 2.5 |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | N/A |
| Trip Speed (mS) | N/A |
| Operating Voltage (V) | 230 |
| Max Load (A) | 100 |
| MCB's | 0 |
| Frequency (Hz) | 50 |
