CF16M14-01

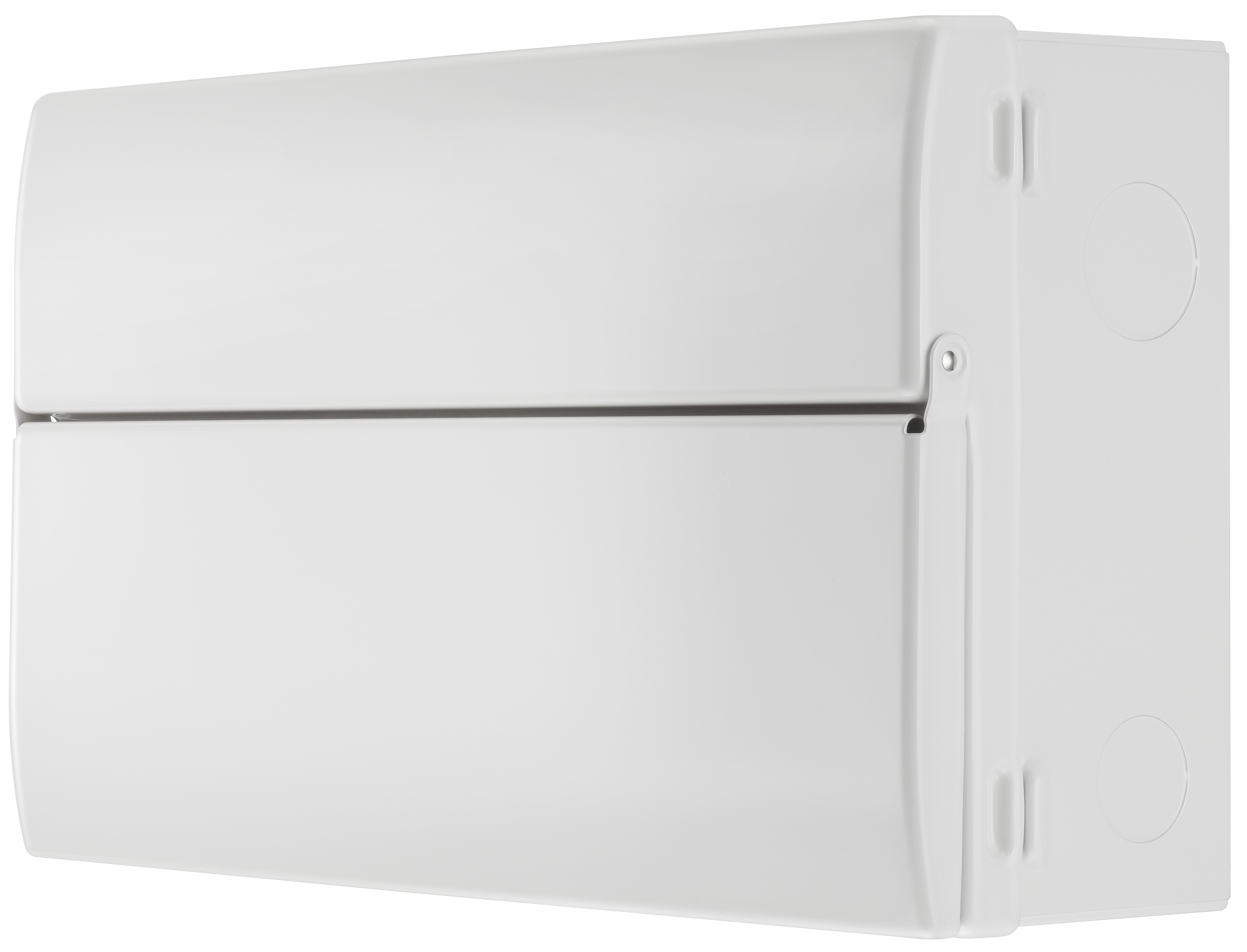

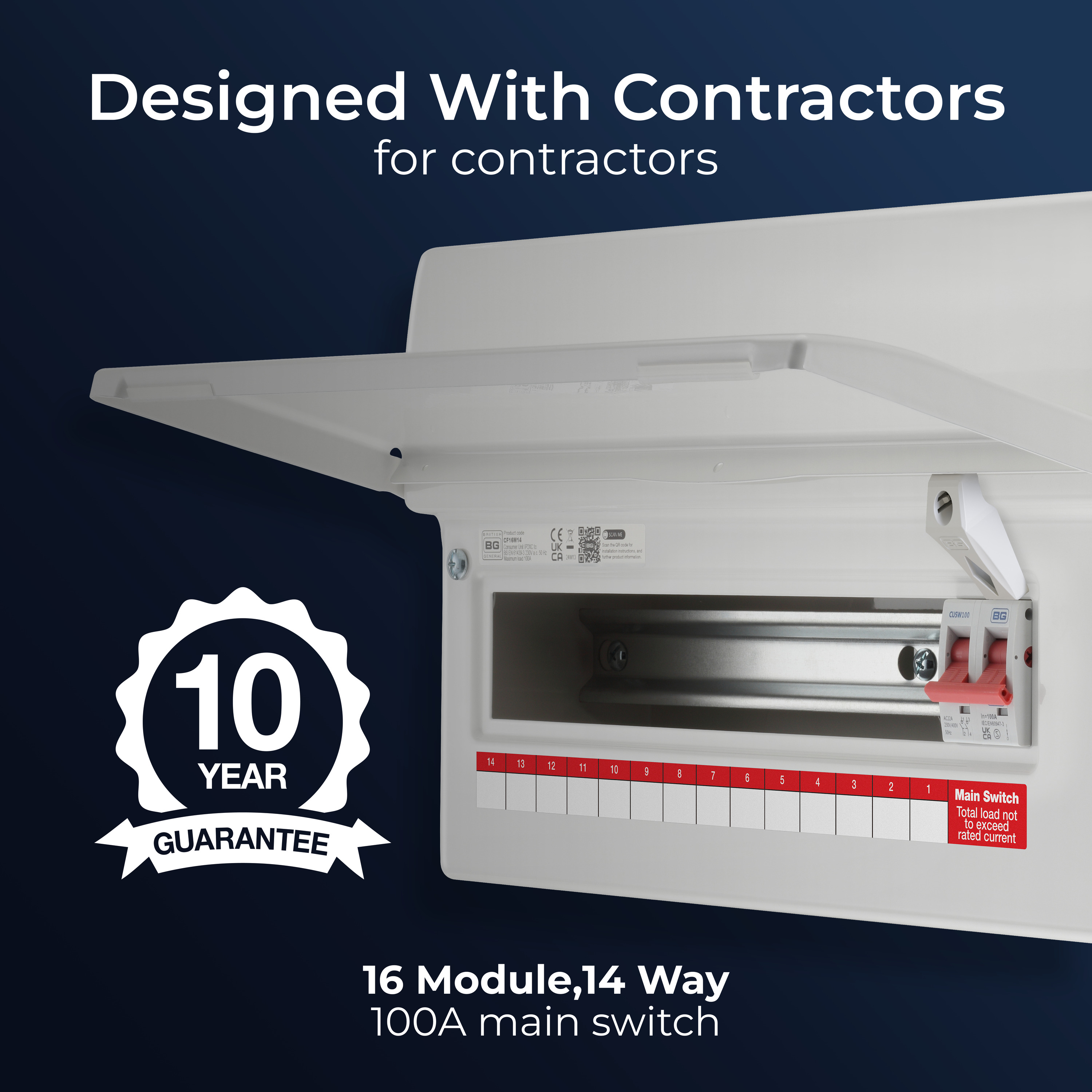

Consumer Unit 16 Module, 14 Way, Unpopulated with 100A Main Switch
Integrated spirit Level

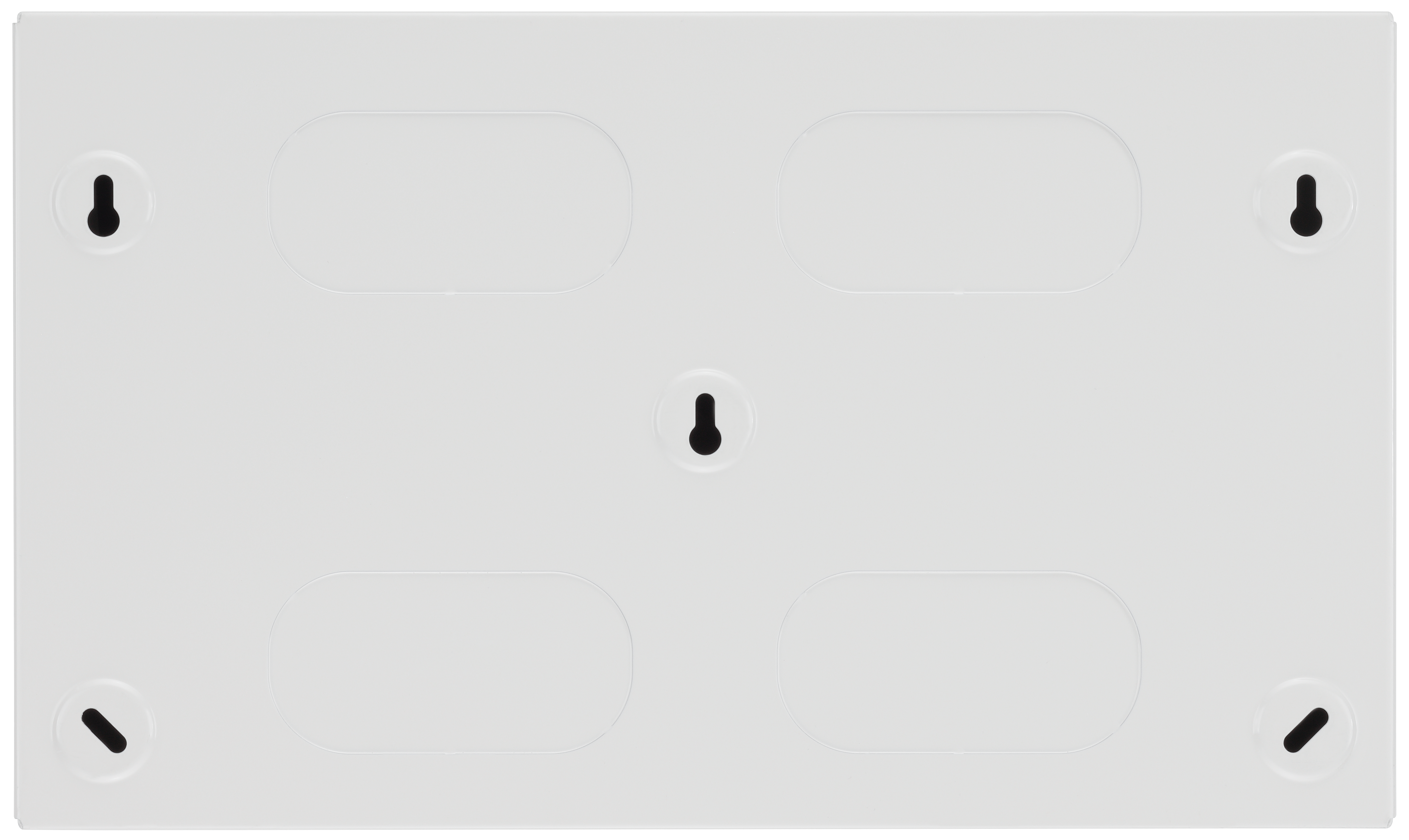

2 rows of rear knockouts

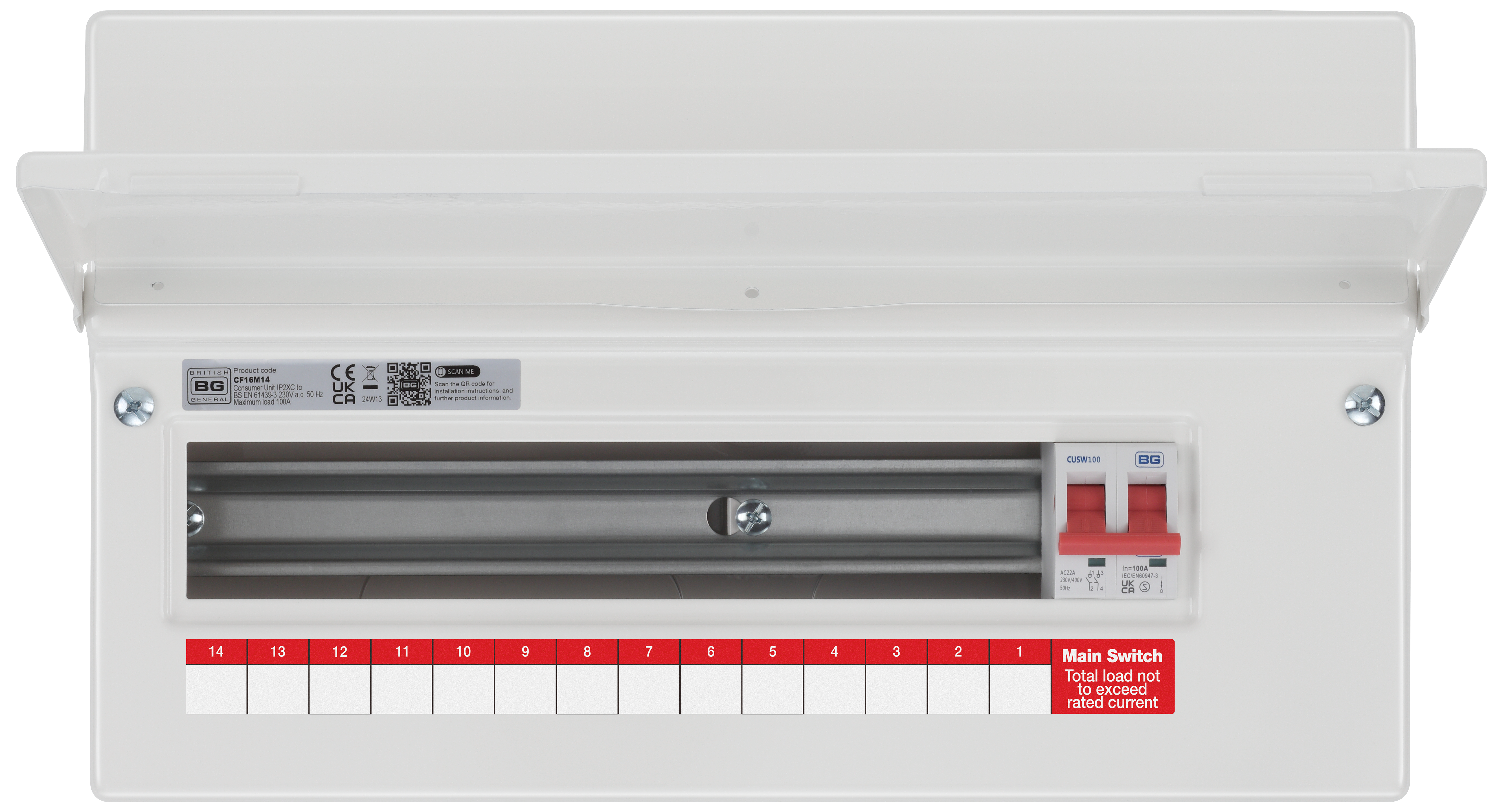

100A Main Switch

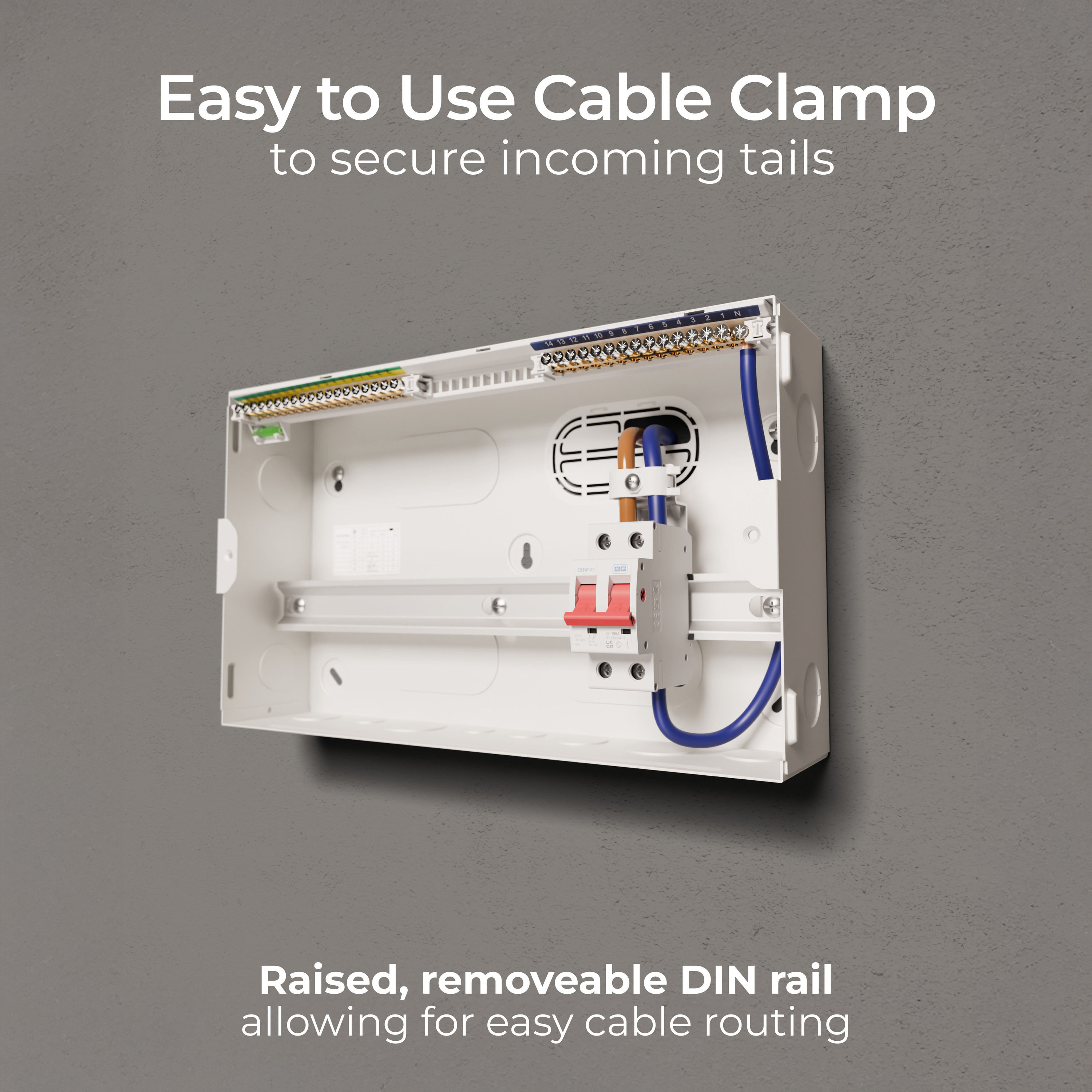

Optional cable clamp included

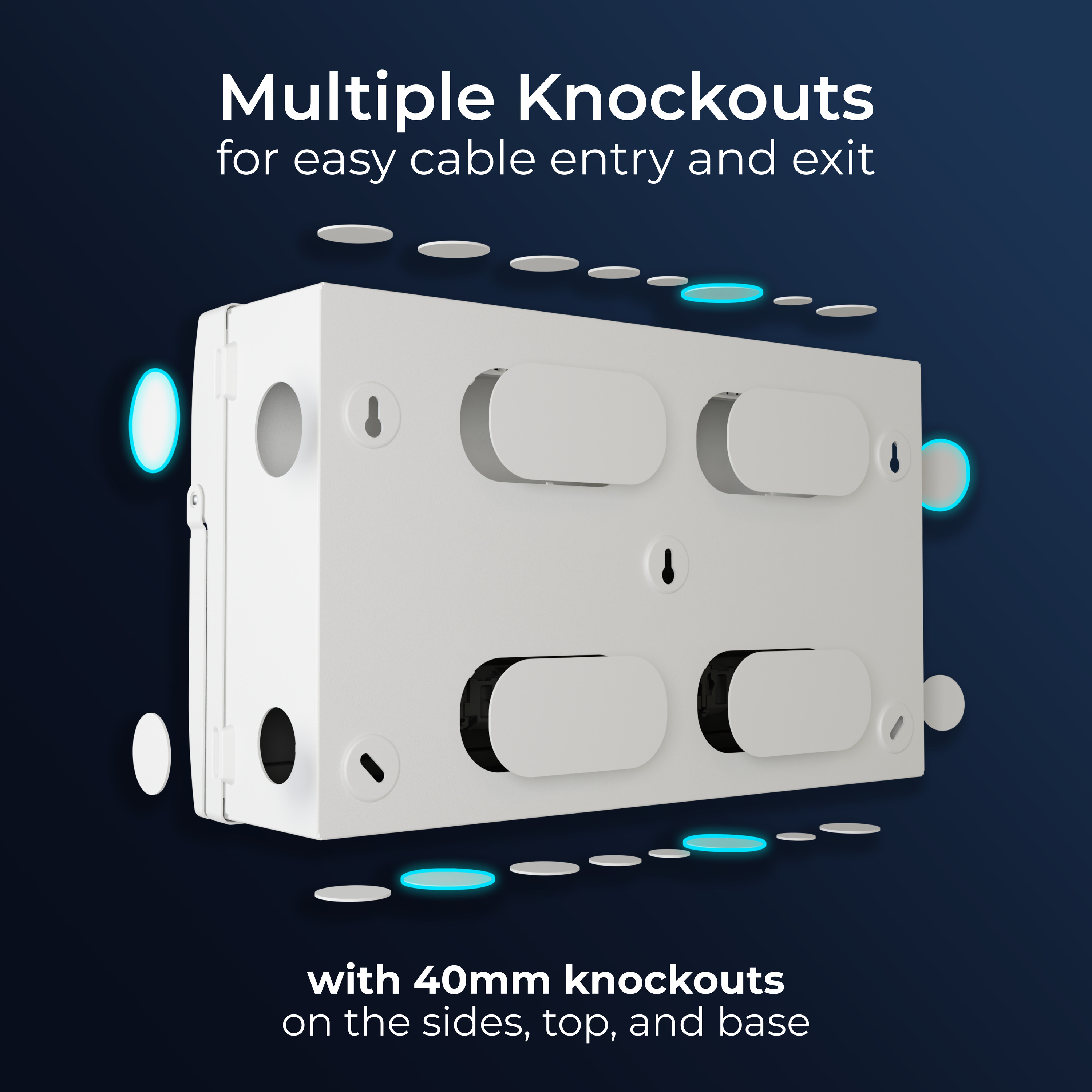

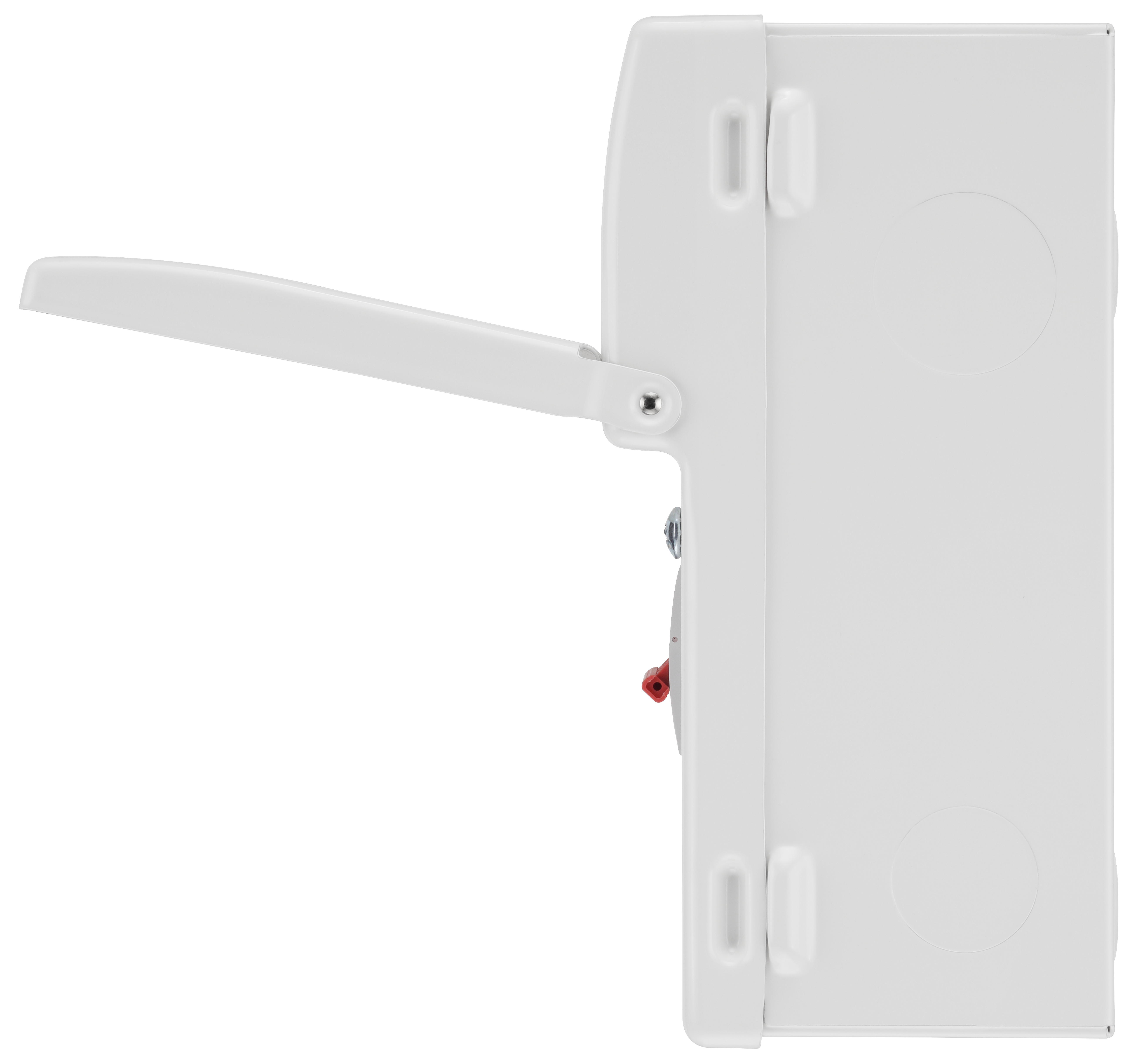

40mm knockouts in sides, top and bottom faces for incoming cables
10 year Guarantee

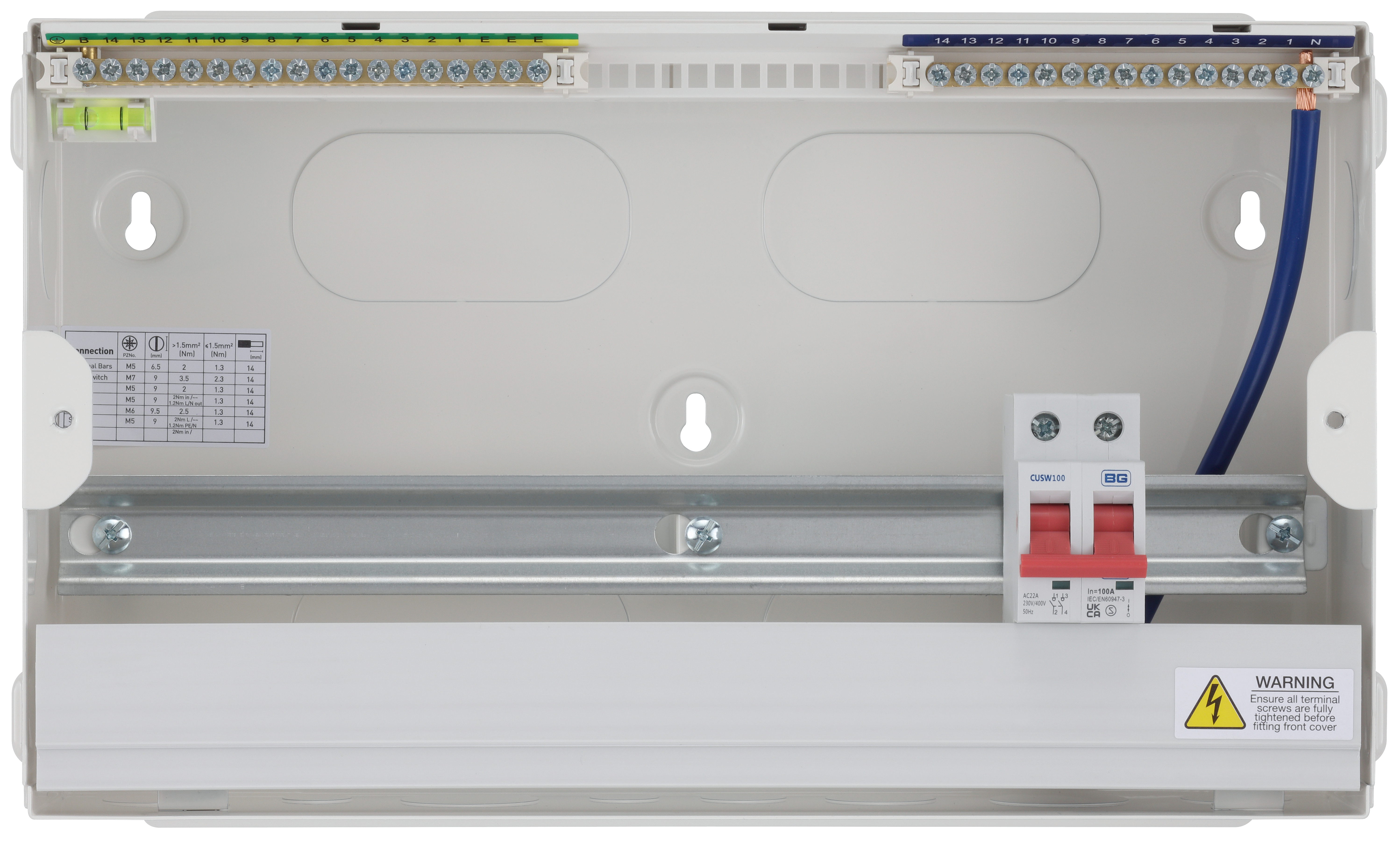

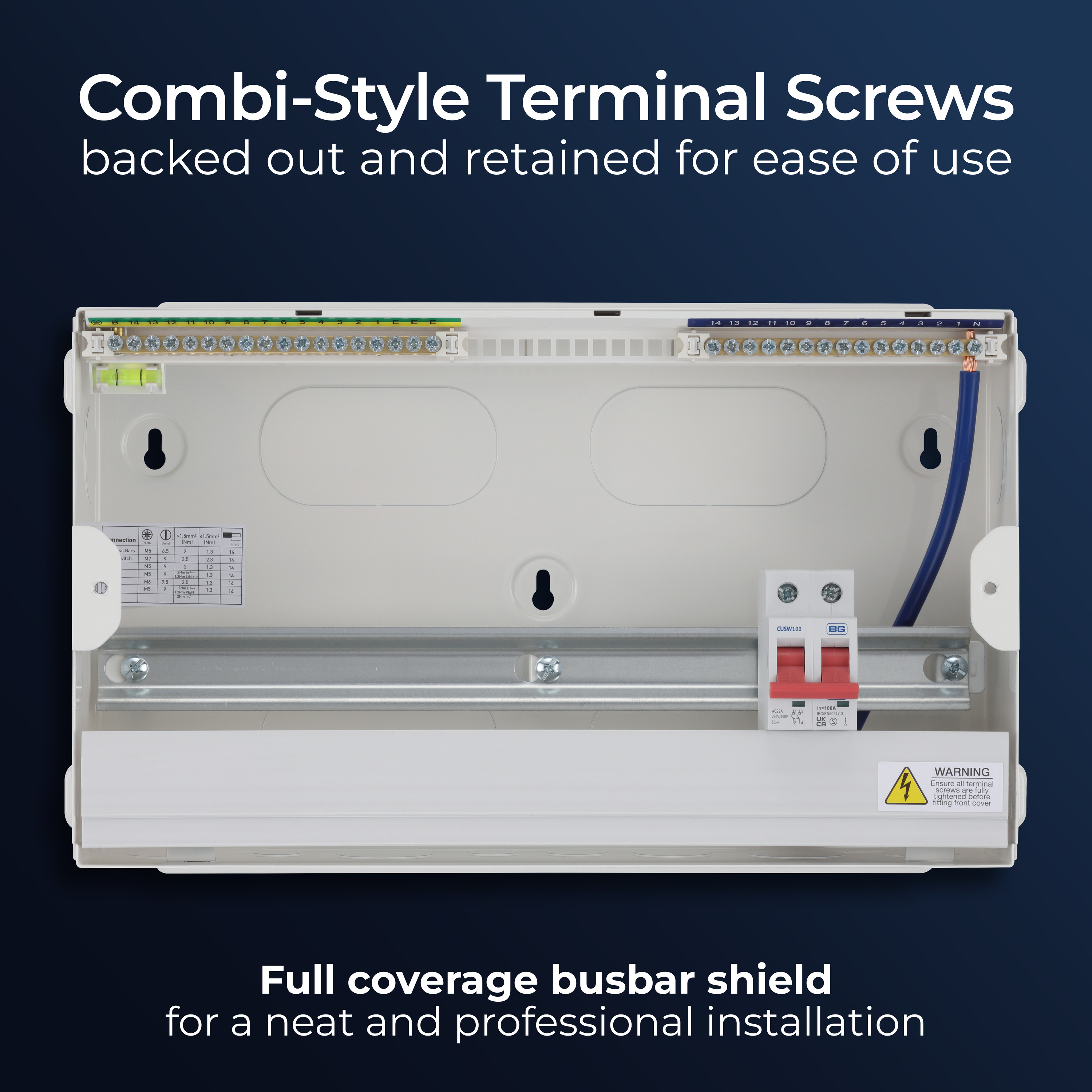

Backed out and retained terminal screws
Easy Installation
Supplied with 1 x lid retainer, 1 x rear clip in cable protector, 2 x grommet strip and 2 x cover blanks
Unpopulated
| Front Plate Material | Steel 1.0mm - ST16 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 16 |
| Number of Cable Entries | 24 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | Top - 2 x 20mm, 1 x 25mm, 4 x 32mm, 1 x 40mm, Bottom - 2 x 20mm, 1 x 25mm, 3 x 32mm, 2 x 40mm L-1 x 32mm, 1 x 40mm R - 1 x32mm 1 x 40mm (sides) 4 x 100 x 50mm (Base) |

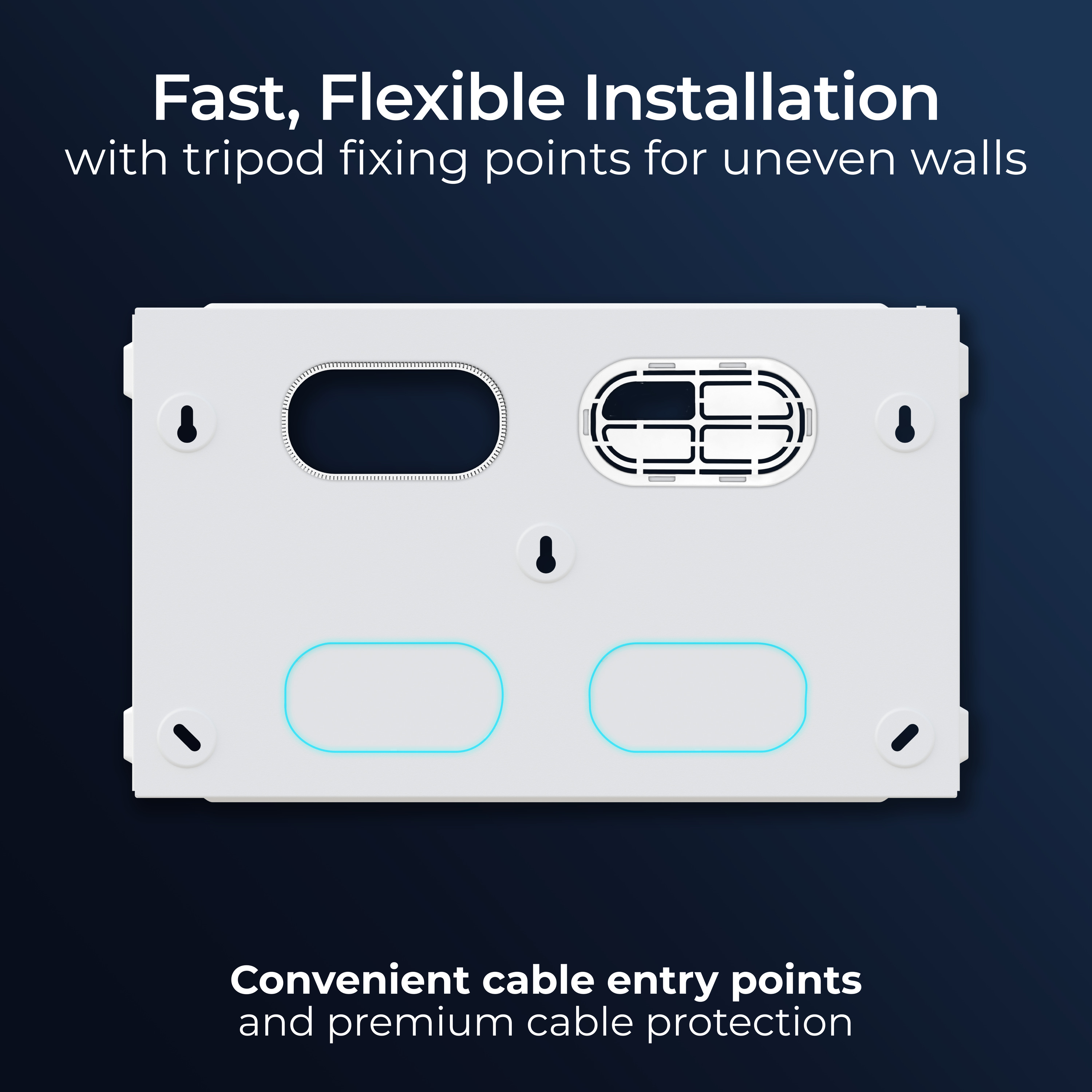

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 14 |
| Knockouts | 24 |
| Mounting Type | Surface |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | Earth/Neutral Terminals 2Nm, MS 2.5Nm |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | N/A |
| Trip Speed (mS) | N/A |
| Max Load (A) | 100 |
| MCB's | 0 |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
