CF9MS6-02

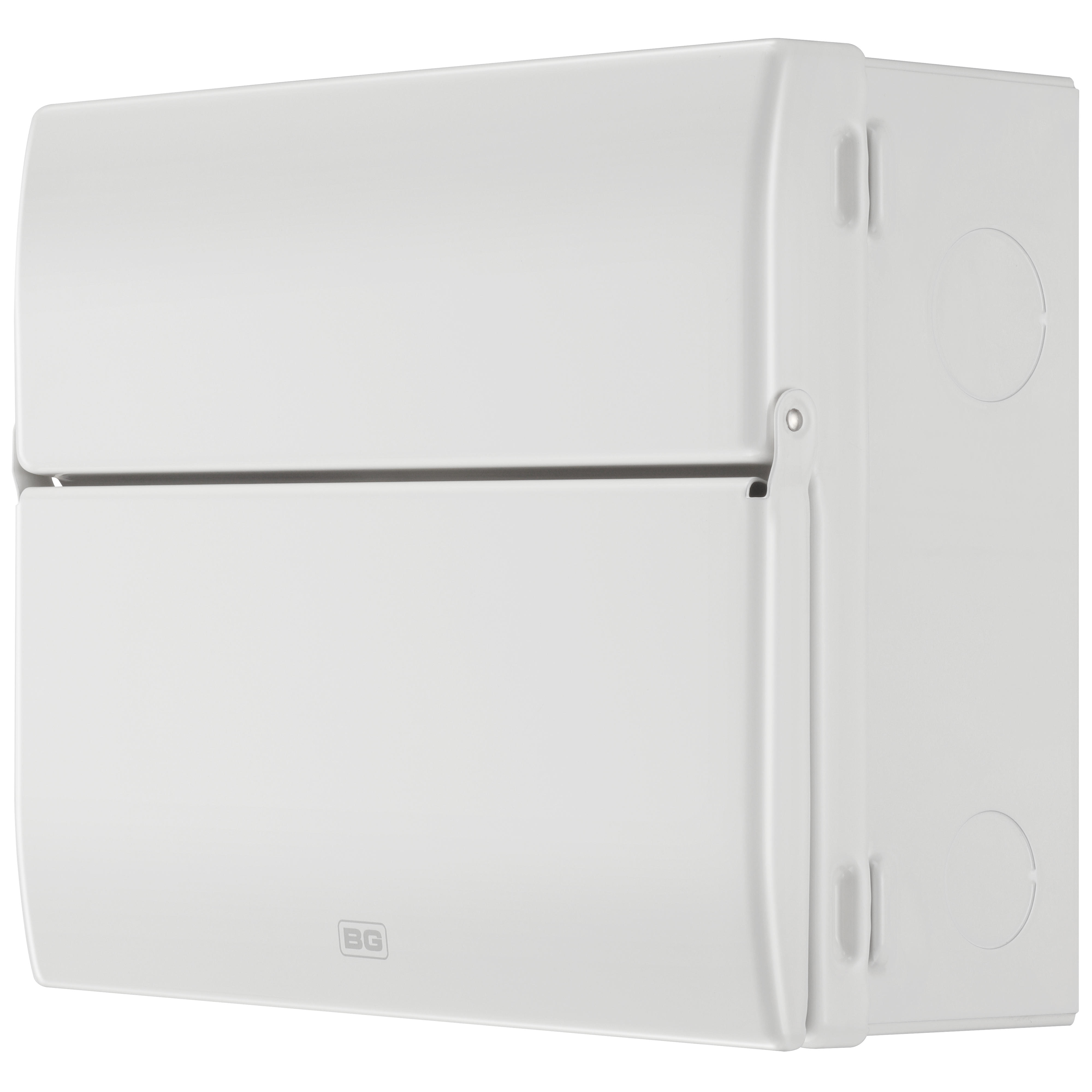

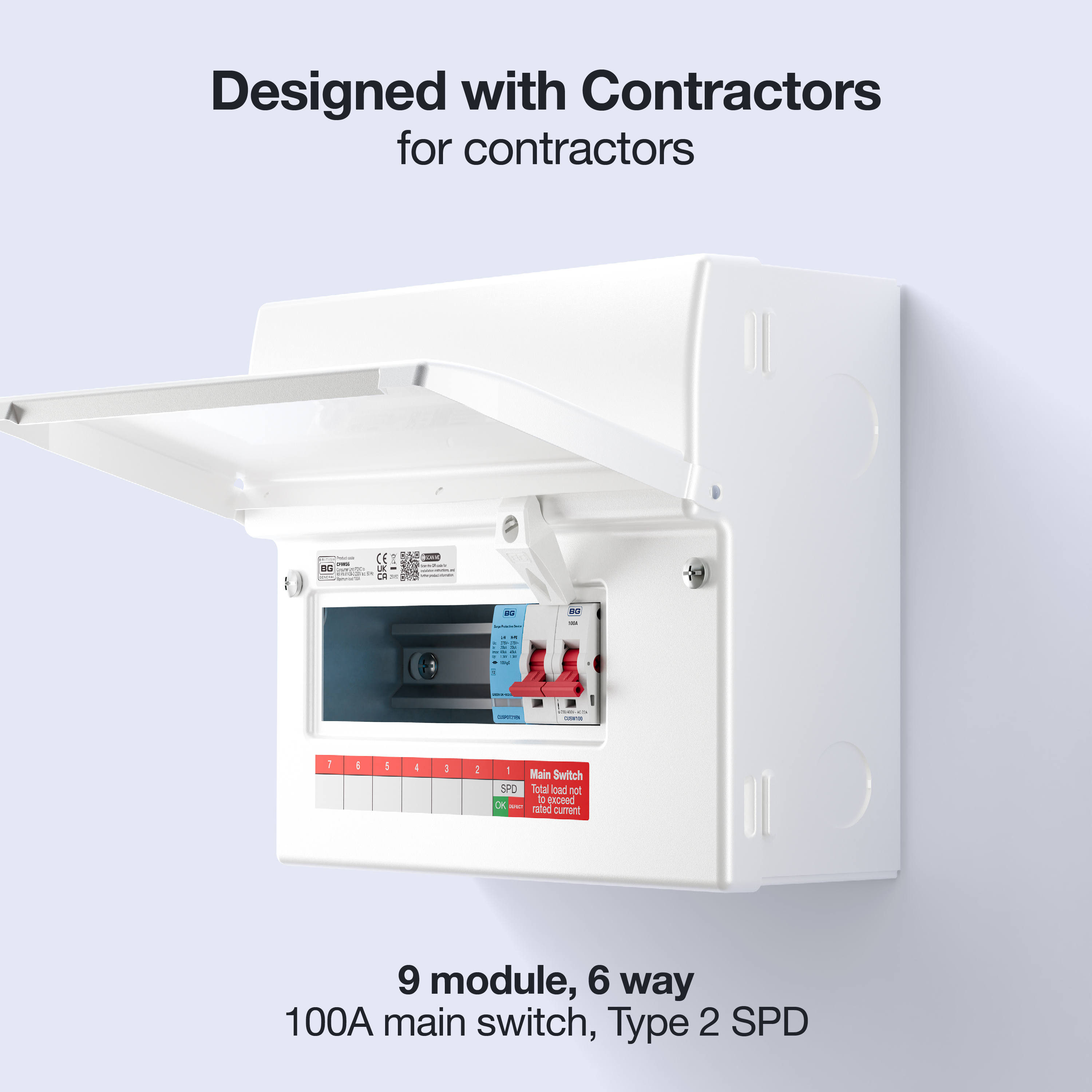

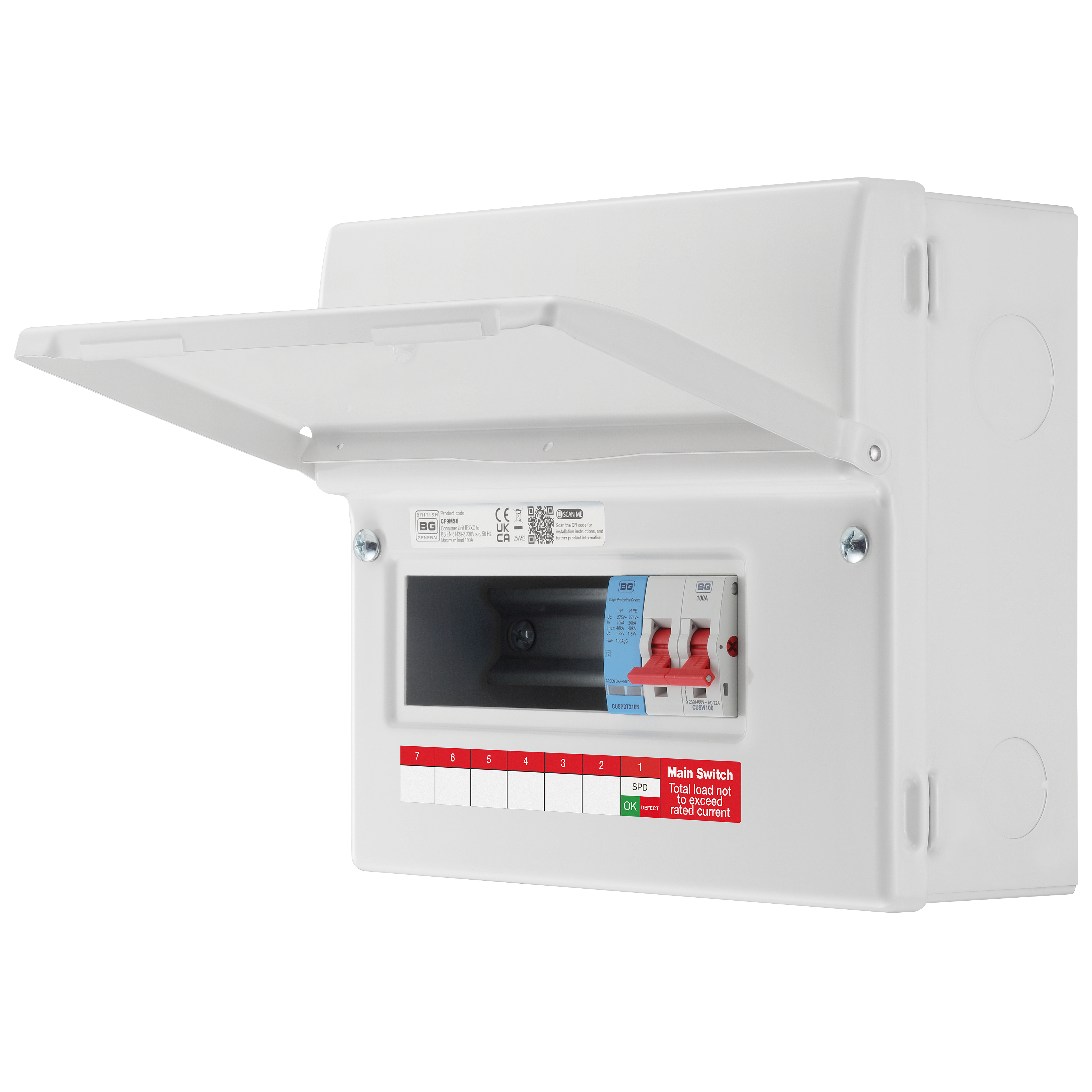

Consumer unit 9 module 6 way unpopulated with 100A main switch and 1 x Type 2 surge protection device
Unpopulated

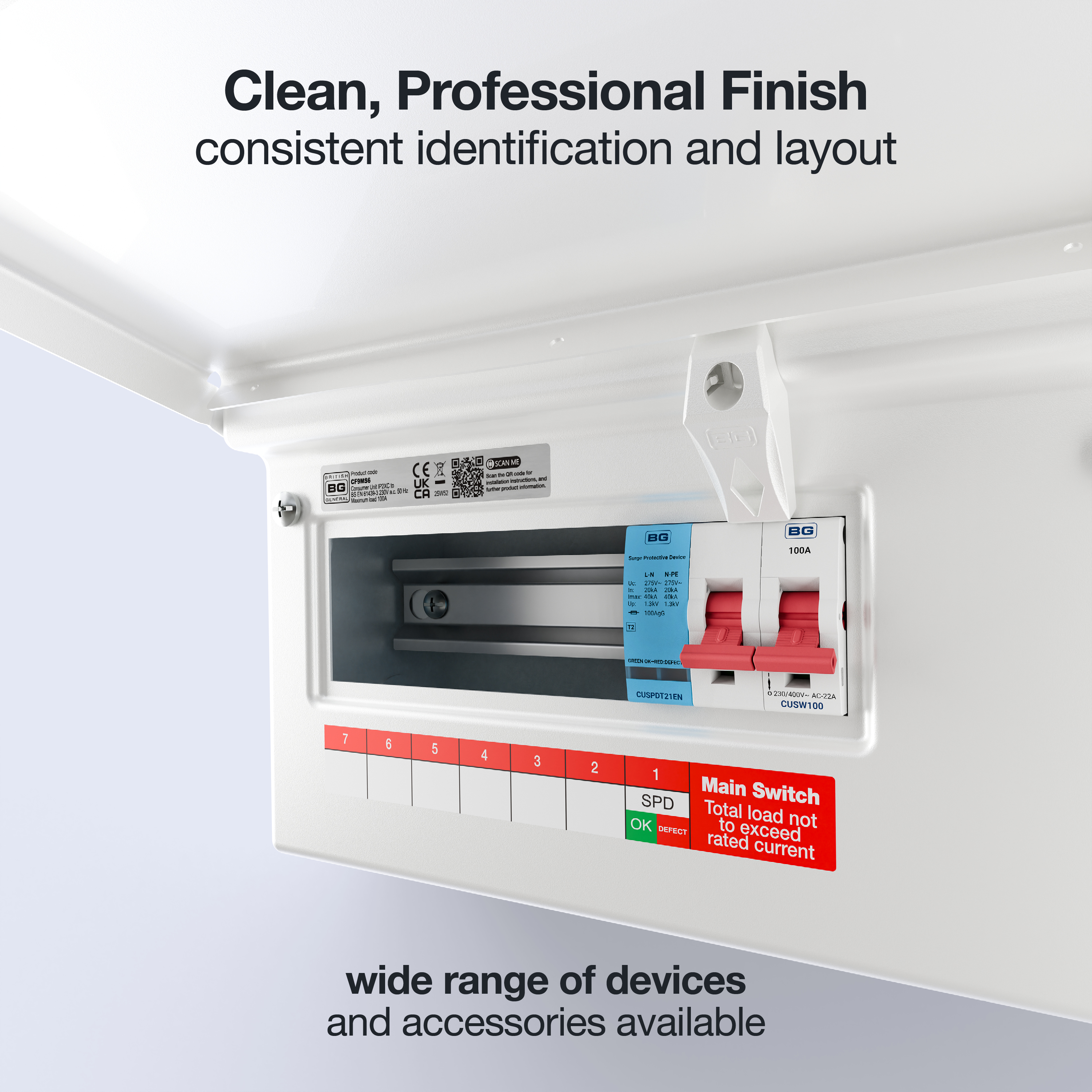

Supplied with Type 2 Surge Protection Device
100A Main Switch
9 Module Capacity
6 Useable Ways
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 9 |
| Number of Cable Entries | 16 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |

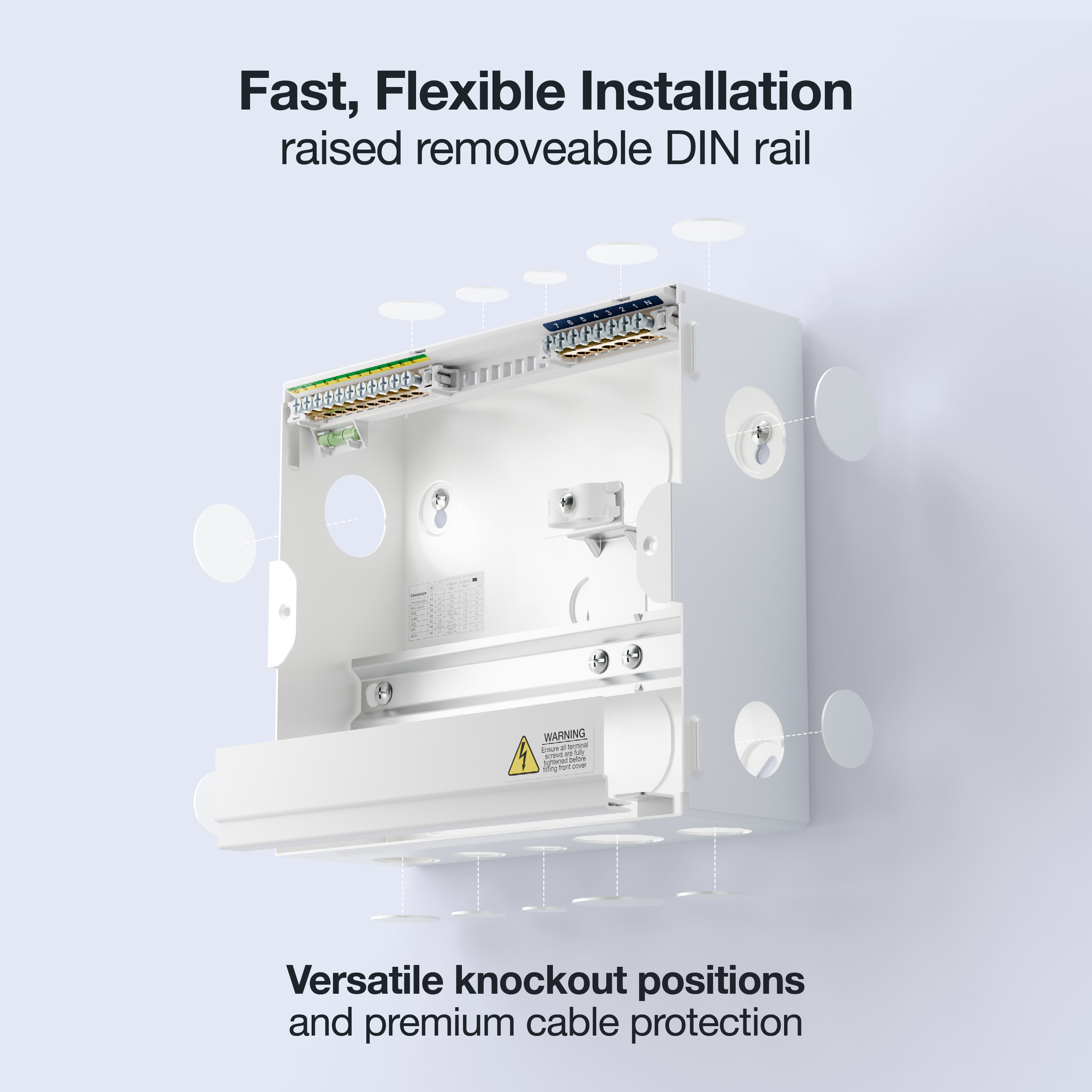

| Cable Entry Type | Knockout |

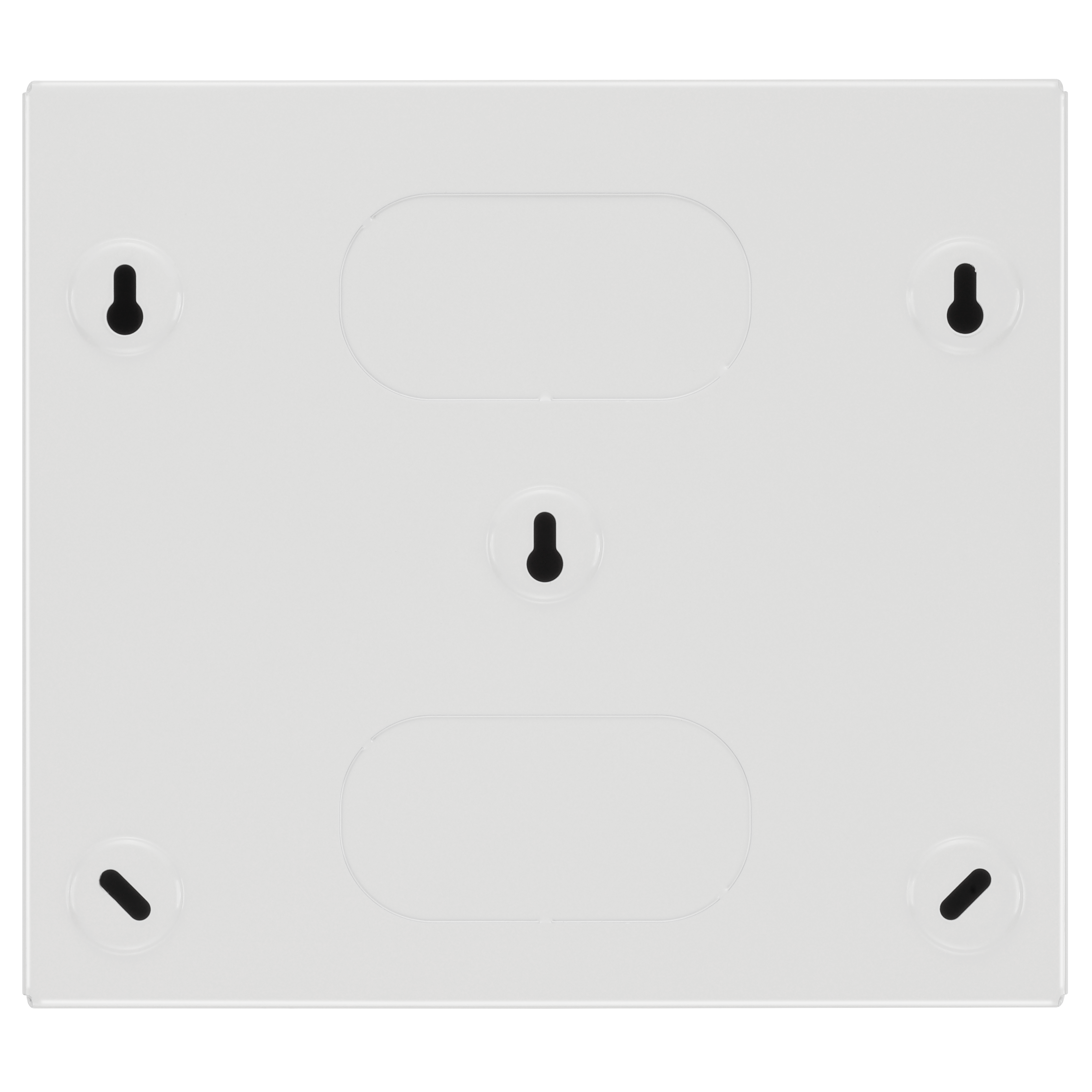

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 6 |

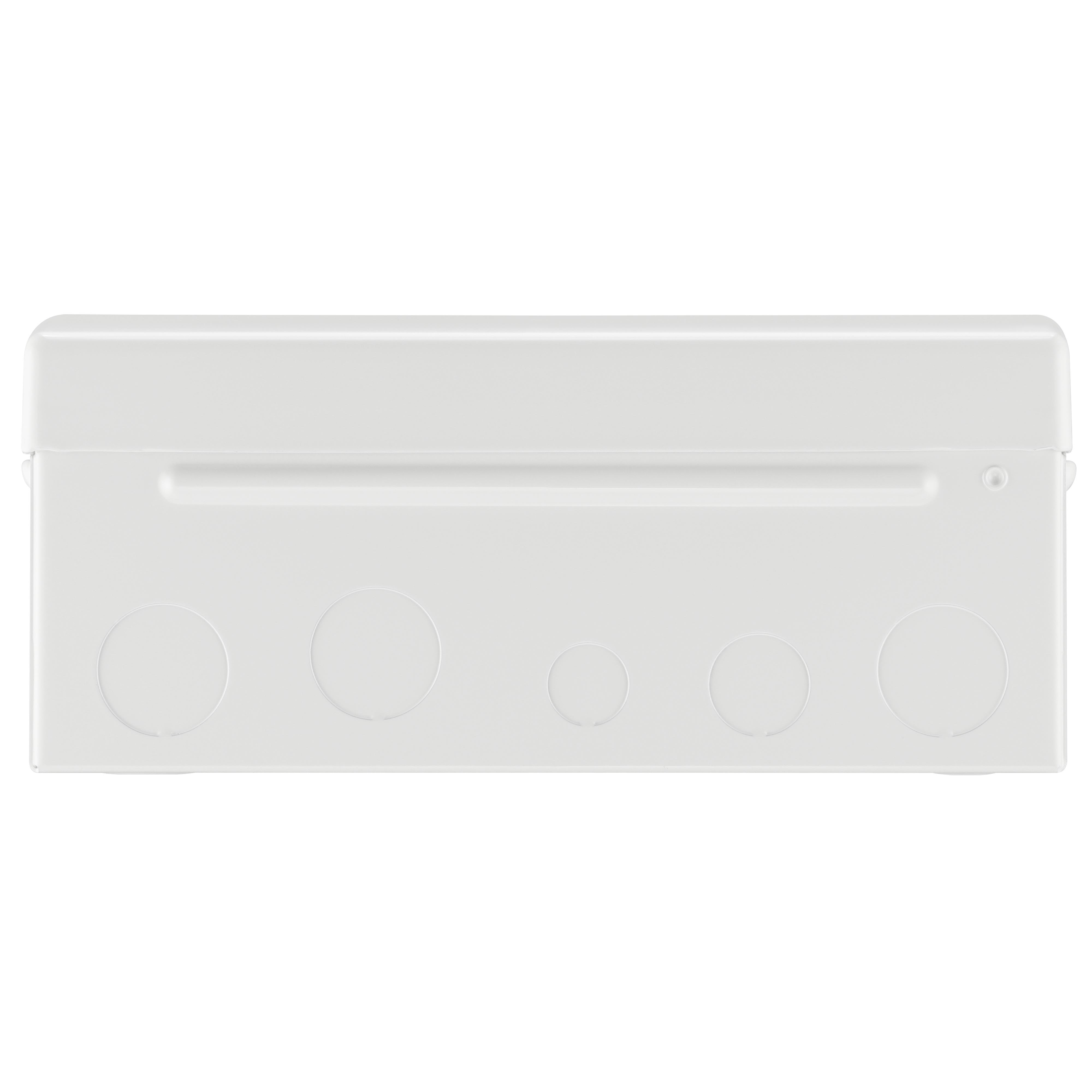

| Number of Knockouts | 16 |
| Mounting Type | Surface |

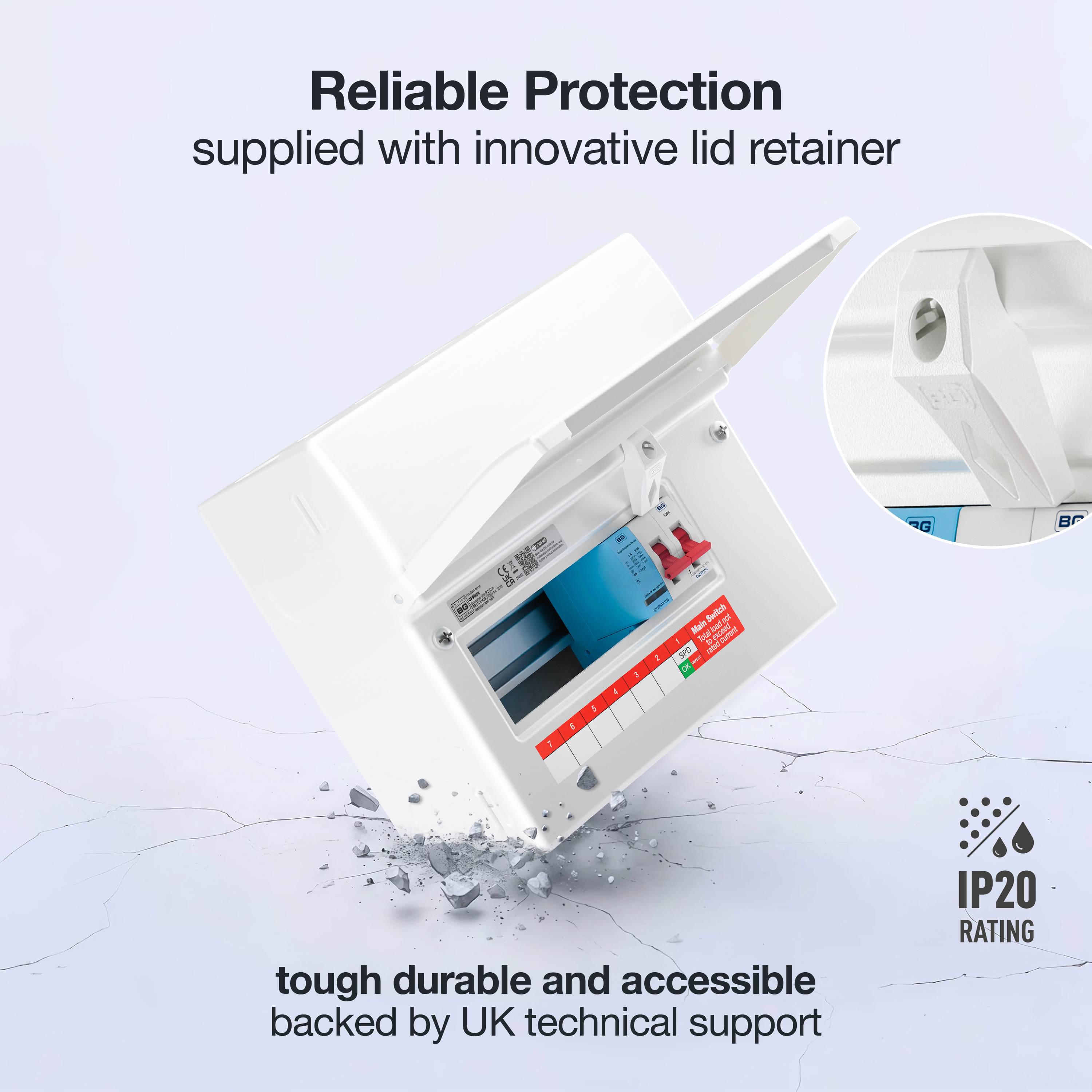

| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | Earth/Neutral Terminals 2.0, MS 2.5, SPD 1.2 L/N 3.0 PE |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | N/A |
| Trip Speed (mS) | N/A |
| Operating Voltage (V) | 230 |
| Max Load (A) | 100 |
| MCB's | 0 |
| Frequency (Hz) | 50 |
