CF12MS9-01

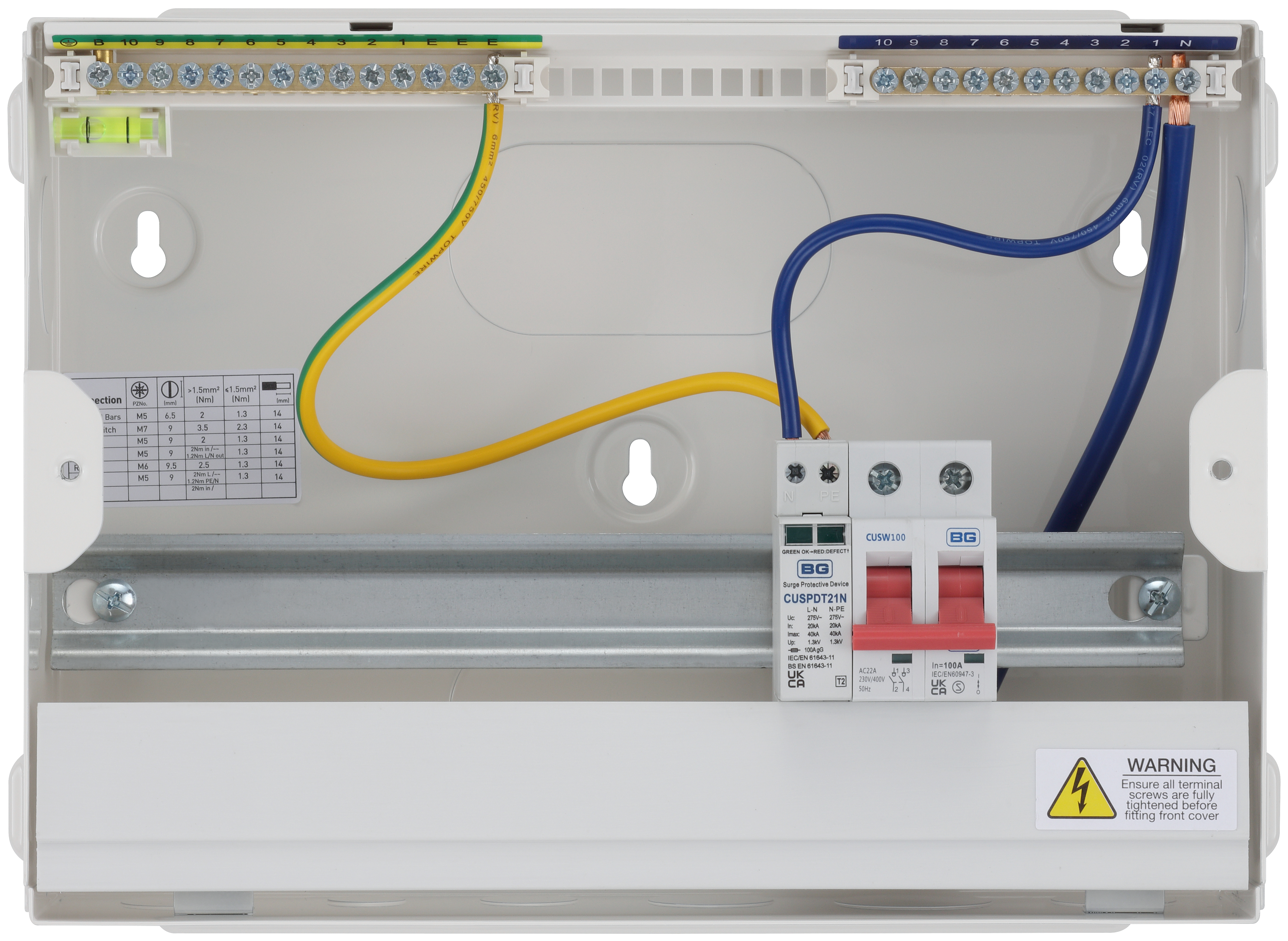

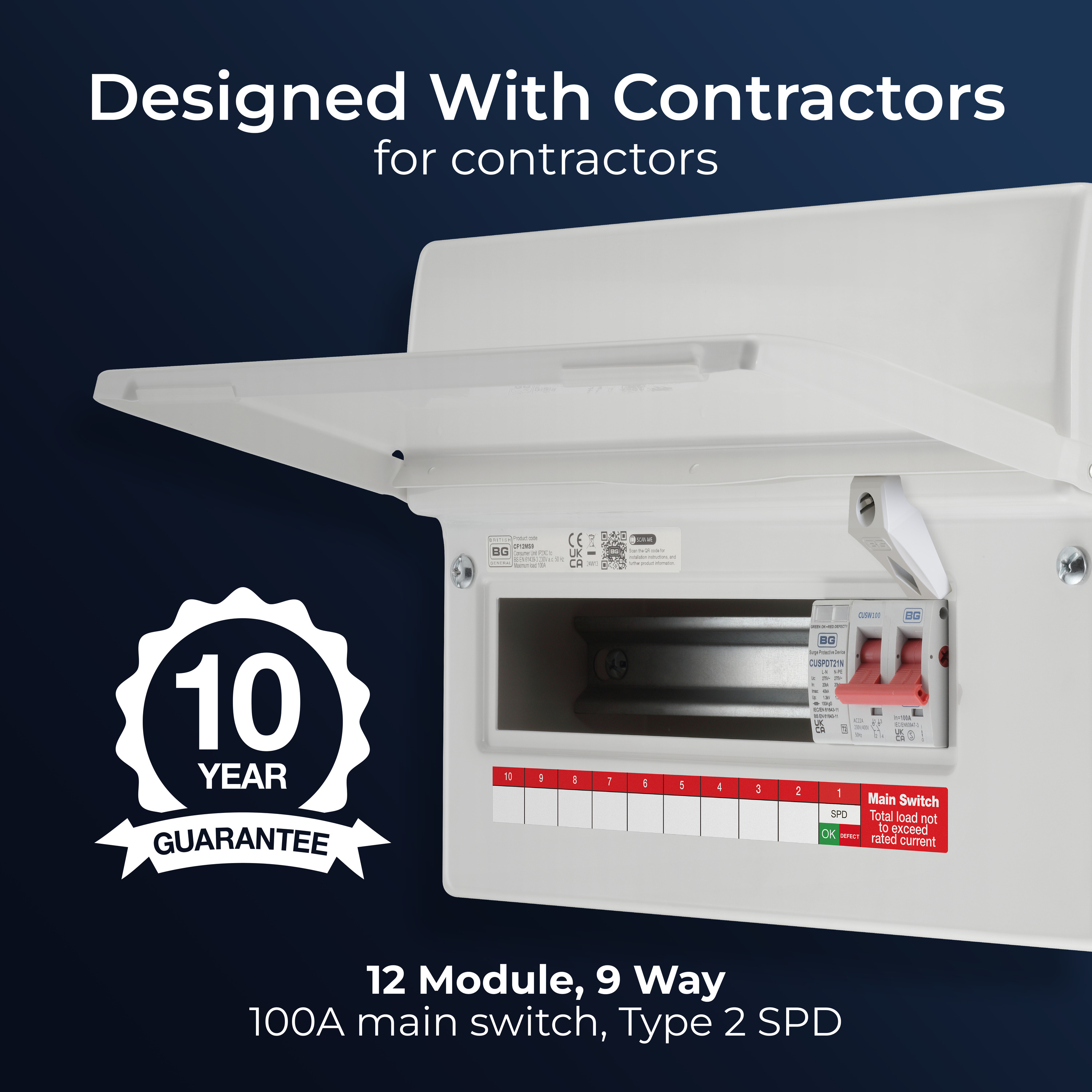

Consumer Unit 12 Module, 9 Way, Unpopulated with 100A Main Switch, 1 x T2 SPD
Integrated spirit Level

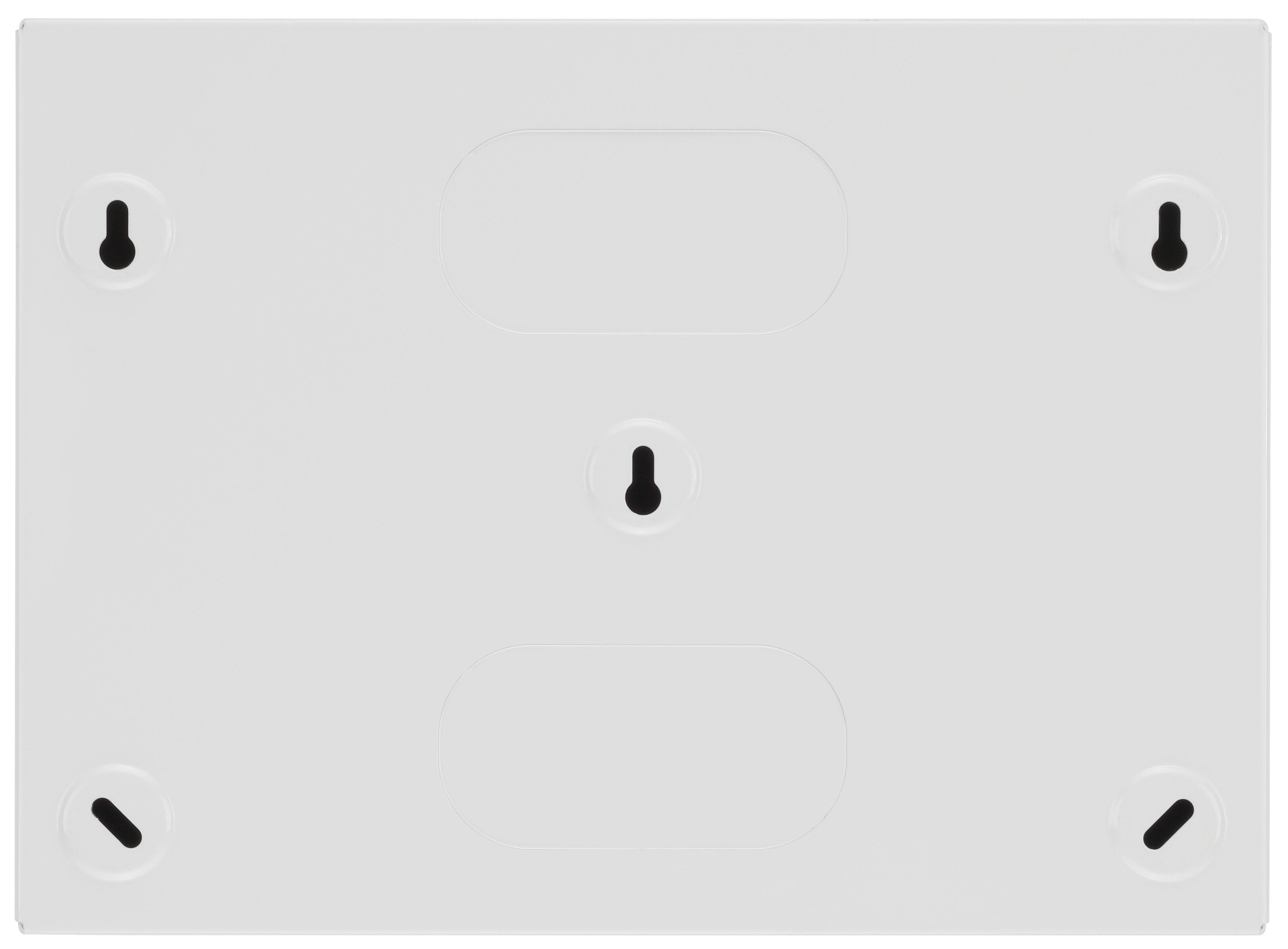

2 rows of rear knockouts

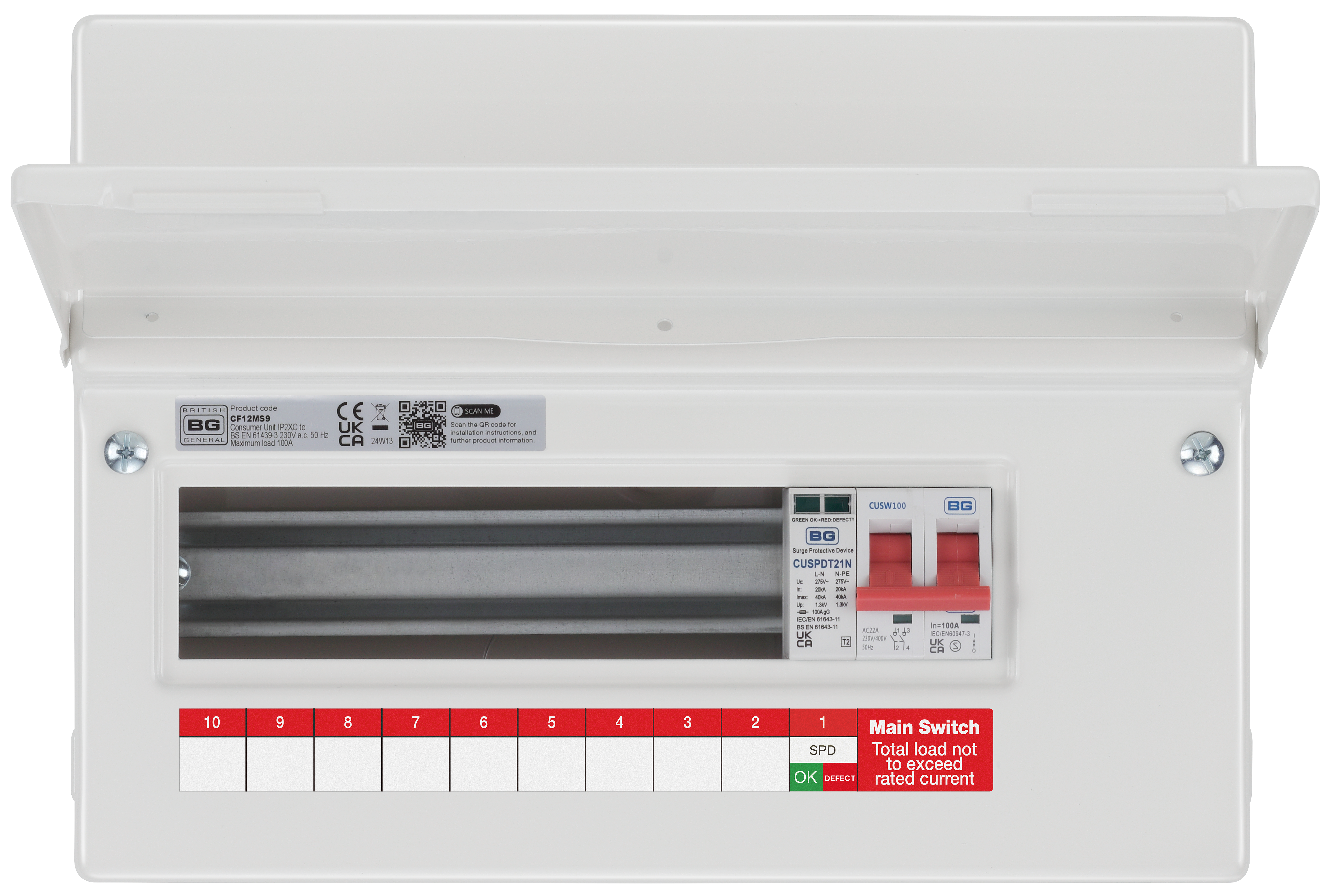

100A Main Switch
Optional cable clamp included
40mm knockouts in sides, top and bottom faces for incoming cables

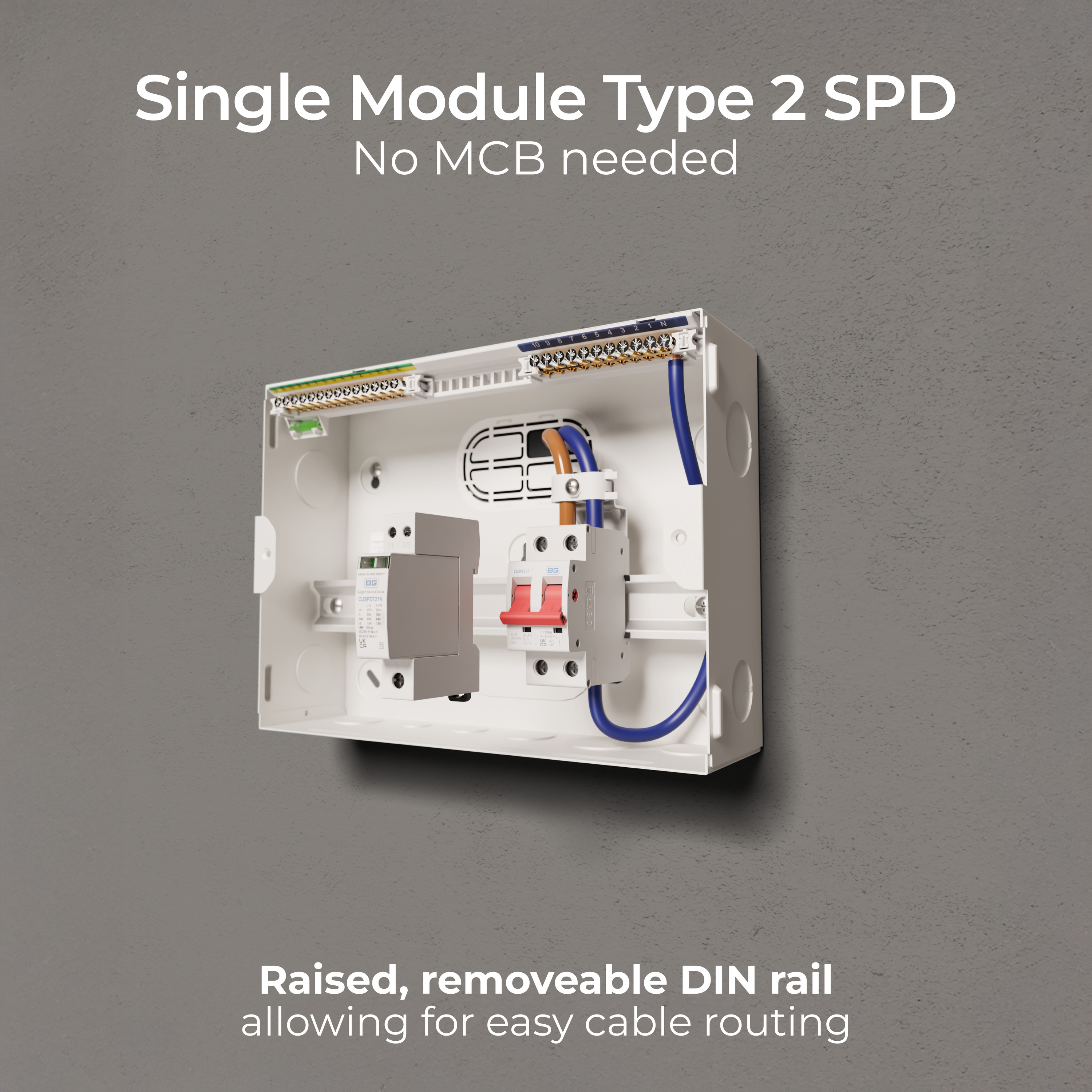

T2 SPD

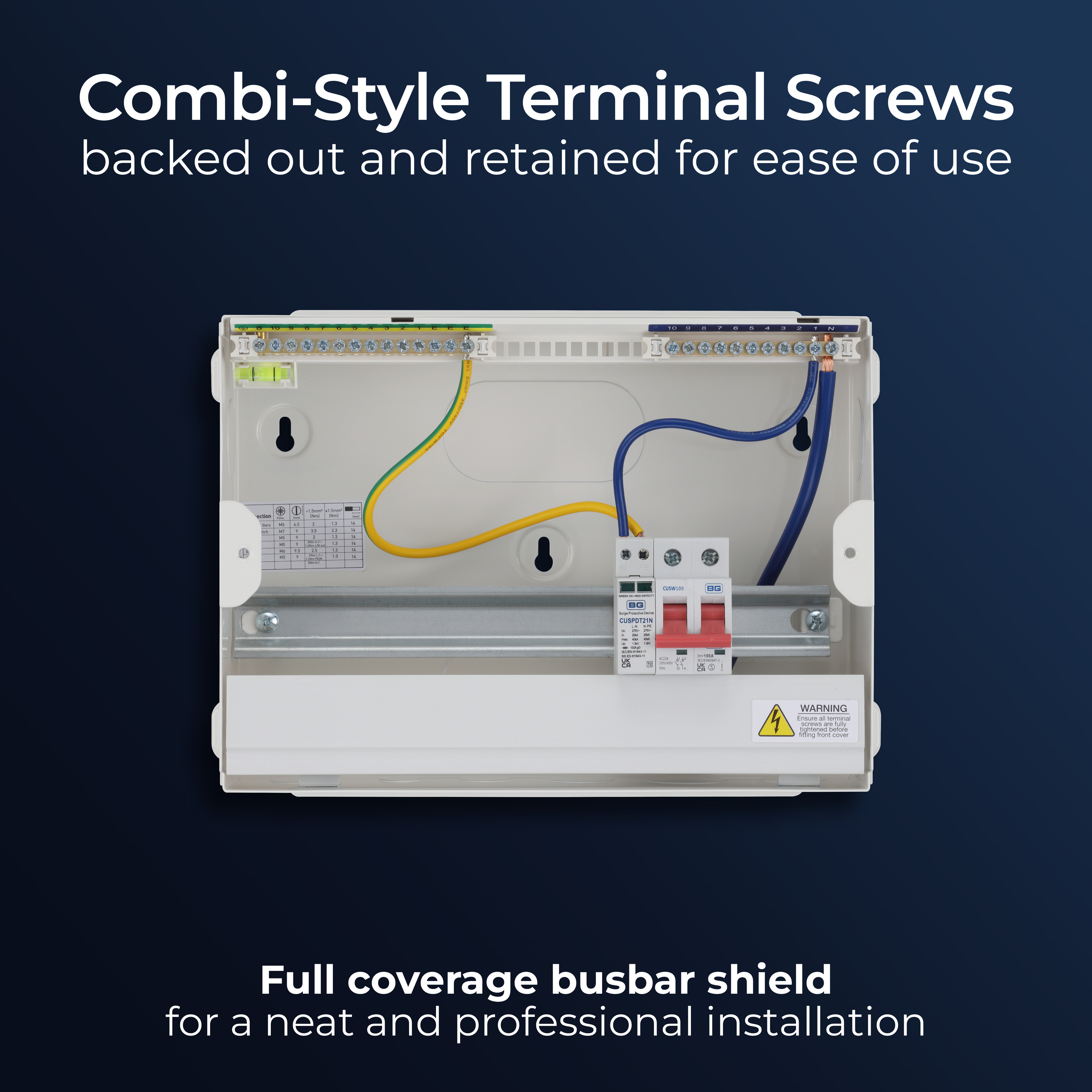

Backed out and retained terminal screws
10 Year Guarantee
Supplied with 1 x lid retainer, 1 x rear clip in cable protector, 1 x grommet strip and 2 x cover blanks
Unpopulated
Front Plate Material | Steel 1.0mm - ST16 |
General Colour | White |
Fixing Screws Supplied | No |
Modules | 12 |
Number of Cable Entries | 18 |
Captive Terminal Screws | Yes |
Backed-out Terminal Screws | Yes |
Cable Entry Type | Knockout |
Details per face (Size/number) | Top -1 x 20mm, 1 x 25mm, 4 x 32mm, Bottom - 1 x 20mm, 1 x 25mm, 3 x 32mm, 1 x 40mm L-1 x 32mm, 1 x 40mm R - 1 x32mm 1 x 40mm (sides) 2 x 100 x 50mm (Base) |

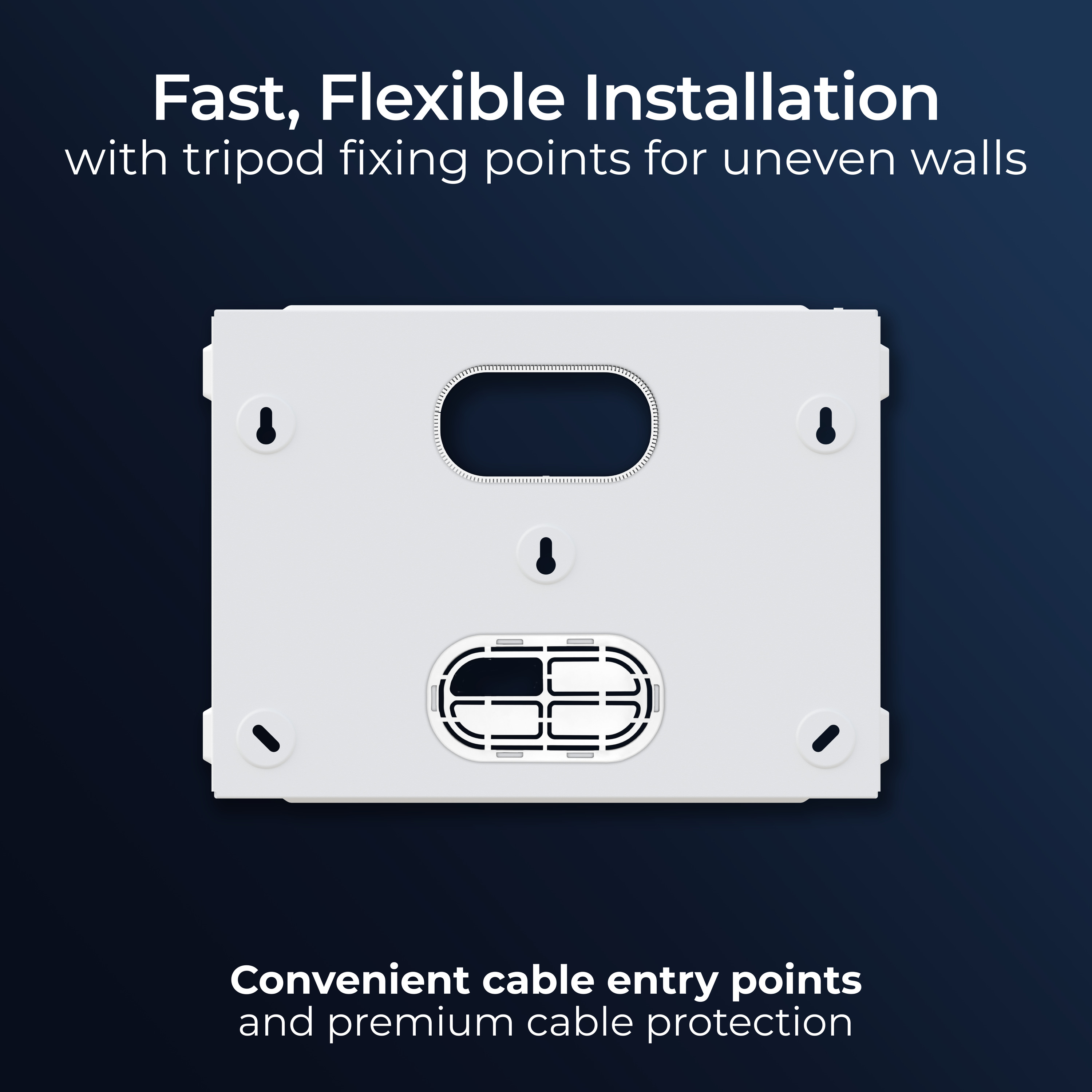

Number Of Wall Fixing Positions | 5 |
Fitted Lock | No |
Installation Method(s) | Surface |
Spirit Level | Yes |
Terminal Type | Screw |
Ways | 9 |
Knockouts | 18 |
Mounting Type | Surface |
IP Rating | IP2XC |
Terminal Screw Type | Combi |
Terminal Torque (Nm) | Earth/Neutral Terminals 2Nm, MS 2.5Nm, SPD 1.2Nm L/N 3Nm PE |
Rated Sensitivity (mA) | N/A |
RCD Mechanism Type | N/A |
Trip Speed (mS) | N/A |
Max Load (A) | 100 |
MCB's | 0 |
Frequency (Hz) | 50 |
Warranty (years) | 10 |
