CFF22M20-02

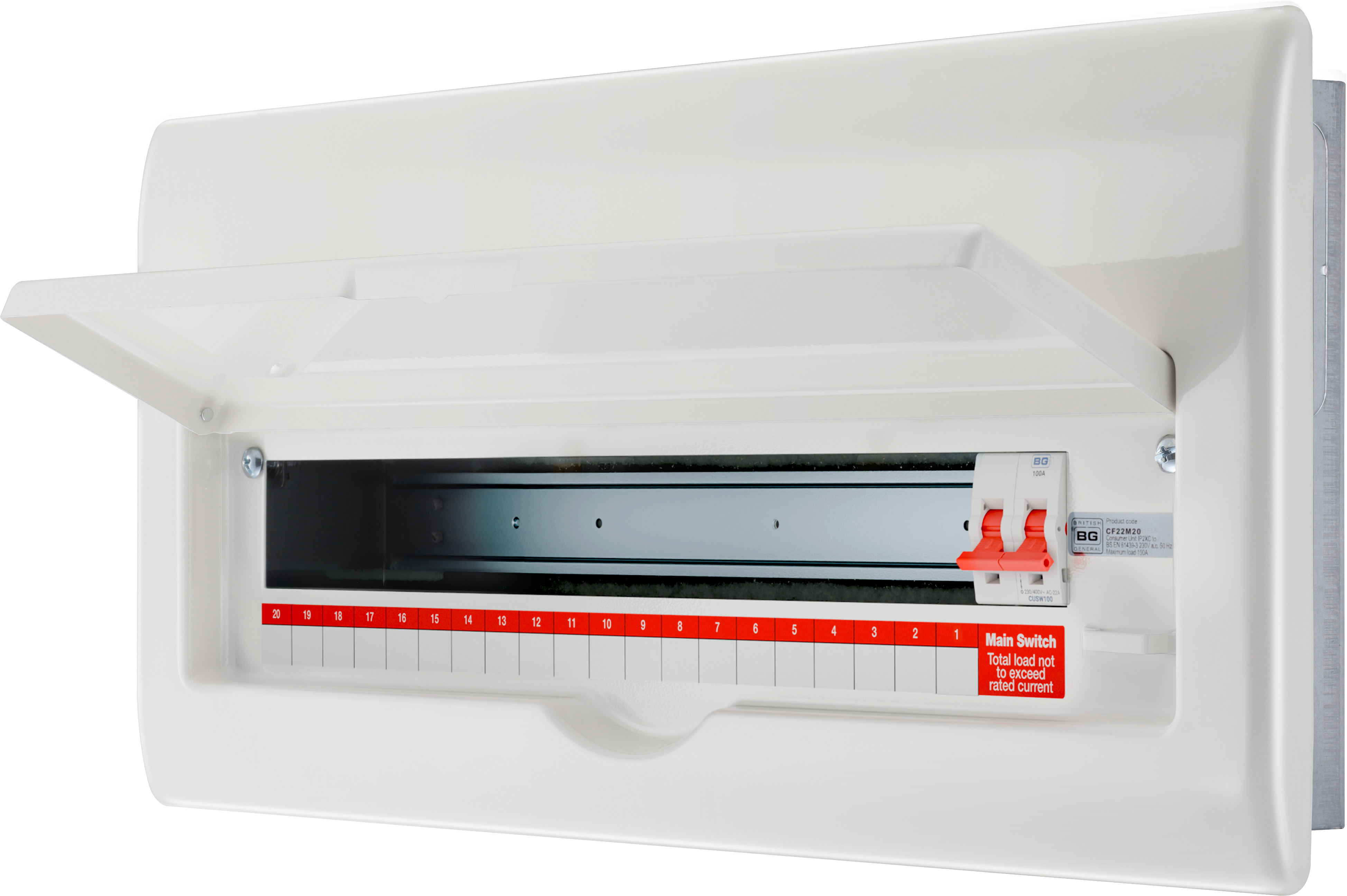

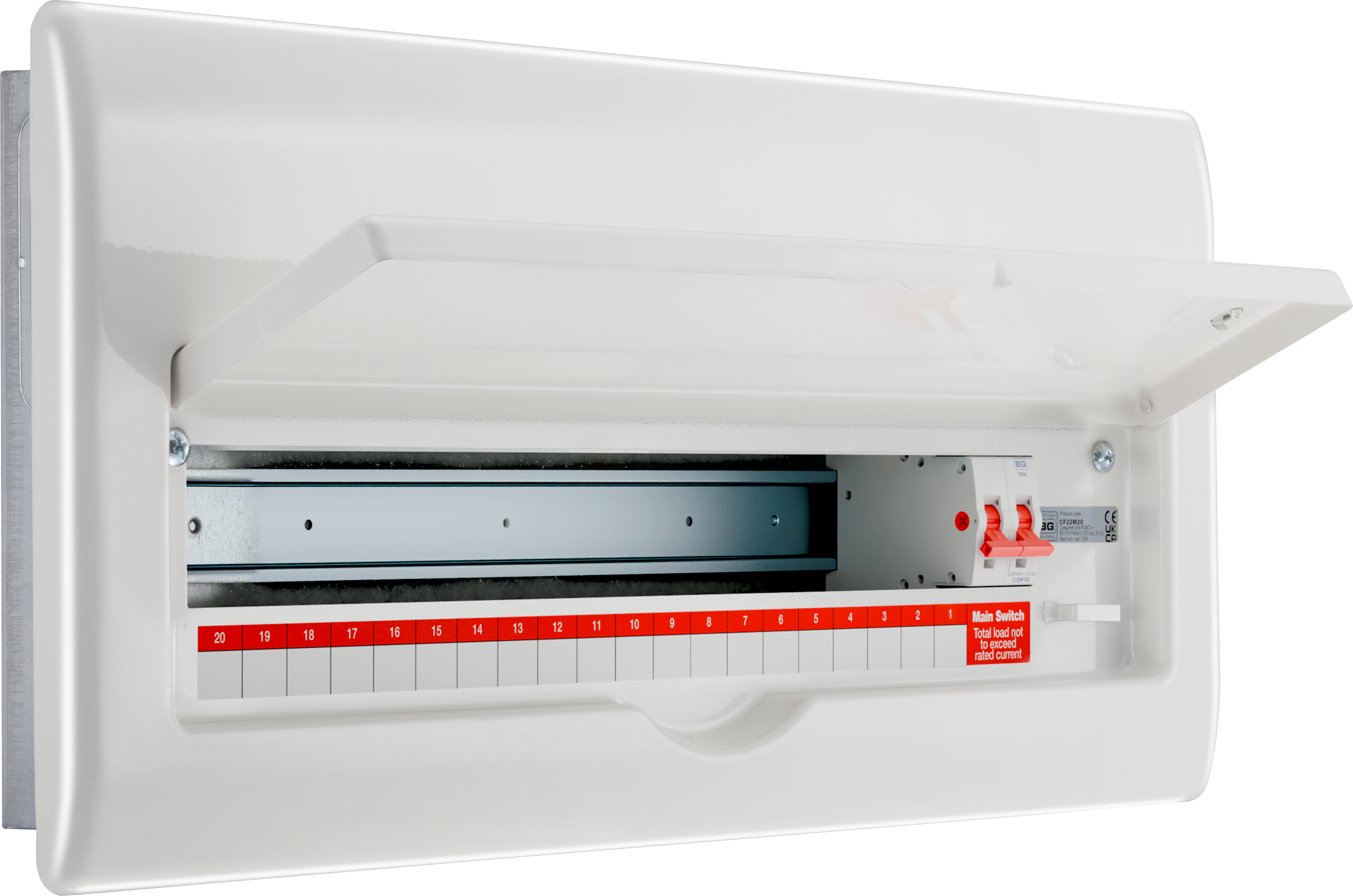

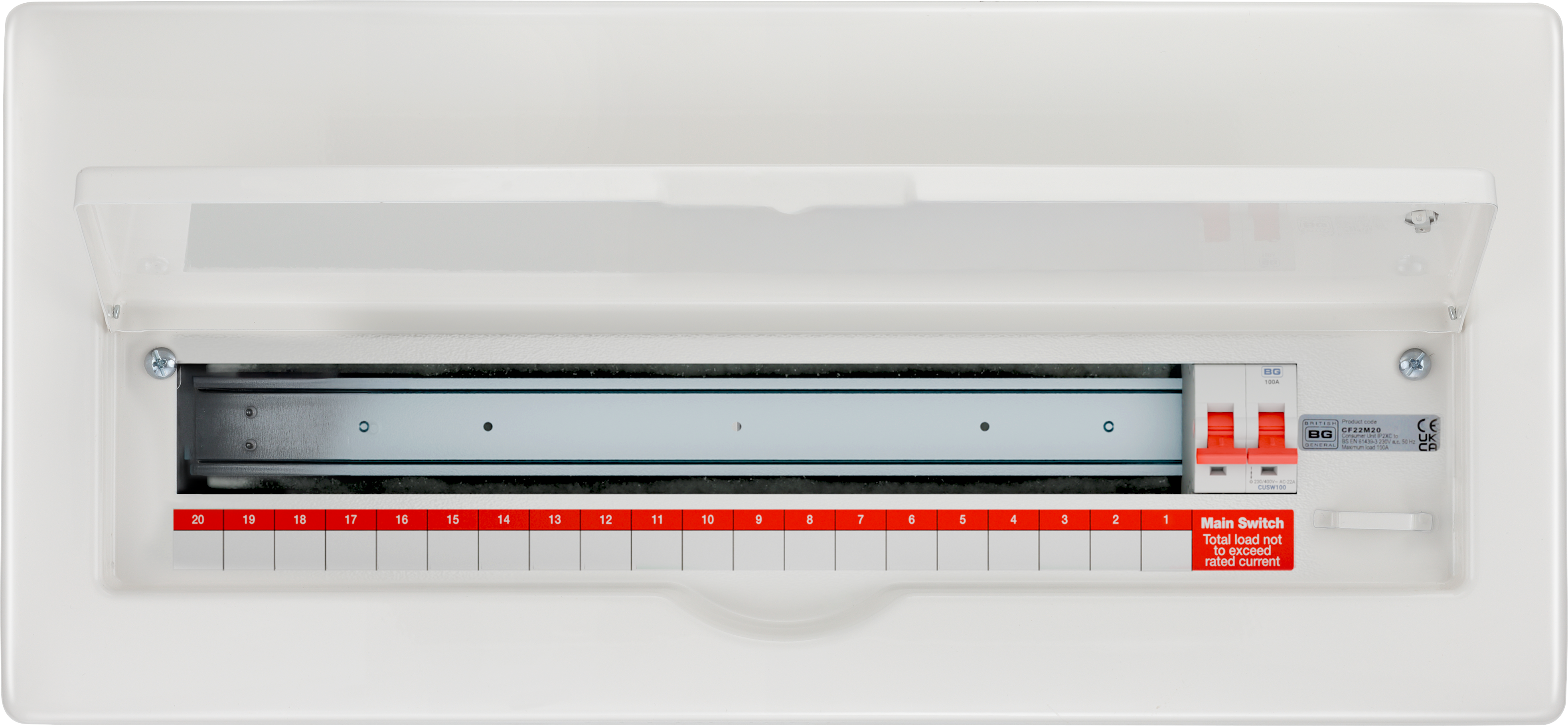

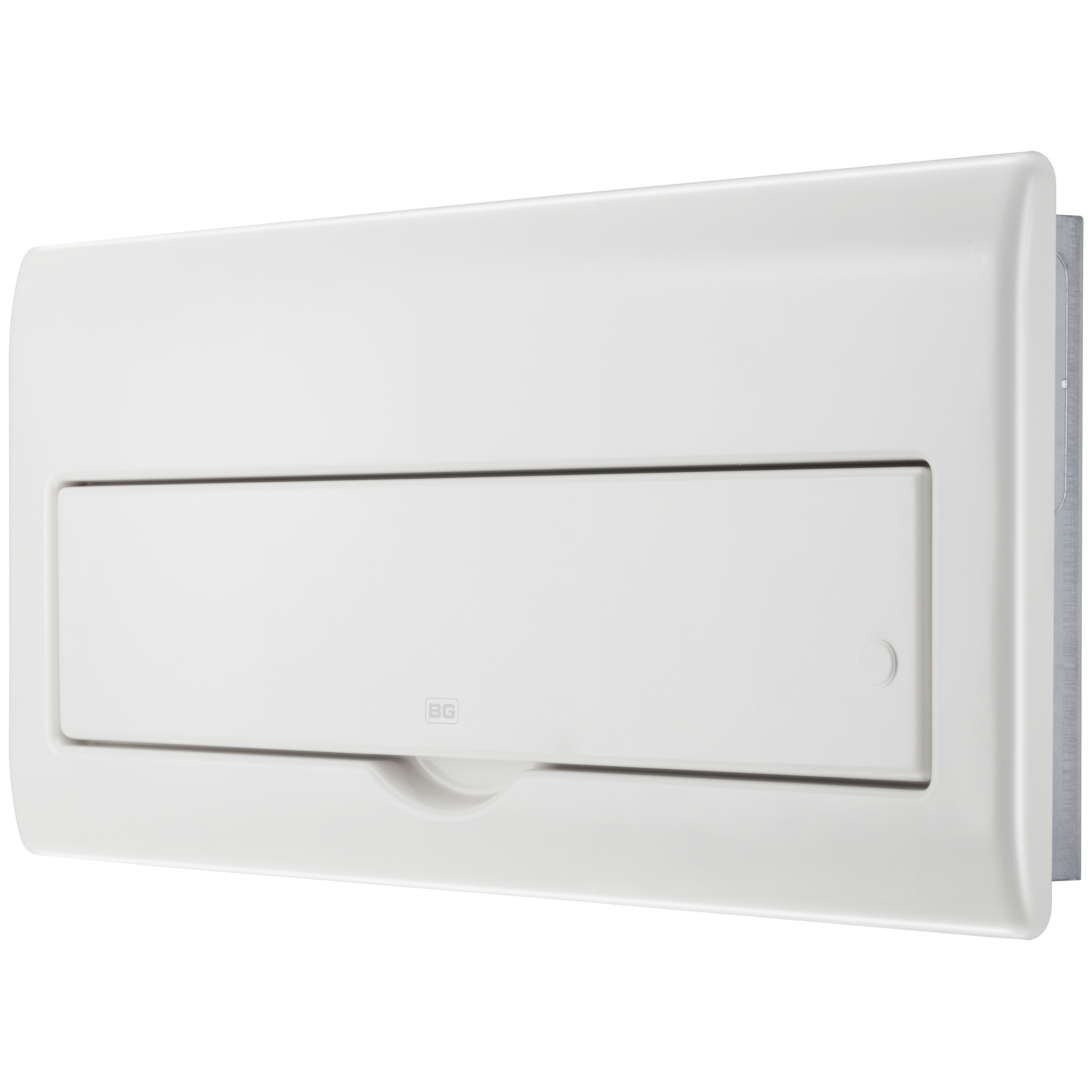

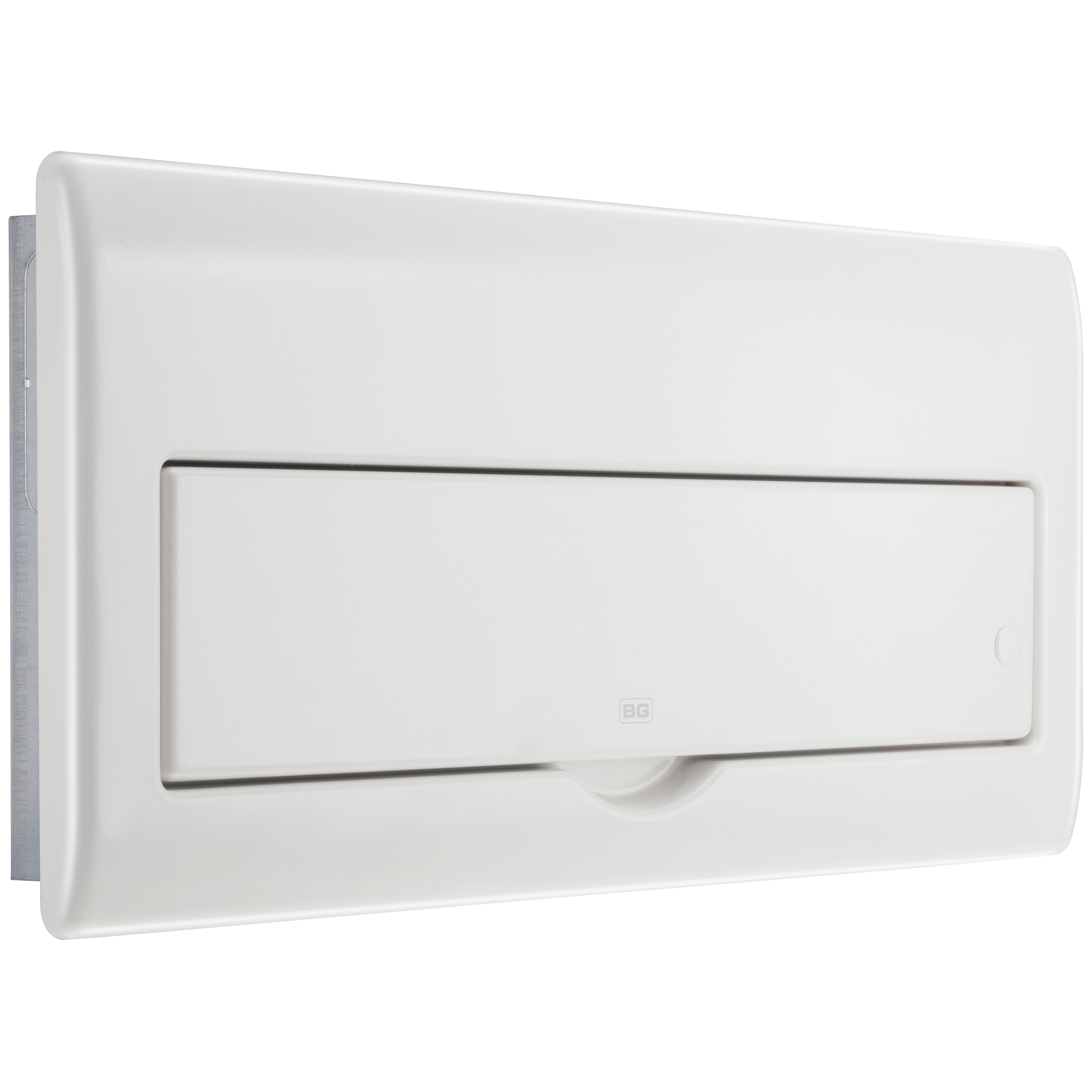

Consumer Unit 22 Module, Fully Recessed 20 Way, Unpopulated,100A Main Switch
Fully Recessed

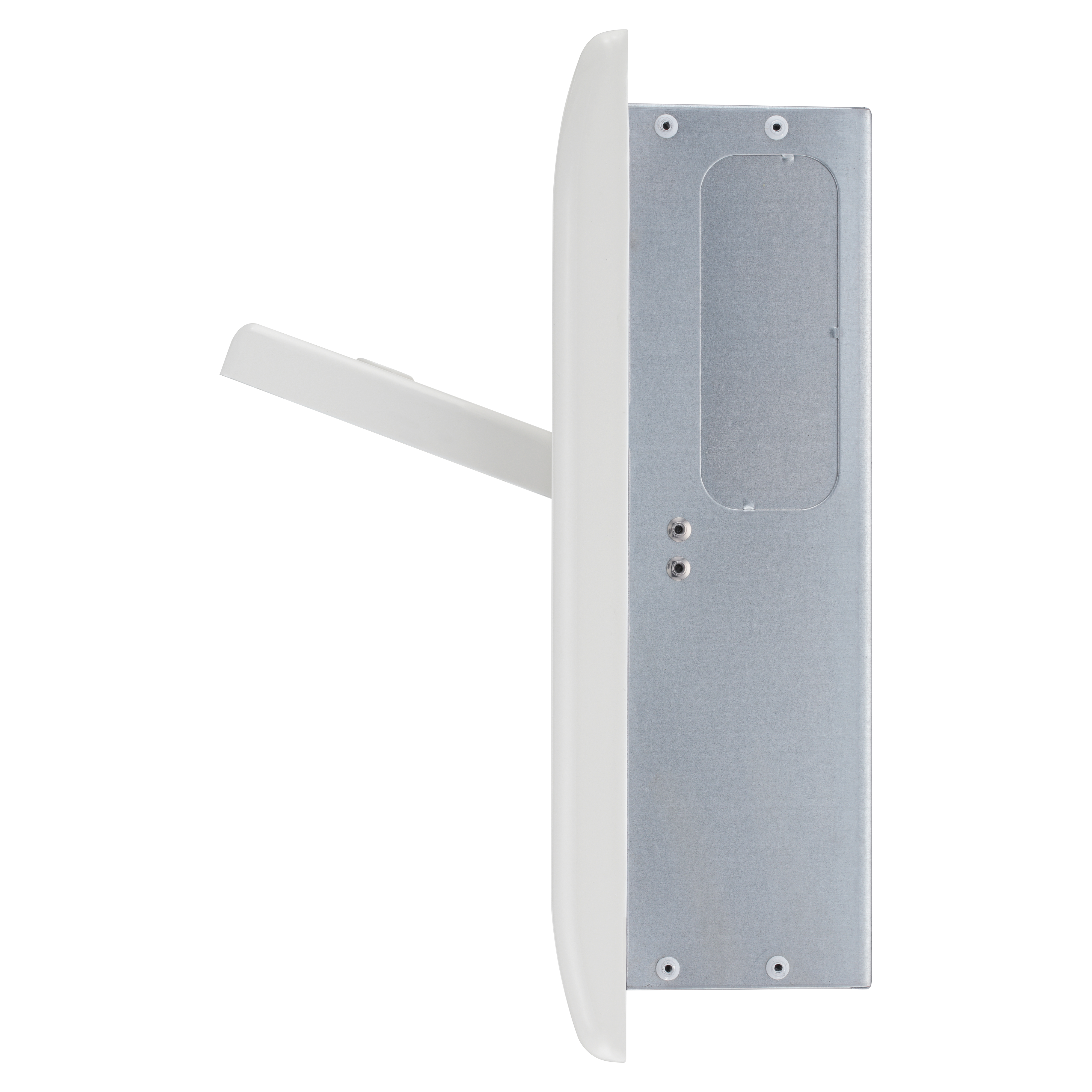

upward opening visor
Integrated spirit Level
1 x 100A main switch
Unpopulated
100A Main Switch
All metal construction
Barrel lock can be fitted
Backed out and retained terminal screws
| Front Plate Material | Steel 1.0mm - ST16 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 22 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Number Of Wall Fixing Positions | 10 |
| Fitted Lock | No |
| Installation Method(s) | Recessed |
| Spirit Level | Yes |
| Ways | 20 |
| Mounting Type | Recessed |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | Earth/Neutral Terminals 2.0, MS 2.5, SPD 1.2 L/N 3.0 PE |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | N/A |
| Trip Speed (mS) | N/A |
| Max Load (A) | 100 |
| MCB's | 0 |
| Warranty (years) | 10 |
