CFFD1000016A-01

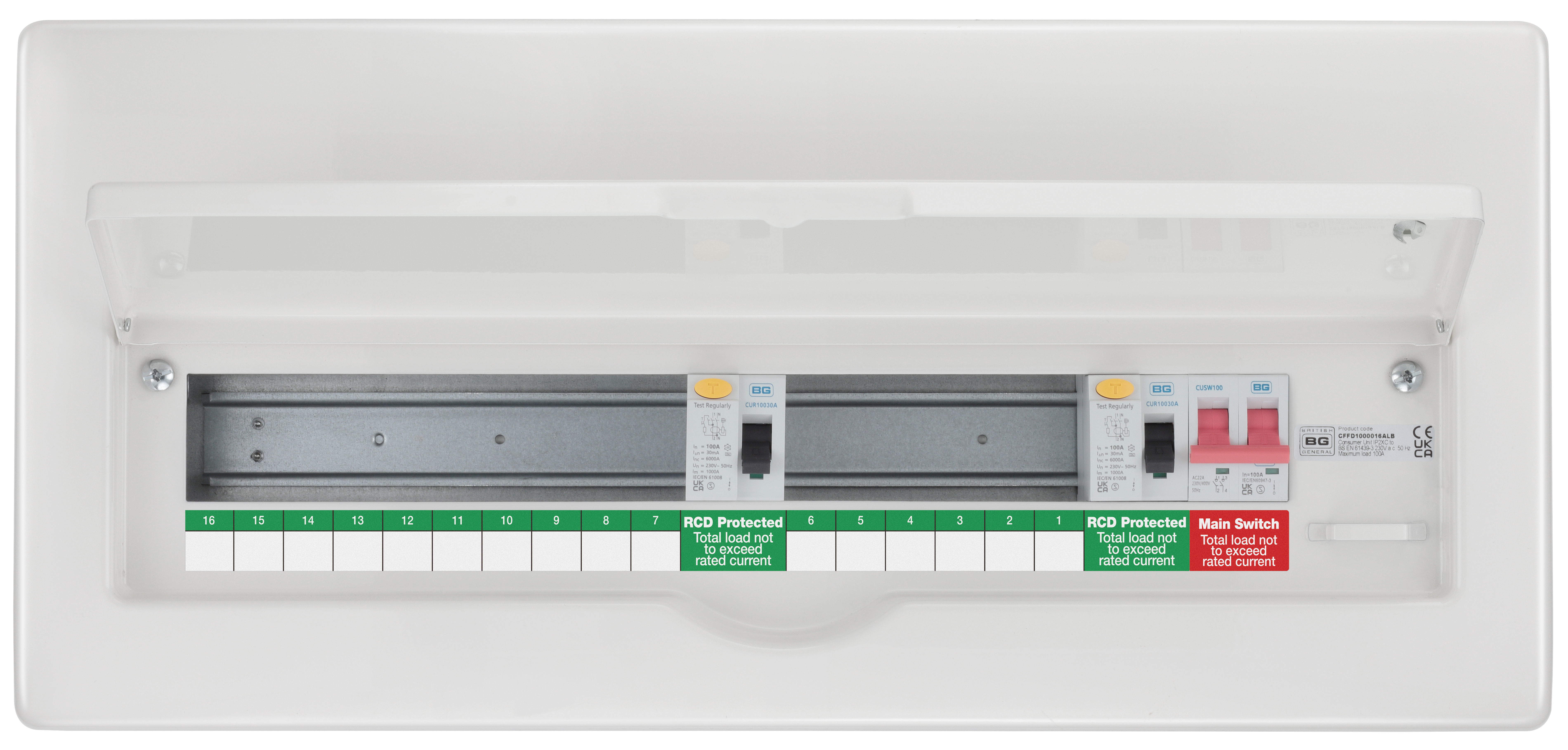

BG Fortress Fully Recessed Dual RCD Consumer Unit Unpopulated 16 way 2 x 100A 30mA Type A
Fully Recessed
upward opening visor
Integrated spirit Level

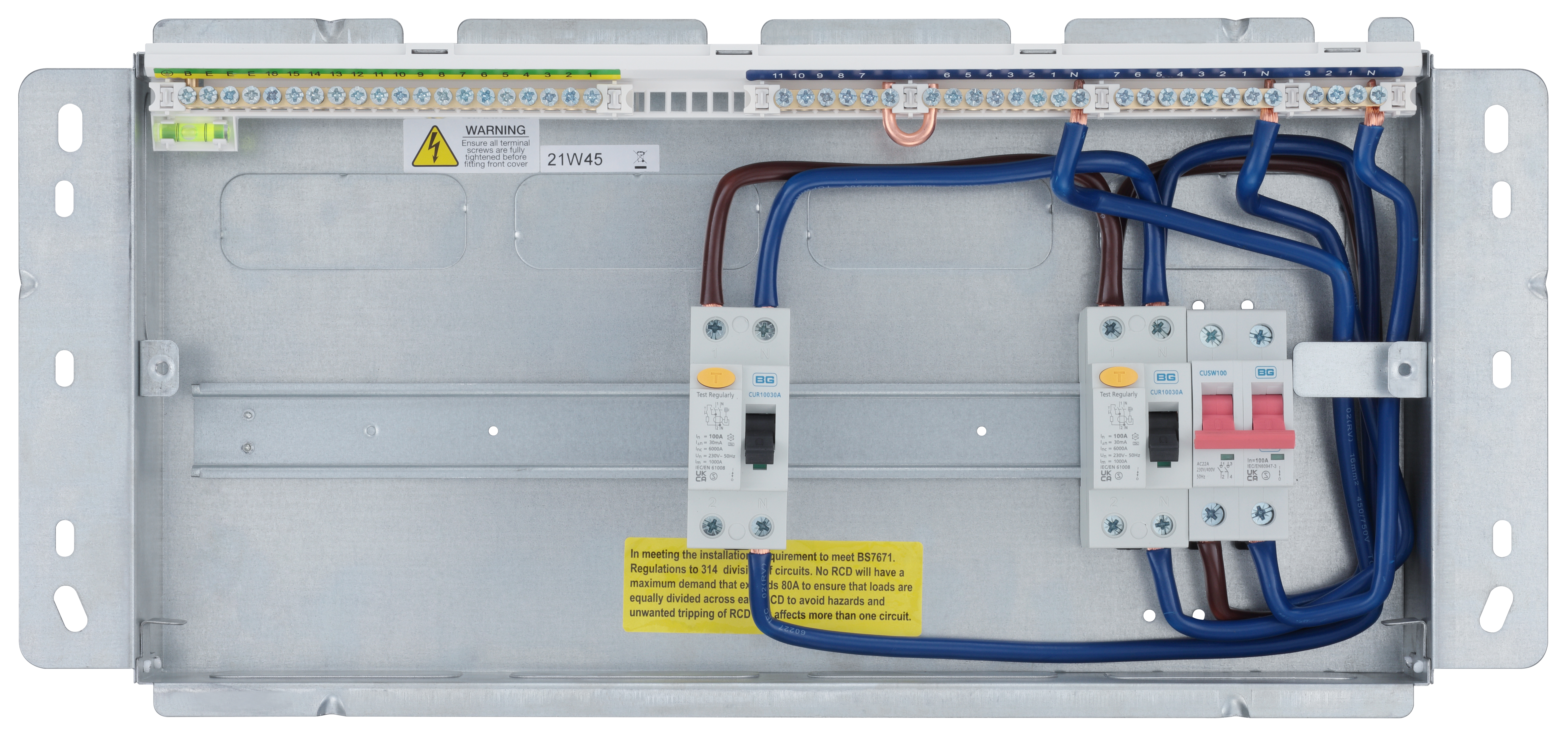

Dual RCD 2 x 100A Type A
Unpopulated
100A main switch
Suitable for height restrictions
All metal construction
Barrel lock can be fitted
Backed out and retained terminal screws
| Front Plate Material | Steel 1.0mm - ST16 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 22 |
| Number of Cable Entries | 5 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | 3 top 1 bottom |
| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Recessed |
| Spirit Level | Yes |
| Ways | 16 |
| Mounting Type | Recessed |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | MS 2.5Nm, RCD 2.5Nm, MCB 2Nm |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 100 |
| Max Load (A) | 100 |
| MCB's | 0 |
| Operating Temperature (C) | -25°C to +40°C |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
