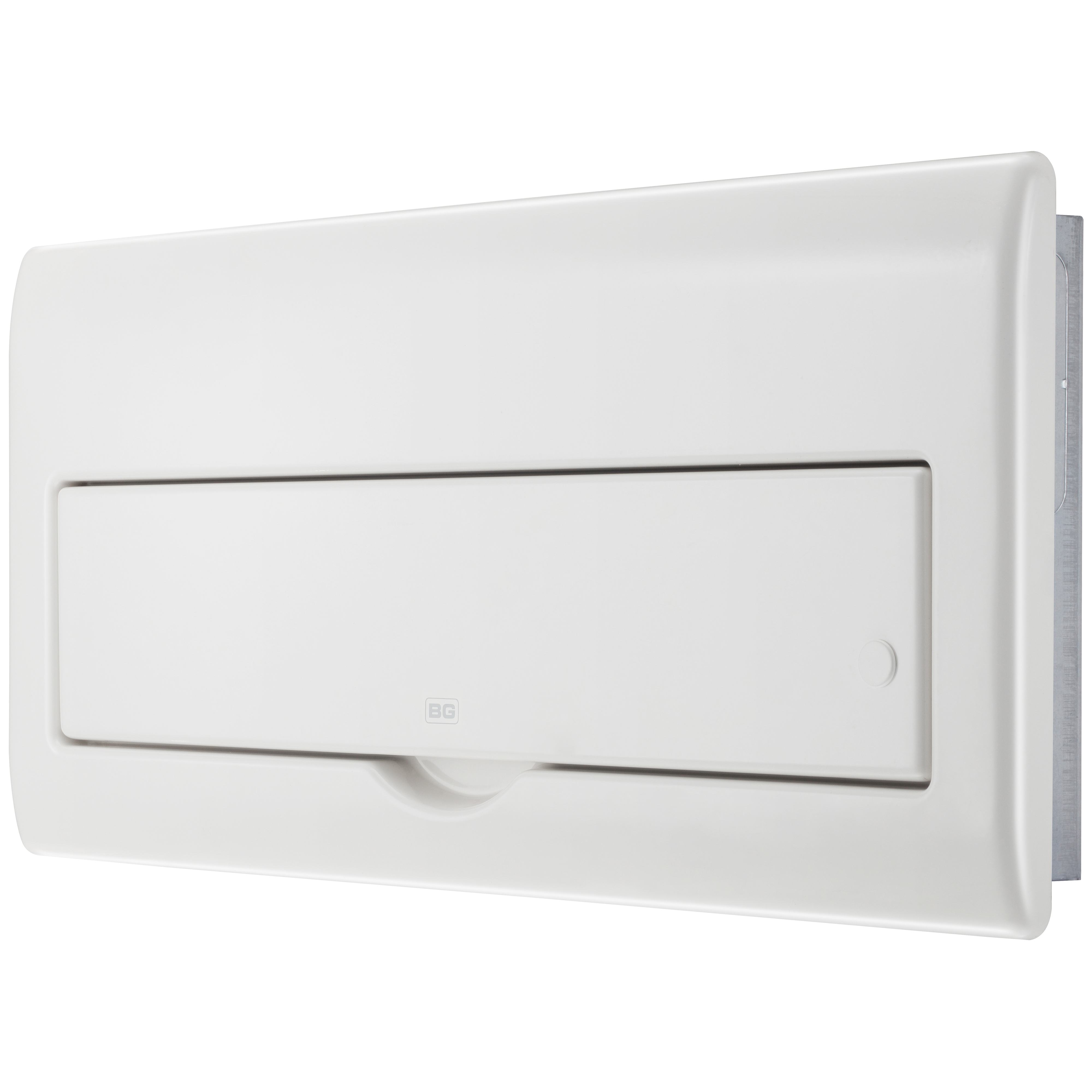

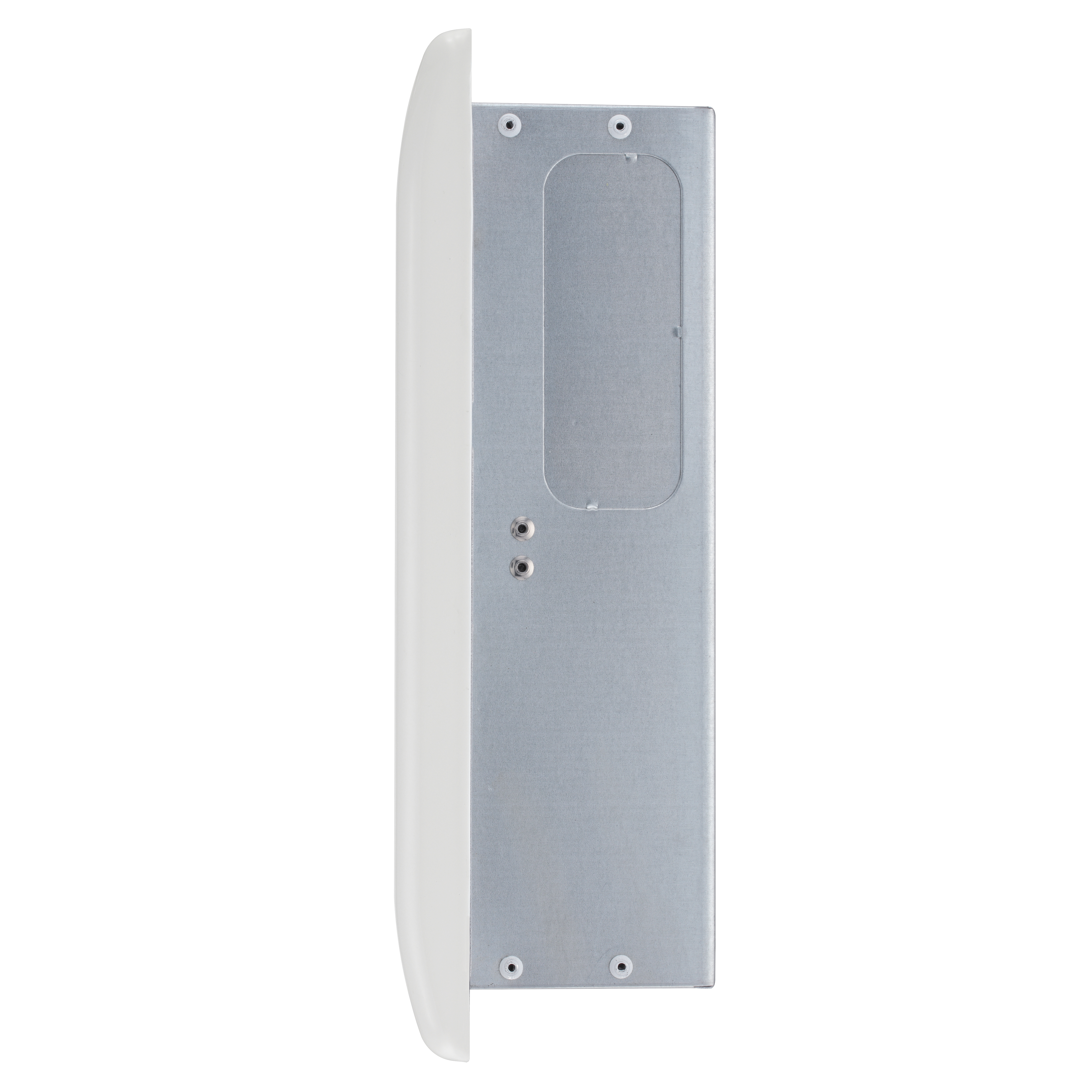

CFF22D11S15-02
Consumer Unit 22 Module, Fully Recessed 15 Way, Unpopulated, Dual RCD, 2 x 100A 30mA Type A RCD, 1 x T2 SPD
Fully Recessed

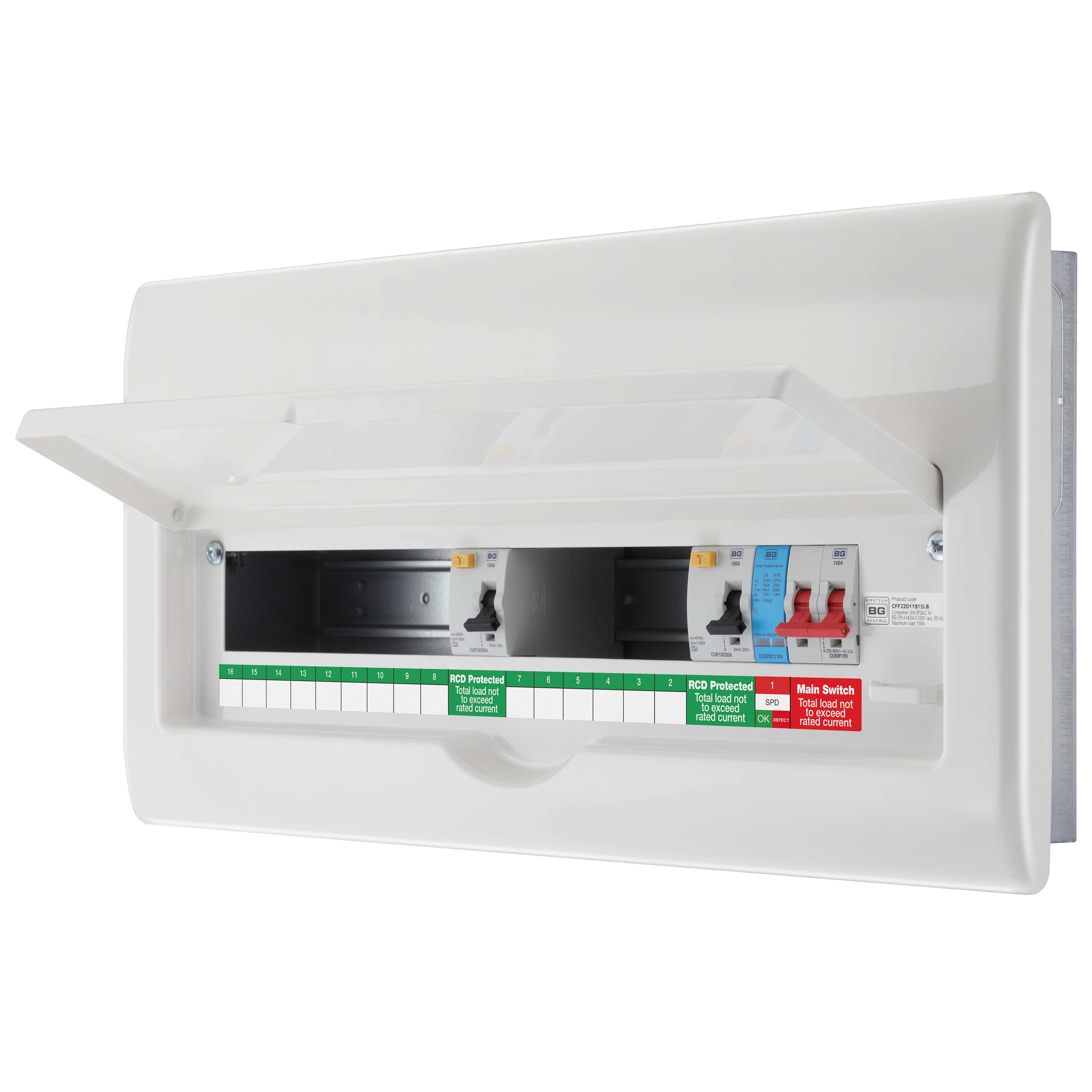

upward opening visor
Integrated spirit Level

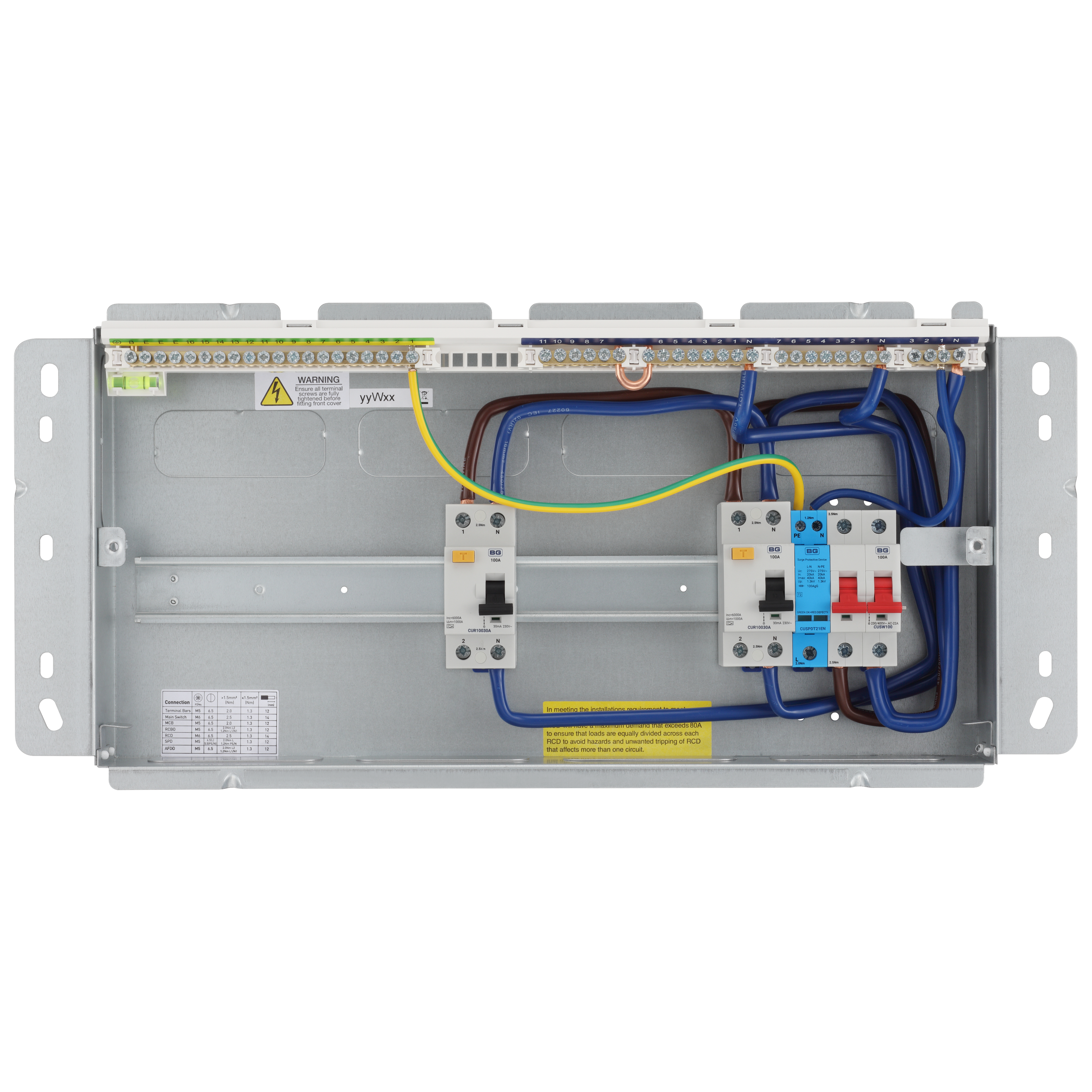

Dual RCD 2 x 80A Type A
Unpopulated
100A main switch
T2 SPD
All metal construction
Barrel lock can be fitted
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 22 |
| Number of Cable Entries | 14 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Number Of Wall Fixing Positions | 10 |
| Fitted Lock | No |
| Installation Method(s) | Recessed |
| Spirit Level | Yes |
| Ways | 15 |
| Mounting Type | Recessed |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | Earth/Neutral Terminals 2.0, MS 2.5, RCD 2.5, MCB 2, SPD 1.2 L/N 3.0 PE |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Operating Voltage (V) | 230 |
| Max Load (A) | 100 |
| MCB's | 0 |
| Frequency (Hz) | 50 |
