CP5R4PS1G-02

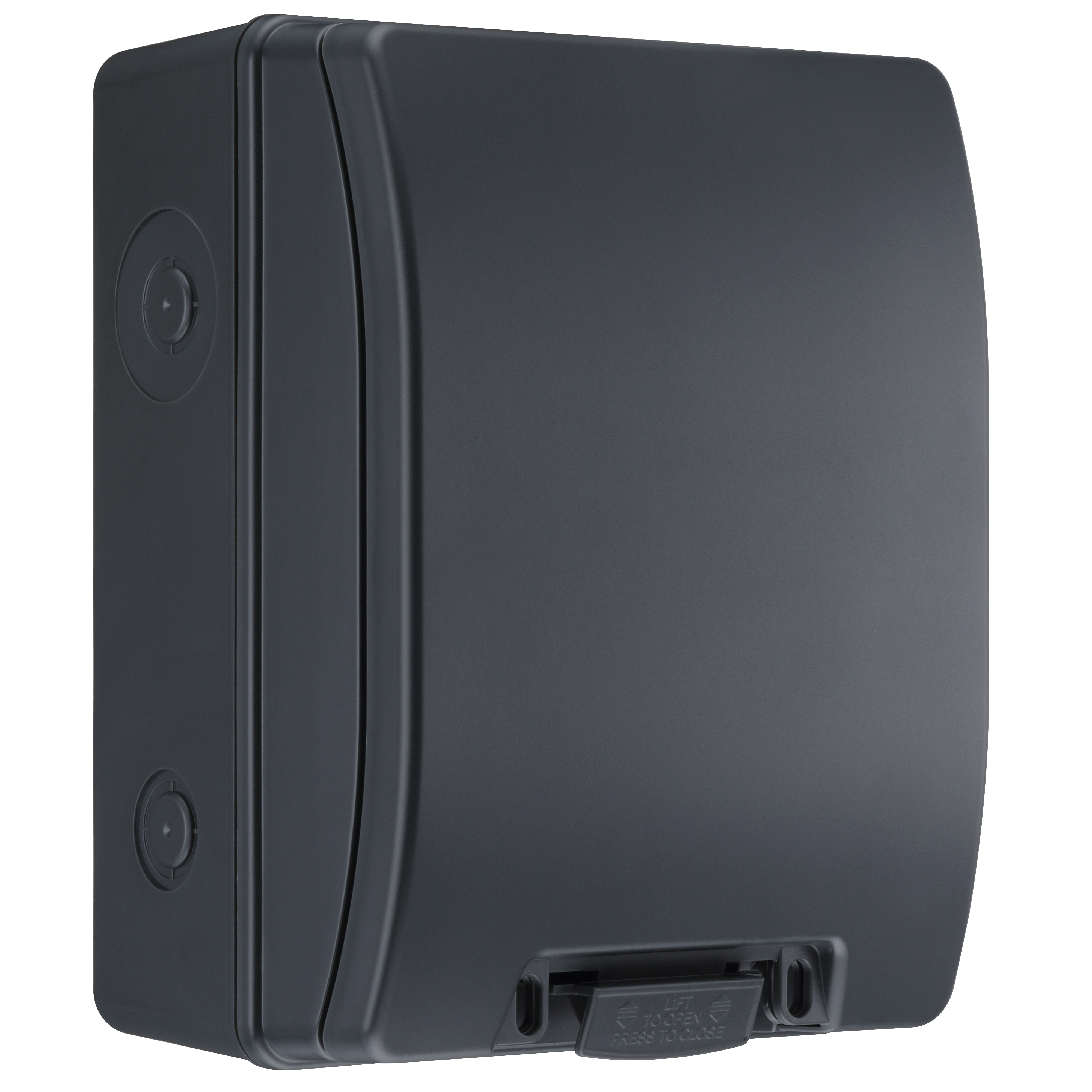

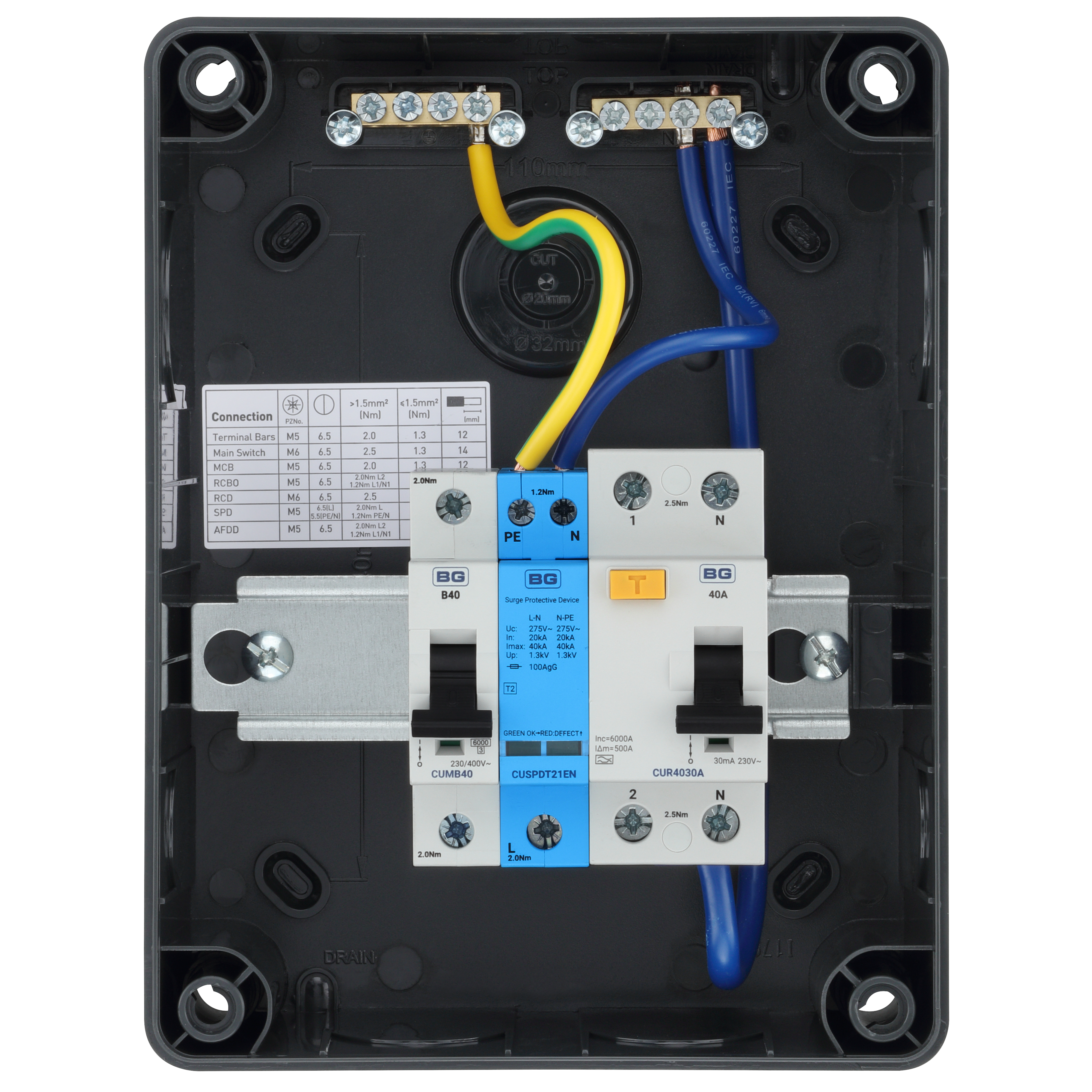

Electric vehicle populated grey enclosure 5 module IP66 with 1 x 40A double pole 30mA Type A RCBO and 1 x Type 2 surge protection device
Populated
Supplied with Type 2 Surge Protection Device
5 Module Capacity
40A RCBO
IP66 Weatherproof
| General Colour | Anthracite Grey |
| Fixing Screws Supplied | No |
| Modules | 5 |
| Number of Cable Entries | 8 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | Side - 1 x 20-40mm 1 x 20-25mm, Bottom - 3 x 20-25mm, Base - 20-32mm |
| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | No |
| Ways | 4 |
| Number of Knockouts | 8 |
| Mounting Type | Surface |
| IP Rating | IP66 |
| Terminal Screw Type | Combi |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 40 |
| MCB's | 1 |
| Operating Temperature (°C) | -25 to +40 |
| Frequency (Hz) | 50 |
