CFEV6W-02

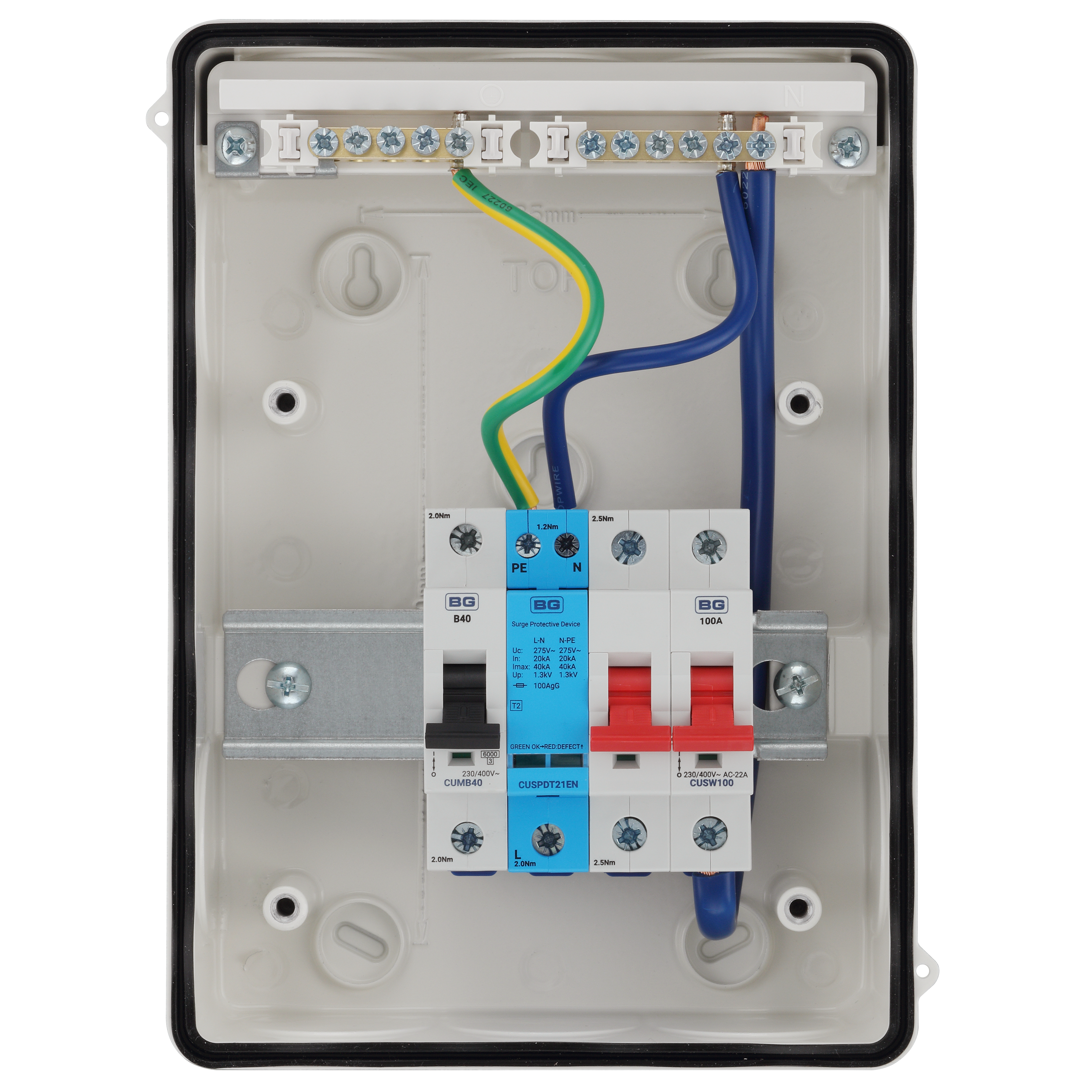

Sync Energy electric vehicle populated white enclosure 5 module IP65 with 100A main switch, 1 x 40A MCB and 1 x Type 2 surge protection device
Populated
Supplied with Type 2 Surge Protection Device
100A Main Switch
5 Module Capacity
40A MCB
IP65 Weatherproof
Compliant with EV Charging Requirements

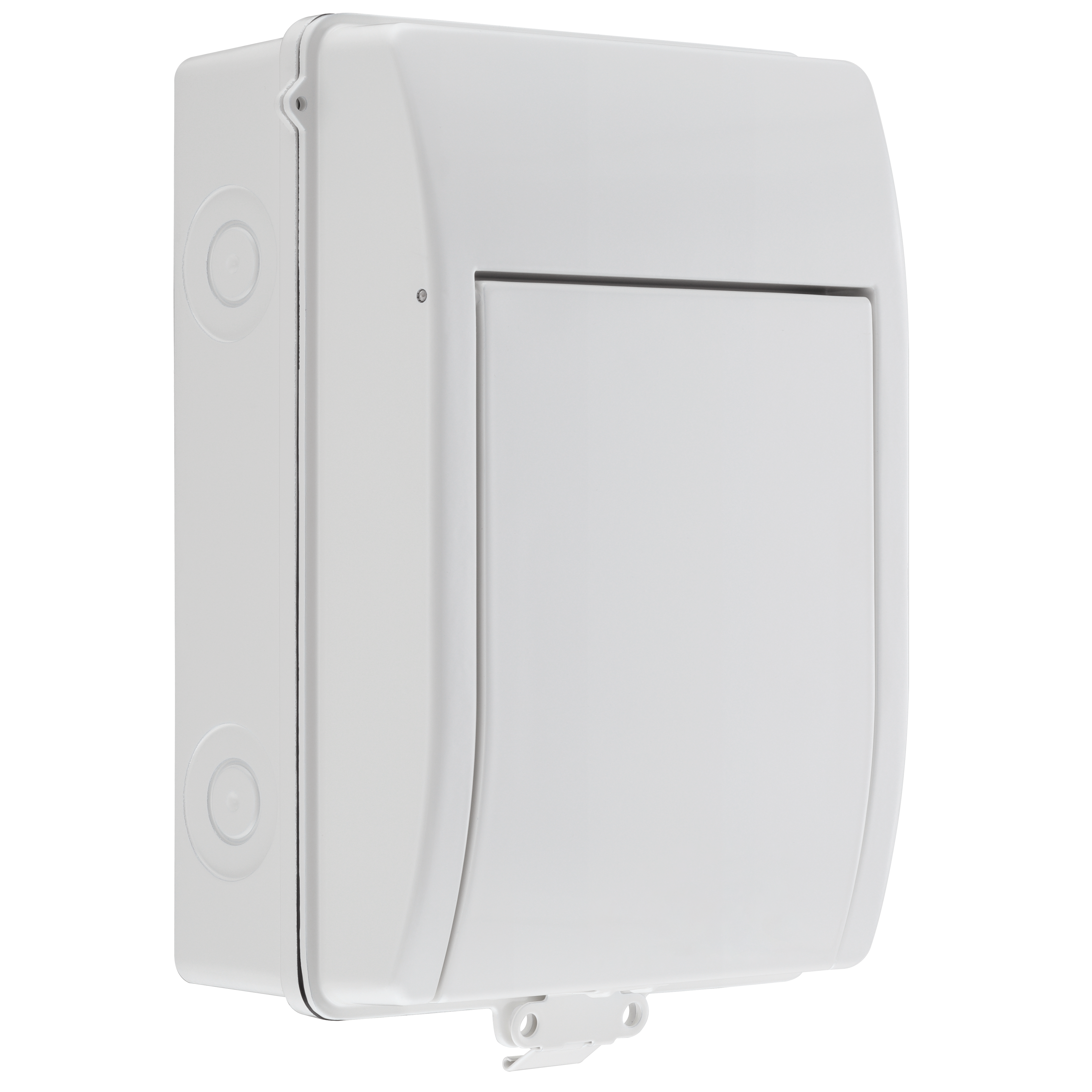

White Enclosure
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 5 |
| Number of Cable Entries | 11 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | 6 - 3 x M20-32 2 x M20-32 (side) 1 x M20-32 (Base) |
| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | No |
| Ways | 2 |
| Number of Knockouts | 10 |
| Mounting Type | Surface |
| IP Rating | IP65 |
| Terminal Screw Type | Combi |
| Rated Sensitivity (mA) | N/A |
| Trip Speed (mS) | <0.1s |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 100 |
| Max Load (A) | 100 |
| MCB's | 1 |
| Operating Temperature (°C) | -25 to +40 |
| Frequency (Hz) | 50 |
