CFGAR2-02

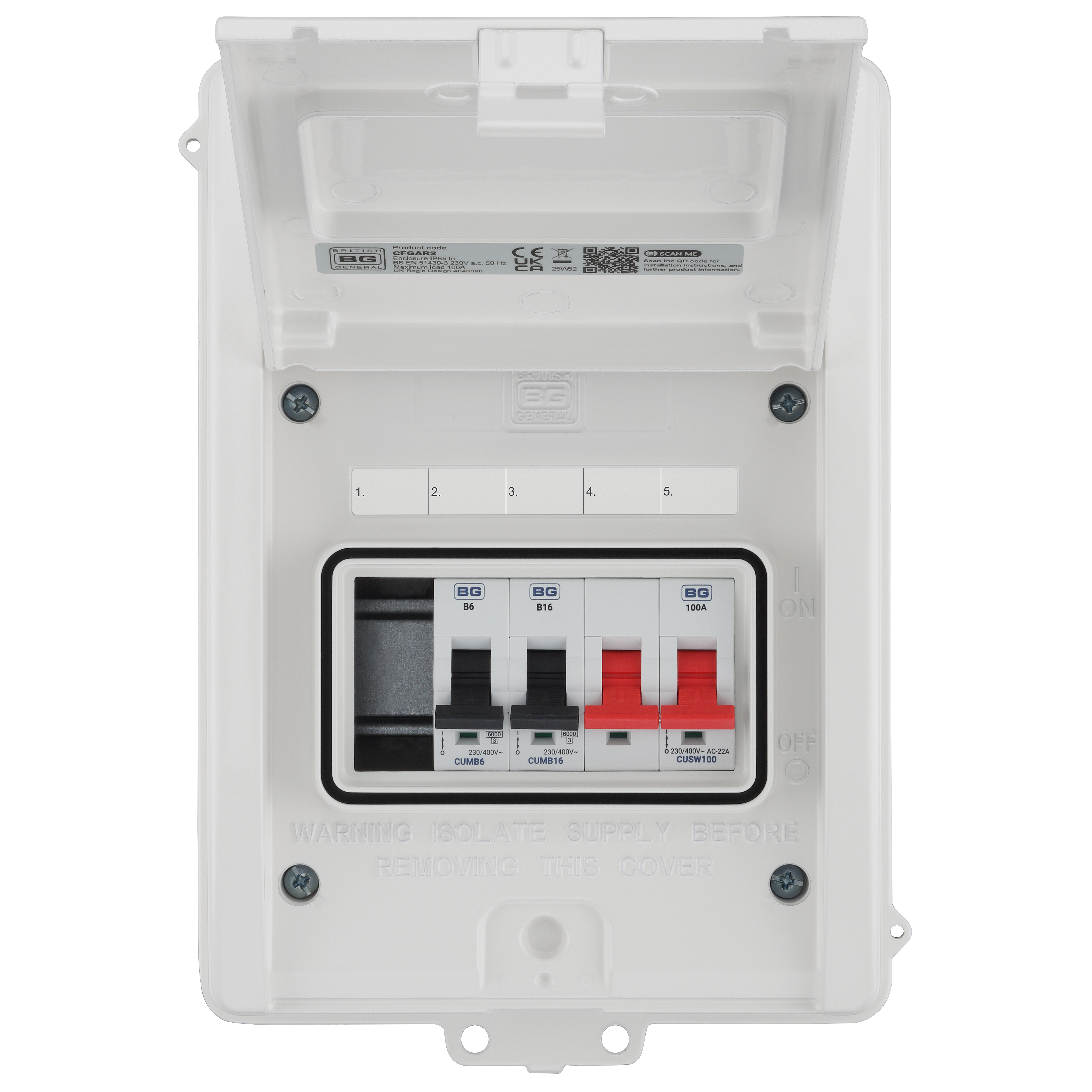

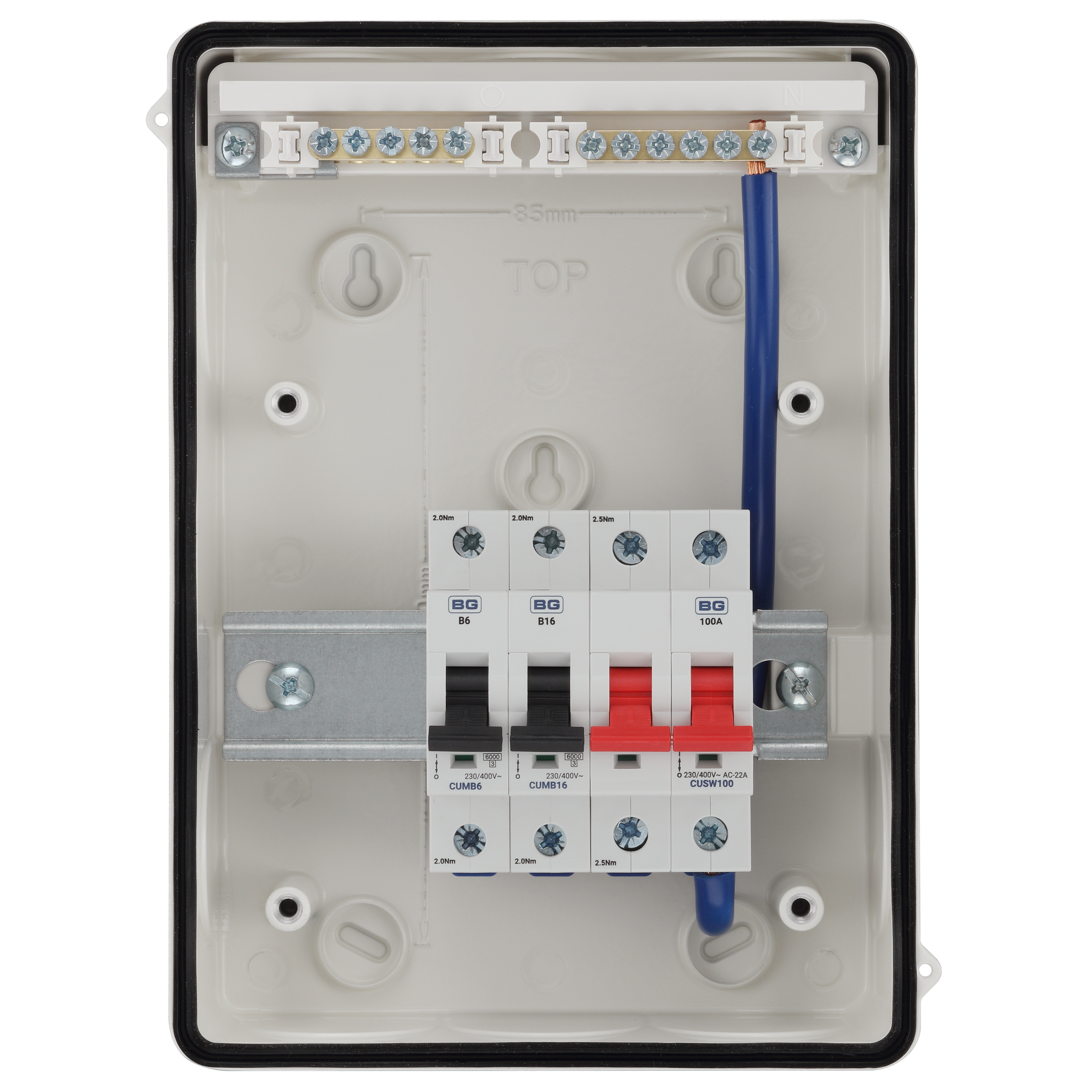

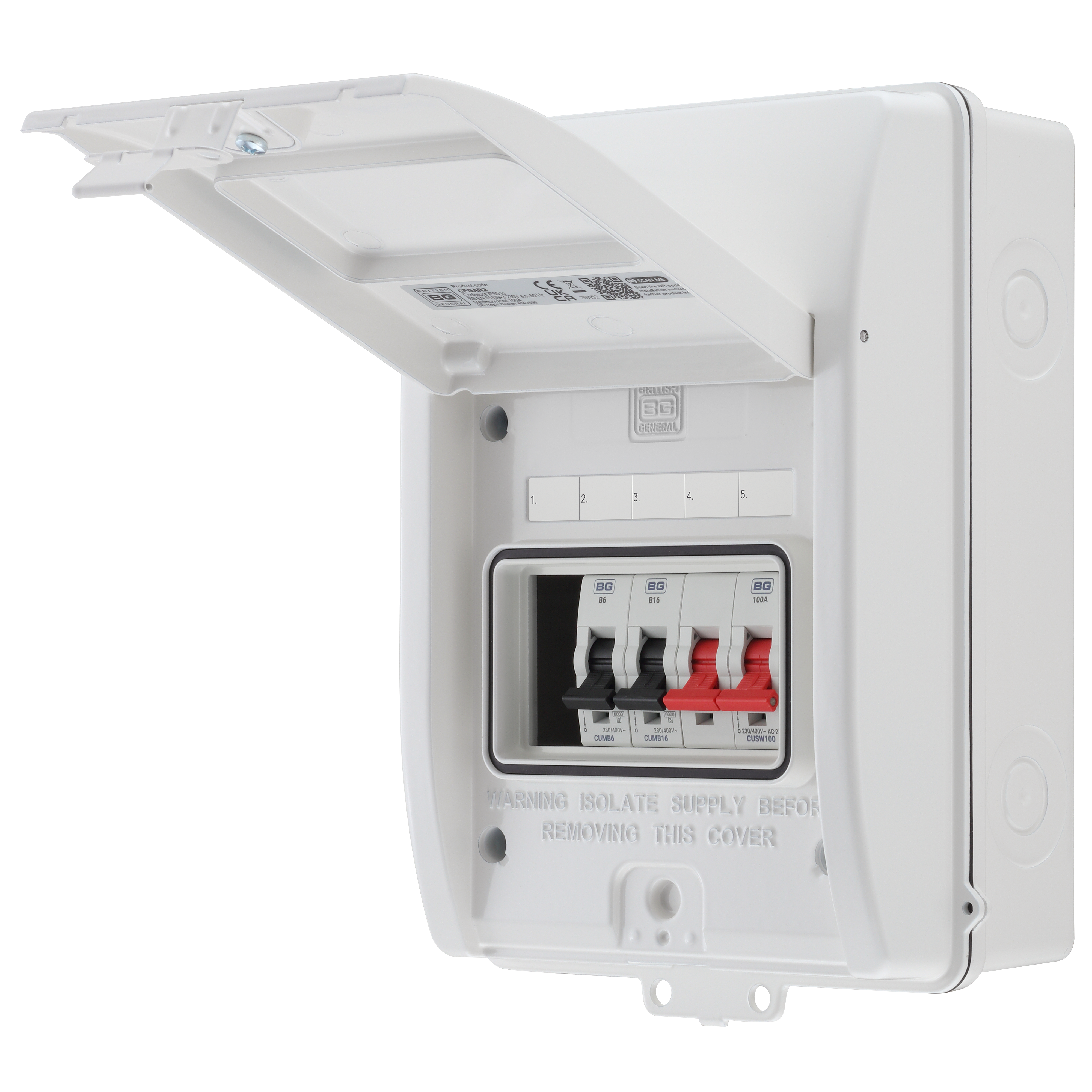

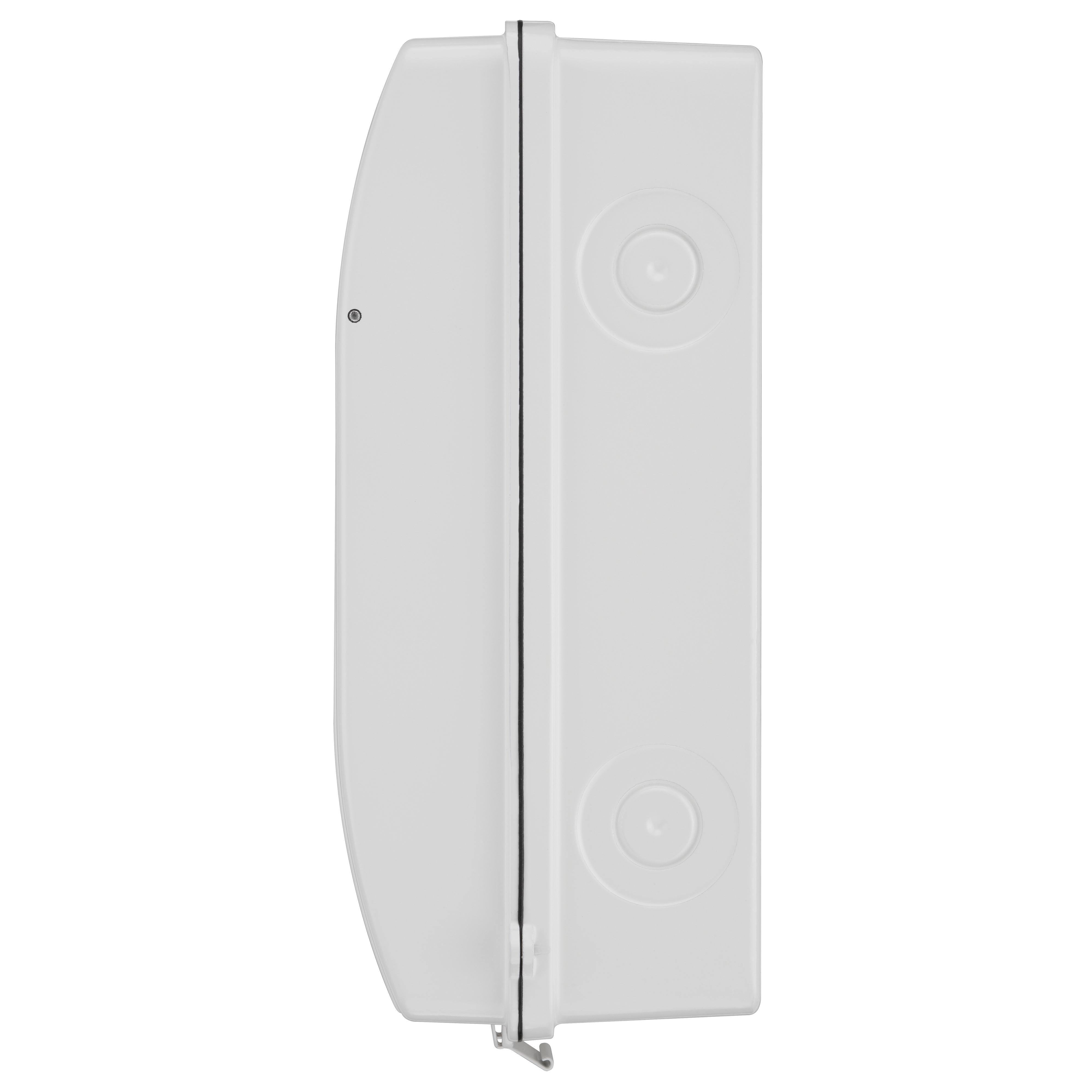

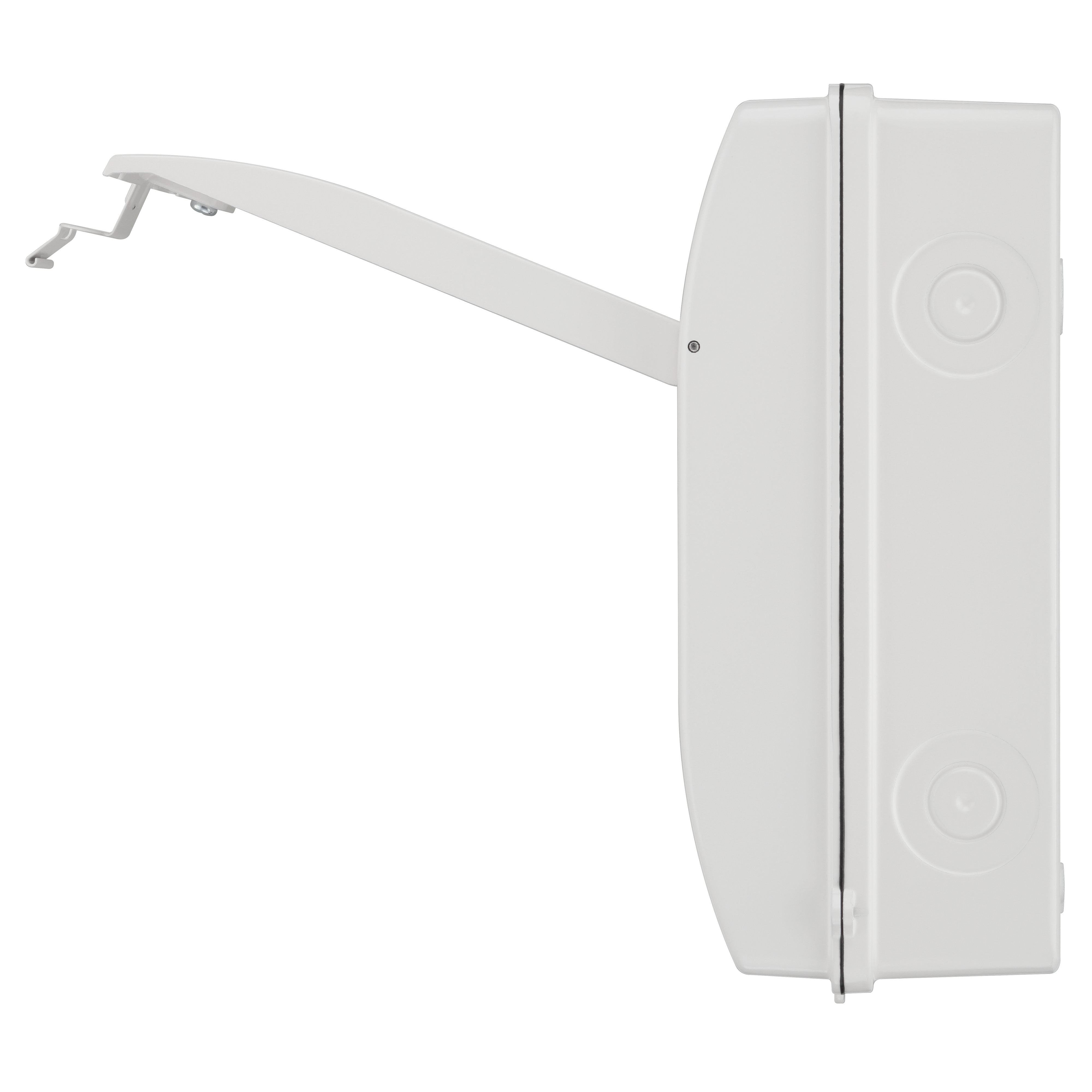

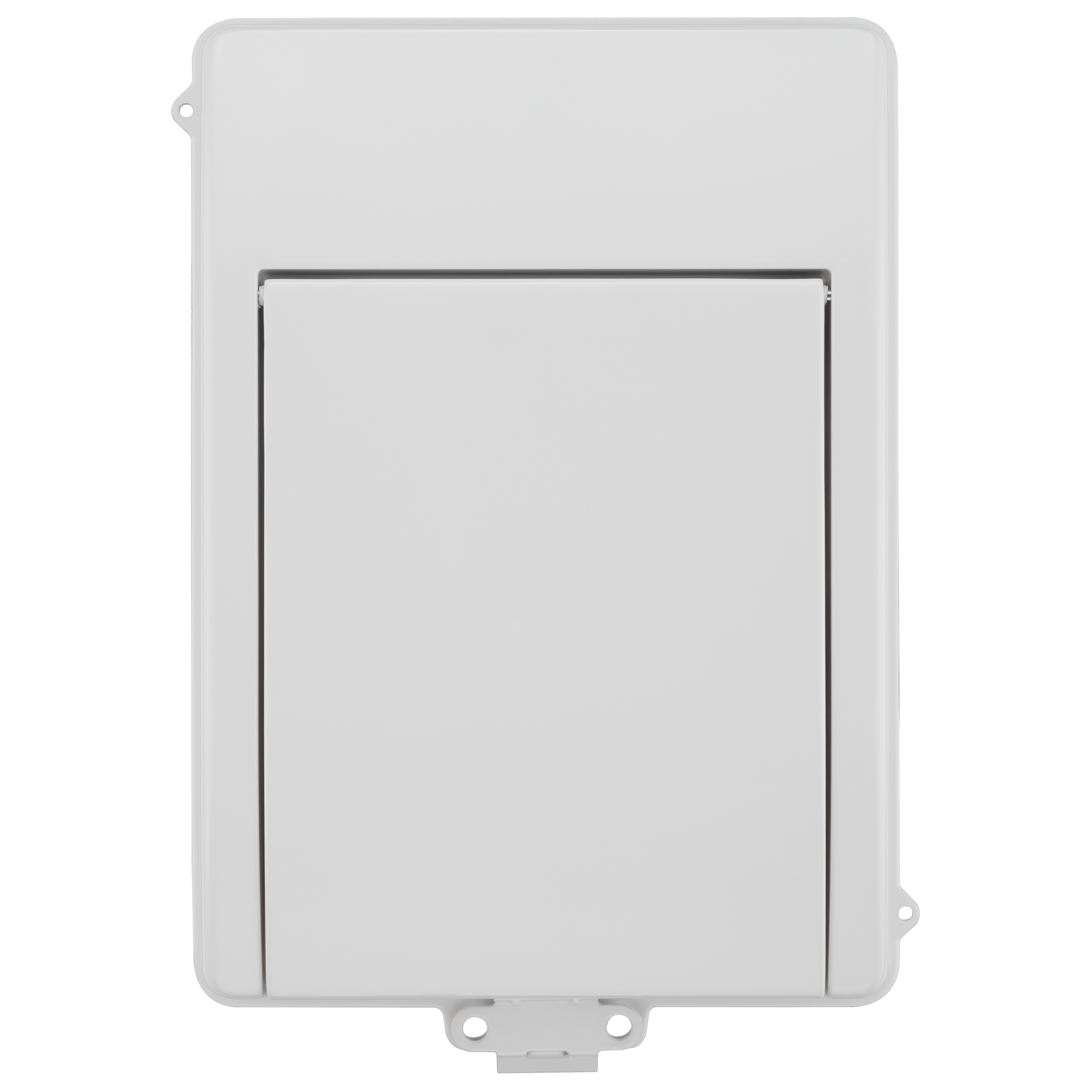

Consumer unit garage kit 5 module IP65 with 100A main switch and 2 x MCB - 1 x 6A and 1 x 16A
Populated
100A Main Switch
2 MCBs - 1 x 6A & 1 x 16A
IP65 Weatherproof
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 5 |
| Number of Cable Entries | 6 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |

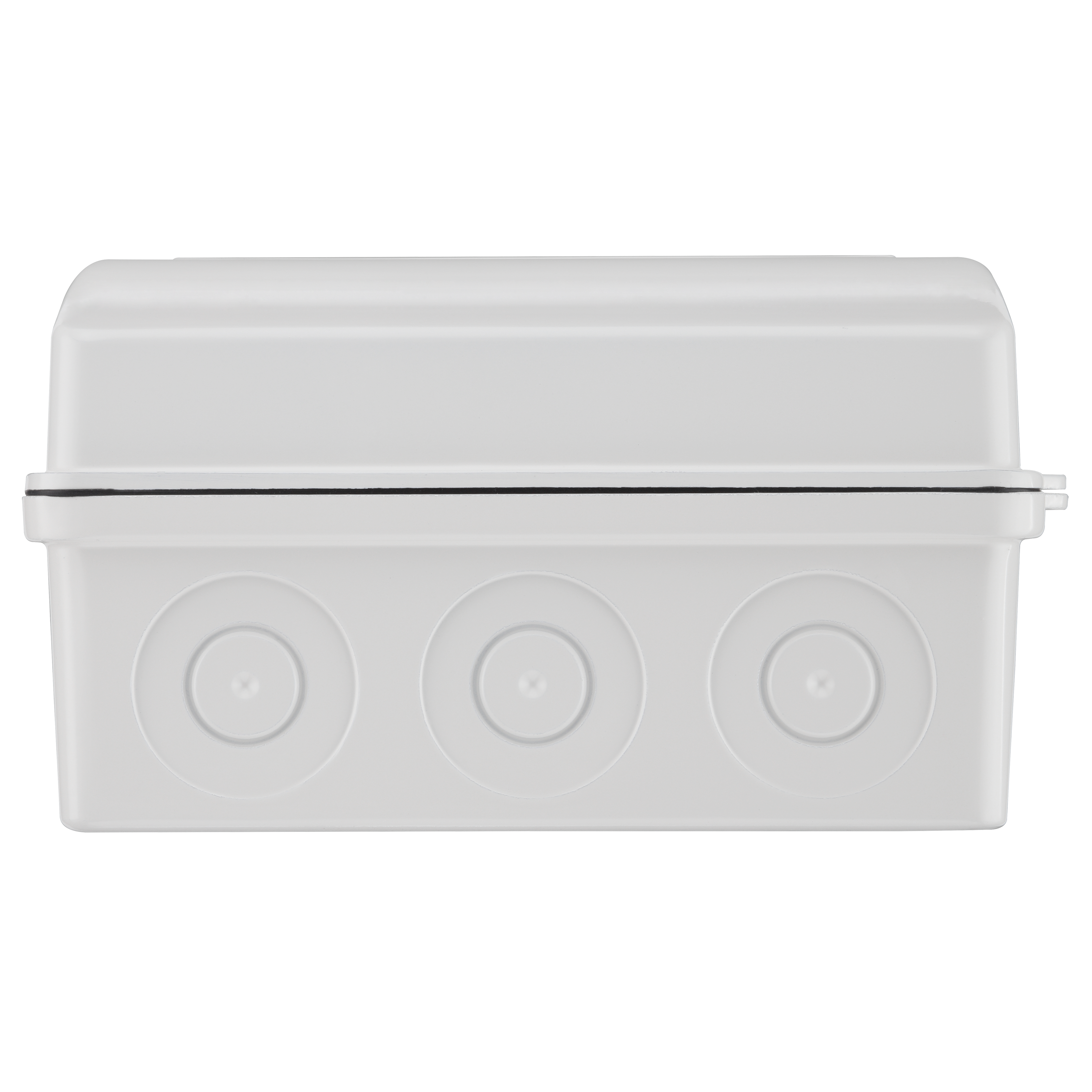

| Cable Entry Type | Knockout |
| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Not Applicable |
| Ways | 3 |
| Number of Knockouts | 11 |
| Mounting Type | Surface |
| IP Rating | IP65 |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | MS 2.5, MCB 2 |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | Mechanical |
| Trip Speed (mS) | N/A |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 100 |
| Max Load (A) | 100 |
| MCB's | 2 |
| Operating Temperature (°C) | -25 to +40 |
| Frequency (Hz) | 50 |
