CFUFS100-01
100A Switch Fuse 1P + N c/w 63A/80/100A Fuses
Integrated Spirit Level
Non-Weatherproof

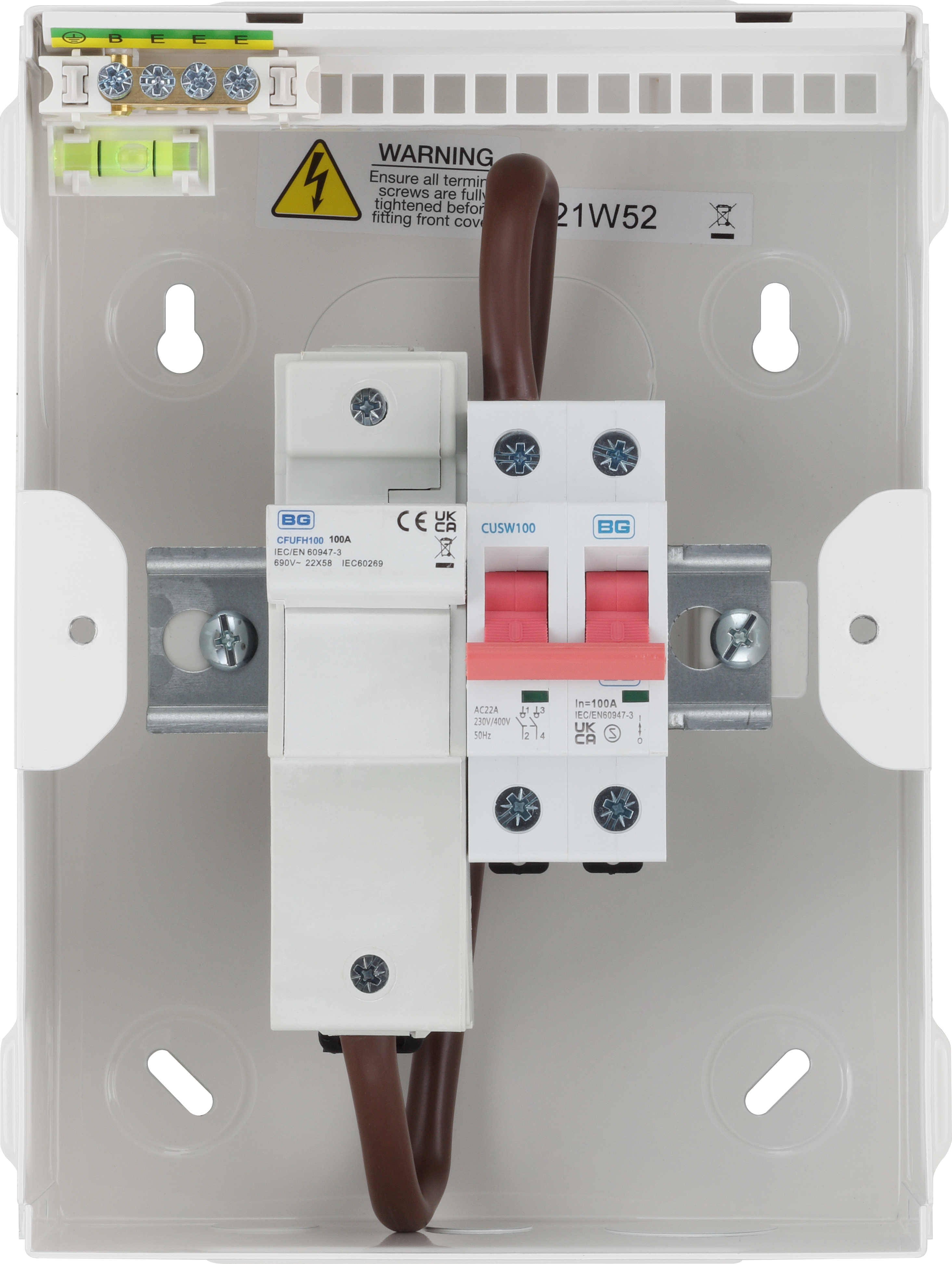

Enclosure kit supplied with devices DIN rail, Neutral cable, Neutral and Earth terminals, labels busbar and cover blanks

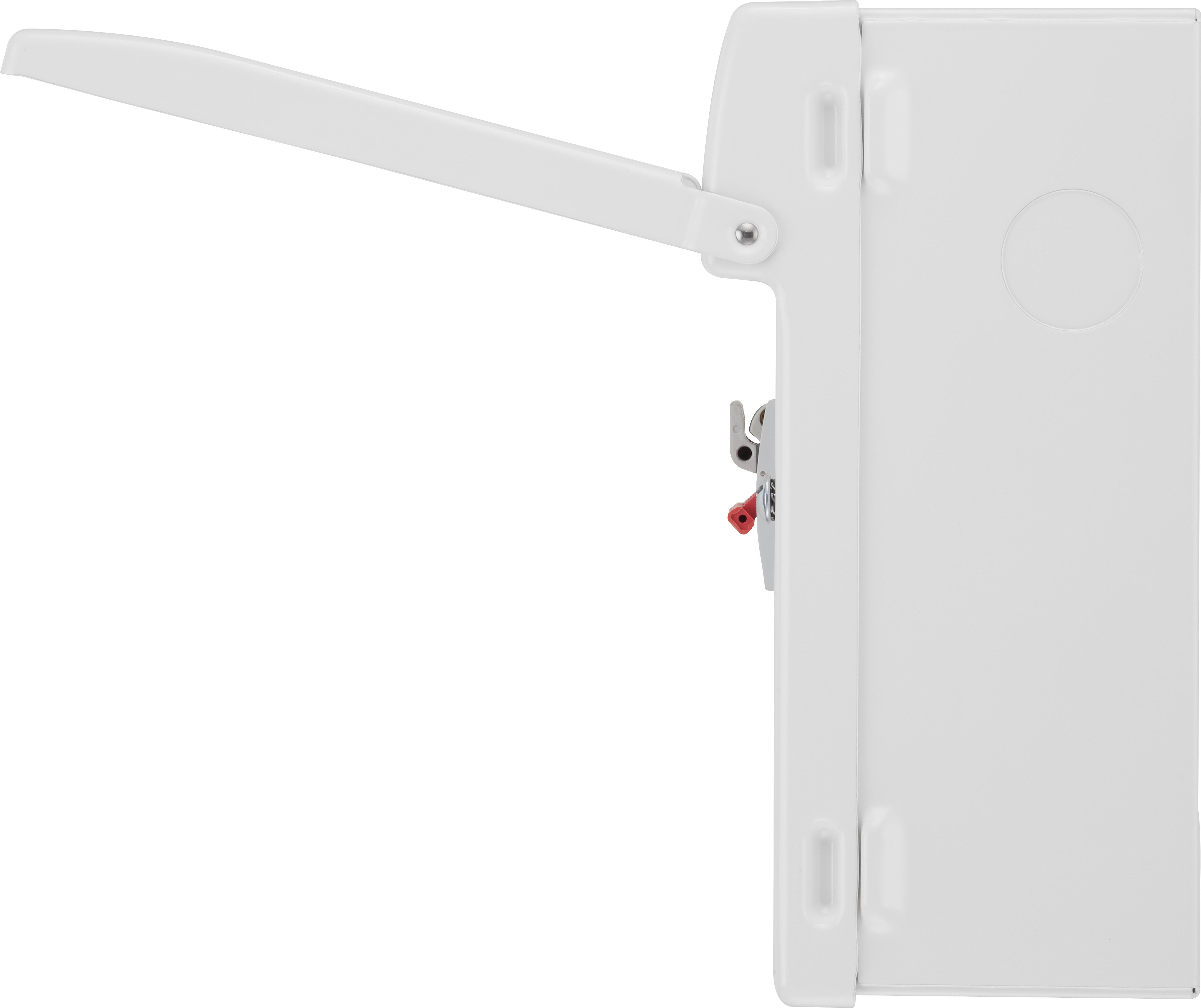

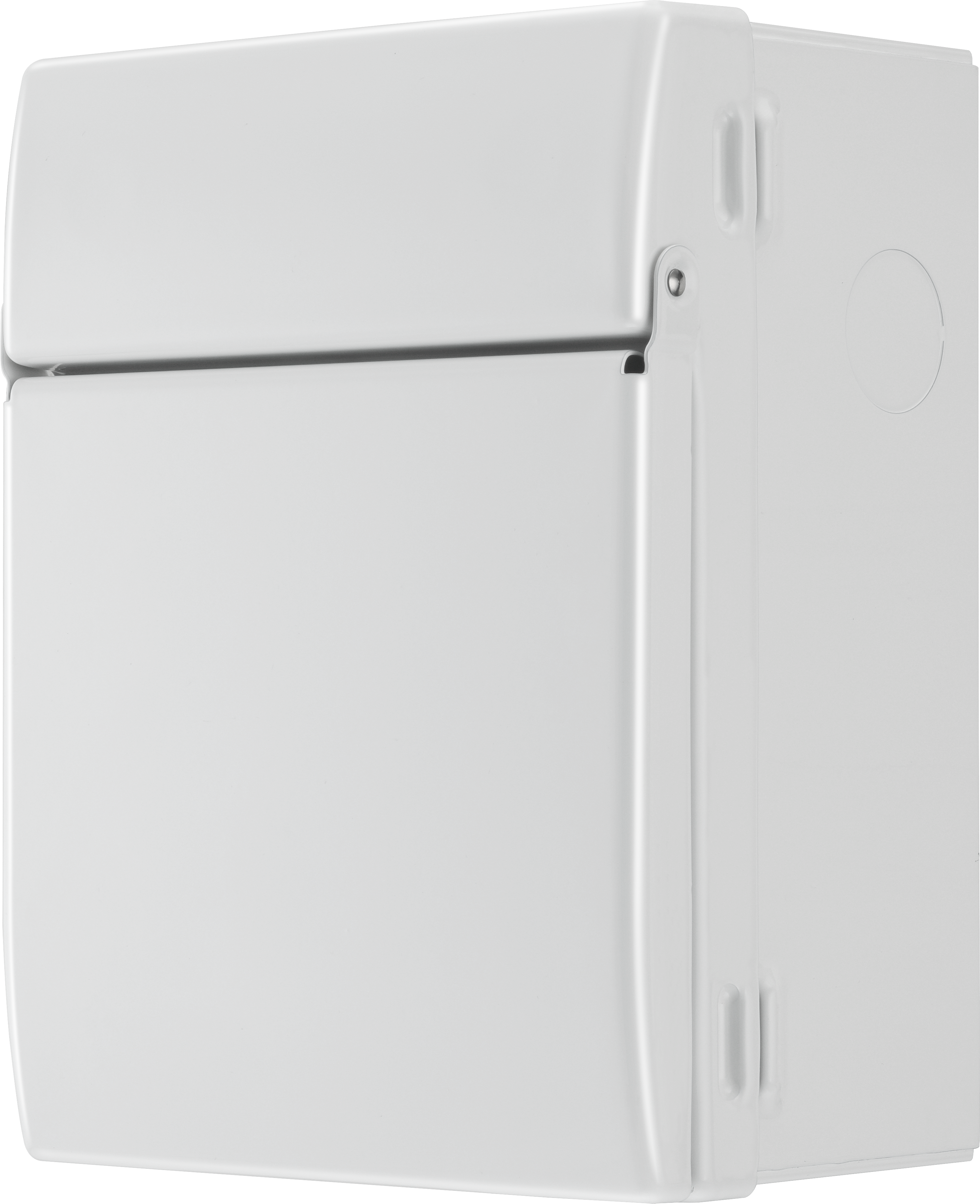

Up-Opening Front Cover

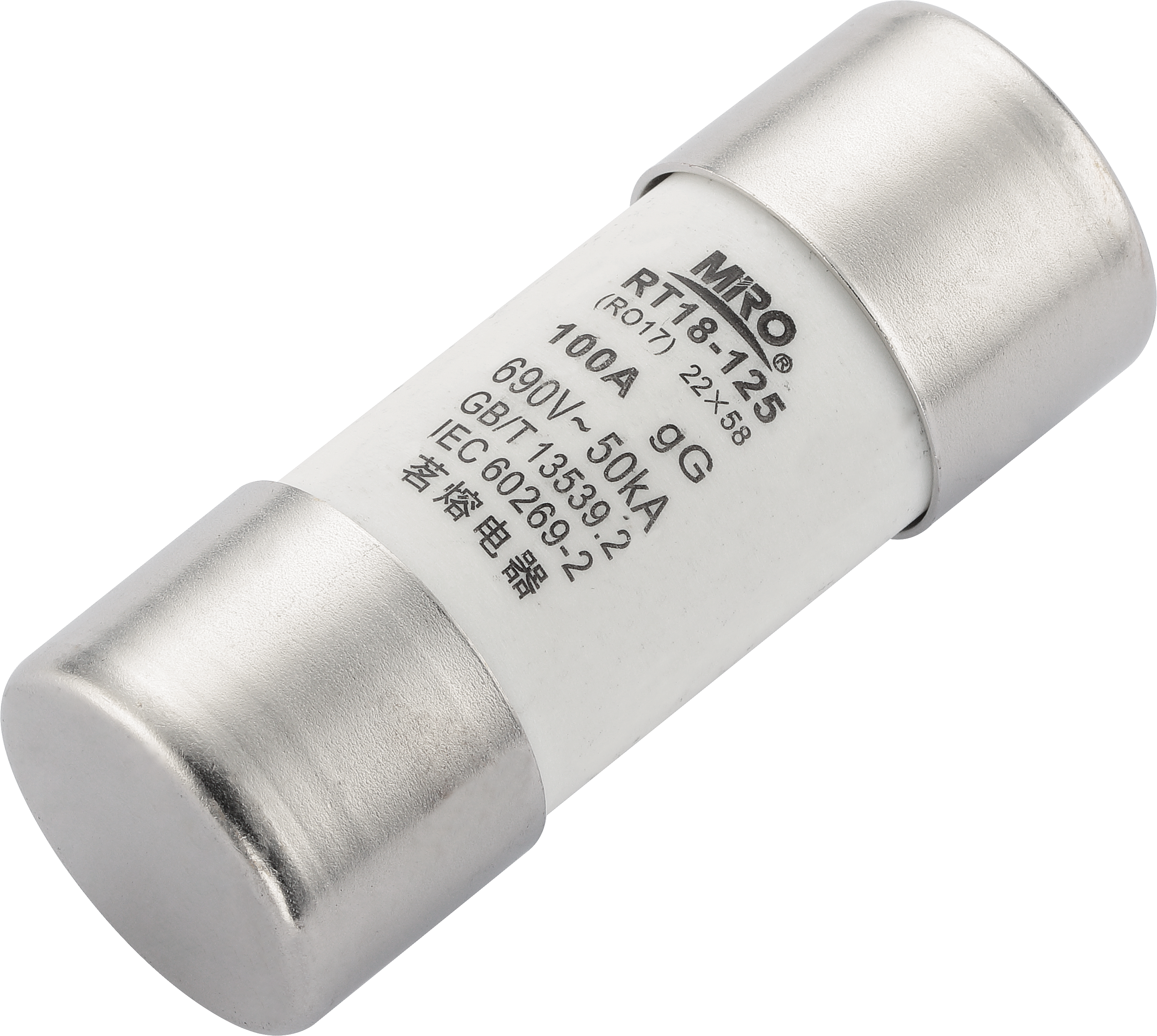

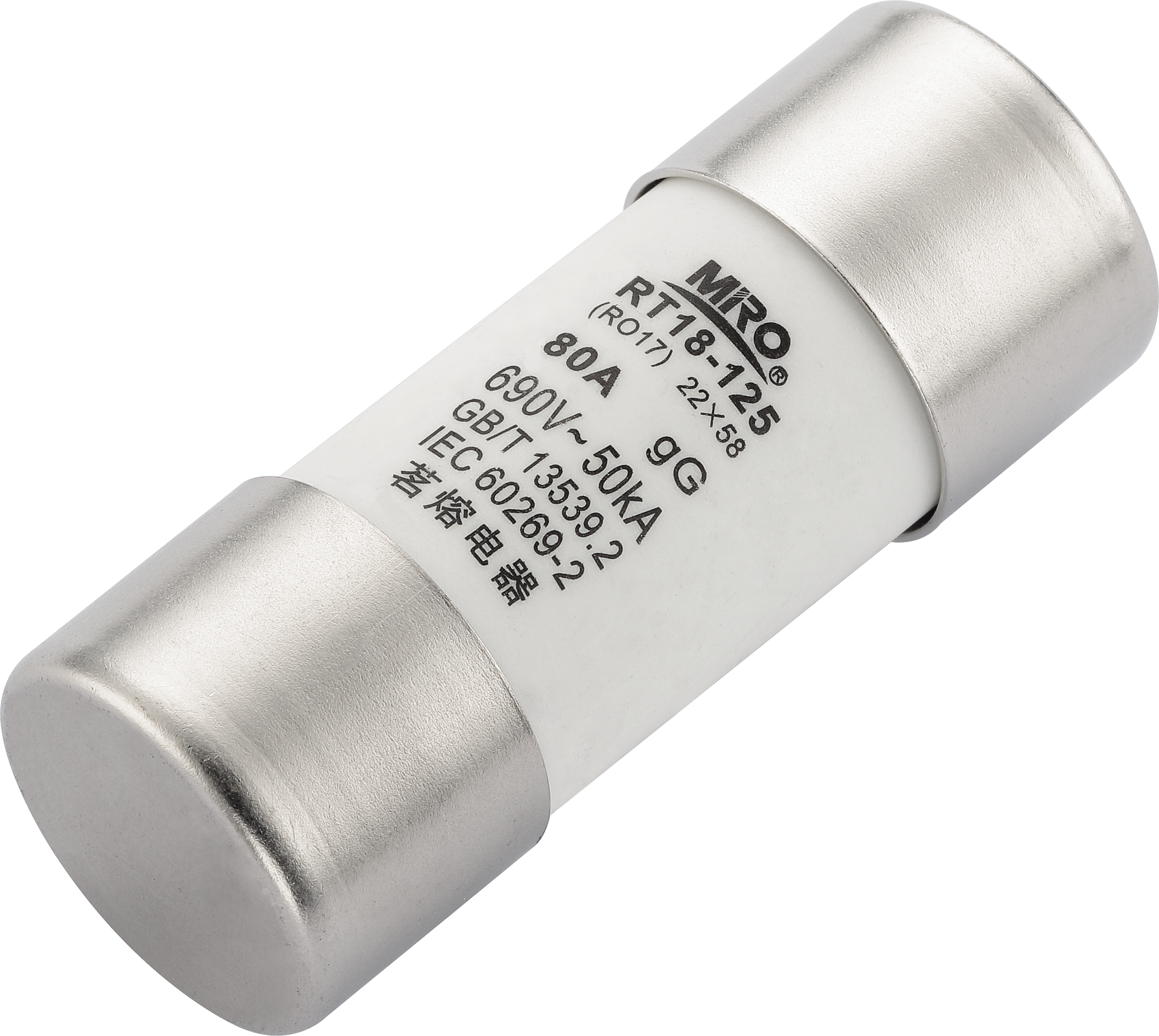

100A, 80A & 63A Fuses Supplied

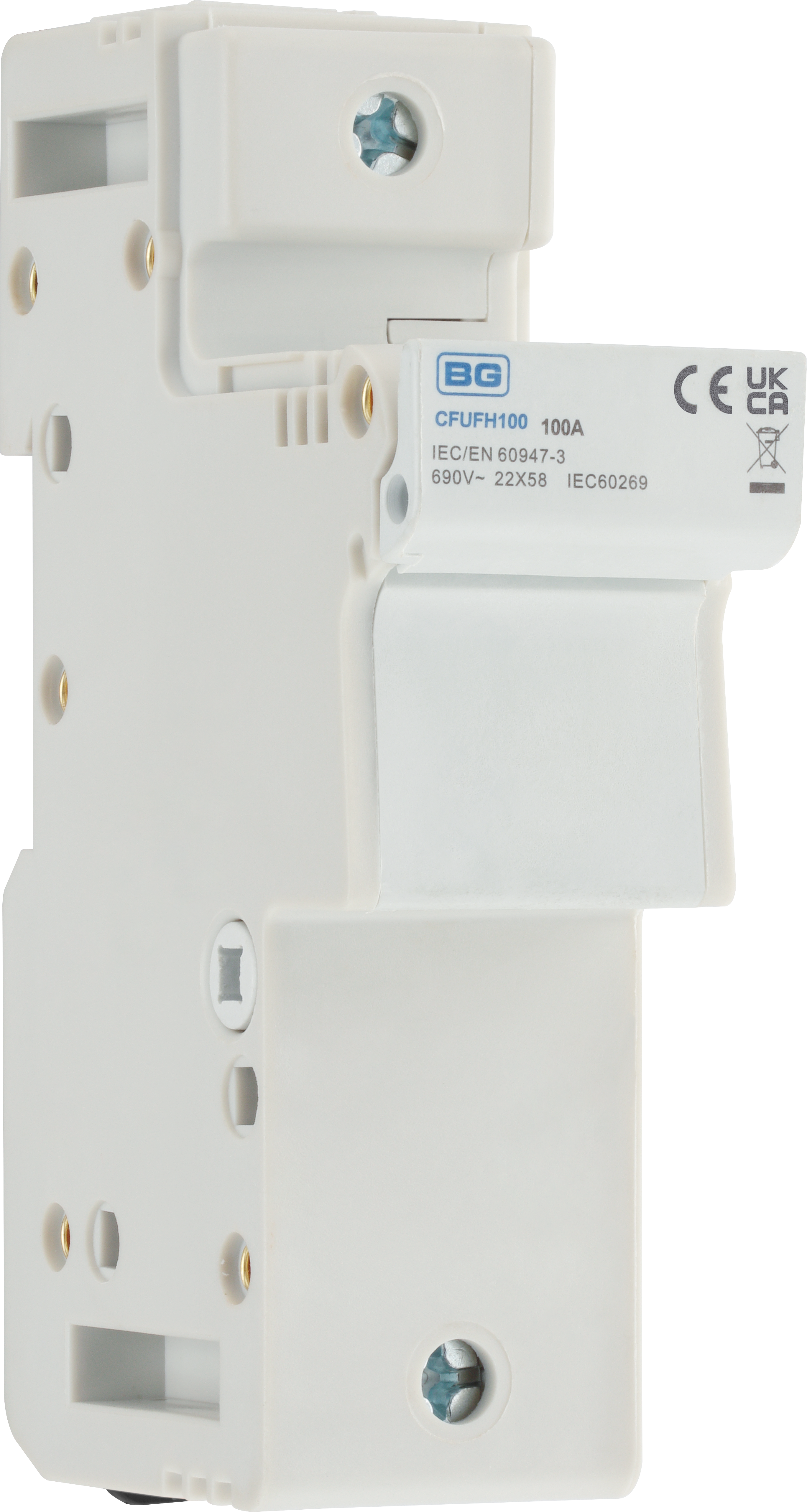

100A Fuse Holder
Backed out and retained terminal screws
Gloss White to match BG White wiring accessories
Easy Installation
Populated
| Front Plate Material | Steel 1.0mm - ST16 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 4 |
| Number of Cable Entries | 9 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | Top -2 x 20mm, 1 x 32mm, Bottom - 2 x 20mm, 1 x 32mm, L-1 x 32mm, R - 1 x32mm (sides) 1 x 90 x 35mm (Base) |

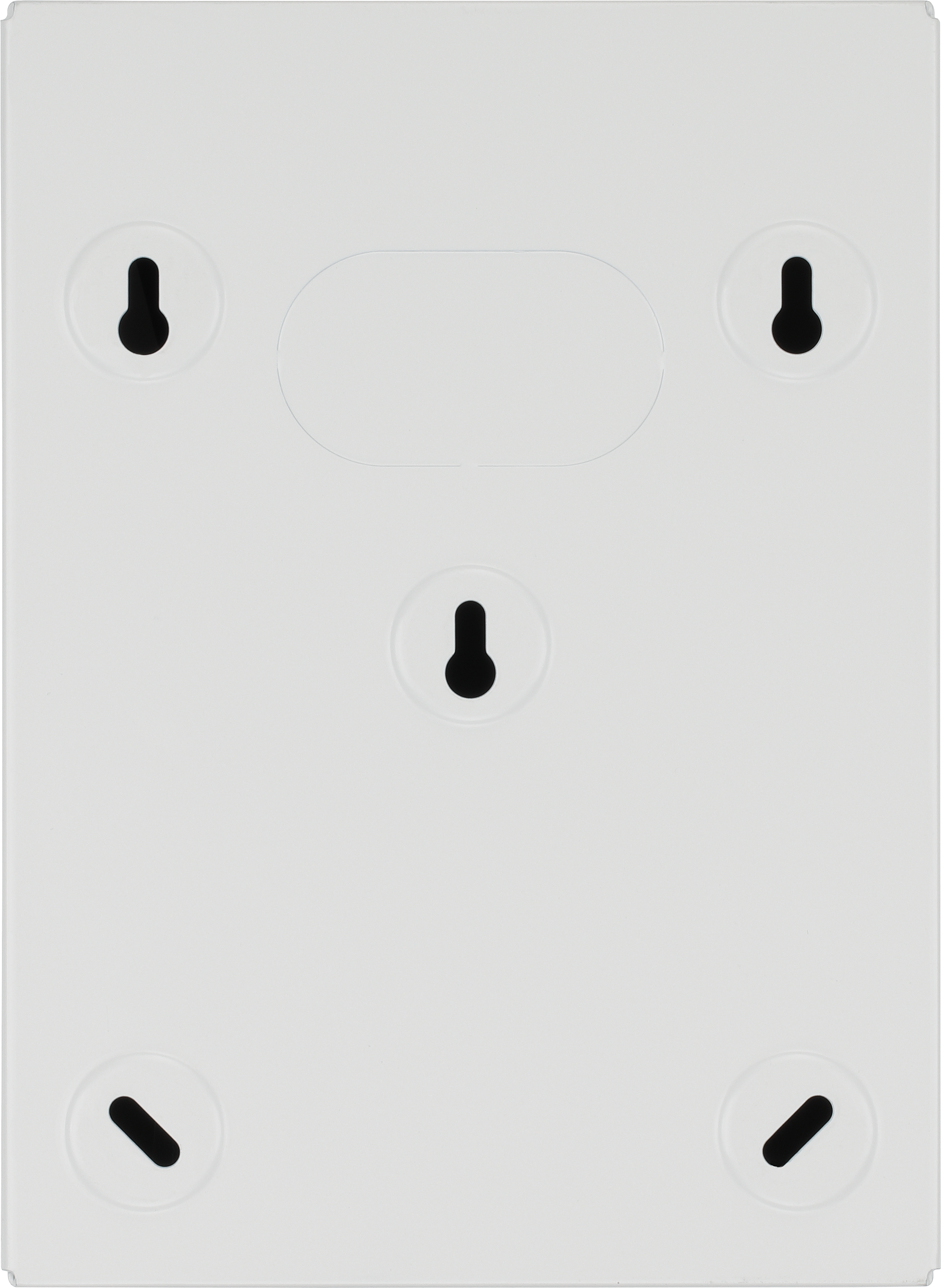

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface, Wall |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 0 |
| Knockouts | 9 |
| Mounting Type | Surface |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | N/A |
| Max Load (A) | 100 |
| MCB's | 0 |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
