CPRSD220-01
BG Fortress 2 Pole 20A Rotary Isolator
IP65

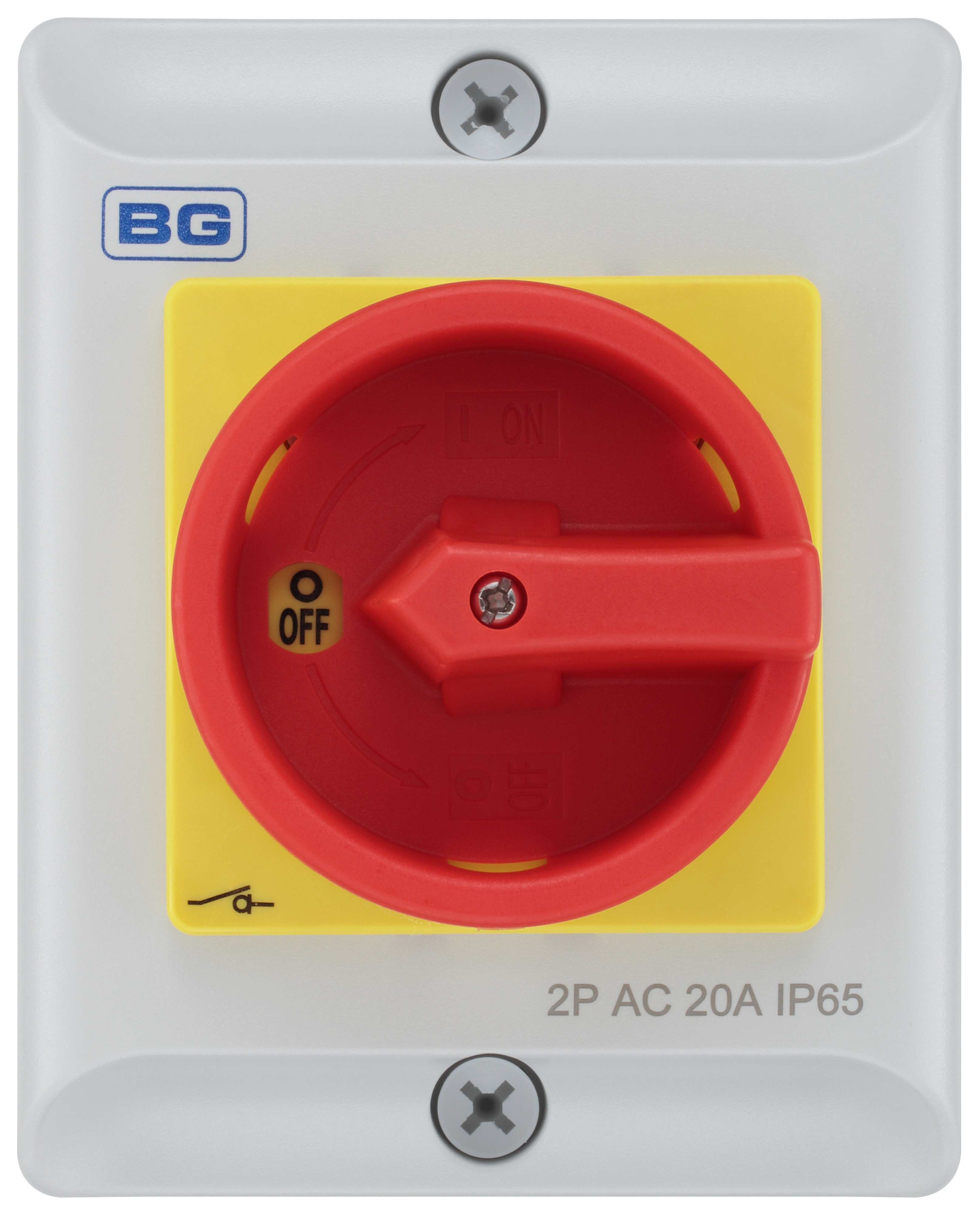

Red/Yellow padlock-able handle
Earth terminals included

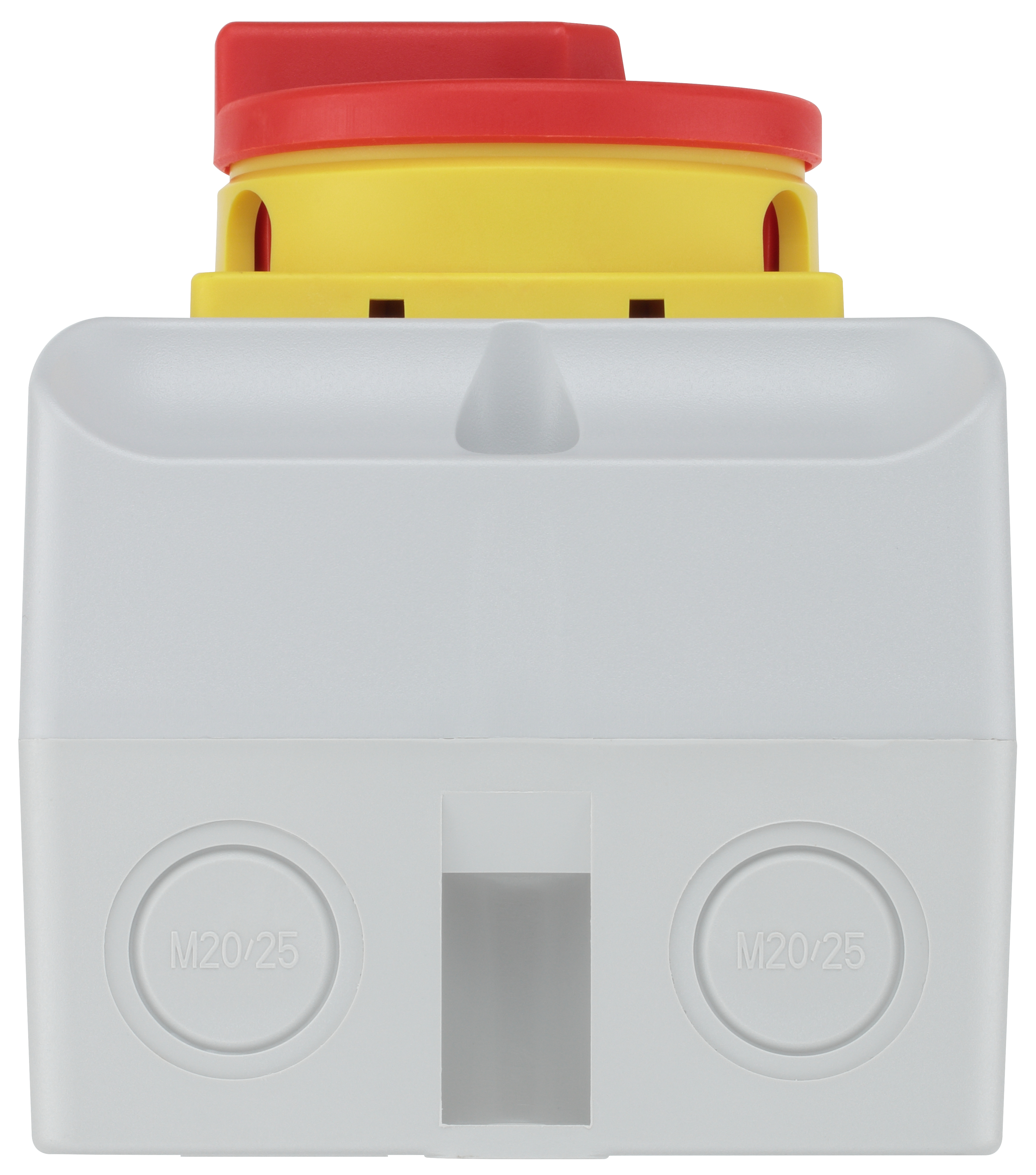

Easy cable access via M20 knock-outs (top and bottom)
Captive retained cover screws
Switch interlocked with lid to prevent opening in ON position
Insulated
| General Colour | Light Grey |
| Fixing Screws Supplied | No |
| Number of Cable Entries | 4 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Switch Style Type | Rotary |
| Details per face (Size/number) | M20/25 2 /Top 2 Bott |
| Switch Indicator Type | On/Off/Locked |
| Switch Indicator Colour | Red |
| Switch Type (Ways & Poles) | Double Pole |
| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Spirit Level | No |
| Terminal Type | Screw |
| Endurance Operations - Electrical | 3000 |
| Endurance Operations - Mechanical | 15000 |
| IP Rating | IP65 |
| IK Rating | IK05 |
| Operating Voltage (V) | 250 |
| Current Rating (A) | 20 |
| Operating Temperature (C) | -5°C to +40°C |
| Warranty (years) | 10 |
