CPDC425-01
BG 4 Pole 25A Rotary DC Isolator

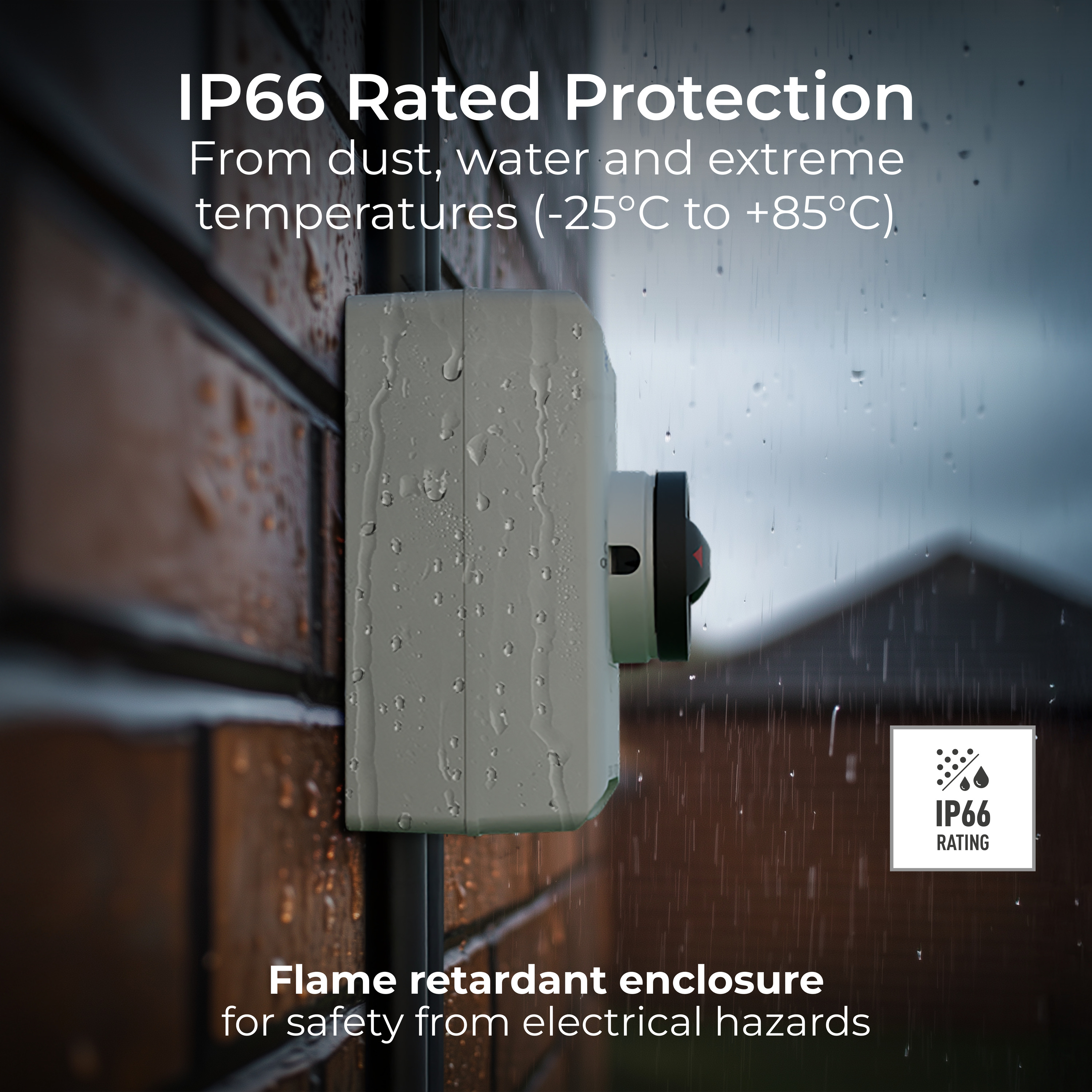

IP66
Padlockable handle
Earth terminals included

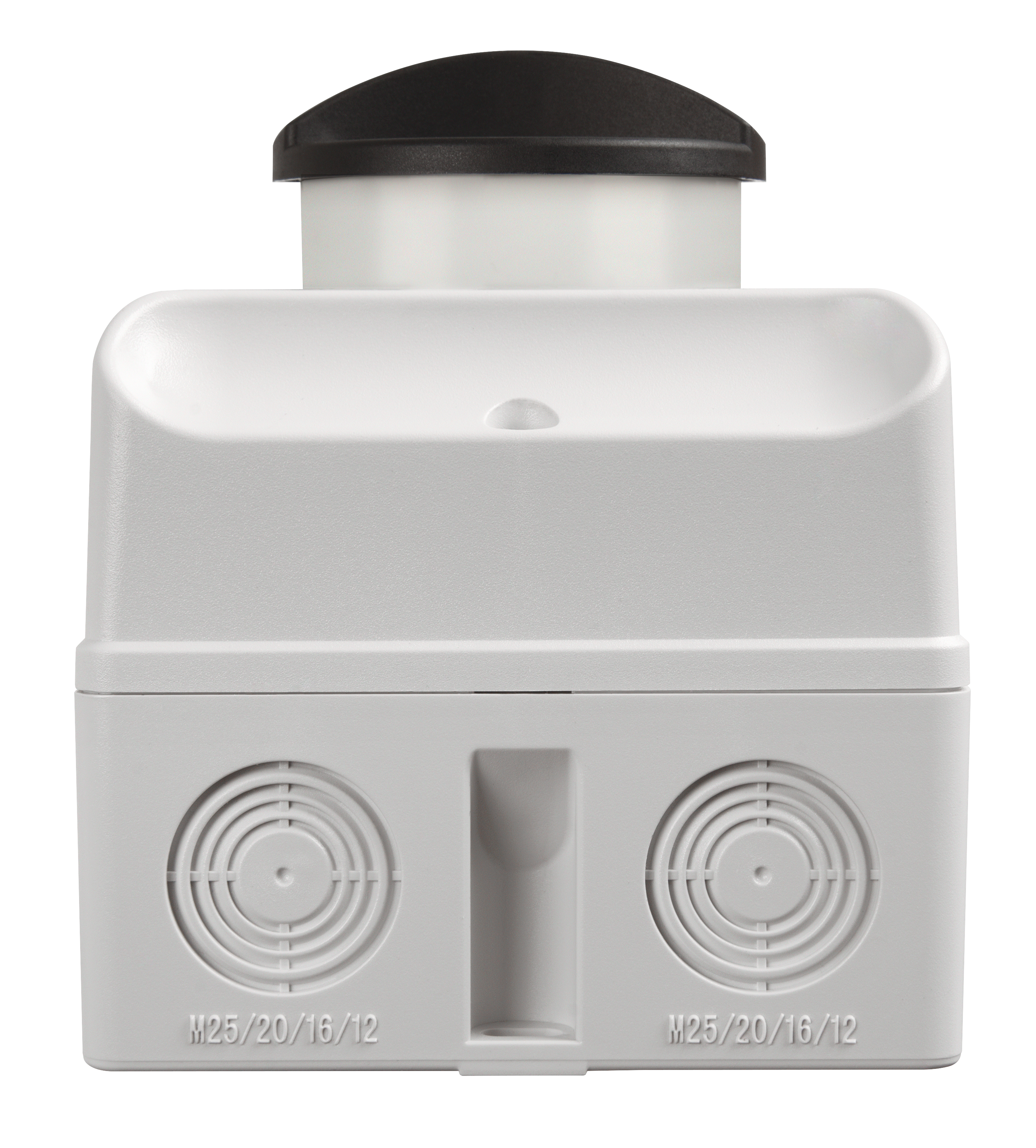

Easy cable access via M20 knock-outs (top and bottom)
Captive retained cover screws
Switch interlocked with lid to prevent opening in ON position
Insulated

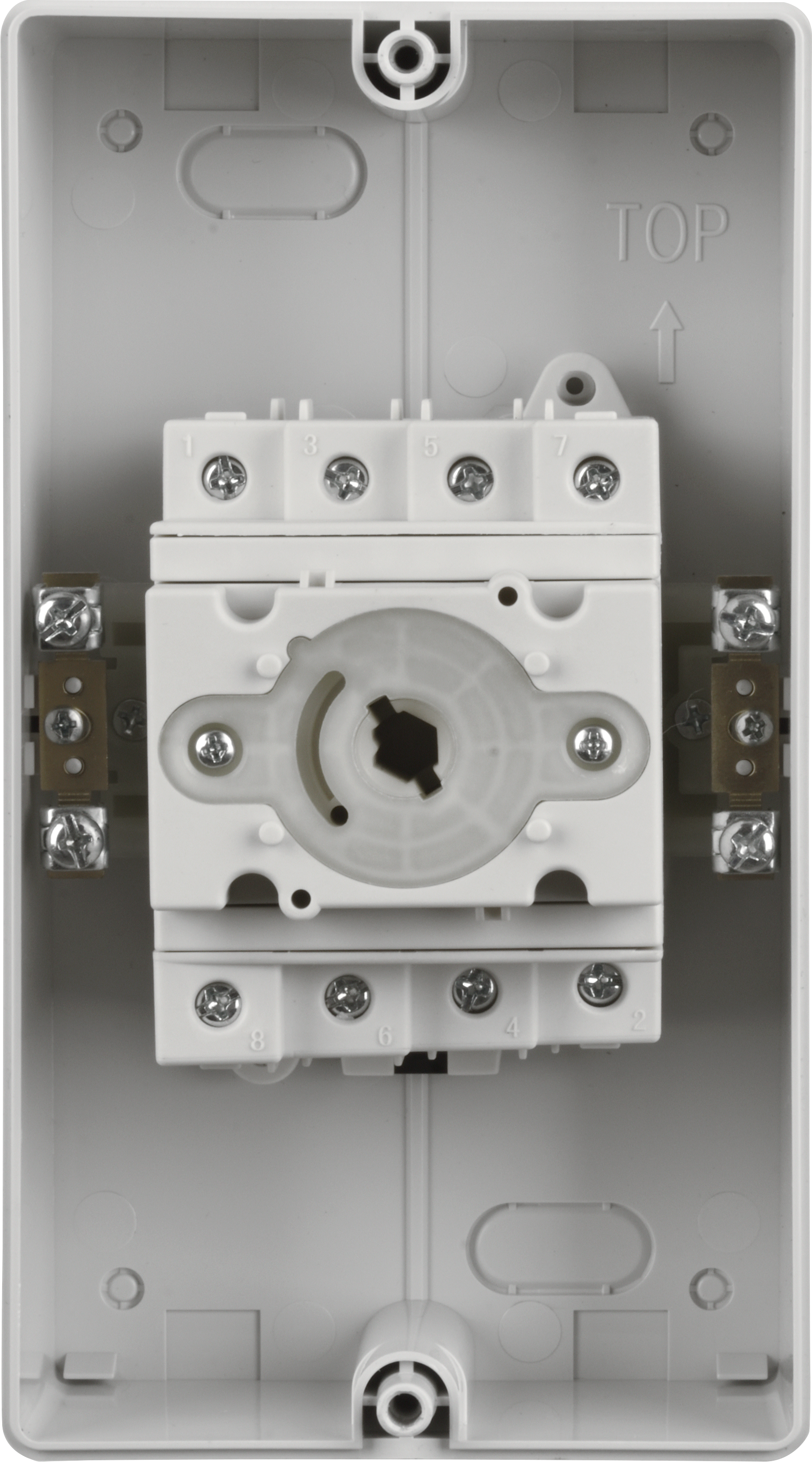

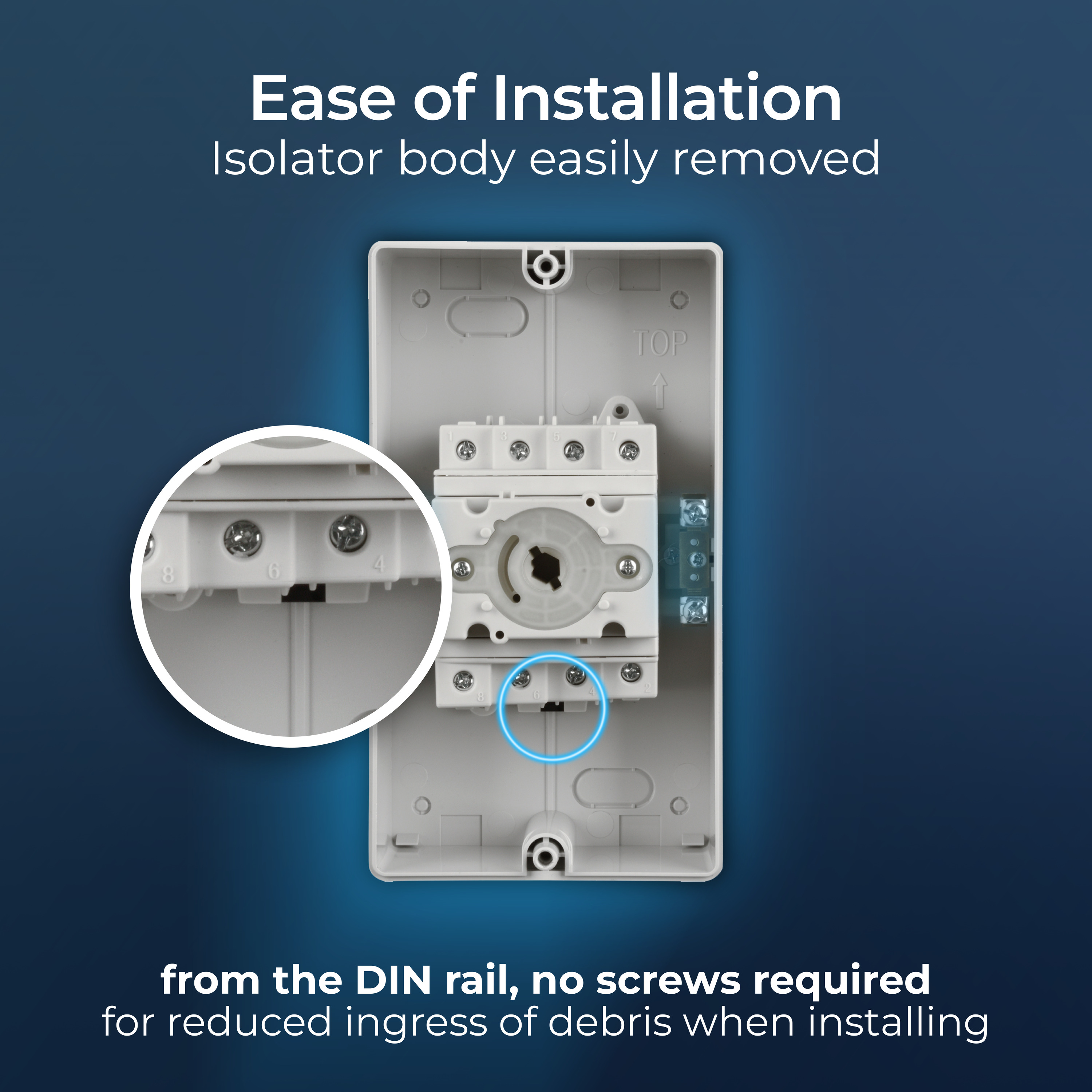

Removable switch body
Rated to DC-PV2/DC-21B
| General Colour | Light Grey |
| Fixing Screws Supplied | No |
| Number of Cable Entries | 4 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Switch Style Type | Rotary |
| Details per face (Size/number) | 4 pole |
| Switch Indicator Type | On/Off/Locked |
| Switch Indicator Colour | Black |
| Switch Type (Ways & Poles) | 4 Pole |
| Number Of Wall Fixing Positions | 6 |
| Fitted Lock | No |
| Spirit Level | No |
| Terminal Type | Screw |

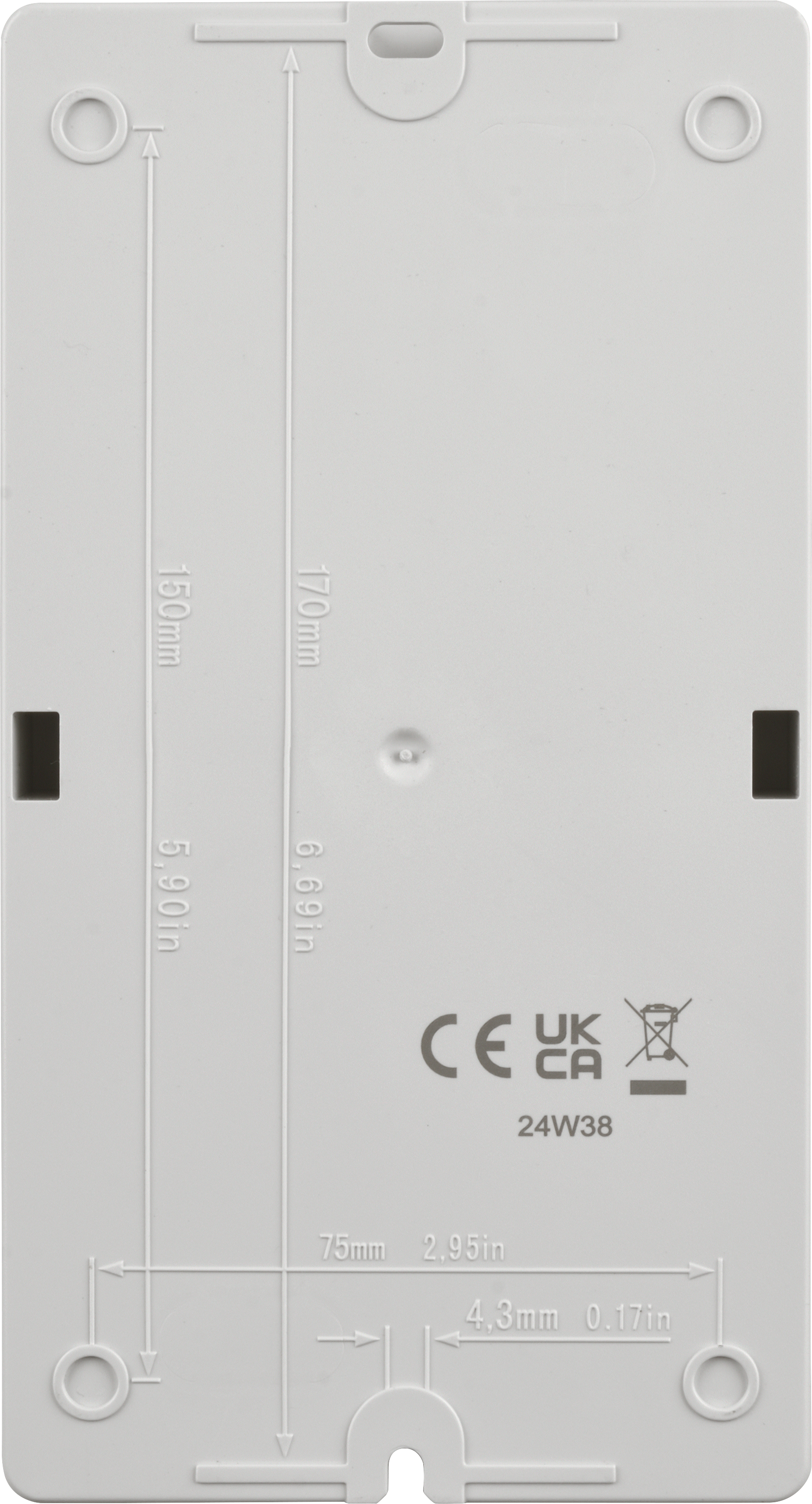

| Fixing Centres (mm) | H150mm W75mm, Centre fixing H170mm hole width 4.3mm or IM sheet or IM sheet |
| Endurance Operations - Electrical | 500 |
| Endurance Operations - Mechanical | 20000 |
| IP Rating | IP66 |
| IK Rating | IK07 |
| Operating Voltage (V) | 600 (DC), 1200 (DC), 1500 (DC) |
| Current Rating (A) | 25 |
| Operating Temperature (C) | -25°C to +85°C |
| Terminal Capacity (mm²) | 1 x 10mm² |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
