MPCDW12-01

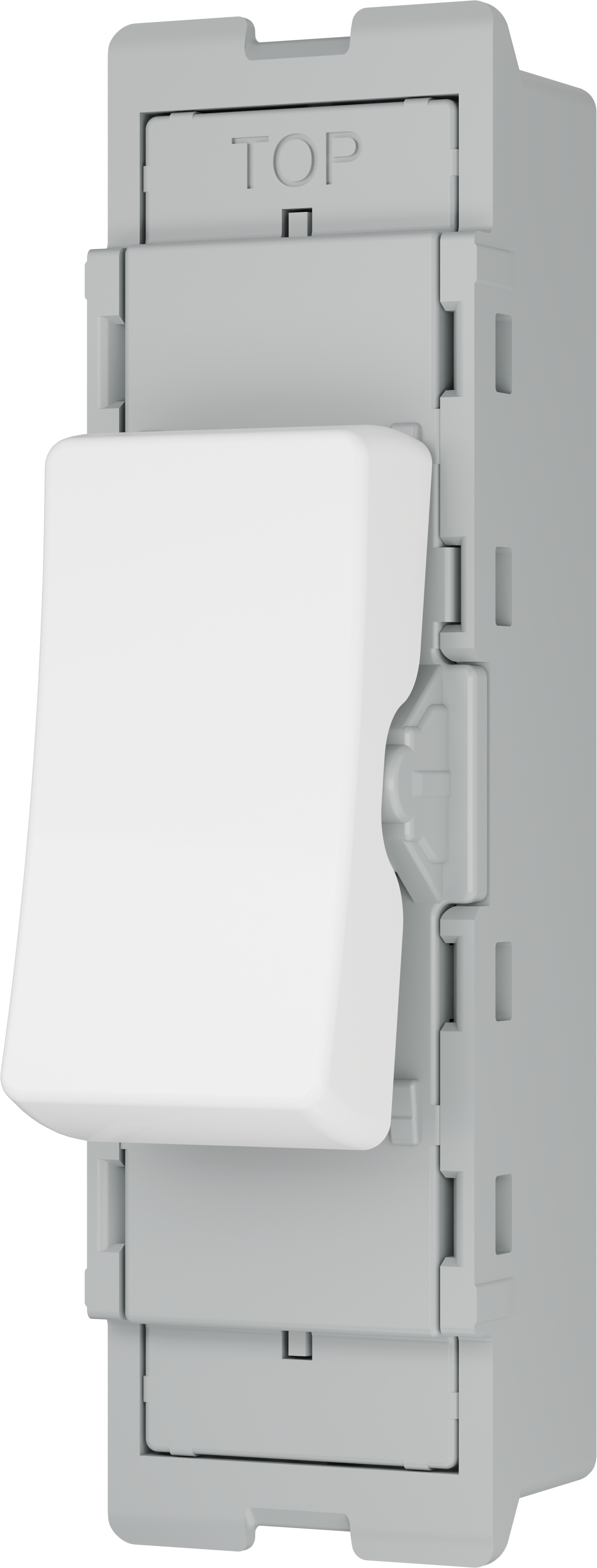

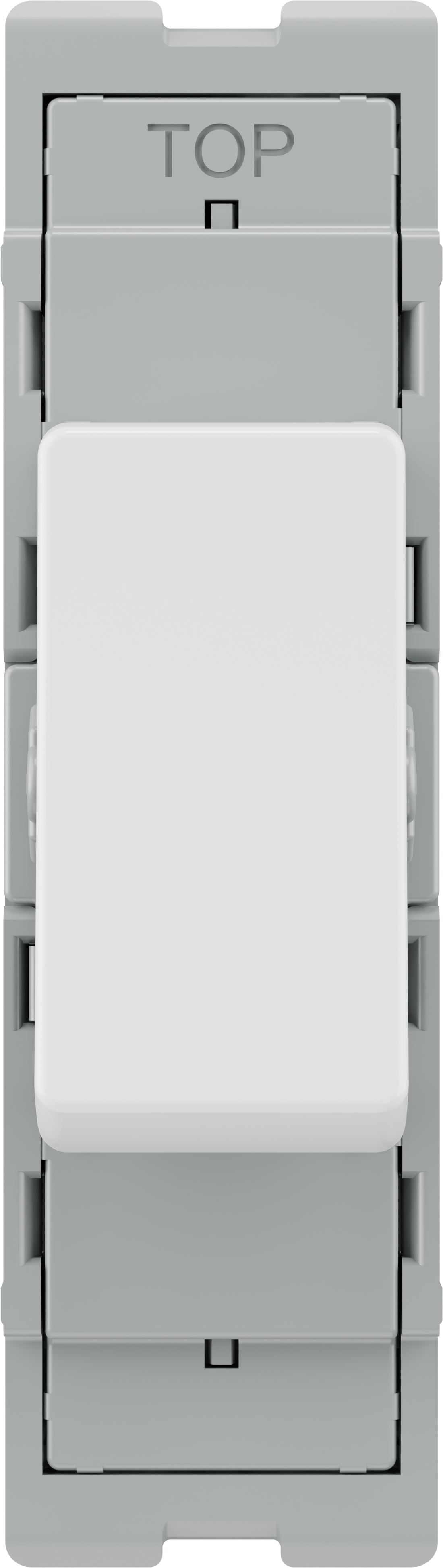

BG GridLite Switch Module, 20A 16AX, 2 Way, Single Pole, White

Clip-In Switch Module: Push-fit design snaps into BG GridLite front plates with no yoke or screws, reducing components and speeding up installation for a quicker, cleaner workflow.

20A 16AX Single 2-Way Light Switch Module: From the Evolve range, its white rocker is durable and easy to clean. High load rated for safe operation, it allows the same light to be switched two locations.

Independent Module Replacement: Each module can be swapped without removing adjacent units, making retrofits quicker, easier, and disruption-free. Ideal for residential or commercial use.

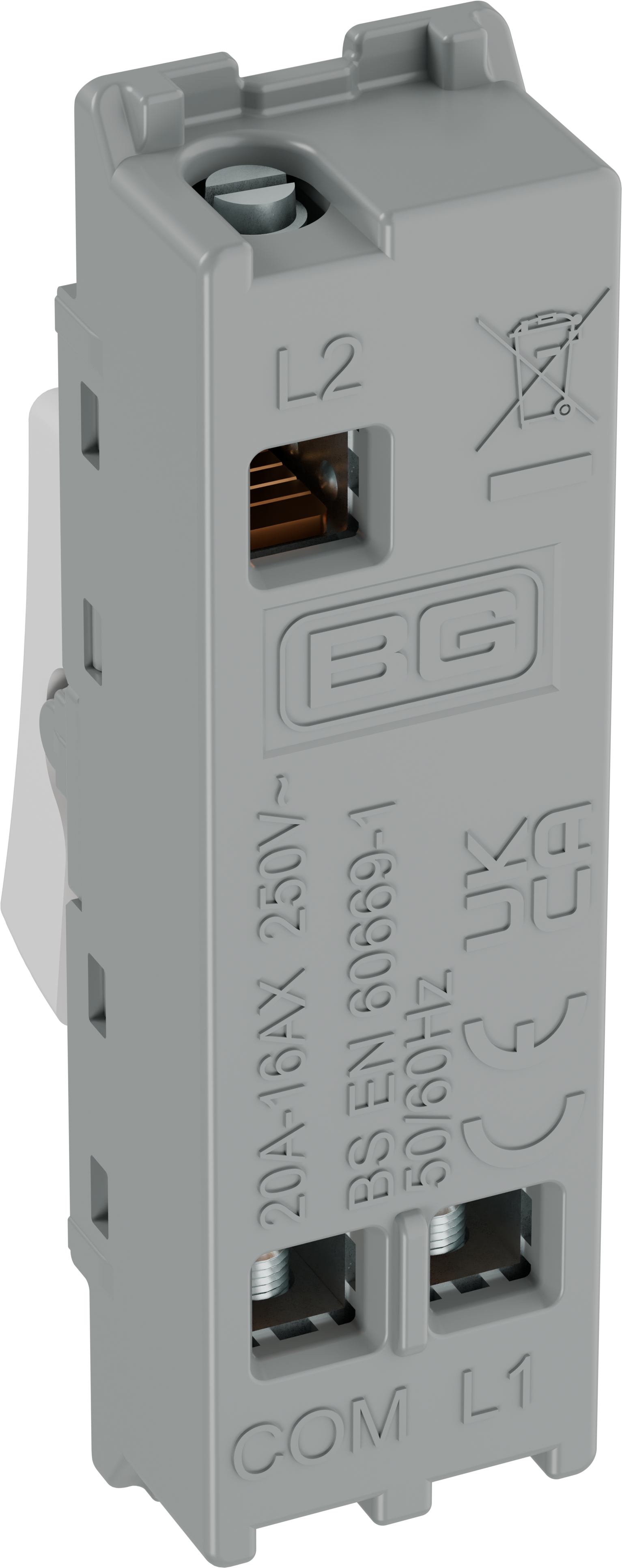

Easy Wiring: Clearly labelled terminals with backed-out retained screws to prevent screw loss. Fits standard 16mm back boxes, ideal for retro-fitting (3+ gangs will require 25mm minimum).

Versatility: Fit 3 modules on a 1-gang plate for compact, consistent installs, with interchangeable modules across BG GridLite ranges for seamless mixing, matching, and simplified stock management.

General Colour	Gloss White
Captive Terminal Screws	Yes
Backed-out Terminal Screws	Yes
Minimum Box Depth (mm)	16
Terminal Capacity (# x mm²)	2 x 2.5, 4 x 1.0, 1 x 4
Anti-fingerprint Lacquer	No
Anti-microbial Property	No

Fixing Screws Supplied	Not Applicable
Terminal Arrangement	Inline
Terminals with Colour Coding Print	No
Number of Switches	1
Screw Caps	Not Applicable
Switch Style Type	Rocker
Switch Type (Ways & Poles)	Two Way
