851-01

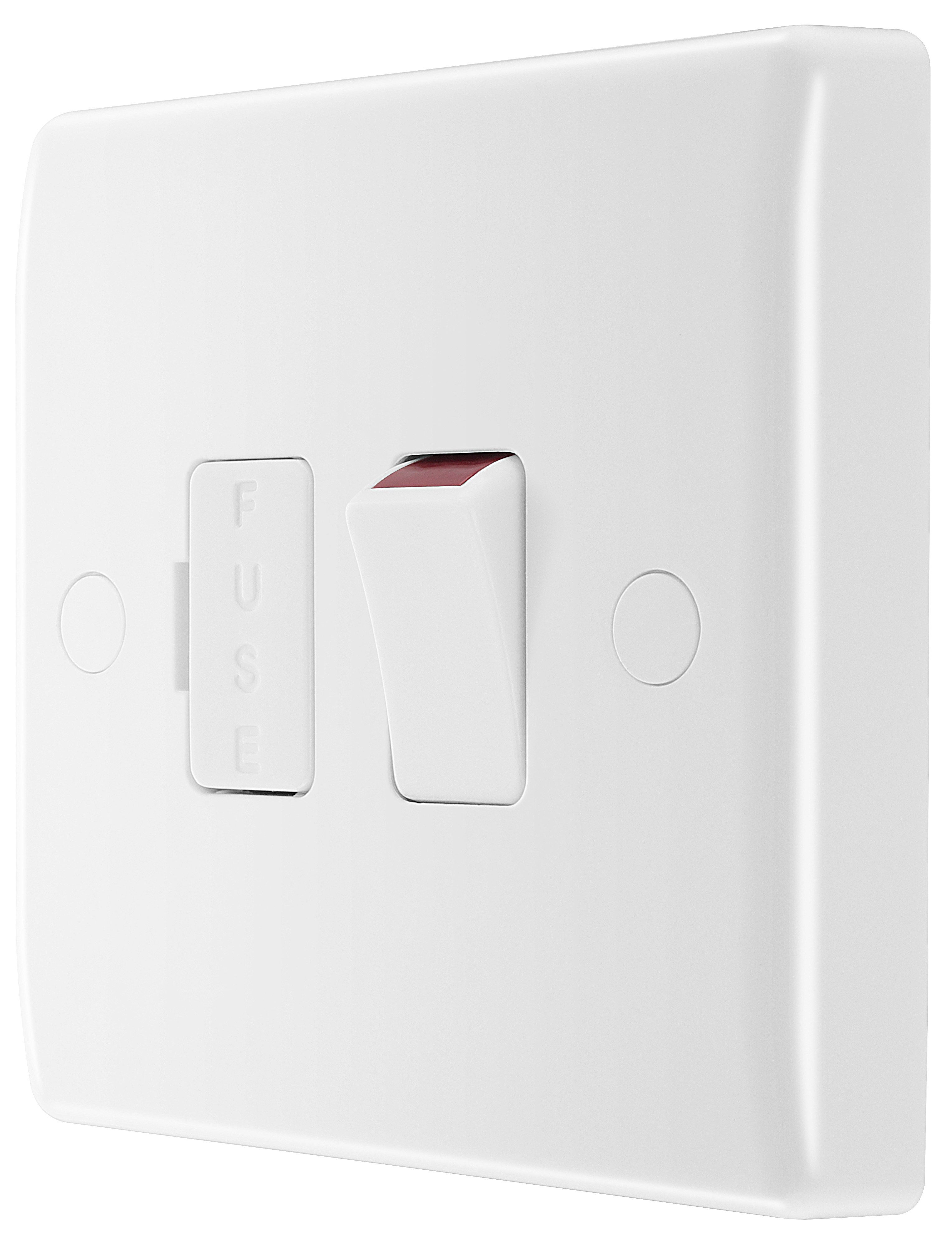

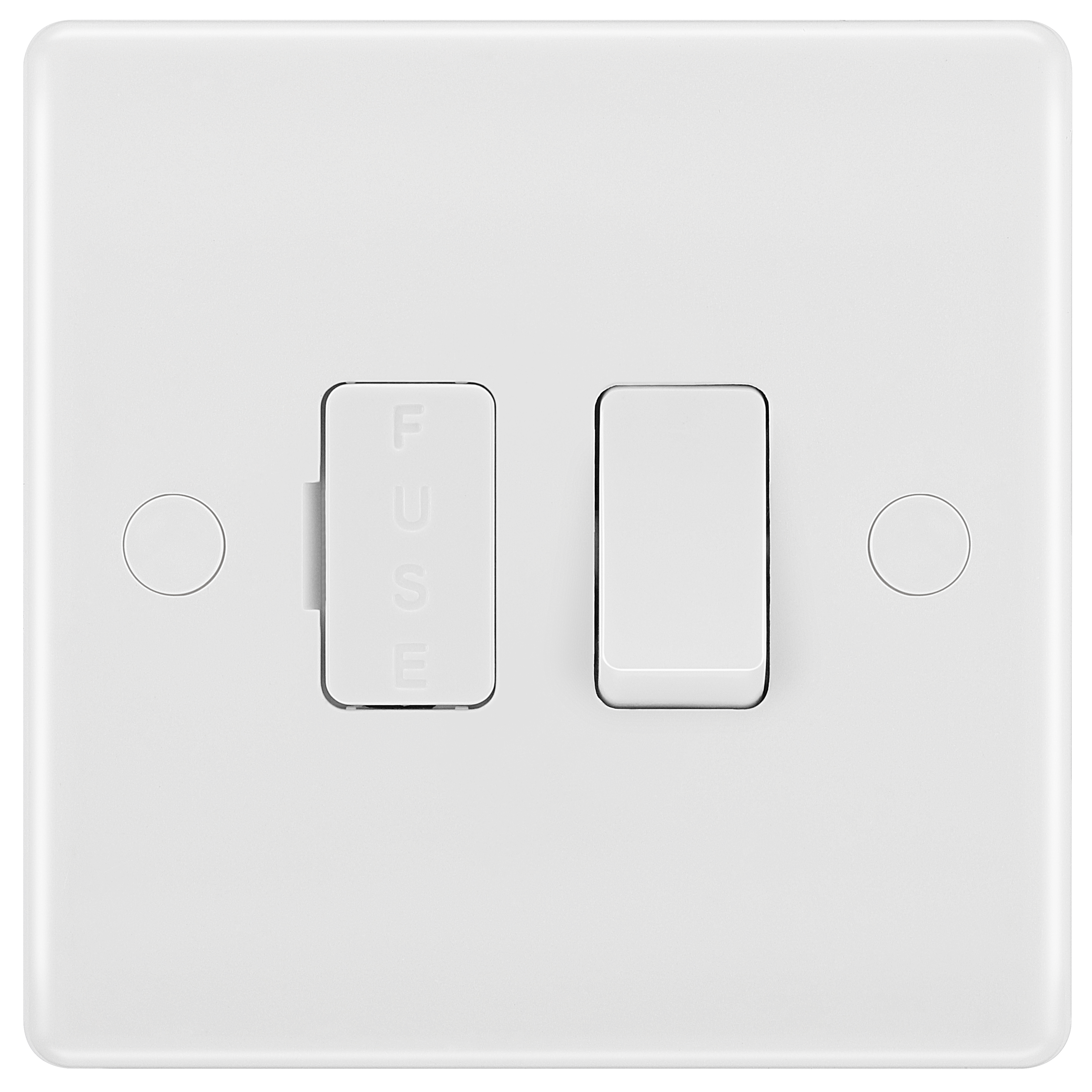

BG Nexus Series White Moulded 13A Switched Fused Connection Unit with Flex Outlet
13A Rated
Easy to install supplied with fixing screws and installation instructions

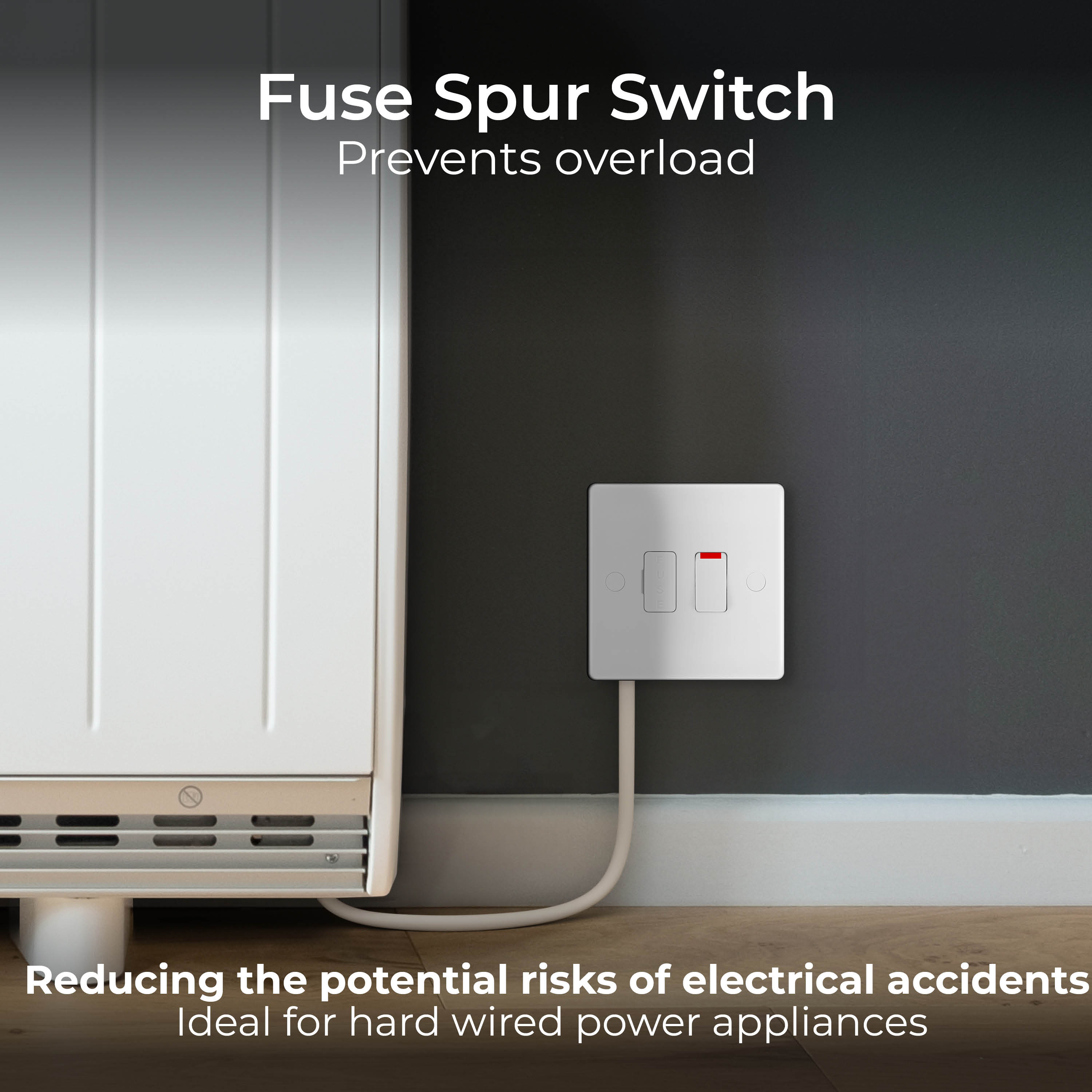

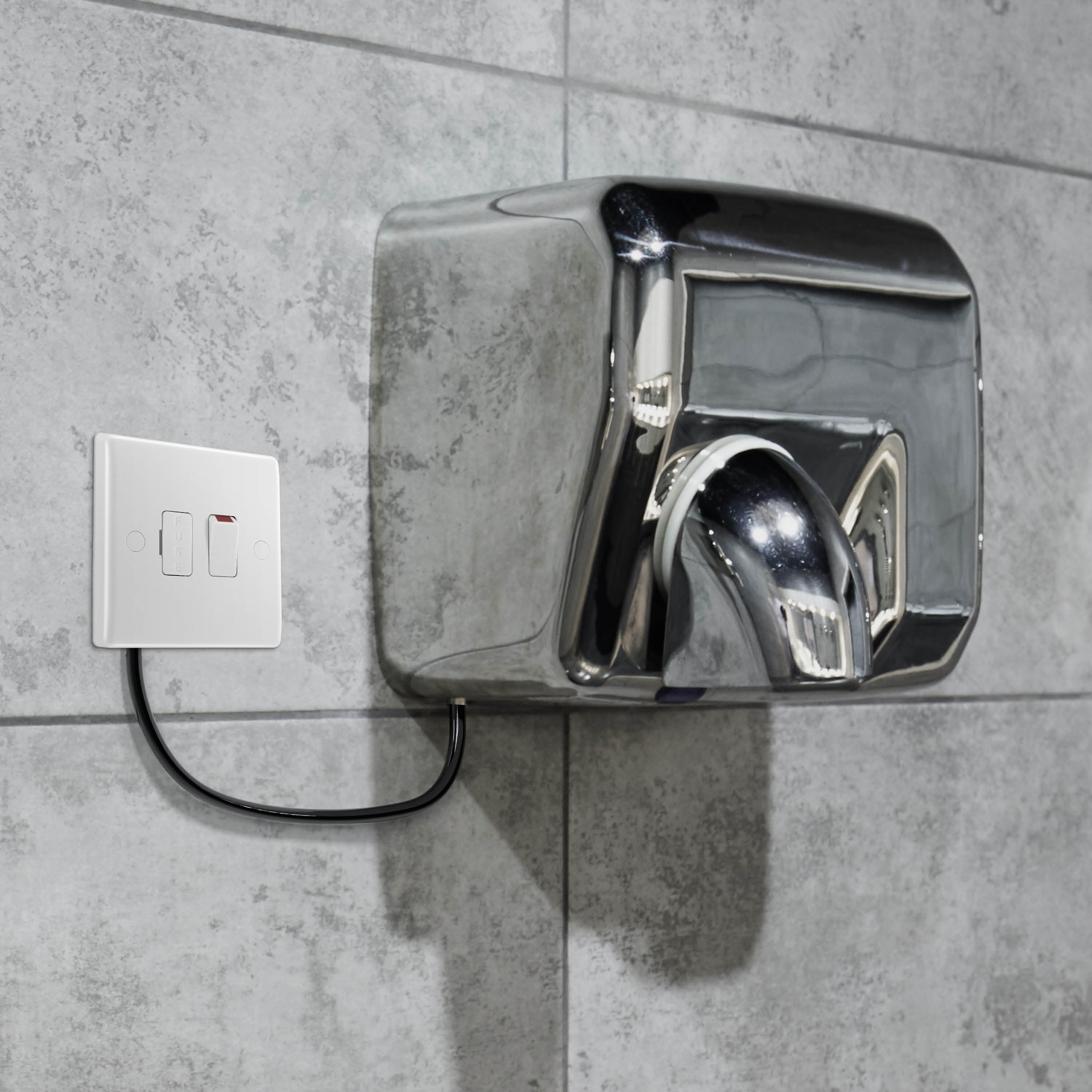

Ideal for spur circuits and hard wired power appliances

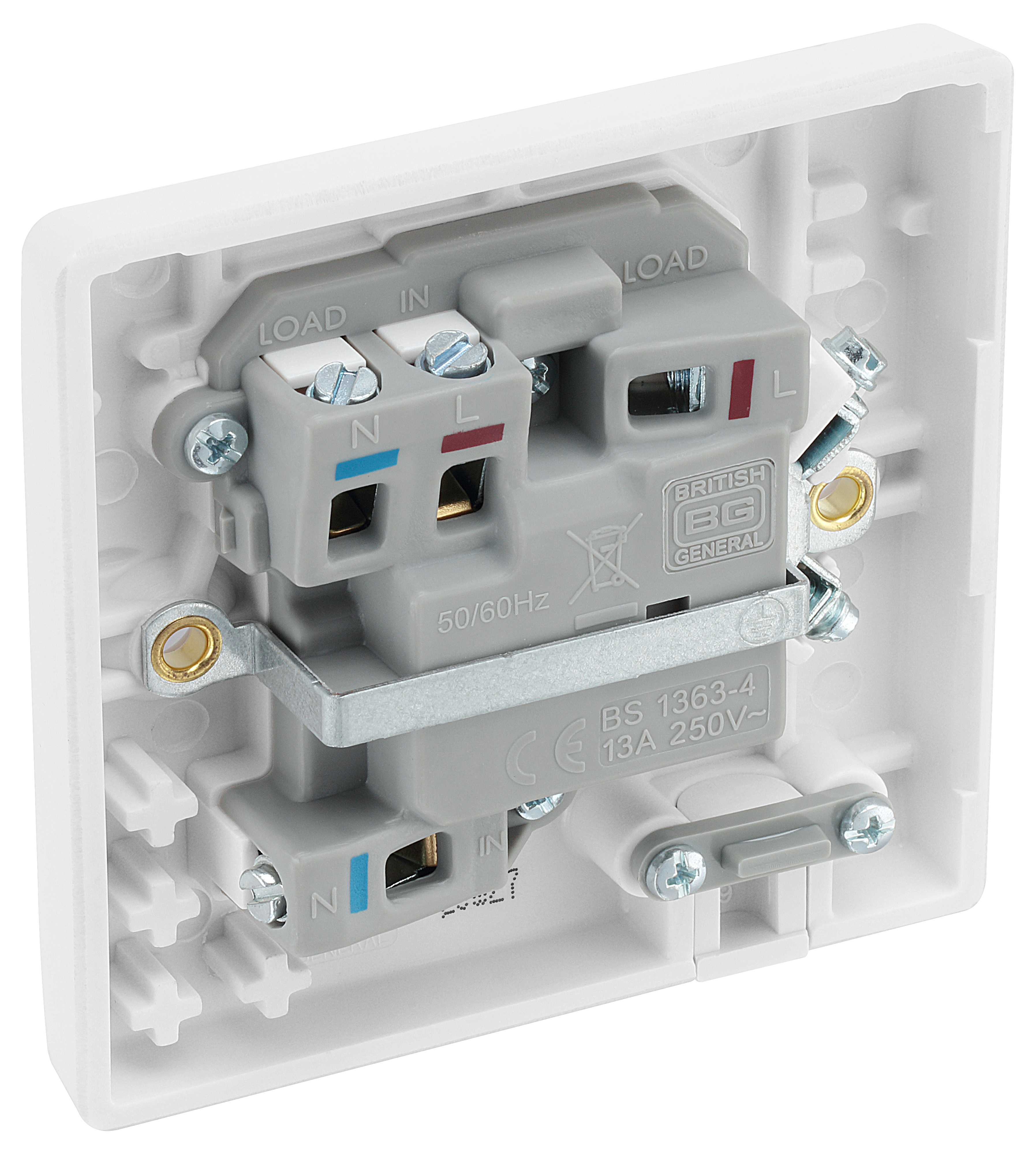

Angled colour coded terminals for ease of installation

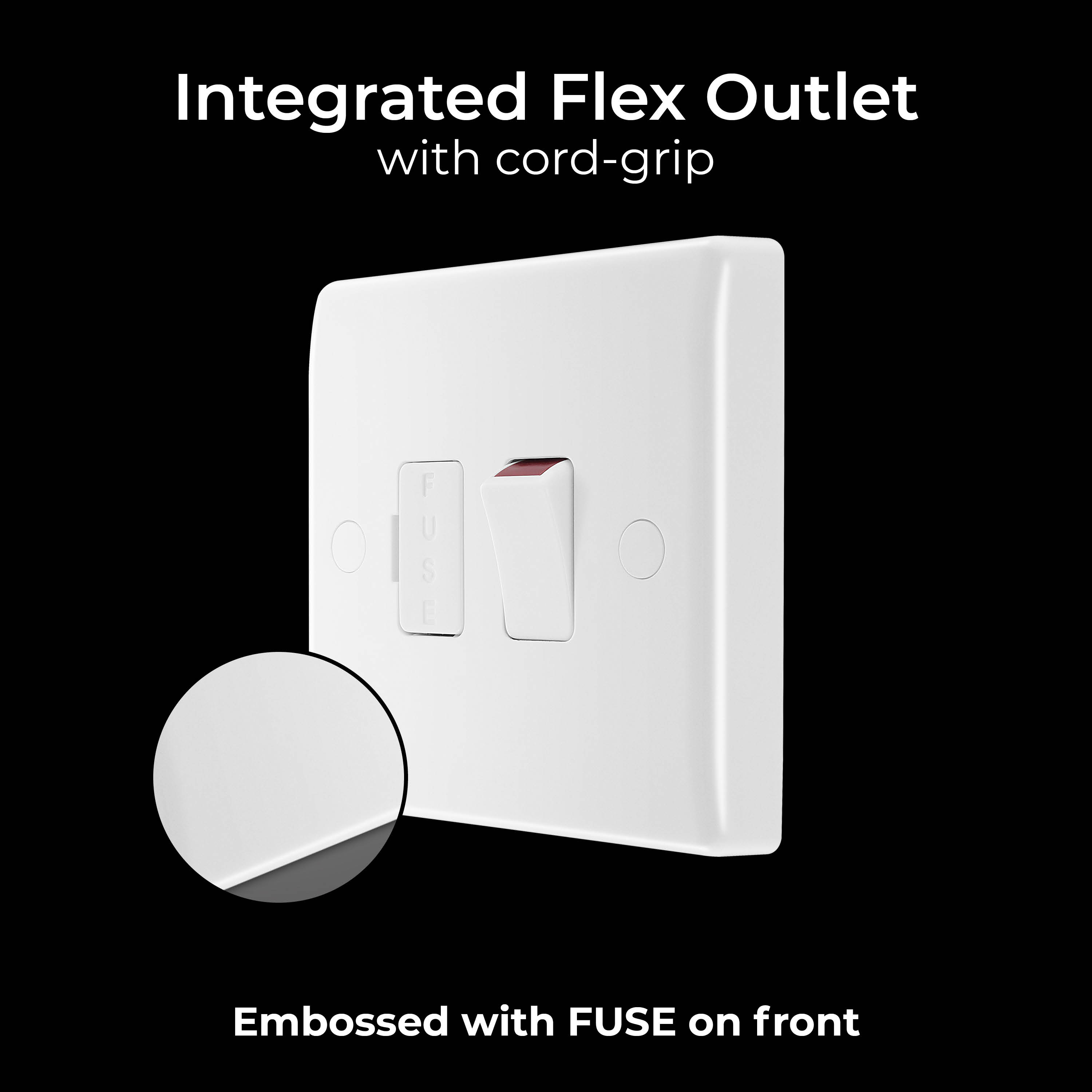

Integrated flex outlet has a cord grip in the lower edge with a removable knockout
Captive screws prevent screw loss

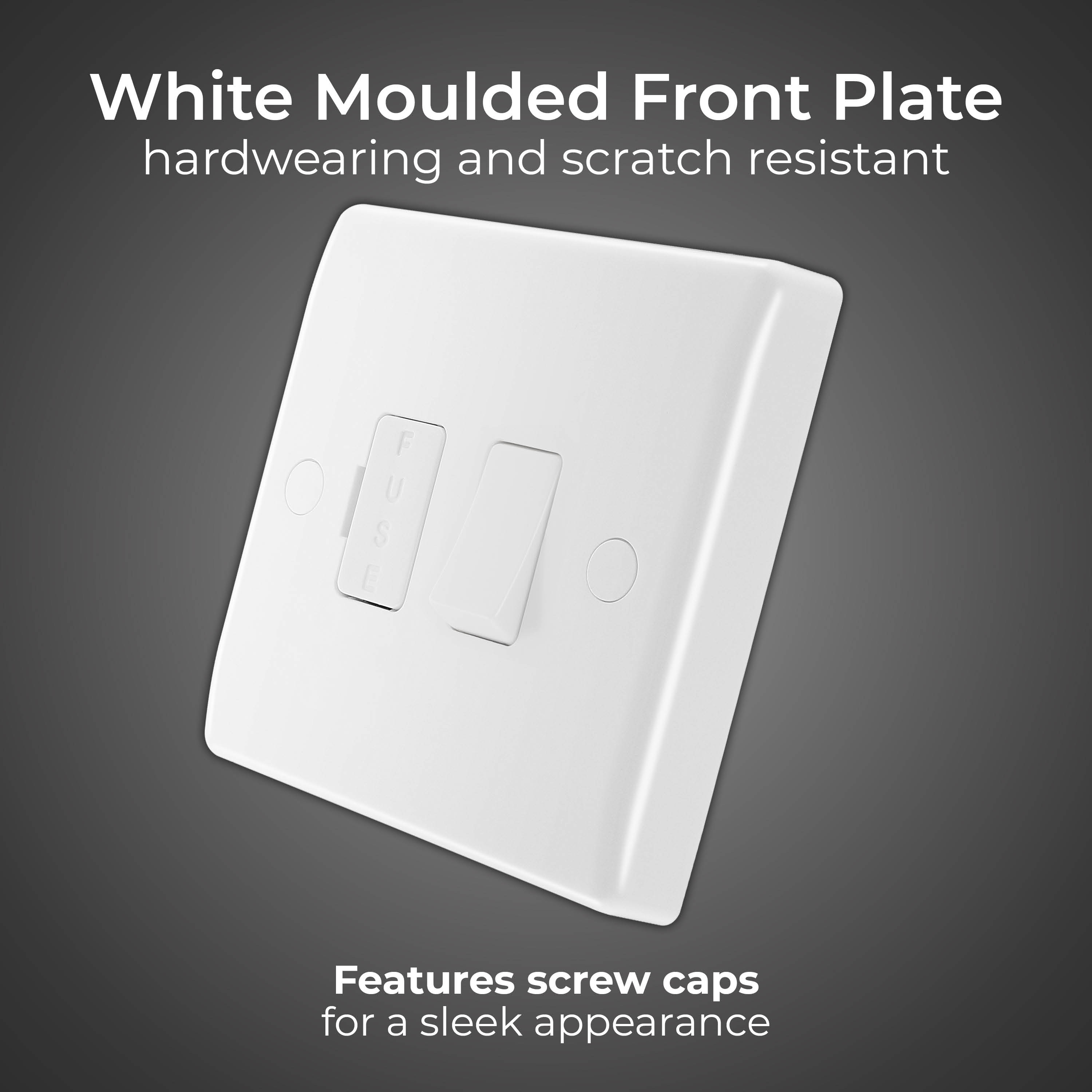

Screw covers for sleek appearance

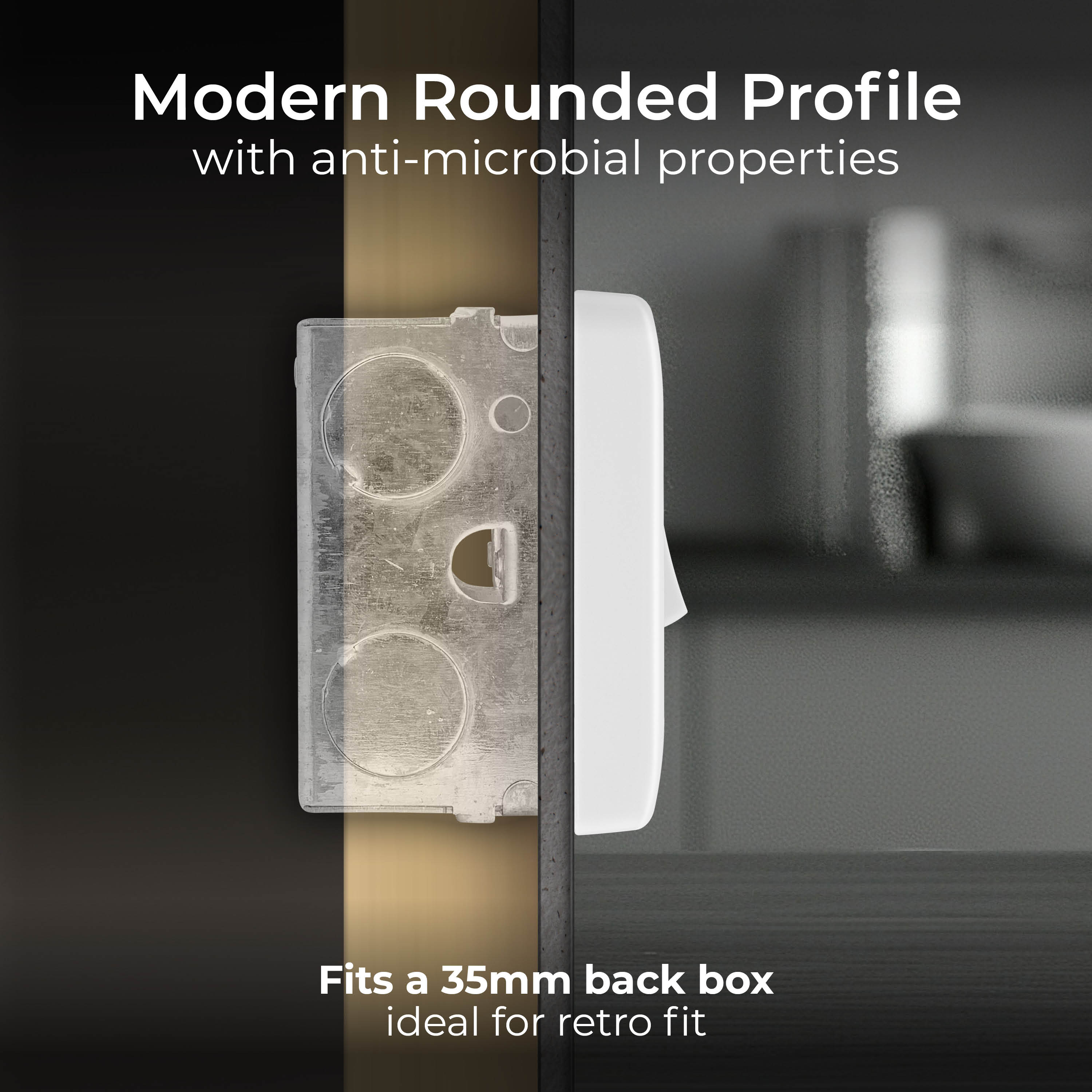

Minimum mounting box depth 35mm
Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
ASTA Licence number 1015
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Fused | Yes |
| Fused Holder Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Flex Out | Yes |
| Flex Out Position | Bottom Edge |
| Supplied with Mounting Box | No |
| Cable Outlet | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 30 |
