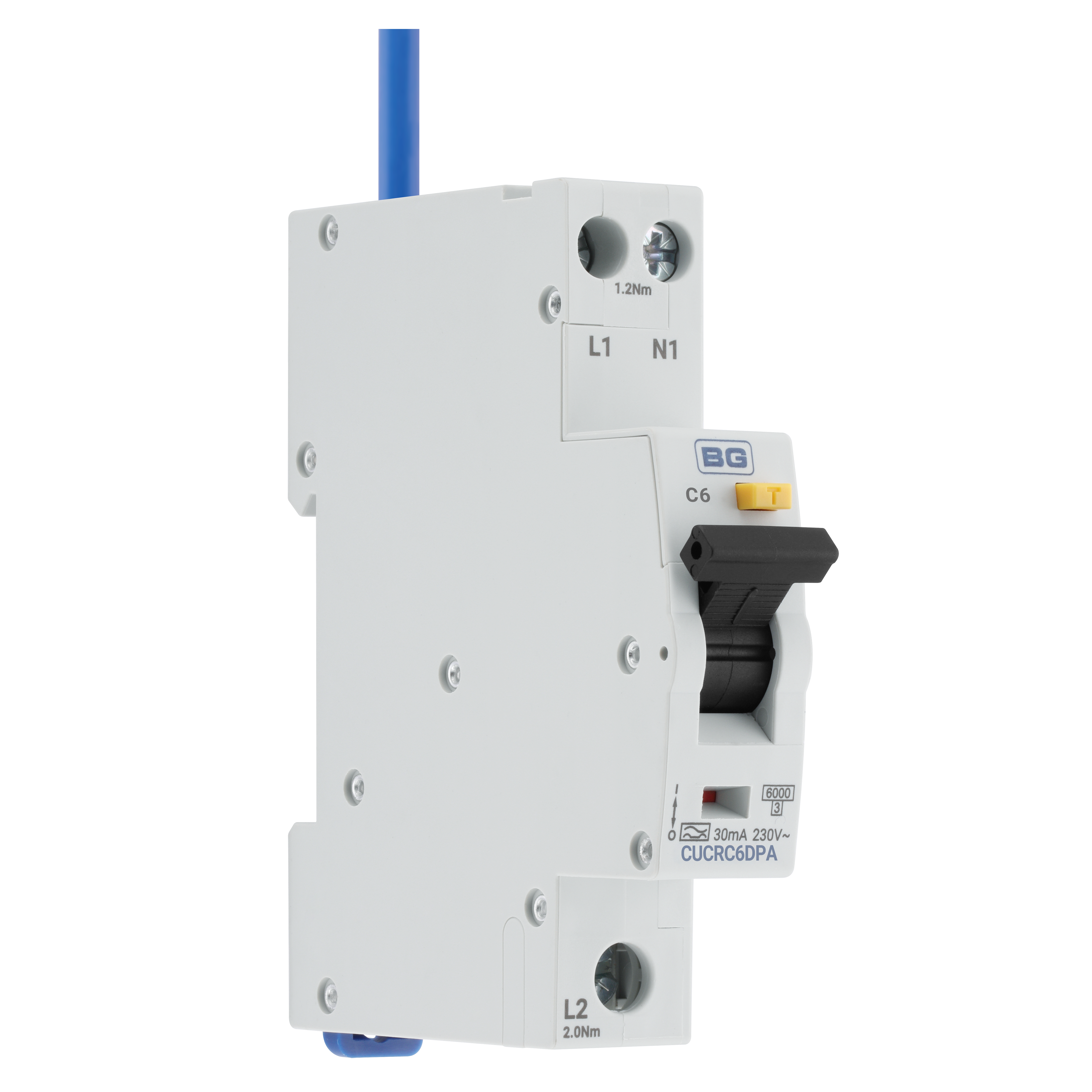

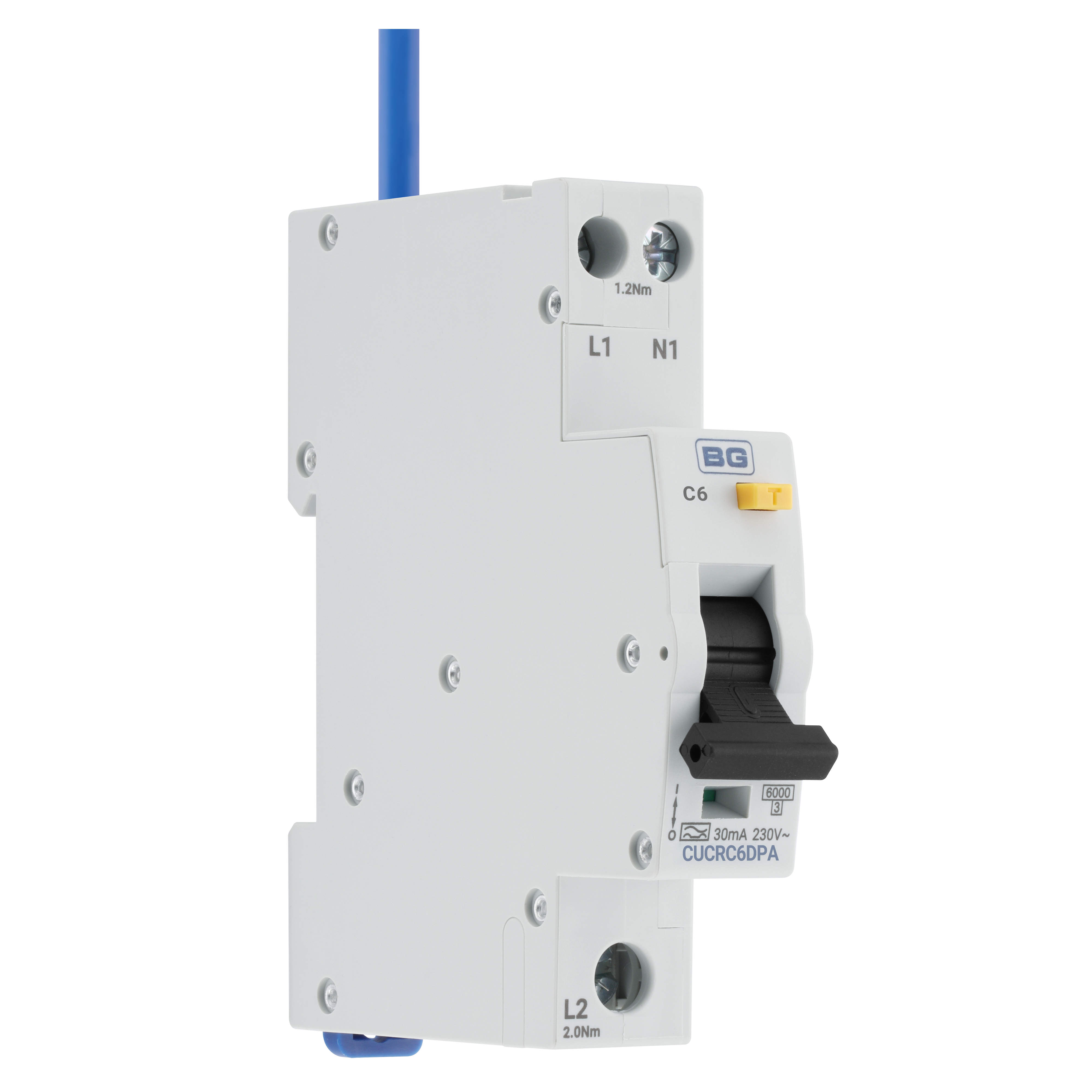

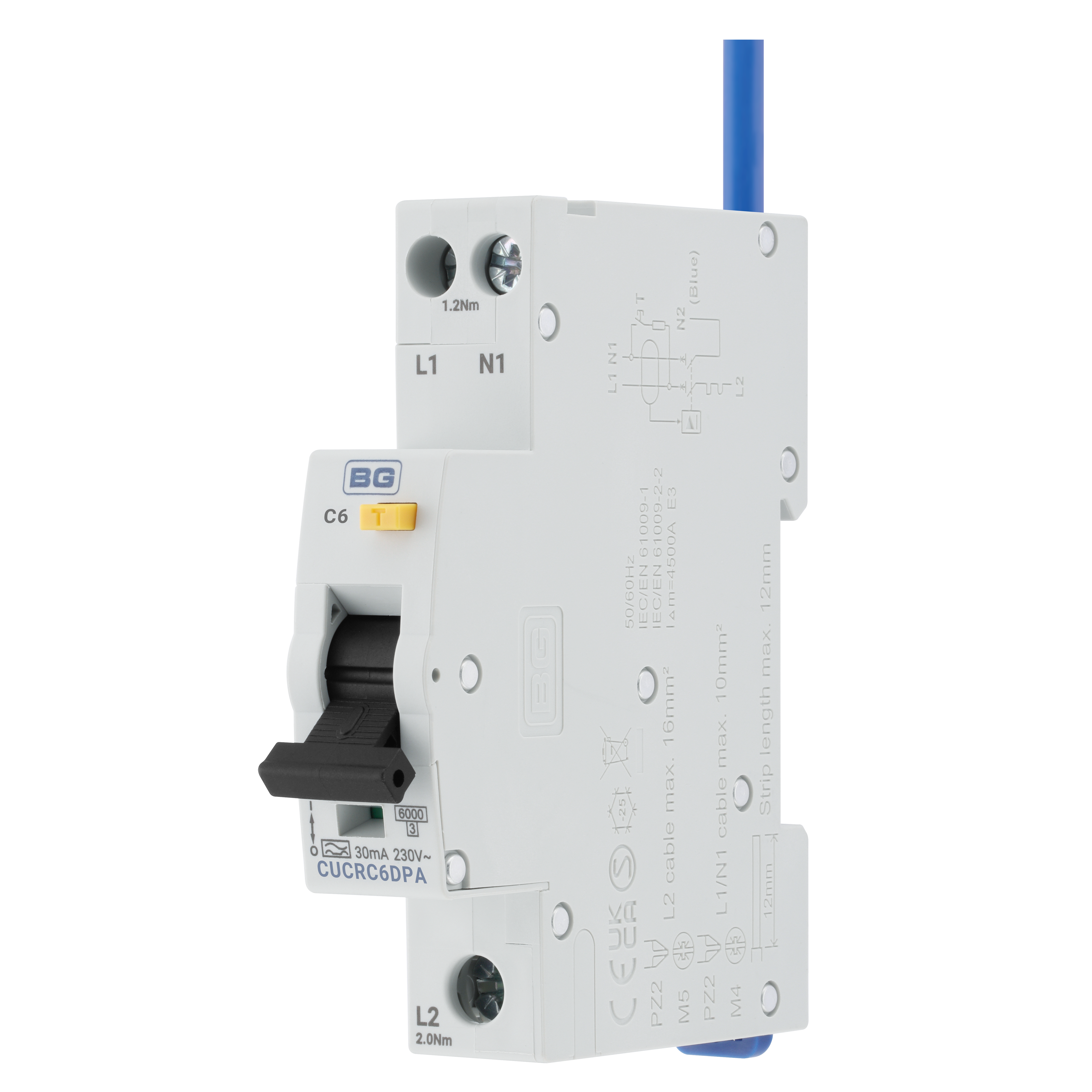

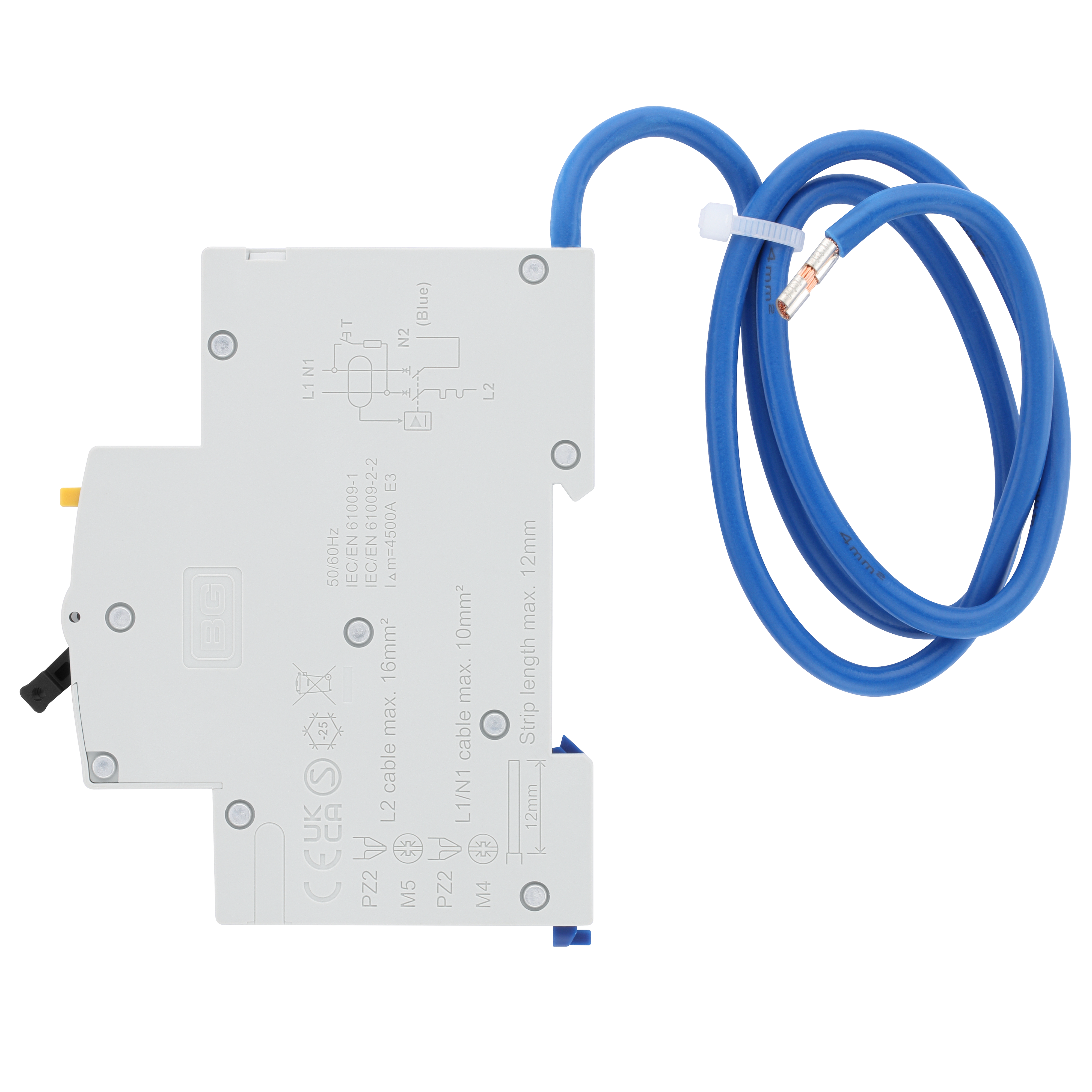

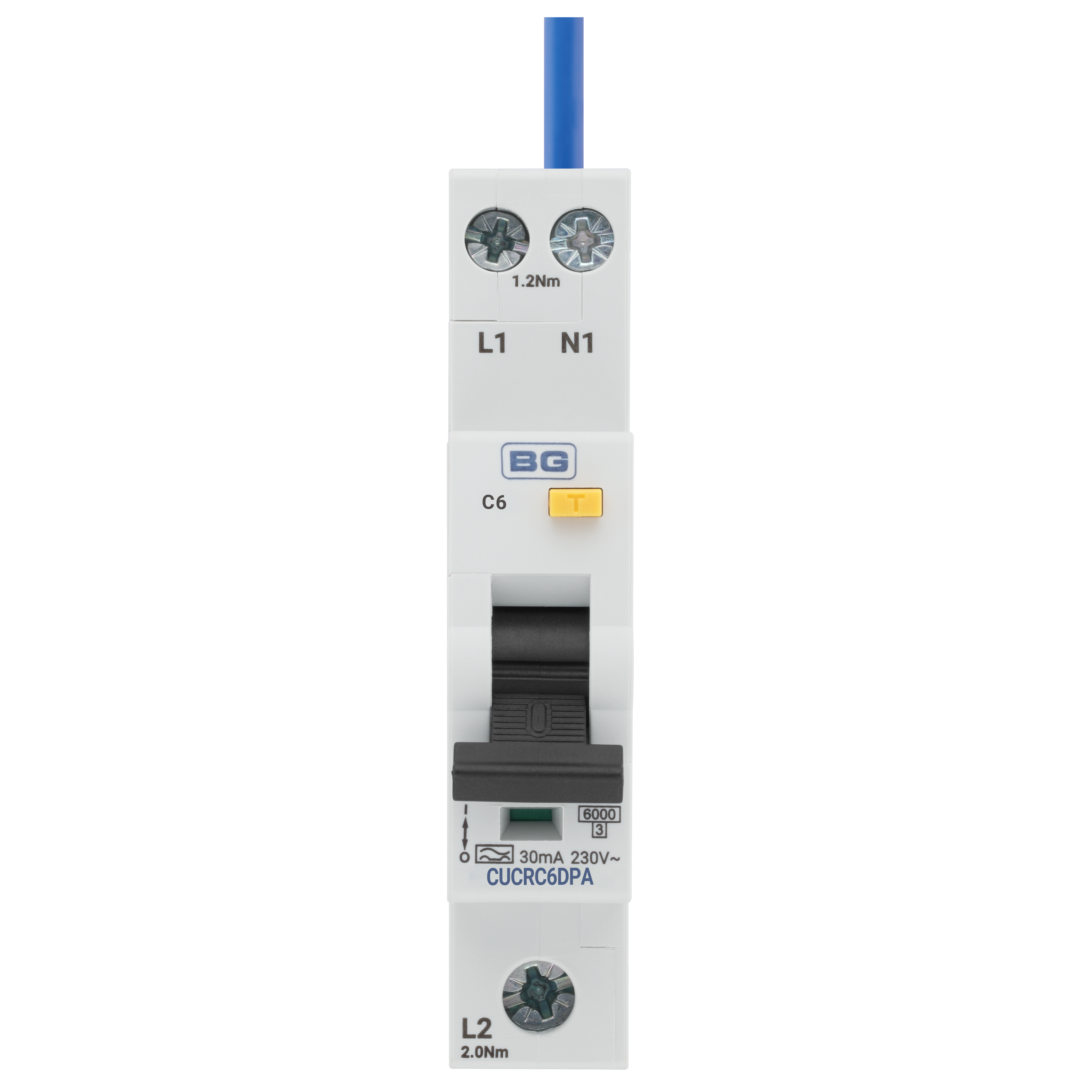

CUCRC6DPA-02
Bidirectional 6A 30mA c curve Type A RCBO double pole 1 module
30mA Earth Leakage Protection
Type A
1 Module
DIN-Rail Mounted
6A Rated
C Curve
Double Pole
| General Colour | Light Grey |
| Module Width (mm) | 18 |
| Endurance Operations - Electrical | 10000 |
| Endurance Operations - Mechanical | 20000 |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| RCD Type | Type A |
| Devices | RCBO |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 6 |
| Operating Temperature (°C) | -25 to +40 |
| Rated Trip Current (mA) | 30mA |
| Frequency (Hz) | 50 |
