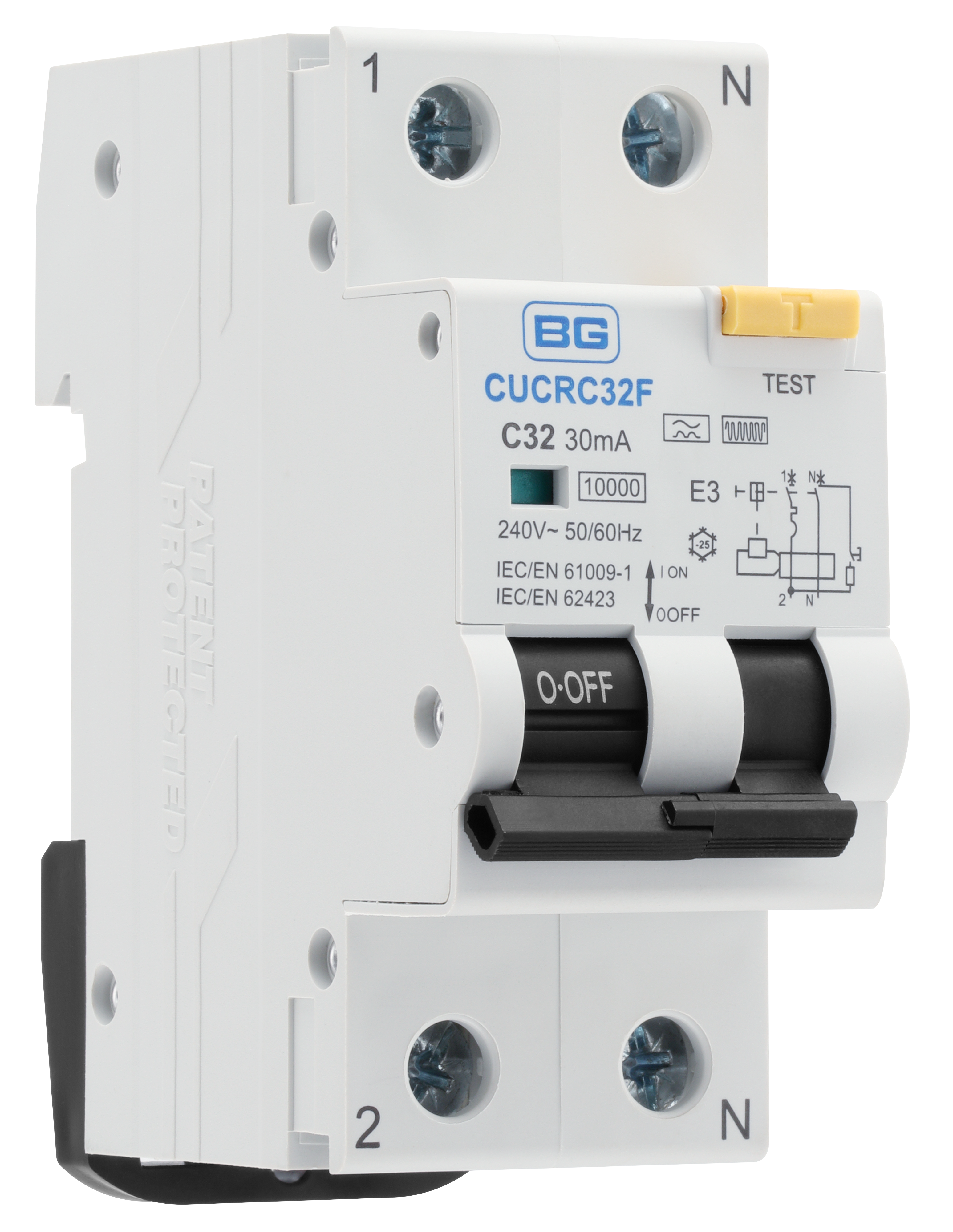

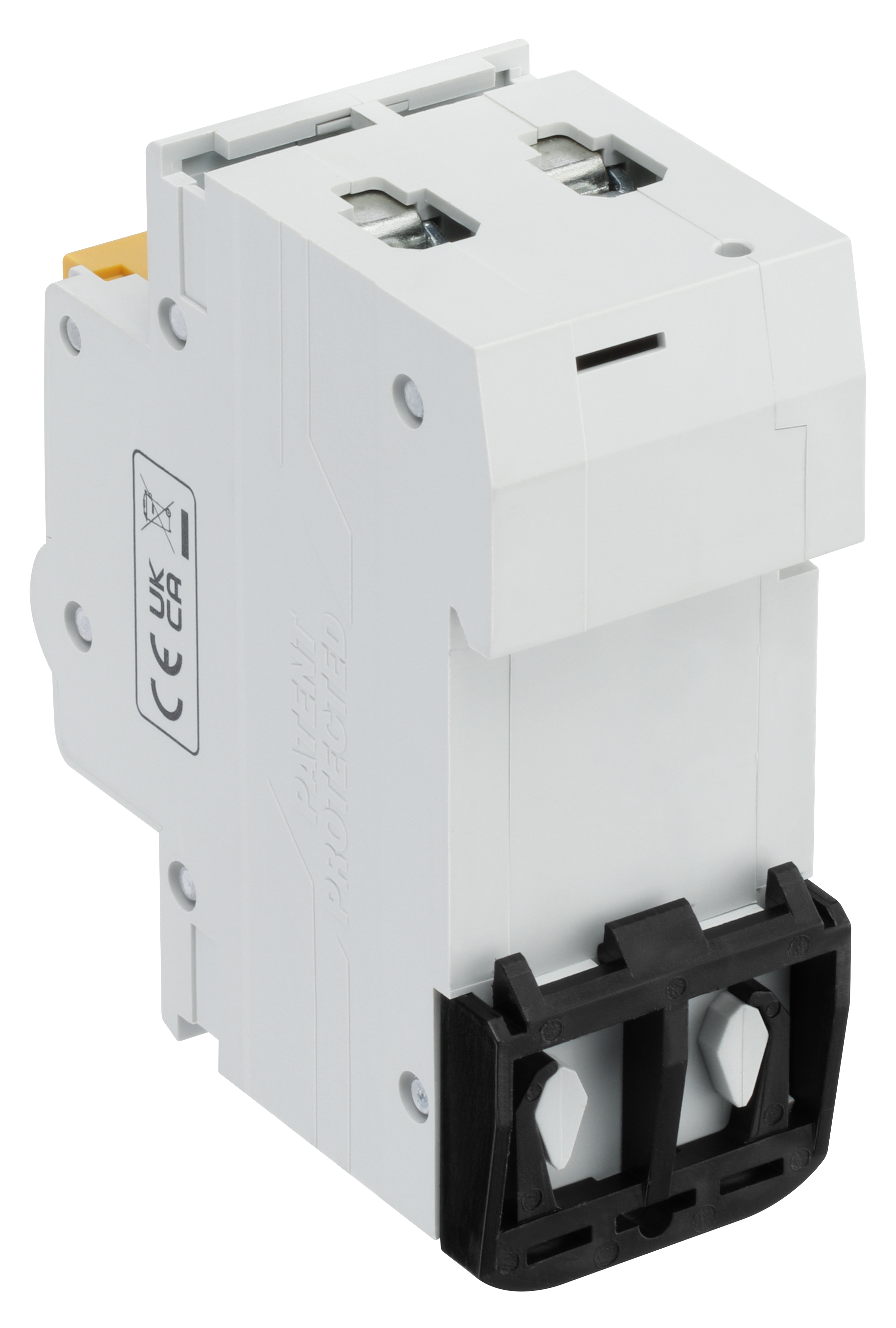

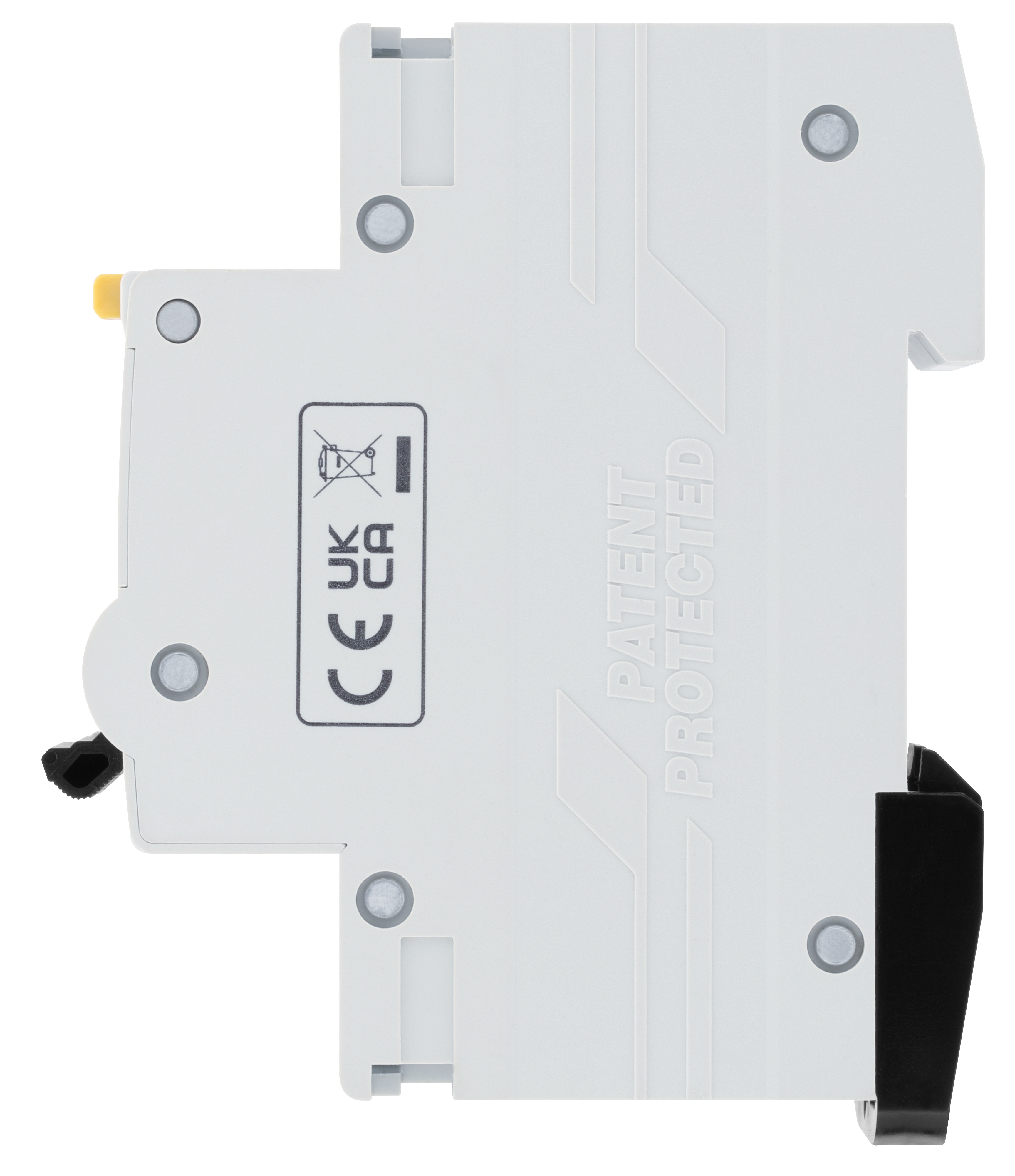

CUCRC32F-01
Bidirectional 32A C Curve Compact RCBO 30mA Type F 2 Pole RCBO 2 Module
Bidirectional
-25°C to + 40 operating temperature
F Type
32A
2 Pole
2 Module
10kA breaking capacity
Manual test button
Isolates both L & N poles
Can be used in BG consumer units and enclosures
| General Colour | Light Grey |
| Timer Override | Not Applicable |
| Module Width (mm) | 36 |
| Timer Type | N/A |
| Endurance Operations - Electrical | 10000 |
| Endurance Operations - Mechanical | 20000 |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Devices | RCBO |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 32 |
| Operating Temperature (°C) | -25 to +40 |
| Rated Trip Current (mA) | 30mA |
| Terminal Capacity (# x mm²) | 1 x 25 |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
