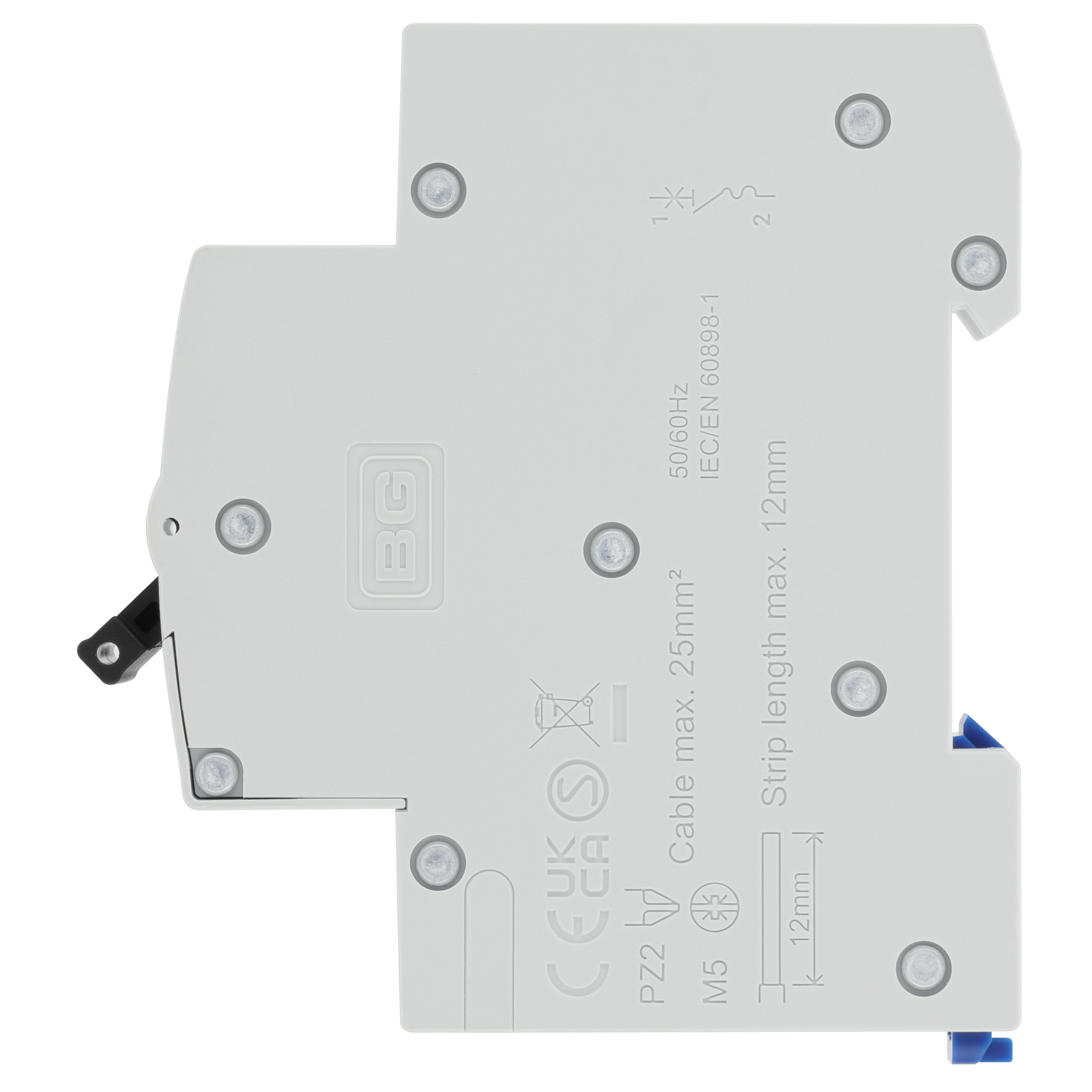

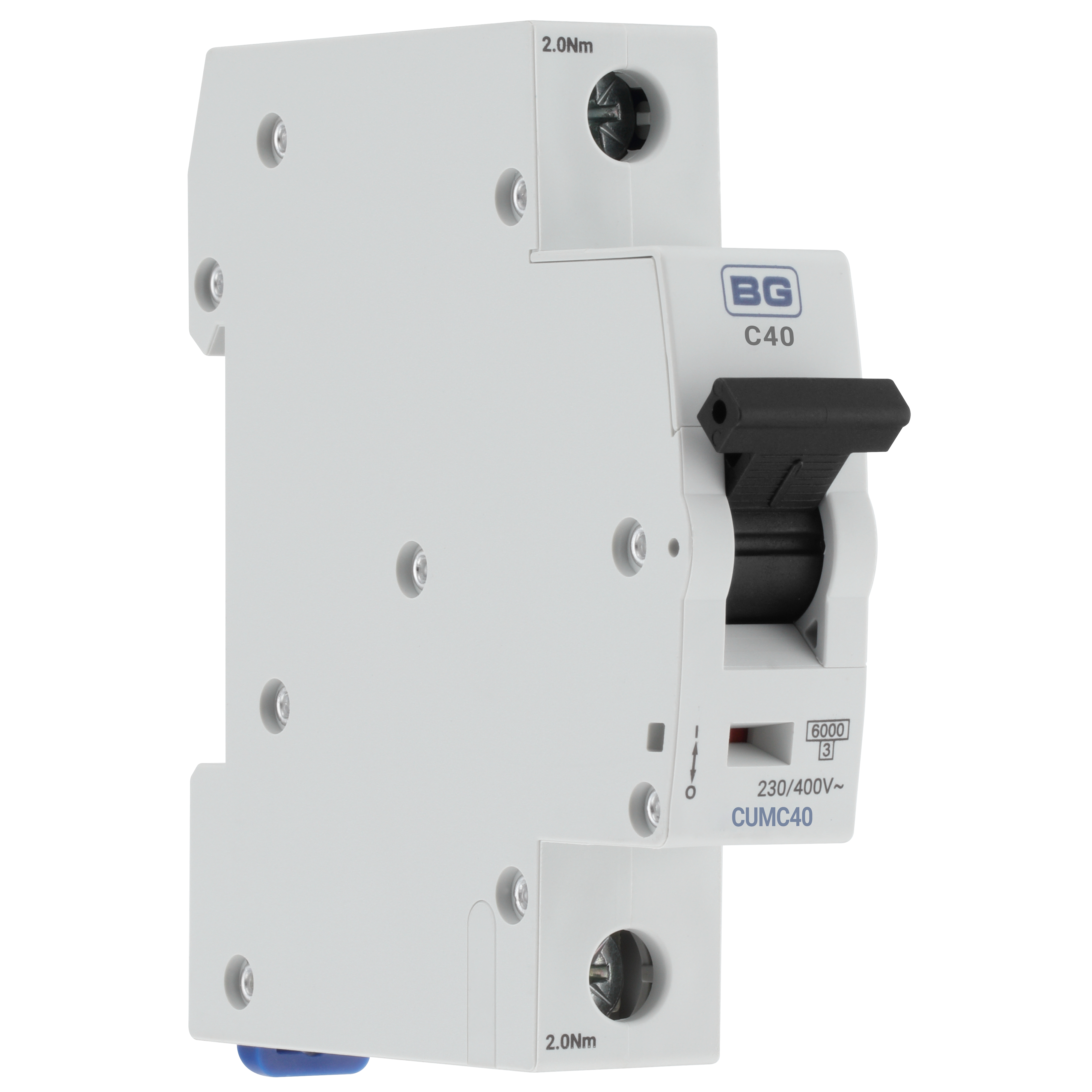

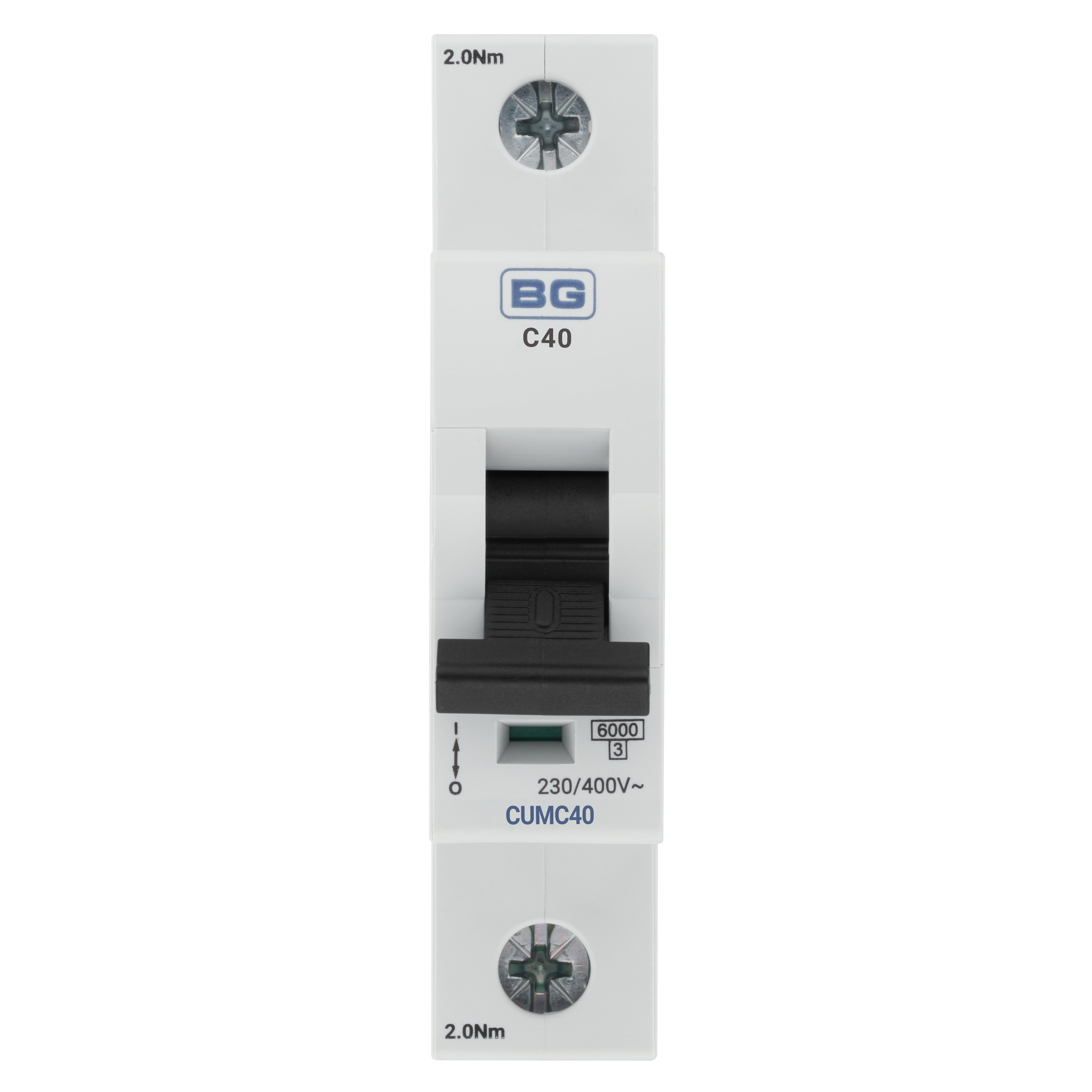

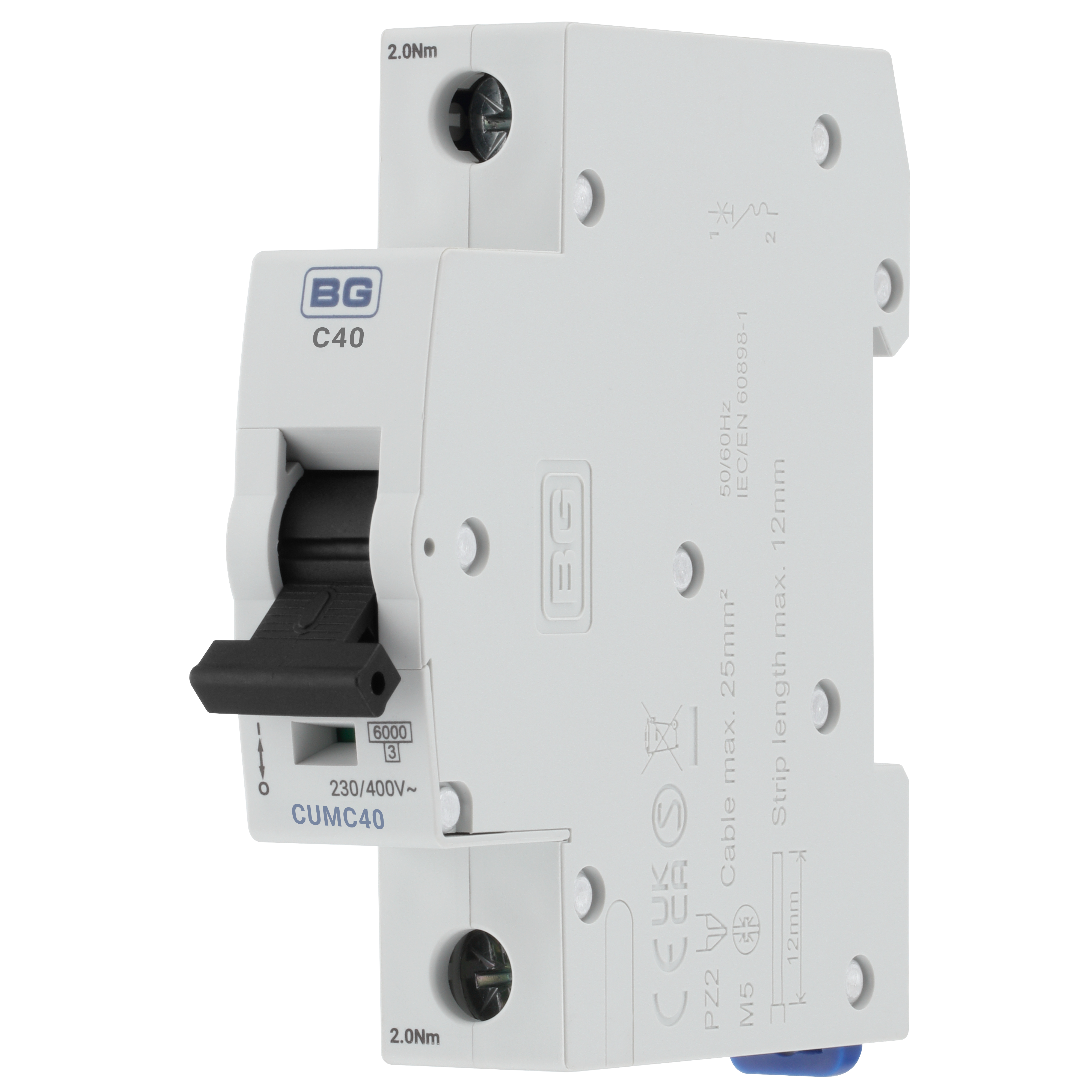

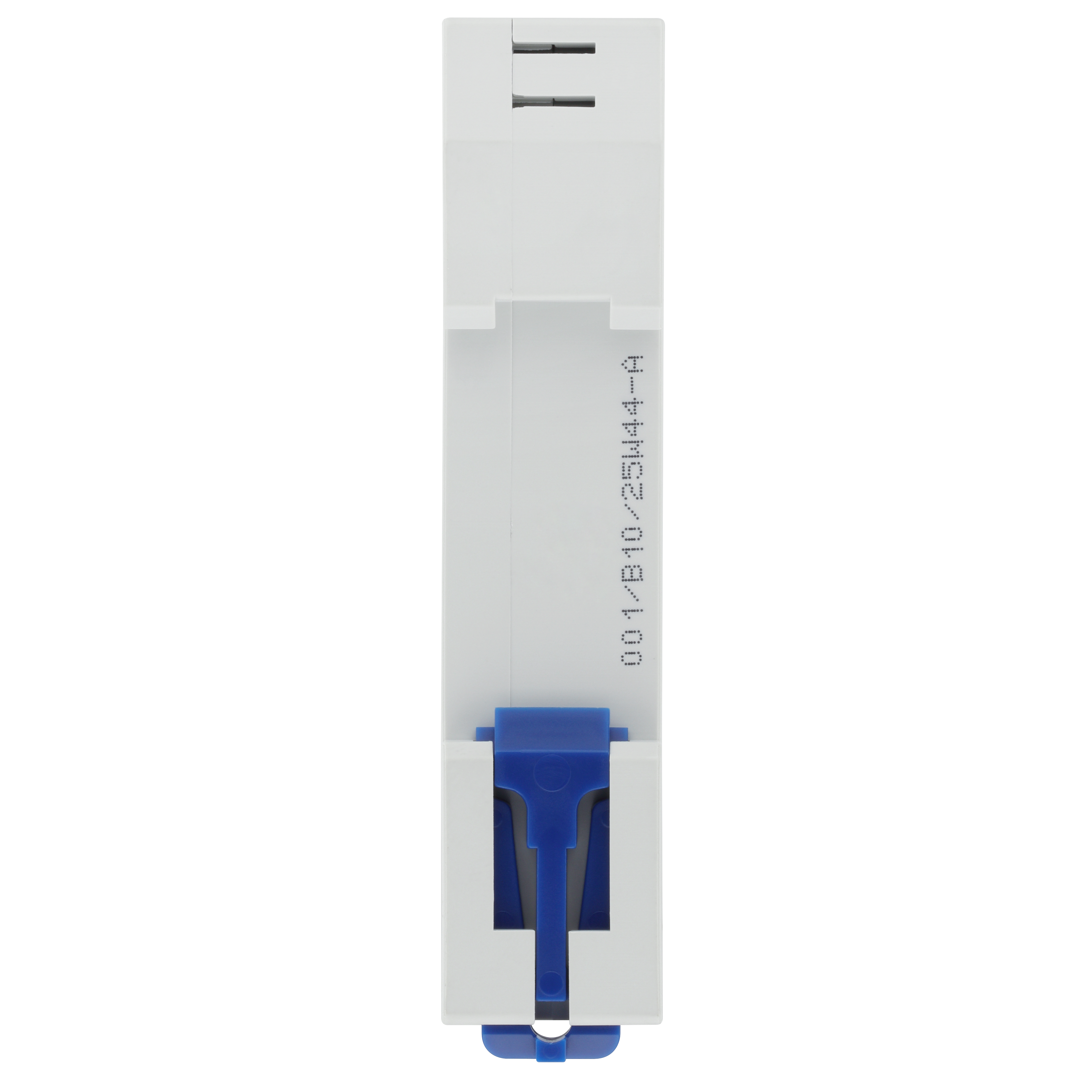

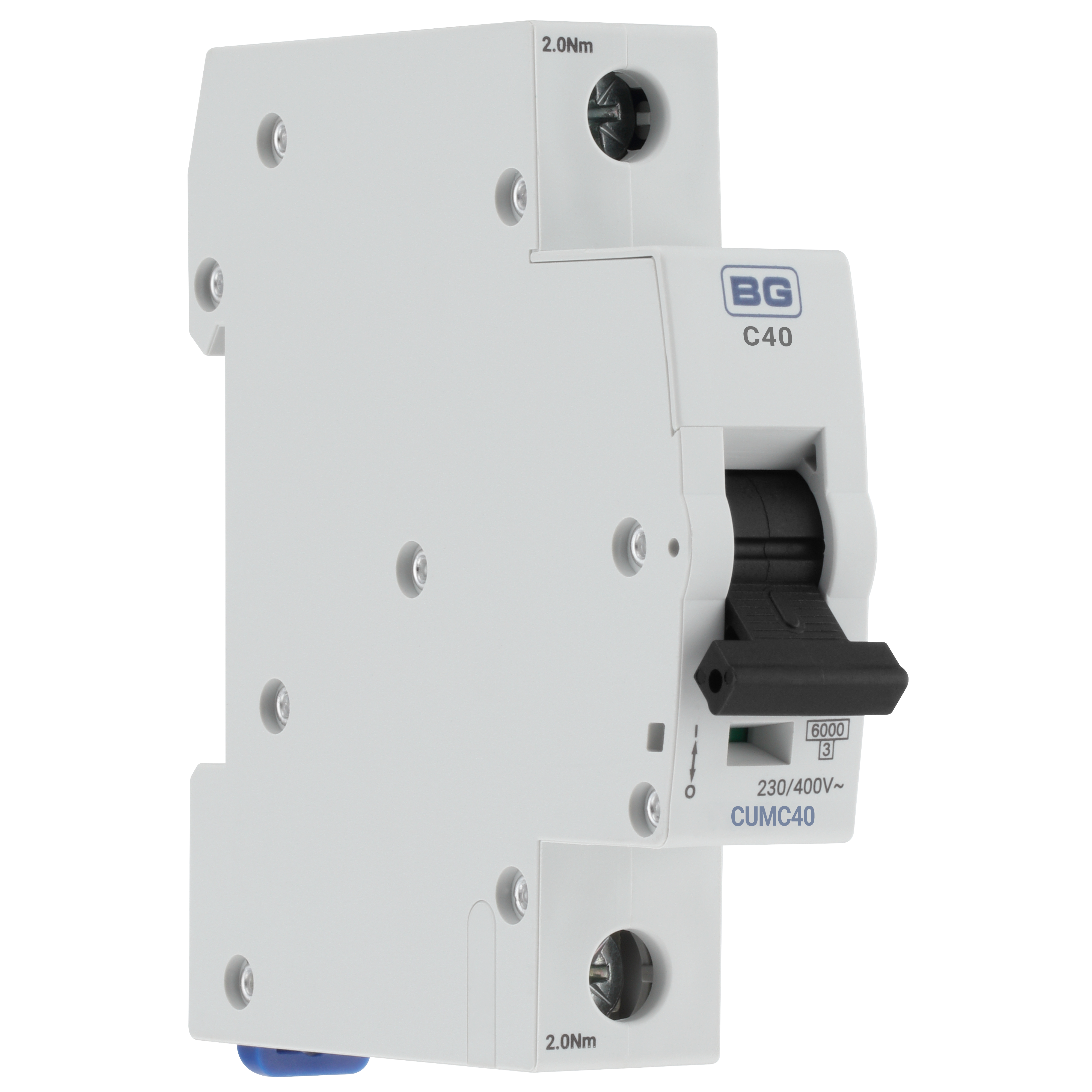

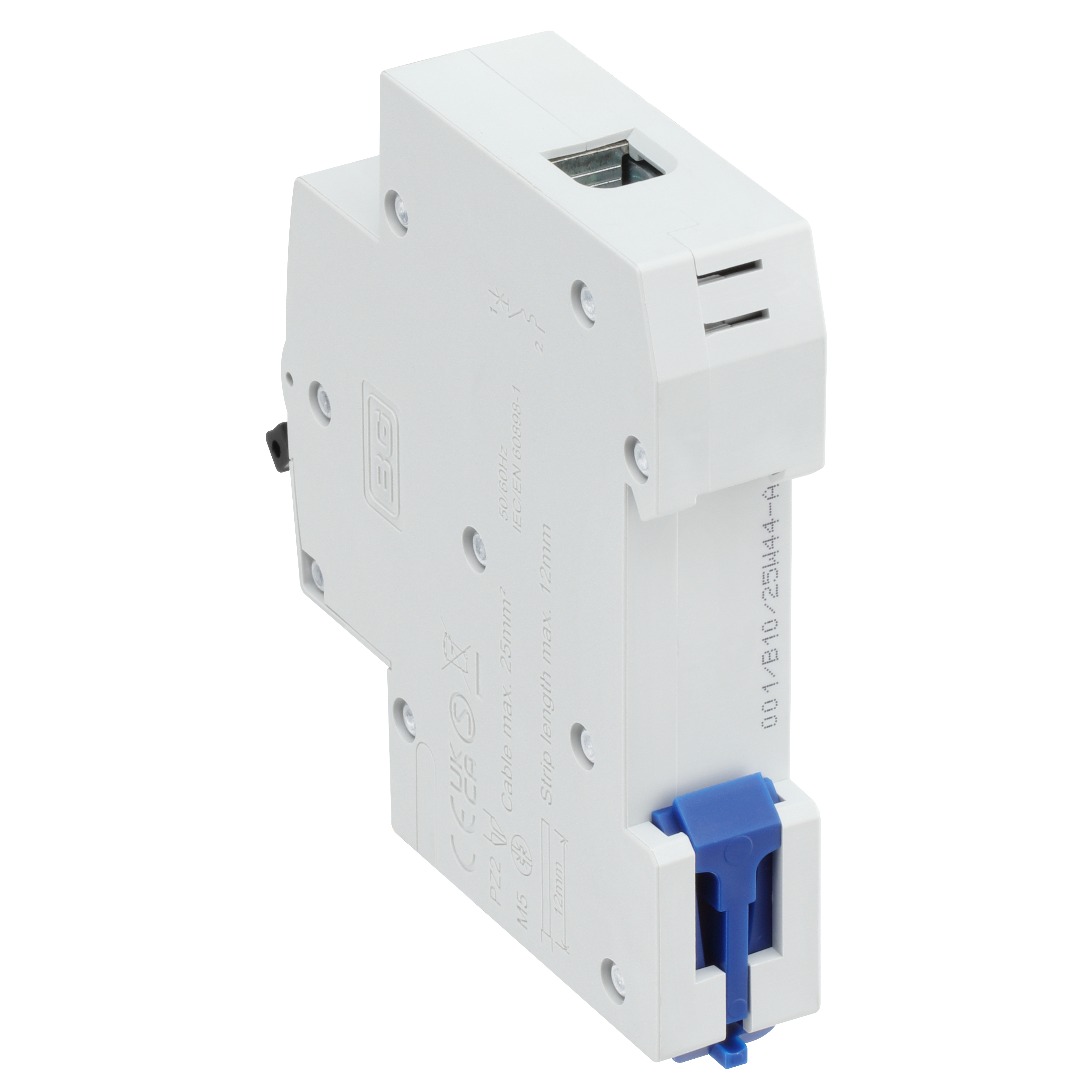

CUMC40-02
Bidirectional 40A 6ka MCB c curve single pole 1 module
1 Module
Bidirectional
DIN-Rail Mounted
40A Rated
6kA Short-Circuit Breaking Capacity
C Curve
Single Pole
| General Colour | Light Grey |
| Timer Override | Not Applicable |
| Timer Type | N/A |
| Endurance Operations - Electrical | 10000 |
| Endurance Operations - Mechanical | 20000 |
| Response Time (nS) | 0 |
| Surge Rating (kV) | N/A |
| Surge Uc | 0 |
| Surge Uoc | N/A |
| Surge Up | N/A |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | Thermal/Electromagnetic |
| Trip Speed (mS) | 0.04 -5 SEC |
| RCD Type | Not Applicable |
| Devices | MCB |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 40 |
| Operating Temperature (°C) | -5 to +40 |
| Rated Trip Current (mA) | 5-10 X In |
| Switch State | On/Off |
| Surge Protection | No |
| Frequency (Hz) | 50 |
